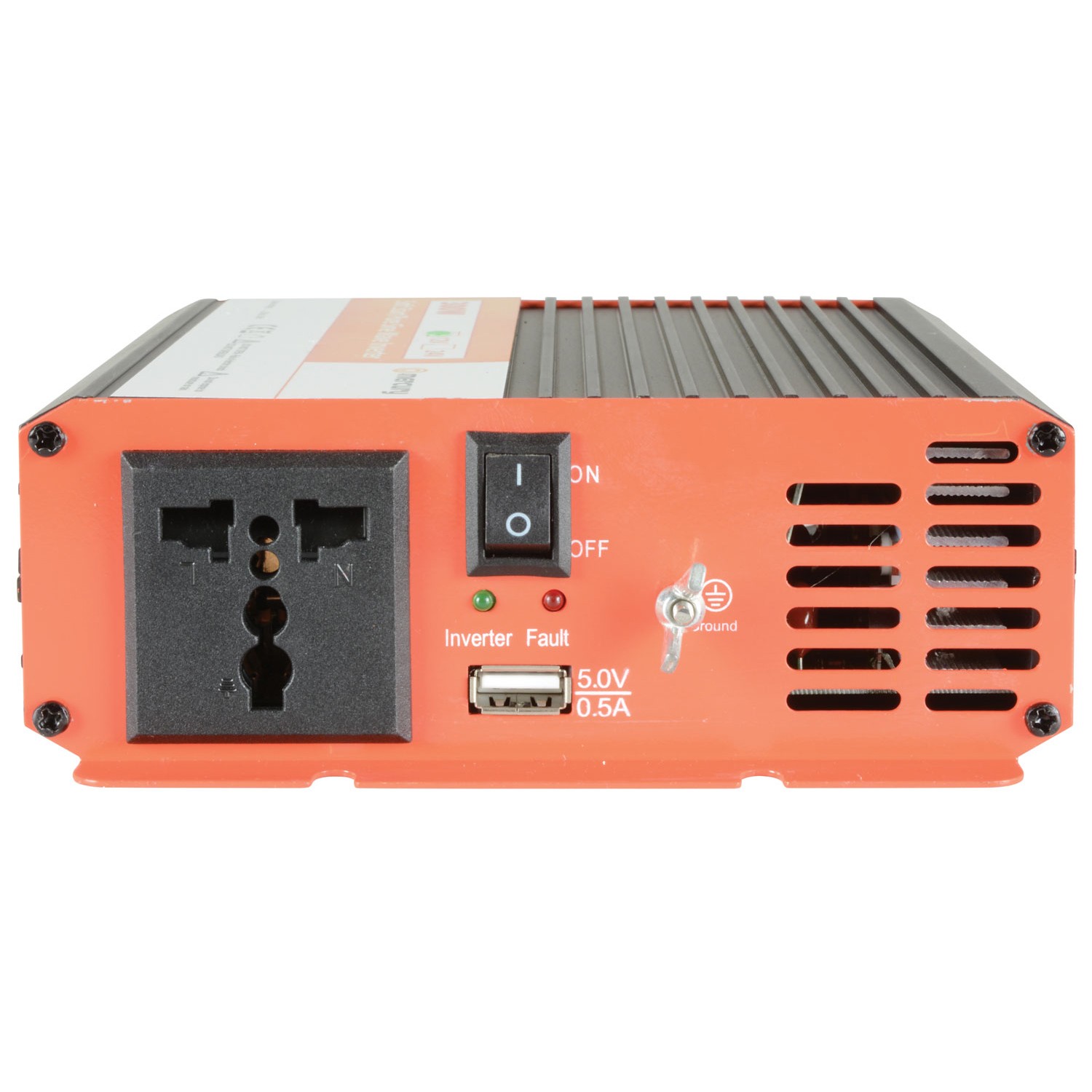

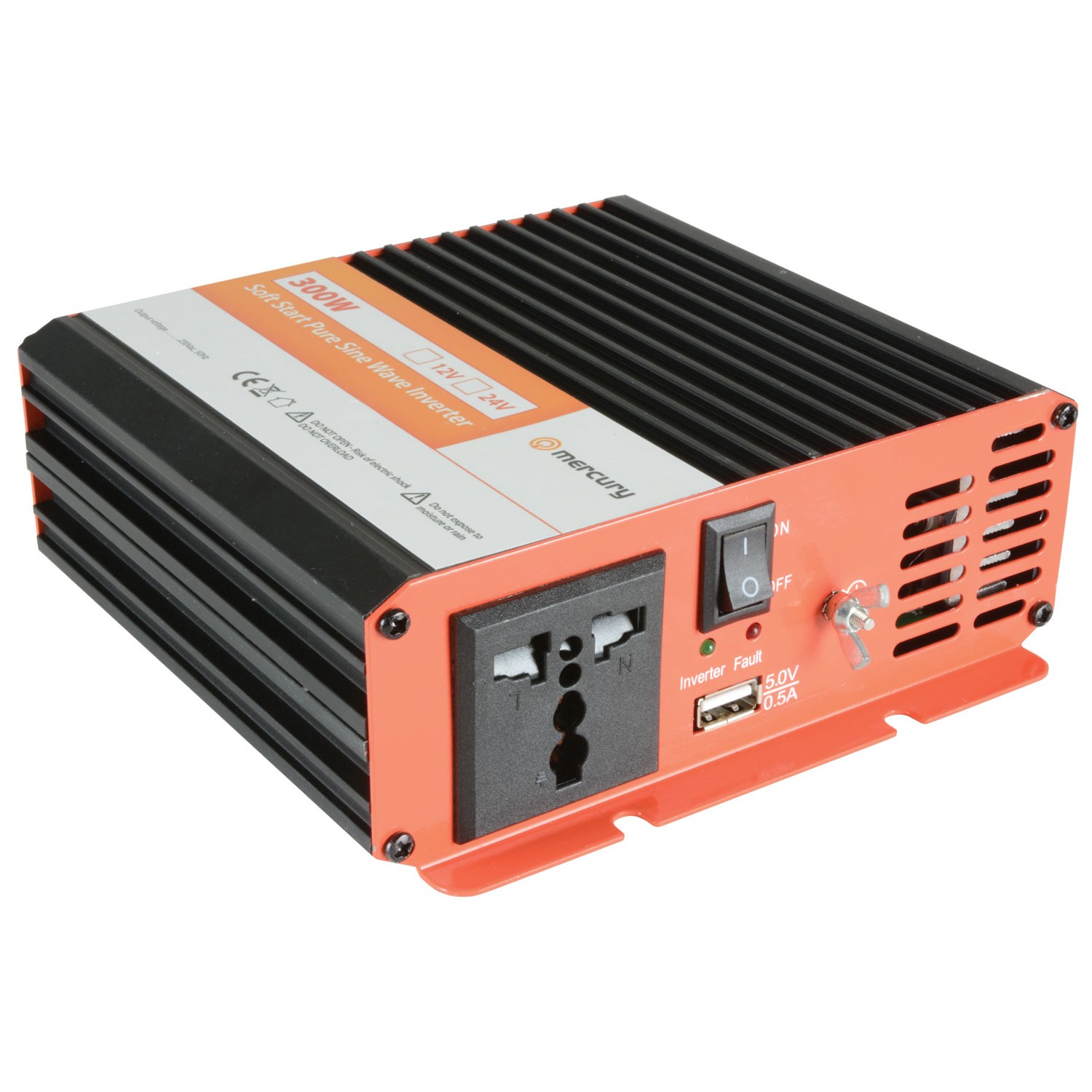

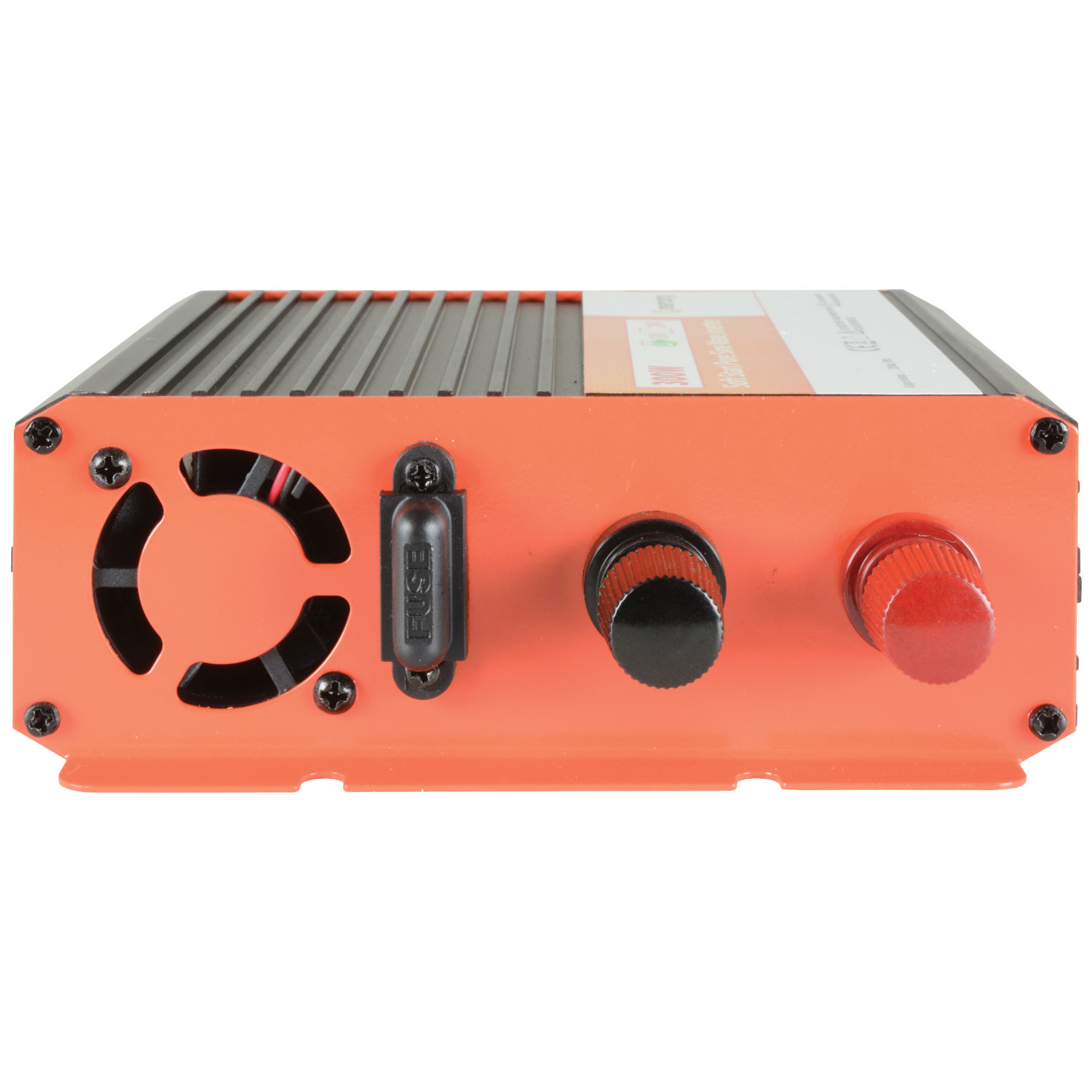

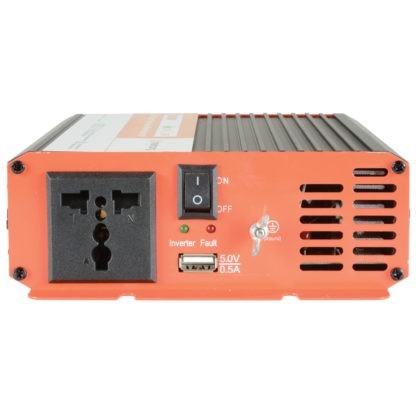

Mercury IPS300-24 300w 24v power inverter
Soft start pure sine wave power inverter. These high efficiency Mercury IPS300-24 power inverters produce a pure sine wave to power 230V mains equipment from a 12V or 24V battery or DC power supply. Perfect for use while camping, in commercial vans/lorries, or as a means to convert charged batteries for back-up power in case of a blackout. Ideal for use with TVs, computers, kettles and other everyday appliances.
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
- Over 90% efficiency
- Soft start minimises inverter shutdown when using large inductive loads
- High accuracy output wave form with less than 4% THD
- Reverse polarity protection
- Lowithoutver voltage input protection
- Short circuit, overload and overheat protection
- Built in 1000mA USB socket on the 600W & 1000W versions
- LED and audible fault indicator
- Supplied with 1 pair of 800mm DC power cables and a spare blade fuse
- 12V or 24V input versions available, please ensure the correct version is selected for the input power to be used
- Please note: Ensure the device is well within the inverter output power rating. We recommend using an inverter capable of supplying a minimum of 3 times the device’s rated power to avoid
- damage to the inverter by any current surge (especially for fridges and freezers which can surge up to 7 times the rated power)
- Output power: 230Vac, 50Hz
- Continuous power: 300W
- Voltage: 24V
- Input voltage: 21.6 – 31Vdc
- Standby no load current: 0.6A
- Cable type: Crocodile clip
- Cable terminals: 72mm crocodile clip + 6.4/12mm ring
- Inverter terminals: M6 screws
- USB output current: n/a
- Dimensions: 174 x 150 x 55mm
- Weight: 960g
