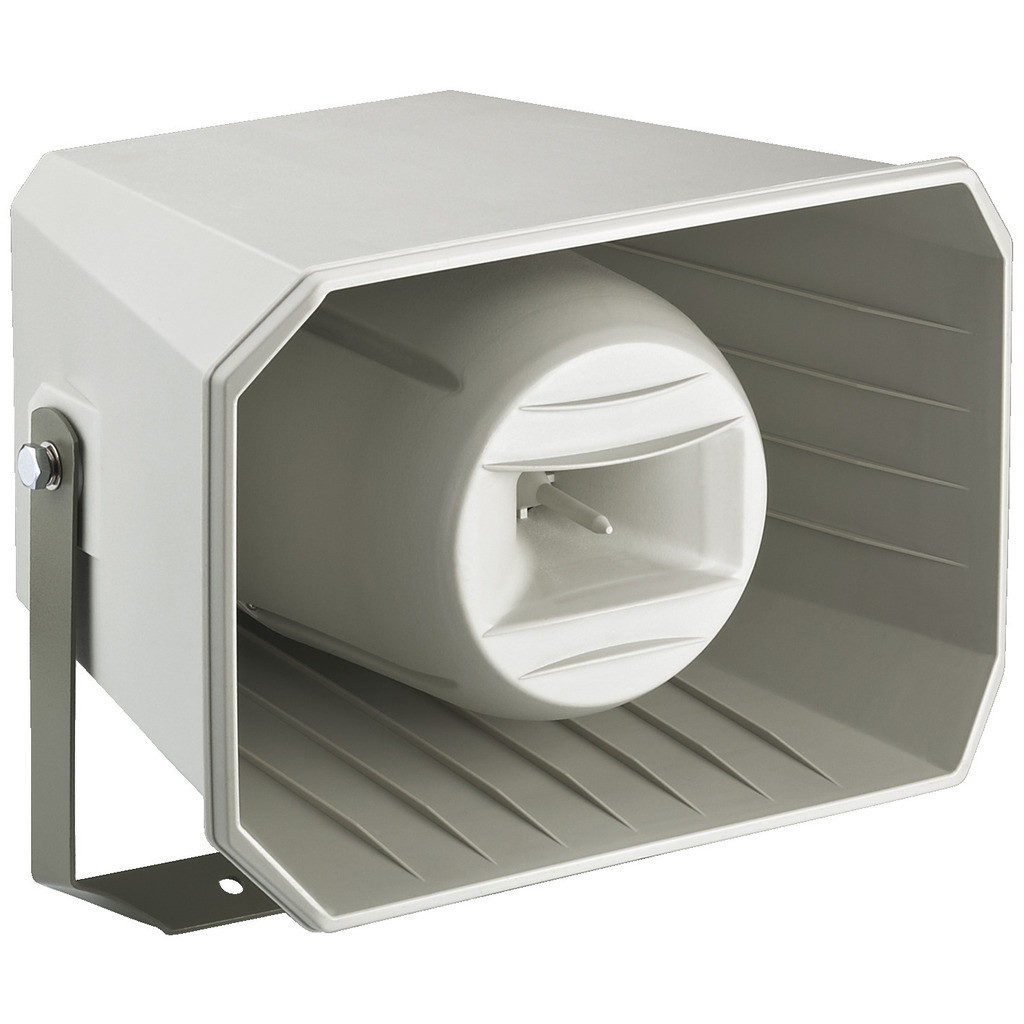

Monacor IT-250TW Horn Speaker

Description

Monacor IT-250TW 50w RMS 100v line or 8Ω wide range ‘music’ horn speaker for outdoor use

Also available as:
IT-250TW: 50w RMS @ 100v

Music horns are the state-of-the-art solution using the full range of a horn speaker with a clearly extended frequency range. The 2-way technology with a dynamic cone bass-midrange speaker and a horn tweeter allows for an increase in the sound quality and permits to radiate the keynotes of voices and instruments which cannot be achieved by conventional horn loudspeakers. The music horns are a perfect solution whenever an optimum voice volume and/or a more complete music transmission is required at sports stadia and similar venues

• 100V line operation with 4 high power taps
• Weatherproof and IP66 certified
• 16 cm bass-midrange speaker and 25 mm (1″) horn
• 2 way speaker for wideband sound reproduction
• bass-midrange speaker and tweeter horn
• Suitable for general indoor and outdoor applications wherever a high sound pressure level and a particularly good sound are required
• Robust light grey ABS plastic housing
• Supplied with mounting bracket and stainless steel screws
• Connection via screw terminal strip with 4 power taps
• Impedance: 8 Ω
• Operating voltage: 100 V
• Power rating: 50/25/12.5/9/4.5/3.5 W (100 V) and 50 W (8 Ω)
• Frequency range: 150-15,000 Hz
• Sensitivity: 97 dB/W/m
• Radiation angle, horizontal: 100°
• Radiation angle, vertical: 60°
• Material (housing/cabinet): ABS
• Protective class: IP66
• Admissible ambient temperature: -20 °C to +50 °C

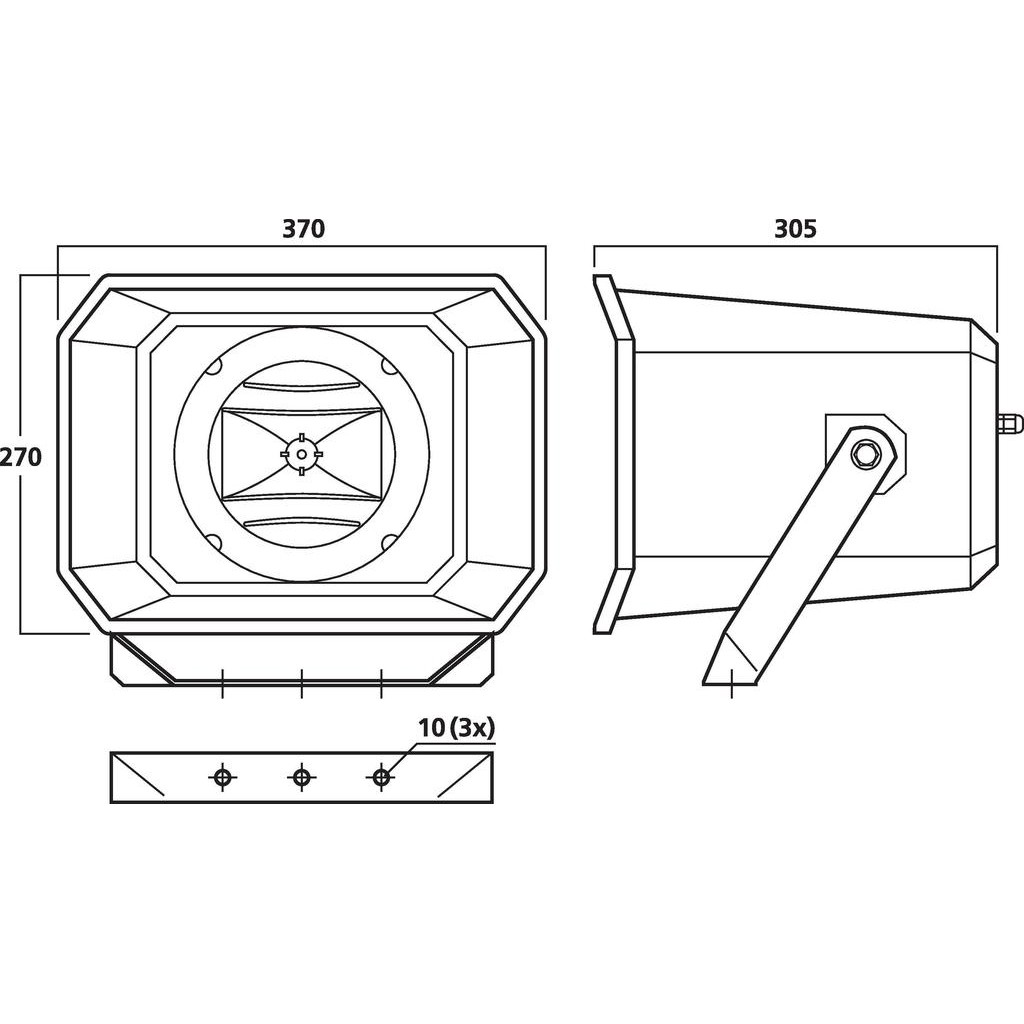

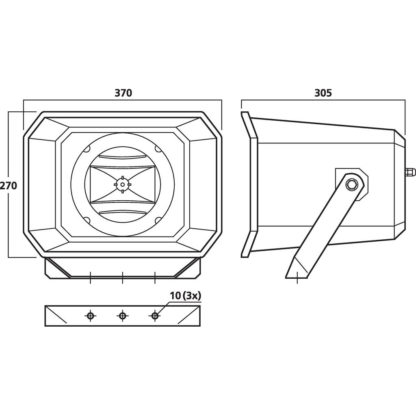

• Dimensions: 370 x 270 x 305 mm
• Weight: 4.1 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
