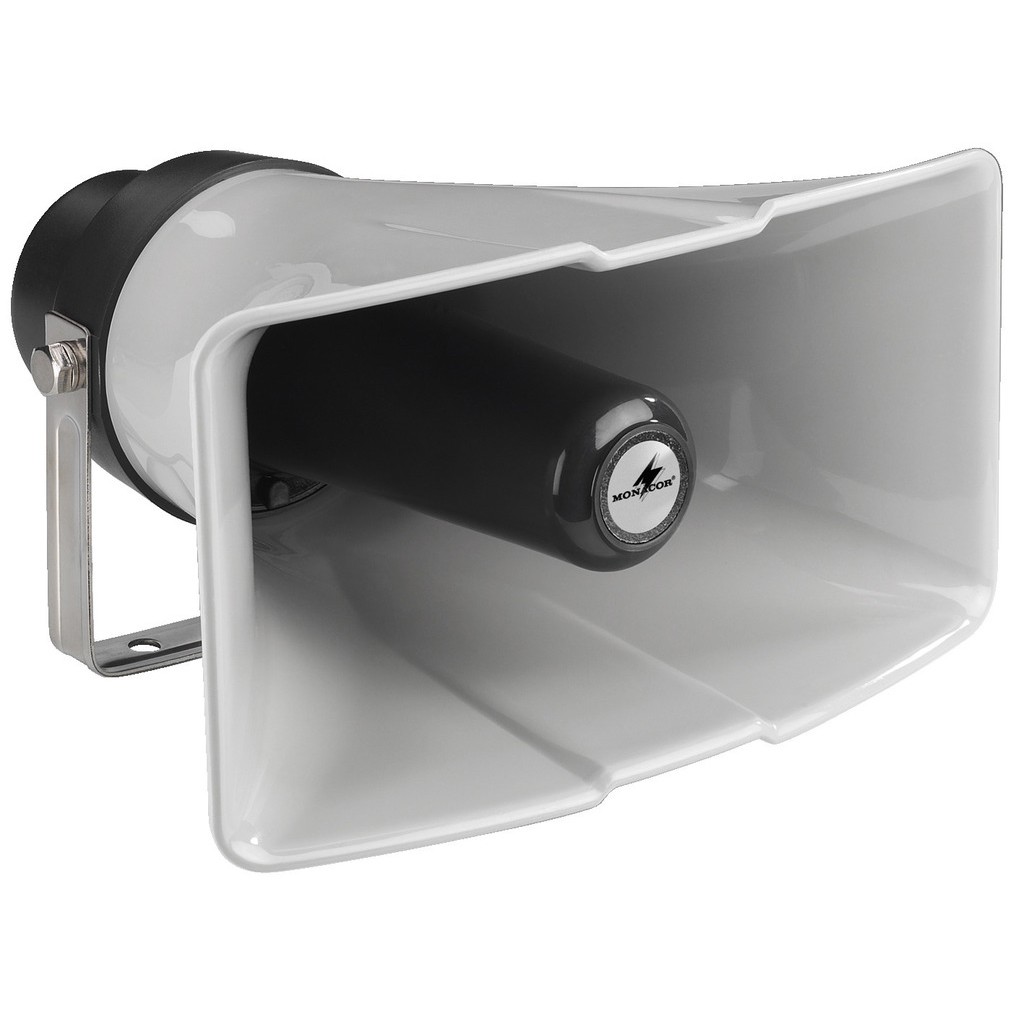

Monacor IT-35 Horn Speaker

Description

Monacor IT-35 25w 100v line horn speaker

Supplied singly, these horn speakers are available as:

• IT-35: 25w RMS @ 100v


High quality rectangular horn loudspeakers are suitable for 100v line sound systems only

Spare voice coil diaphragms available

• 100V line operation
• Weatherproof and IP66 tested
• Protected against powerful water jets
• Suitable for general large factory and outdoor applications
• Robust plastic housing
• Stainless steel mounting bracket
• 4-step power selector switch
• Power rating: 25/20/15/10/5 W
• Frequency range: 250-10,000 Hz
• Sensitivity: 108 dB/W/m
• Radiation angle, horizontal: 110°
• Radiation angle, vertical: 52°
• Material (housing/cabinet): plastic
• Protective class: IP66
• Weather resistance: yes
• Mounting facility: stainless steel mounting bracket
• Features: power selector switch
• Replacement voice coil: IT-230/VC
• Admissible ambient temperature: -20 °C to +50 °C
• Dimensions: 300 x 180 x 315 mm
• Weight: 2.5 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
