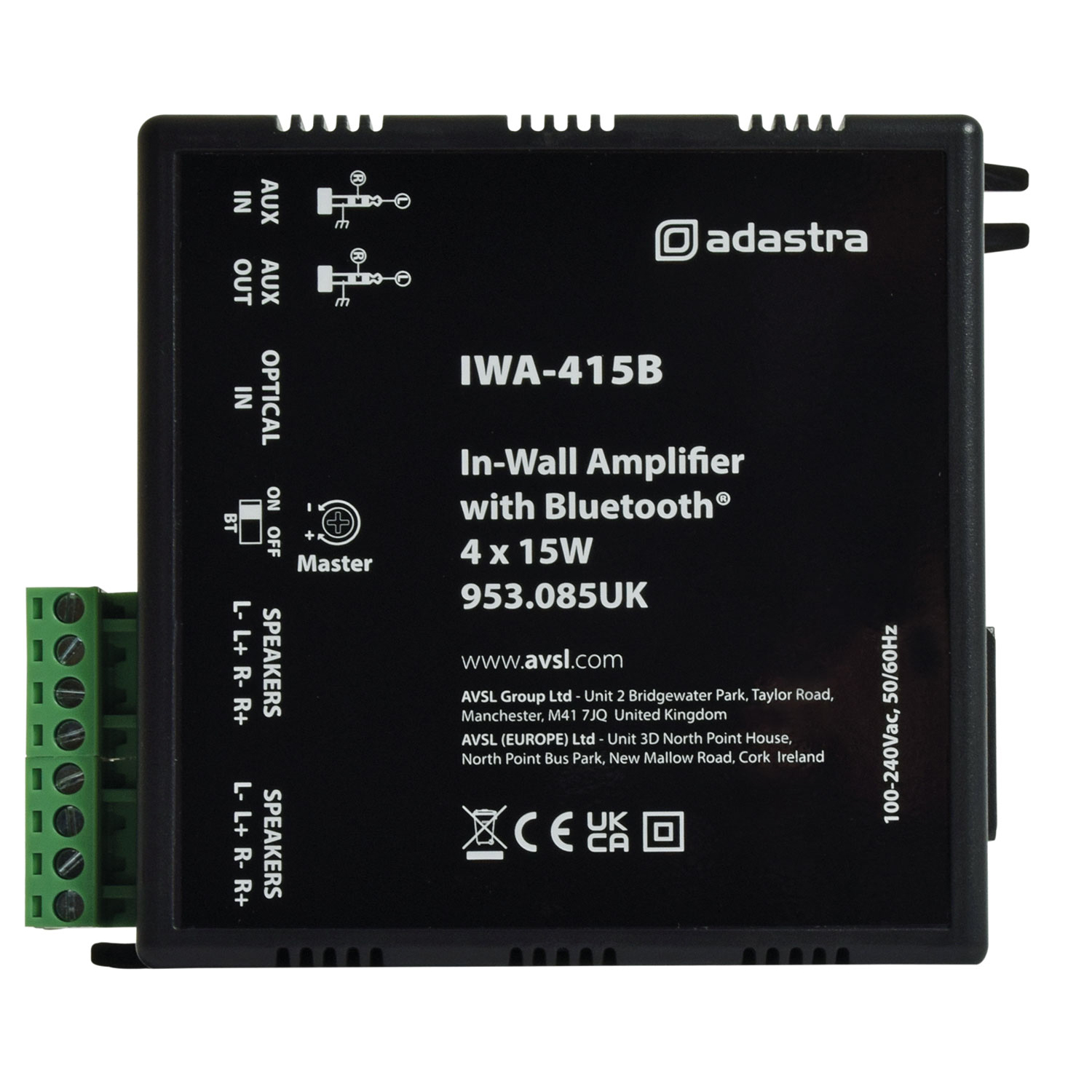

Adastra IWA415B In-Wall Dual Stereo Amplifier with Bluetooth

Description

Adastra IWA415B compact 4 x 15w in-wall amplifier with Bluetooth

Stereo amplifier units for background music and public address in a minimalist housing for installation into cavity walls and ceilings. Class-D amplifier design operates cleanly and efficiently with minimal heat dissipation, combined with an internal digital switch-mode power section, which enables easy connection directly from the local mains supply. Bluetooth compatibility enables wireless streaming of audio files from a smart phone or other enabled device in addition to 3.5mm Aux input and an optical digital audio input, ideal for integrating into A-V systems. For discreet and trouble-free installation without any need for table-top or cabinet installation, these amplifiers can be combined with many different speaker types to provide the ideal sound system for any small to medium space or deployed in numbers to create a wide area sound installation.

• Do not connect more that two 8Ω loudspeakers to the 8Ω output on any output channel of this amplifier

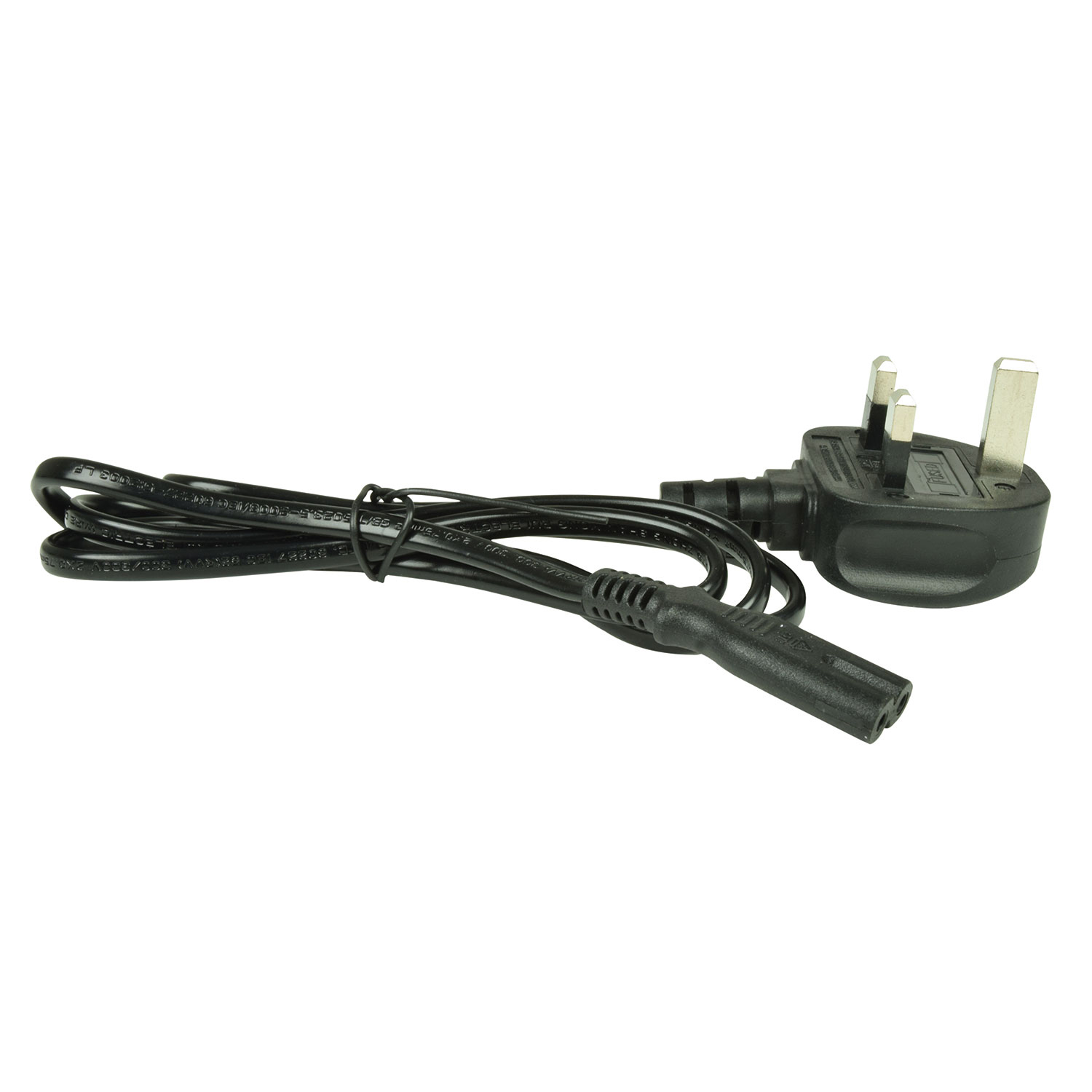

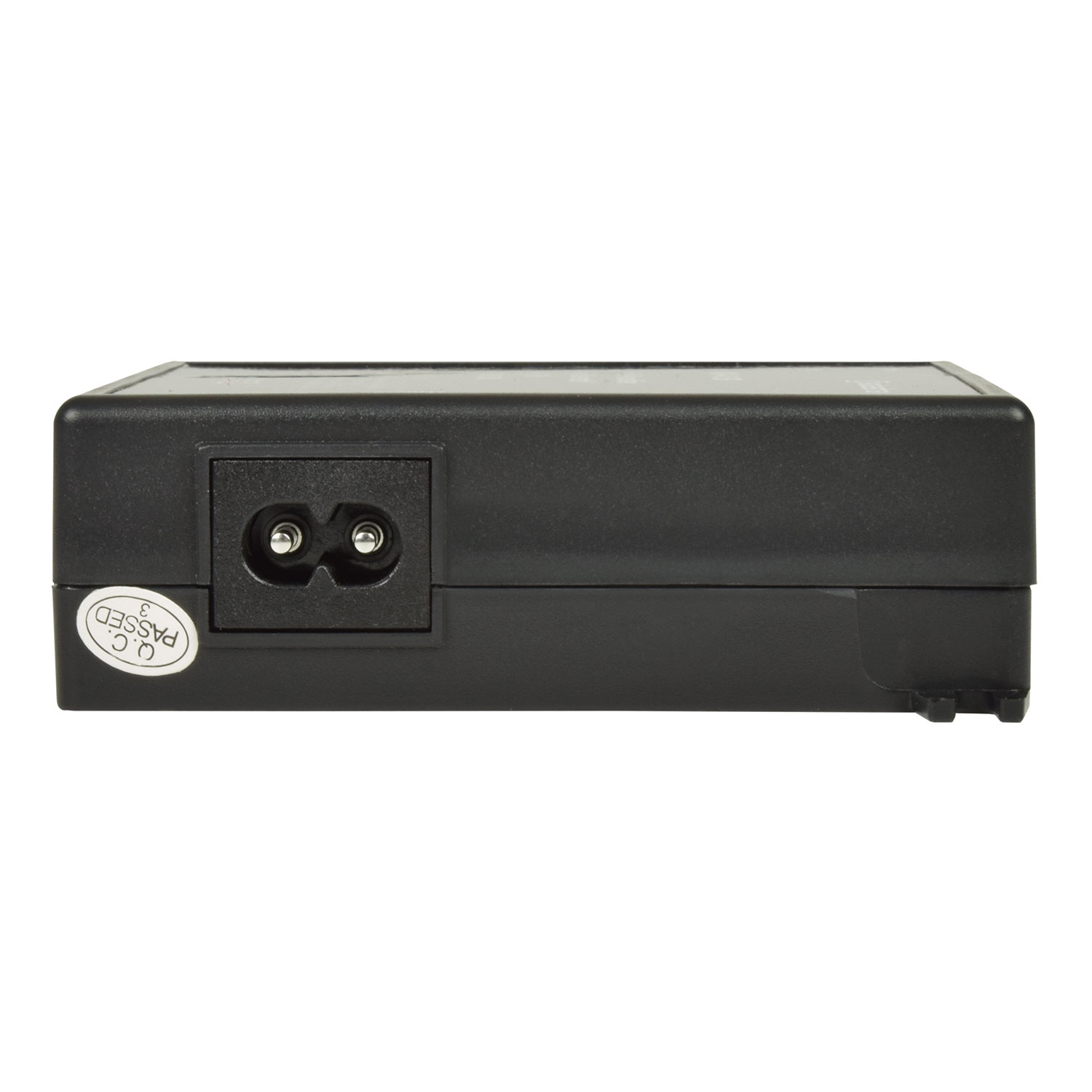

• Fig.8 mains power input
• Bluetooth on/off defeat switch
• Optical digital audio input
• 3.5mm stereo Aux input and output
• Onboard master volume control
• Bluetooth with unique serial ID
• Output power : 4 Ohms: 4 x 15W

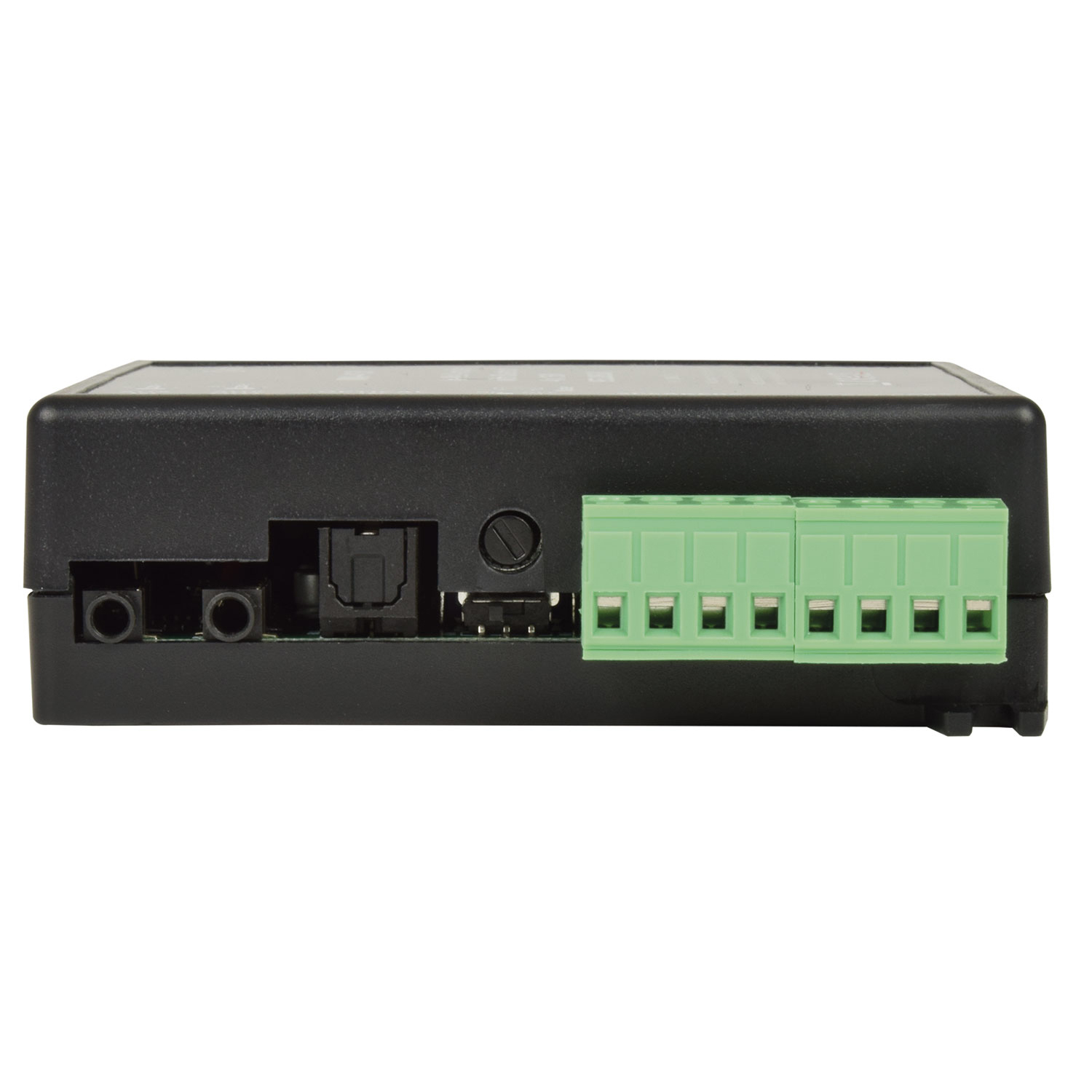

• Speaker outputs: 2 x L-/L+/R-/R+ screw terminals (Euroblock)
• Power supply: 100-240Vac, 50/60Hz (fig.8)
• Bluetooth version: 4.0
• Minimum impedance: 4 Ohms per output
• Line input: 3.5mm stereo aux & optical digital audio
• Line output: 3.5mm stereo jack
• Dimensions: 122 x 89 x 33mm
• Weight: 150g

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
