QTX KAD-2 Digital Stereo Amplifier

SKU: 103.120

£51.59 + VAT    £61.91 incl. VAT

2 x 25w into 4-8Ω low impedance digital stereo amplifier

In stock

Low Impedance 4 Ohms
Low Impedance 8 Ohms
Stereo

PDF

Description

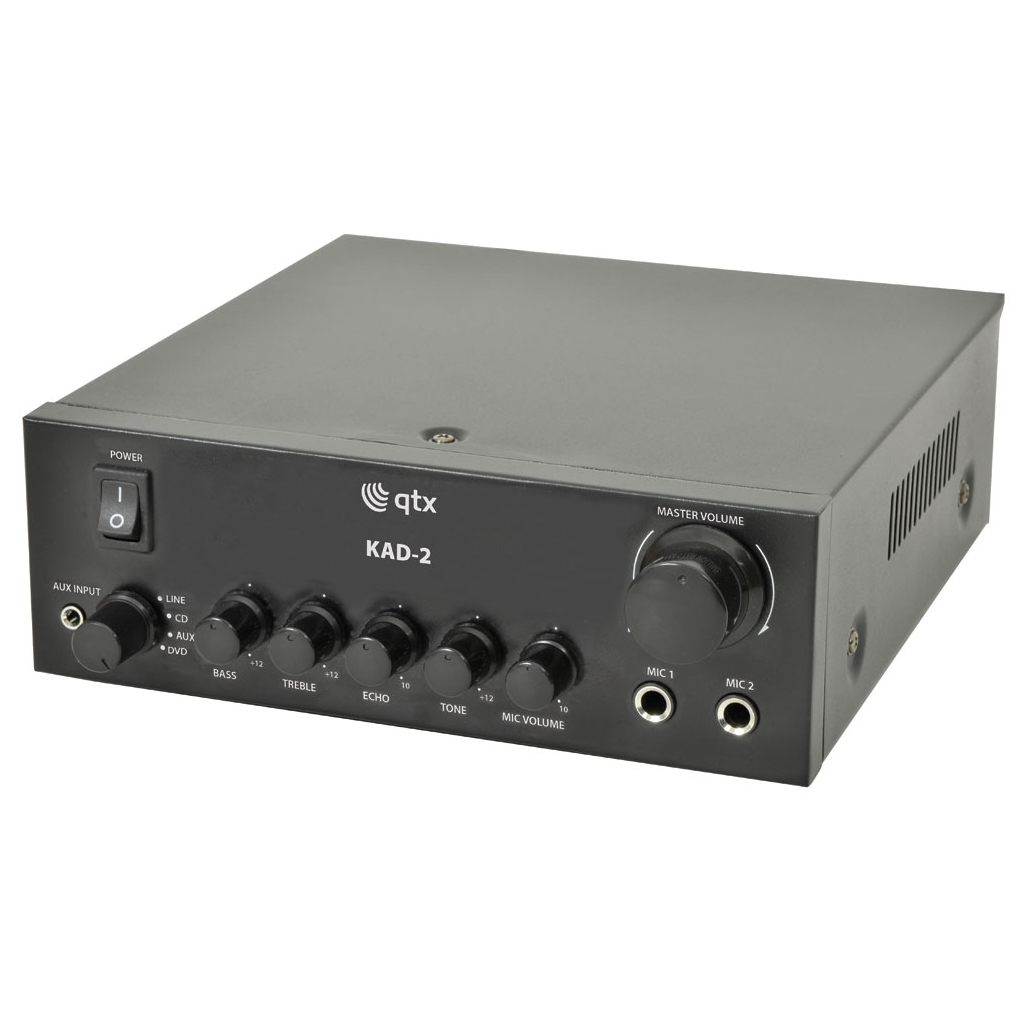

QTX KAD-2 digital stereo amplifier

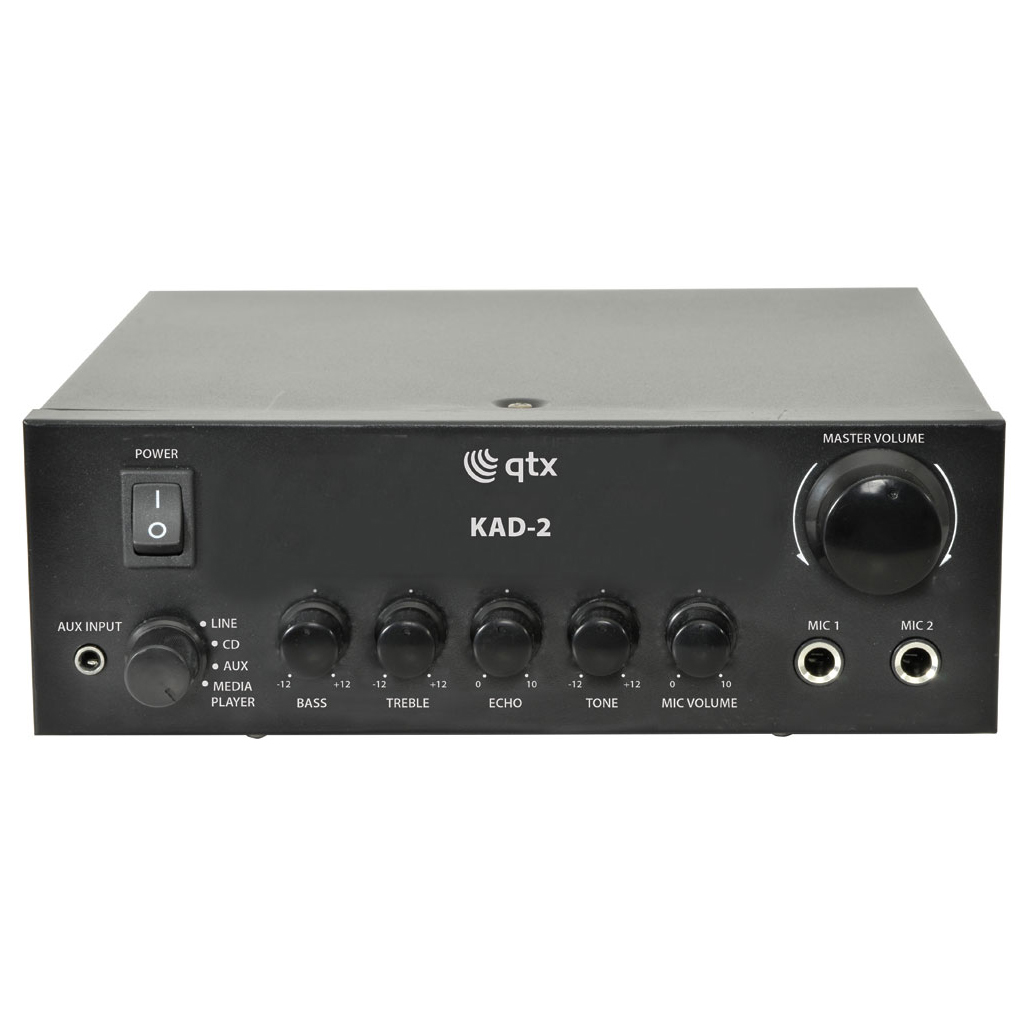

This compact digital amplifier has four selectable inputs, two microphone inputs and is capable of delivering up to 55W max. per side. Mic volume, tone and echo effects are adjustable through rotary controls. Master Volume, Treble and Bass rotaries control tone and overall output. A multi-purpose amplifier suitable for both domestic and commercial use.

  • Efficient Class D digital amplifier
  • A high output power of 55W max. per side
  • 3.5mm stereo line input on the front panel

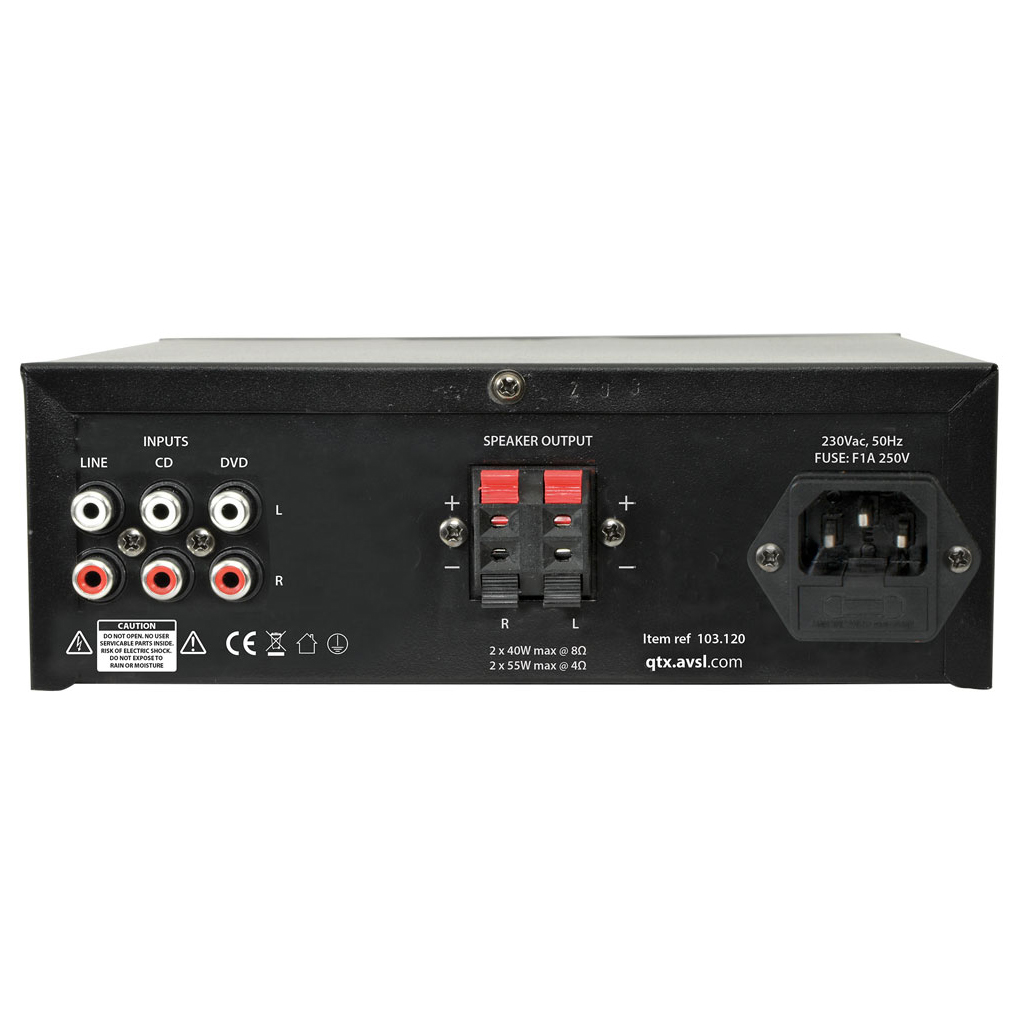

  • 3 stereo line inputs on RCA
  • 2 x 6.3mm microphone inputs
  • Spring clip speaker output terminals
  • Power supply: 230Vac, 50Hz (IEC)
  • Output impedance: 4 – 8 Ohms
  • Input sensitivity : line: 380mV
  • Input sensitivity : mic (unbalanced): 15mV
  • Output power : 8 Ohms: 2 x 25W rms / 2 x 40W max. (EIAJ Standard @ 1kHz 10% THD)
  • Output power : 4 Ohms: 2 x 35W rms / 2 x 55W max. (EIAJ Standard @ 1kHz 10% THD)
  • Finish: Black

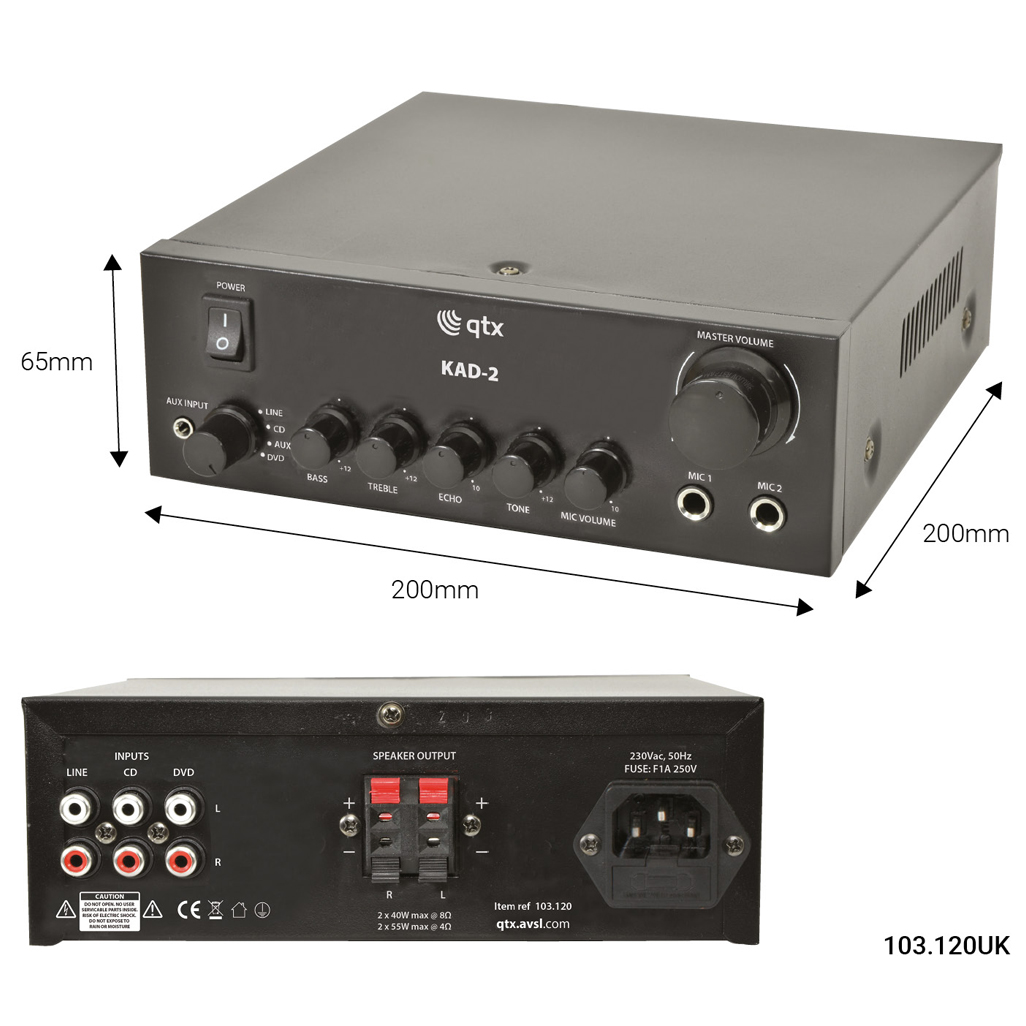

  • Dimensions: 200 x 200 x 65mm
  • Weight: 1.6kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Additional information

Weight1.6 kg
Dimensions20 × 20 × 6.5 cm
Output (RMS)

50W

Zones

1

Connection

3.5mm Jack, 6.3mm Jack, RCA Phono, Spring Terminals

Colour

Black

Condition

New

Brand

QTX

Launched in 2009, QTX is a professional lighting brand for both commercial organisations and the domestic market. Ideal for clubs, bars, schools and theatres, its comprehensive product portfolio covers everything the hospitality and entertainment market demands - from domestic party lighting to cutting-edge effects for installation use. The QTX brand also includes an impressive range all-in-one portable PA for meetings, buskers, schools, clubs, live performance and markets of audio equipment ideal for entry-level and compact set-ups. The QTX range also extends into non-light effects such as mirror-balls, smoke, snow and bubble machines, as well as an great range of stands, brackets, lamps and DMX controllers. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • KAD series compact amplifier
  • IEC power lead
