IMG Stageline LMS-808 Mixer

Description

IMG Stageline LMS-808 is a multifunctional unit with three selectable operating modes:
Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo output
Line Splitter operation for splitting 2 mono line inputs to 6 mono outputs
Level Matching operation for amplifying up to 6 individual input signals to 6 individual outputs

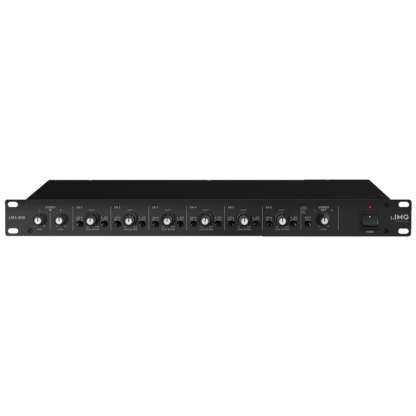

LMS-808 is a 19″ 1u rack unit that can be used free standing

• Multifunctional unit with three selectable operating modes
• Mixer operation for mixing up to 8 mono input signals (6 x line/mic and 2 x line) to 1 stereo output
• Line splitter operation for splitting 2 mono line inputs to 6 mono outputs
• Level matching amplifier operation for amplifying up to 6 input signals
• 6 mono input channels, each with switchable 12V phantom power, pan control, signal/clip LED and individual selection of the operating mode
• 2 mono line input channels, each with level control and signal/clip LED
• No. of channels: 8
• No. of inputs: 8

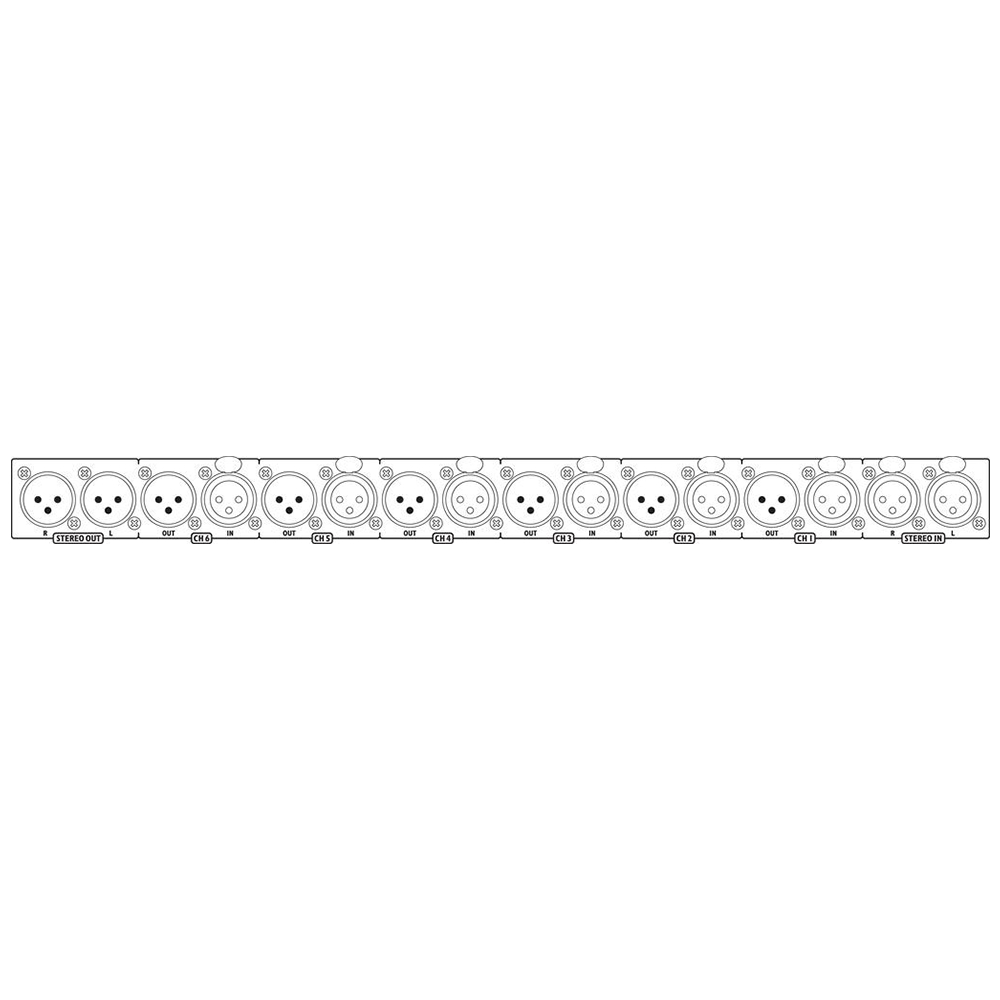

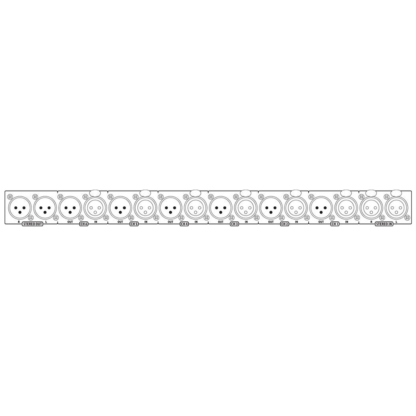

• Mic input: 1 mV/6.6 kΩ (mic), 6 x XLR, balanced
• Line input: 250 mV/30 kΩ, 2 x XLR , balanced, 100 mV/40 kΩ, 6 x XLR, balanced
• Master output: 1 V/200 Ω, 6 x XLR, balanced (mono), 1 x XLR L/R, balanced (stereo)
• Frequency range: 10-30,000 Hz
• THD: 0.02%
• S/N ratio: 81 dB, weighted
• Crosstalk: -63 dB
• Power supply: ˜ 230 V/50 Hz/10 VA
• Mains voltage: ˜ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 10 VA
• Admissible ambient temperature: 0-40 °C
• Width: 482 mm
• Height: 48 mm
• Depth: 200 mm
• Rack spaces, RS: 1
• Weight: 2.9 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
