Adastra LX5T-W Wall Cabinet Speaker

Description

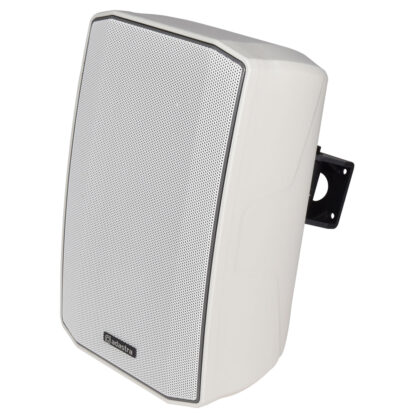

Adastra LX5T-W indoor/outdoor 5¼” 20w 100v line or 8Ω wall cabinet speaker

Lightweight PA speakers with moulded ABS cabinets and fitted with 2-axis wall-mounting brackets. Inputs for standard 8 Ohm operation or 100V line with 2 power tappings offer wiring flexibility within different types of installations. Compact cabinets with super light weight make for easy installation onto a variety of wall surfaces and rear pan-tilt brackets enable accurate positioning for best coverage. Cabinets, speaker cones, grilles and brackets are all weatherproofed. A convenient and cost-effective solution for background music and voice announcements in indoor or sheltered outdoor environments.

• Super light weight for easy installation

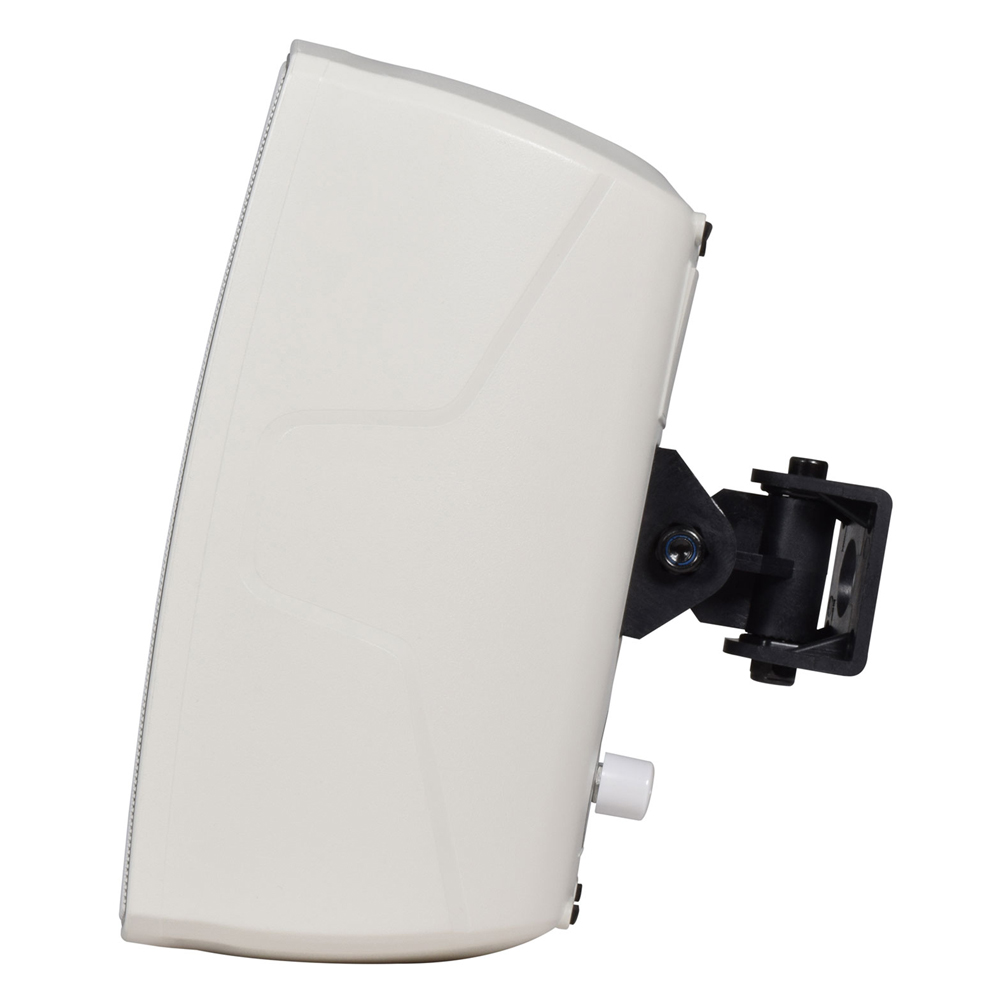

• Integral 2-axis wall-mounting bracket

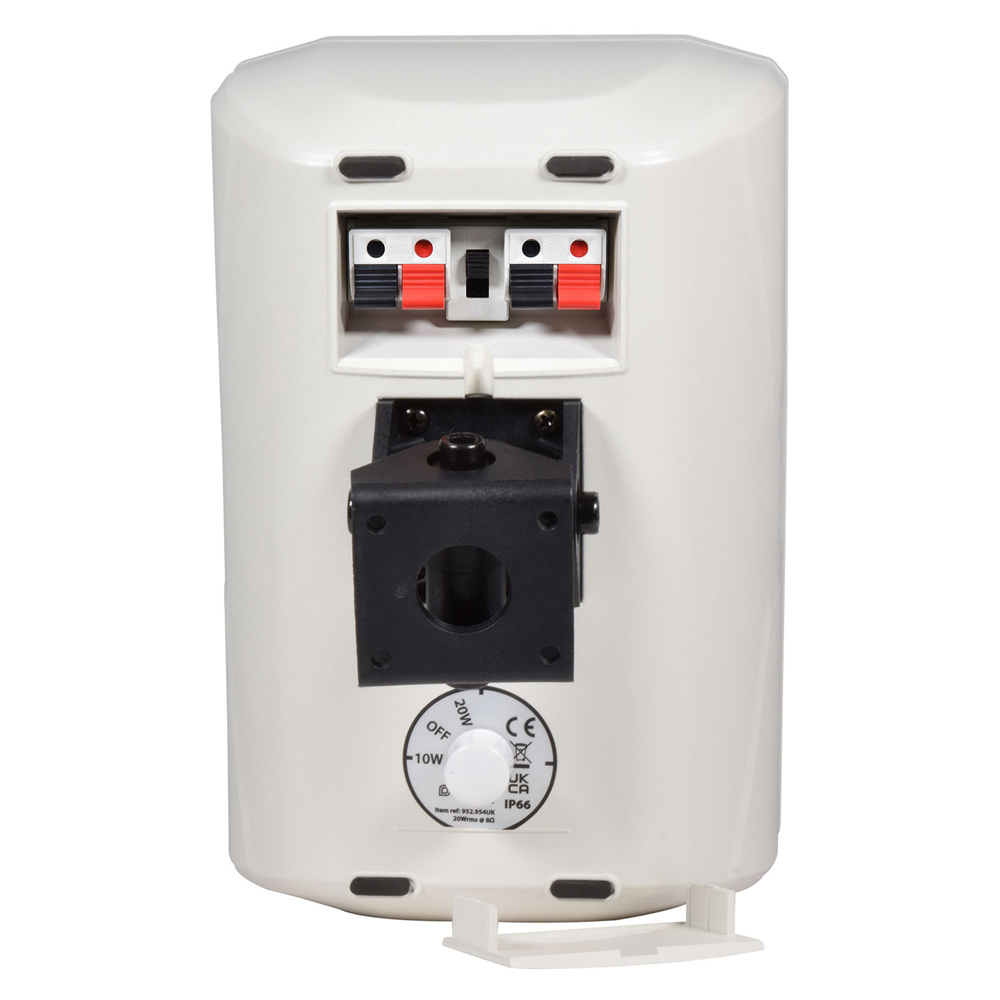

• 100V or 8 Ohm operation
• IP rating: IP66 weatherproof

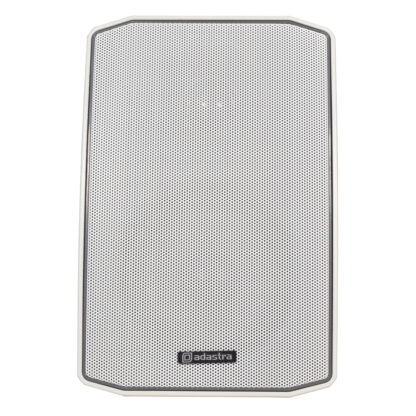

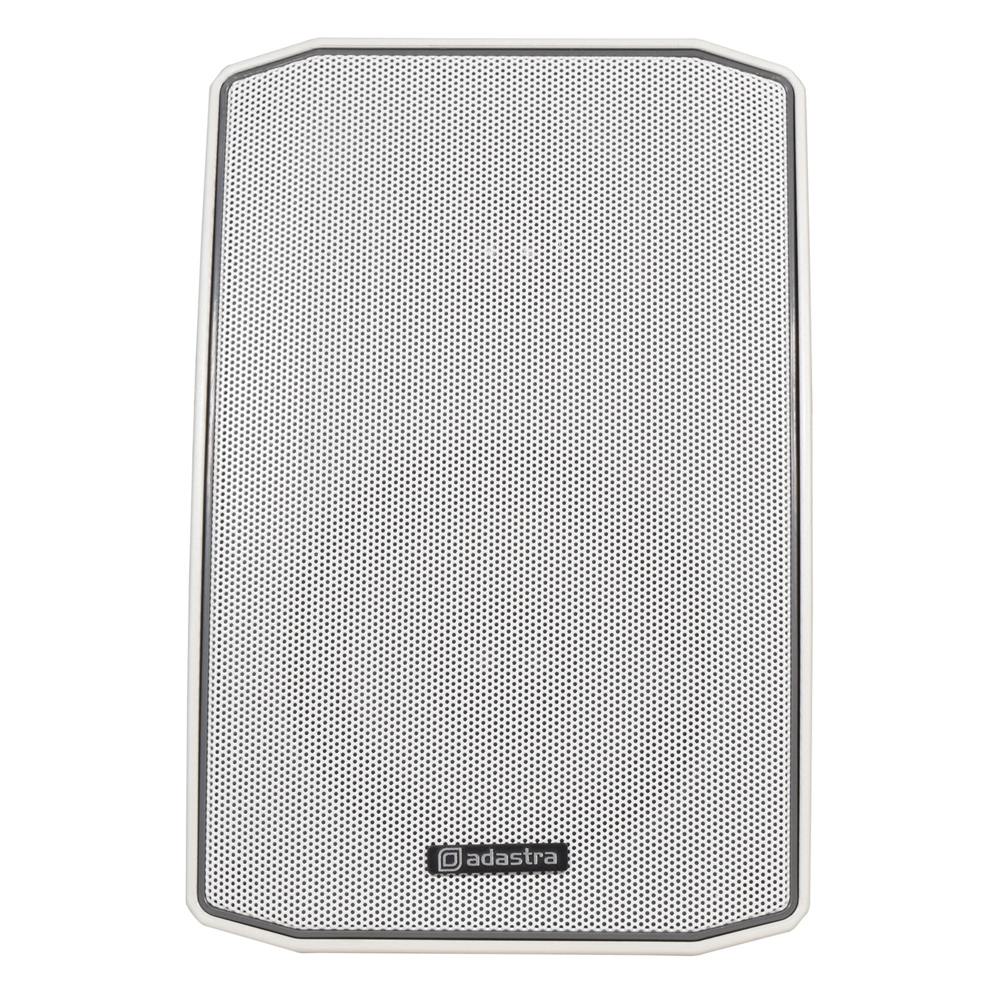

• Construction: ABS cabinet, aluminium grille

Specifications:

• Power rms : 8 Ohms: 20W
• 100V line tappings: 10W, 20W
• Frequency response: 75Hz – 20kHz
• SPL @ 1W/1m: 90dB
• Max. SPL: 102dB
• Main driver: 135mmØ (5.25″) PP cone
• HF driver: 19mmØ (0.75″) mylar dome
• Weight: 1.344kg
• Dimensions: 243 x 160 x 117mm

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
