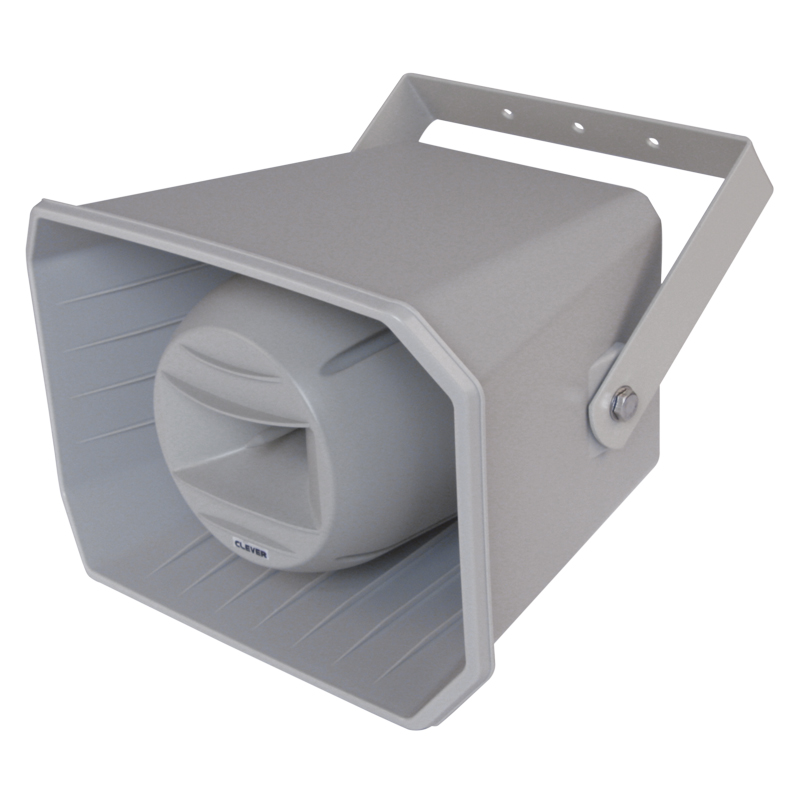

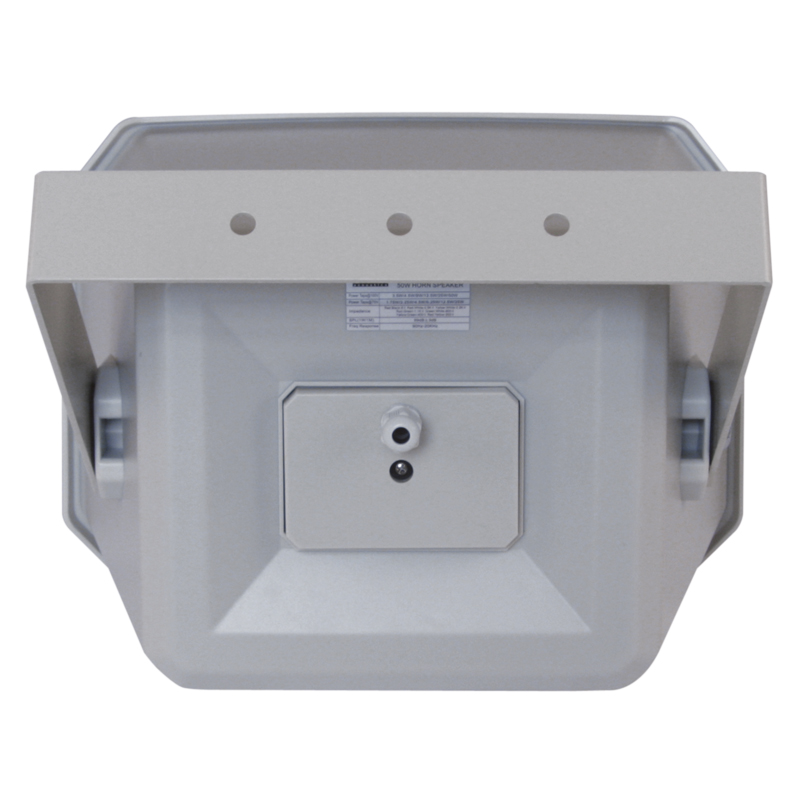

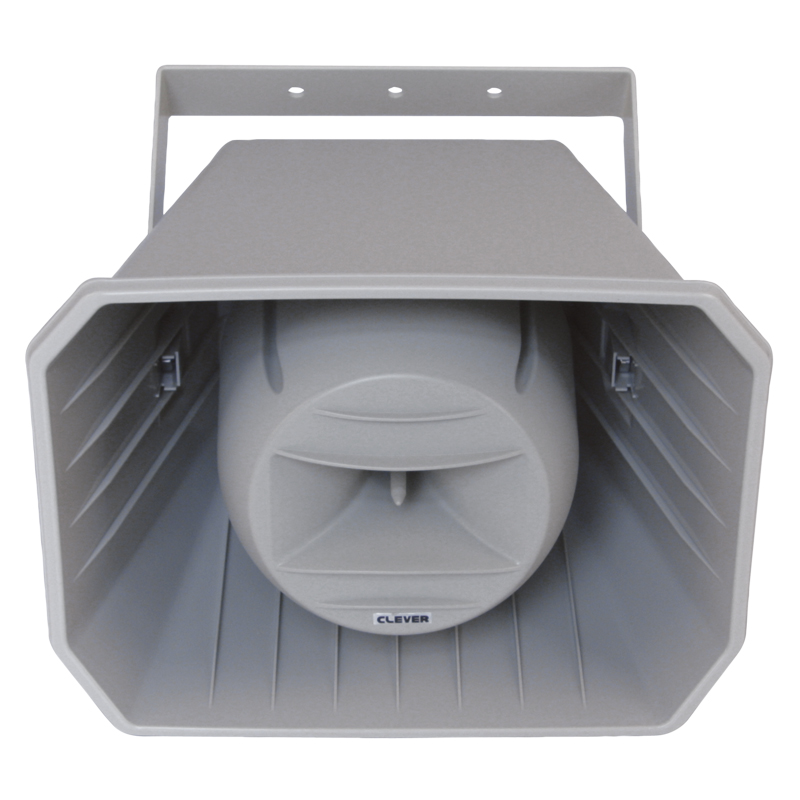

Clever Acoustics MH 50 Horn Speaker

Description

Clever Acoustics MH 50 50w music horn speaker

The MH 50 is an ideal paging and sound reinforcement horn loudspeaker for large open, outdoor spaces. Utilising a two-way design the MH 50 delivers a wider frequency range than traditional horn loudspeakers.

• Internal 100V/70V transformer
• Extra wide sound dispersion angle: 100 x 80°
• Ideal for voice announcement and background music
• Multiple power taps and low impedance
• Wide frequency response from 90Hz to 20kHz
• ABS enclosure
• Supplied with adjustable mounting bracket
• Weather resistant horn loudspeakers for outdoor applications
• Input: 70V, 100V, 8Ω
• Power taps @ 100V: 3.5W, 4.5W, 9W, 12.5W, 25W, 50W
• Power taps @ 70V: 1.75W, 2.25W, 4.5W,6.25W, 12.5W, 25W
• Impedance: 8Ω, 2.9KΩ, 2.2KΩ, 1.1KΩ, 800Ω, 400Ω, 200Ω
• Power (RMS): 50W @ 8Ω
• Sensitivity(1W/1m): 99dB (±3dB)
• Maximum SPL (Rated W/1m): 116dB
• Frequency response: 90Hz-20kHz
• Drivers: 6″ LF, 3″ HF
• Connections: Internal terminal block
• Dimensions: 255 x 360 x 315mm
• Weight: 4kg
• IP rating: IP66
