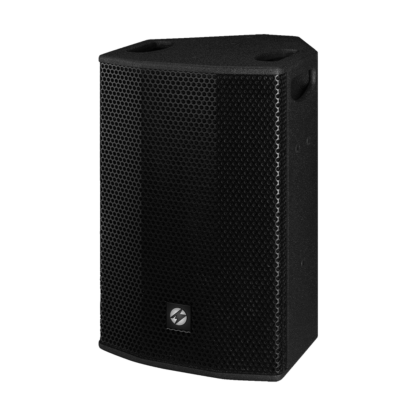

Monacor MOVE-08PMK2 Passive Cabinet Speaker

Description

Monacor MOVE-08PMK2 250w 8″ passive PA music cabinet speaker

• Compact professional full range bass-reflex system
• Cabinet made of birch plywood
• 20 cm (8″, FaitalPro 8PR200) bass speaker
• 25 mm (1″, 44 mm voice coil, Celestion CDX1-1747) horn tweeter, can be turned by 90°
• Switchable between passive operation and bi-amp active operation
• Neutral sound tuning
• ‘Catch & Carry’ carrying handle
• M8 threaded inserts for suspended installation
• 2 x NEUTRIK SPEAKON terminal, in/out
• Stand sleeve, robust front grille
• Ball-proof acc. to DIN 18032, Part 3
• Active/passive: passive
• Transmission technology: cable
• Total power rating: 500 W
• Power rating (RMS): 250 W
• Impedance: 8 Ω
• Frequency range: 65-20,000 Hz
• System: 2-way bass-reflex
• Bass speaker: 20 cm (8″, FaitalPro 8PR200)
• Tweeter: dynamic 25 mm, mid-high range speaker (1″, 44 mm voice coil, Celestion CDX1-1747)
• Number of speakers: 2
• Speaker size: 20 cm (8″)
• SPL: 95 dB/W/m
• Max. rated SPL: 120 dB
• Radiation angle/beam angle: H: 80°/V: 40°, horn can be turned by 90°
• Radiation angle, horizontal: 80°
• Radiation angle, vertical: 40°
• Housing material: birch plywood
• Colour: black
• Admissible ambient temperature: 0-40 °C
• Dimensions: 290 x 490 x 315 mm
• Width: 290 mm
• Height: 490 mm
• Depth: 315 mm
• Weight: 12.6 kg
• Inputs: 1 x SpeakON
• Outputs: 1 x SpeakON

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
