Description

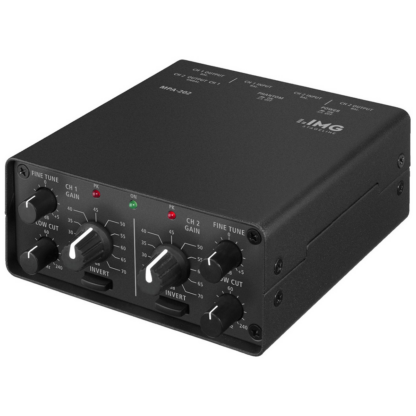

IMG Stageline MPA-202 dual input low noise microphone pre-amplifier with phantom power – supplied with a mains power supply adapter
- 2 mic inputs
- Input sensitivity: 0.16-150 mV, switchable
- Input impedance: 4.4 kΩ (mic), 2.2 kΩ (line)
- Output signal:1-14 V (line, balanced), 1-7 V (line, stereo)
- Output impedance: 100 Ω / 600 Ω
- Gain: 15-75 dB (mic)
- Crossover frequency: 15-240 Hz, 6 dB/oct. (low cut), 15 Hz, 18 dB/oct. (subsonic)
- Low cut: 15-240 Hz, 6 dB/oct.
- S/N ratio: > 68 dB, unweighted (mic), 87 dB, unweighted (line)
- Gain, 11 steps 20-70dB
- LED green/red for operation/peak
- Phantom power +24V, can be switched on additionally
- Switchable microphone phase
- Lo cut 100Hz, hi cut 12kHz, 12dB/oct., switchable
- 1 pre-amplifier output
- 1 stereo line input
- 1 stereo line output
- Level control and panorama control for mixing the microphone signal to the stereo line channel
- Frequency range: 20-20,000 Hz
- THD: < 0.01%
- Power supply: via supplied plug-in PSU
- Dimensions: 116 x 55 x 135 mm
- Weight: 980 g

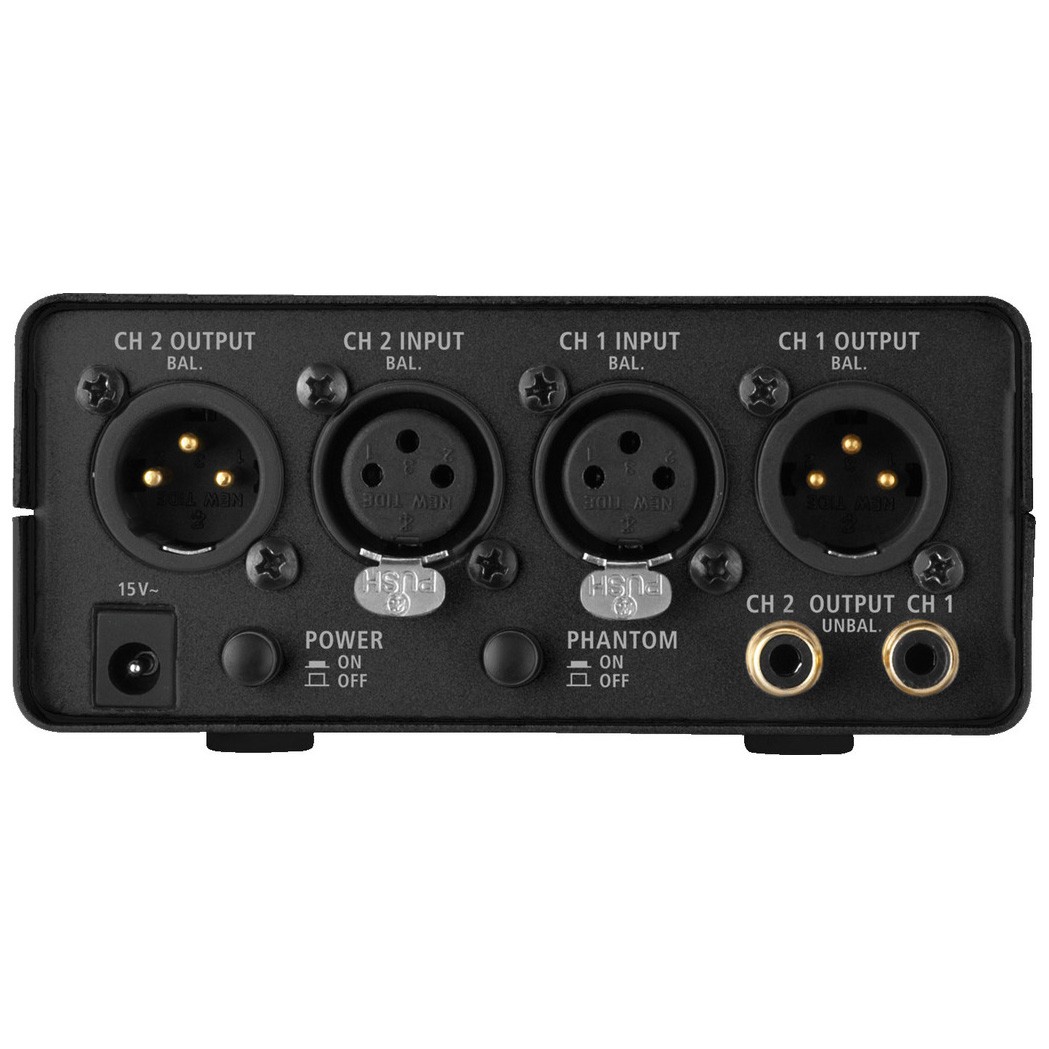

- Inputs: 2 x XLR (mic)
- Outputs: 2 x XLR (preamp), 1 x RCA L/R (line)
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
