Description

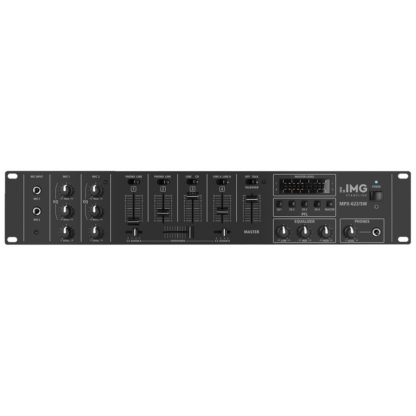

IMG Stageline MPX-622/SW 6 channel stereo DJ mixer for clubs, disco’s and DJs etc. – 2u 19″ rack mounting
- 2 mono microphone channels with talkover switch and 2-way tone control

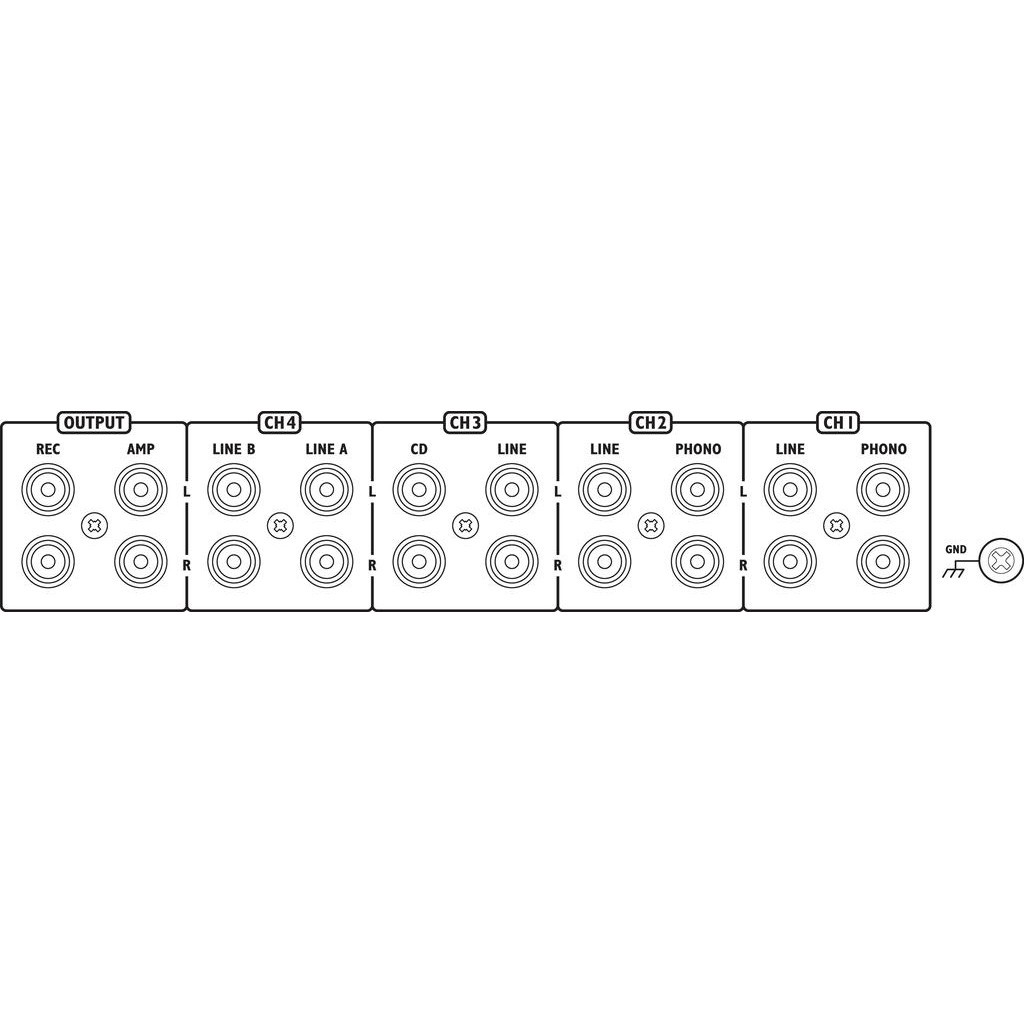

- 4 stereo input channels, switchable phono/line (channels 1 and 2) or line/line (channels 3 and 4)
- 1 stereo master output
- 1 stereo record output, independent of the master
- 3-way equalizer with centre click for the master output and record output
- Pre-fader listening to each stereo input channel and the master output via adjustable stereo headphone output
- Switchable crossfader for crossfading between channels 1-4, any assignment possible
- Stereo LED level display
- No. of channels: 6
- No. of inputs: 8
- Mic input: 1 mV, 2 x 6.3 mm jack
- Line input: 150 mV, 5 x RCA L/R
- CD input: 150 mV, 1 x RCA L/R
- Phono input: 3 mV, 2 x RCA L/R
- Master output: 0.775 V/600 Ω, 1 x RCA L/R
- Record output: 0.775 V/600 Ω, 1 x RCA L/R
- Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
- Frequency range: 20-20,000 Hz
- THD: 0.1%
- S/N ratio: 65 dB
- Equalizer bass: ±10 dB/100 Hz
- Equalizer midrange: ±10 dB/1 kHz
- Equalizer treble: ±10 dB/10 kHz
- Talkover: -15 dB
- Crossfader
- Power supply: ˜ 230 V/50 Hz/10 VA
- Mains voltage: ˜ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 10 VA
- Admissible ambient temperature: 0-40 °C
- Width: 482 mm
- Height: 89 mm
- Depth: 95 mm
- Rack spaces, RS: 2
- Weight: 2.4 kg
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
