Mercury MTN02 Digital Multimeter

Description

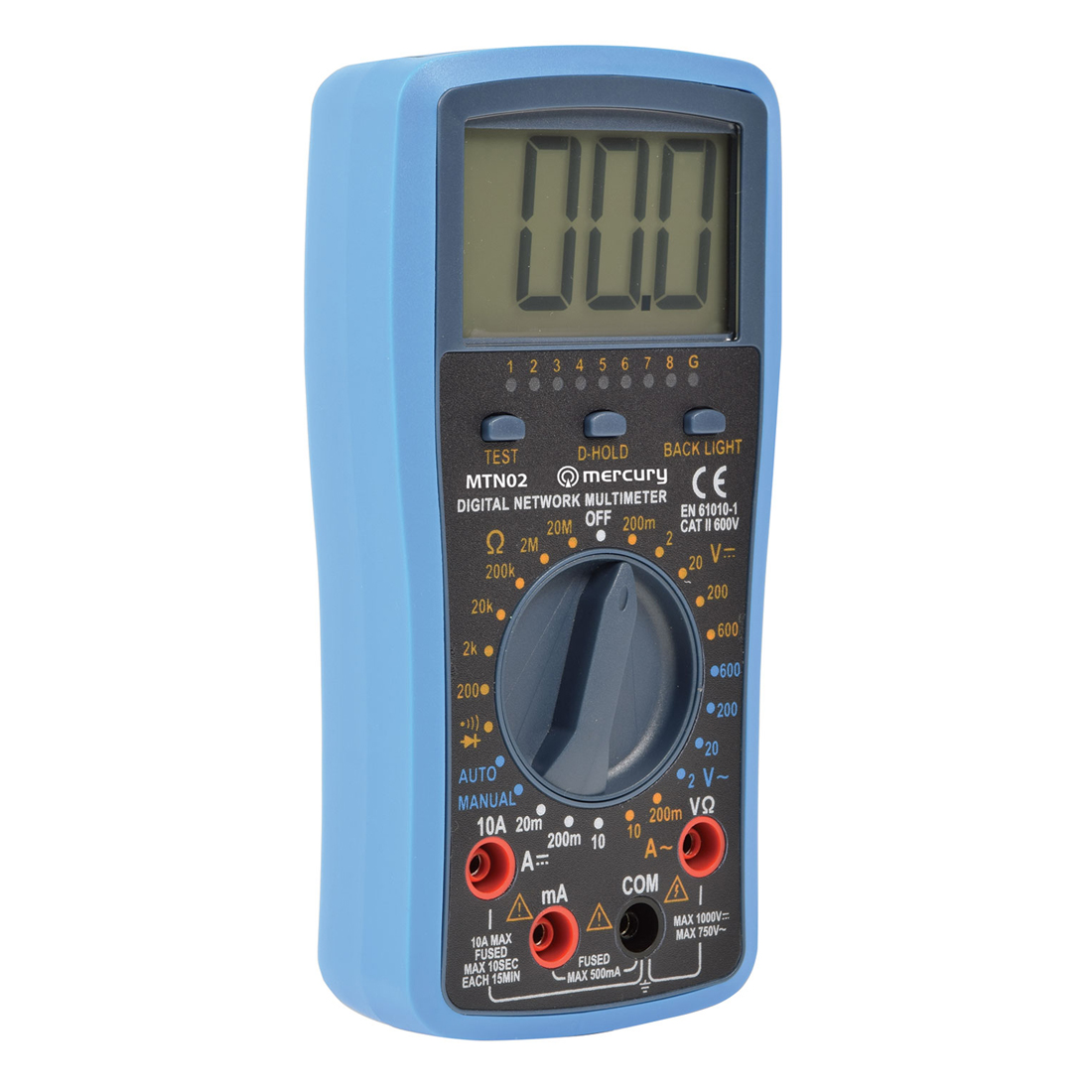

Mercury MTN02 digital multimeter with network and USB cable tester

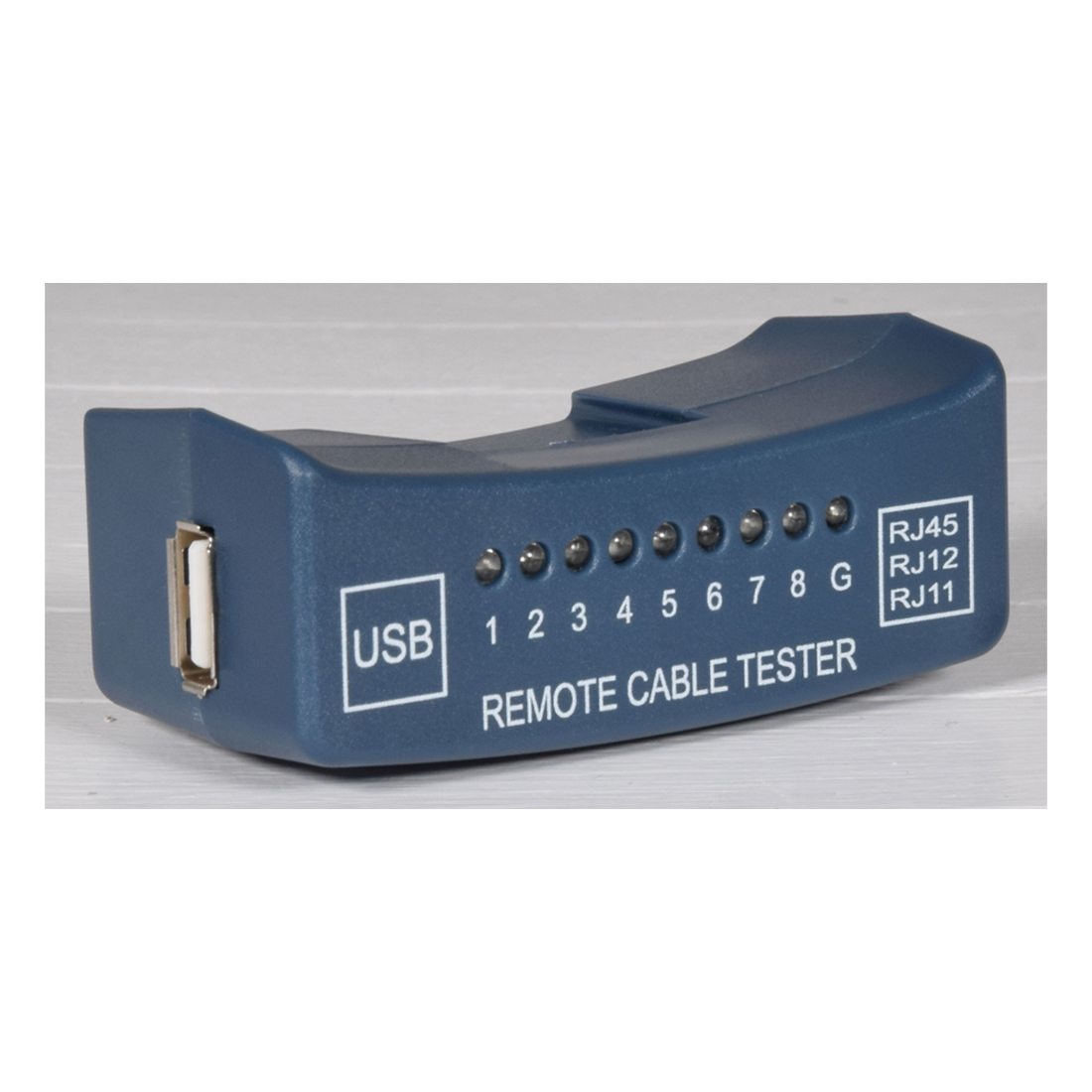

A professional digital multimeter with network and USB tester that offers 23 testing ranges and 6 functions and comes supplied ready to use in a shockproof rubber holster with shrouded testing probes and battery. The cable testing function uses a sequence of LED’s on the main unit and remote unit to test lengths of RJ11, RJ12, RJ45 or USB cables for continuity and wire/pin-related faults. The large 1.25″ 3.5 digit LCD display is easy to read and comes with additional backlight for working in darker environments.

• Network and USB cable test function with remote unit for RJ11, RJ12, RJ45 and USB
• 3.5 Digit, 1999 count large 1.25″ LCD display with backlight
• 2V-600V AC Voltage, 200mV-600V DC Voltage, 10A AC/DC current and resistance ranges
• Diode and continuity test functions
• Low battery indicator
• Complies with EN61010 – 1:2010
• Supplied with shrouded test leads, shockproof rubber holster and 9V PP3 battery
• Power supply: 9Vdc (1 x PP3 supplied)
• AC current: 200mA – 10A
• DC current: 20mA – 10A
• AC voltage: 2V – 600V
• DC voltage: 200mV – 600V (Auto ranging)
• Resistance: 200 Ohms – 20M Ohms
• Test lead length: 1000mm
• Dimensions: 190 x 85 x 35mm
• Weight: 322g (including battery)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
