TOA MX401 100w Powered Mixer – Used

Description

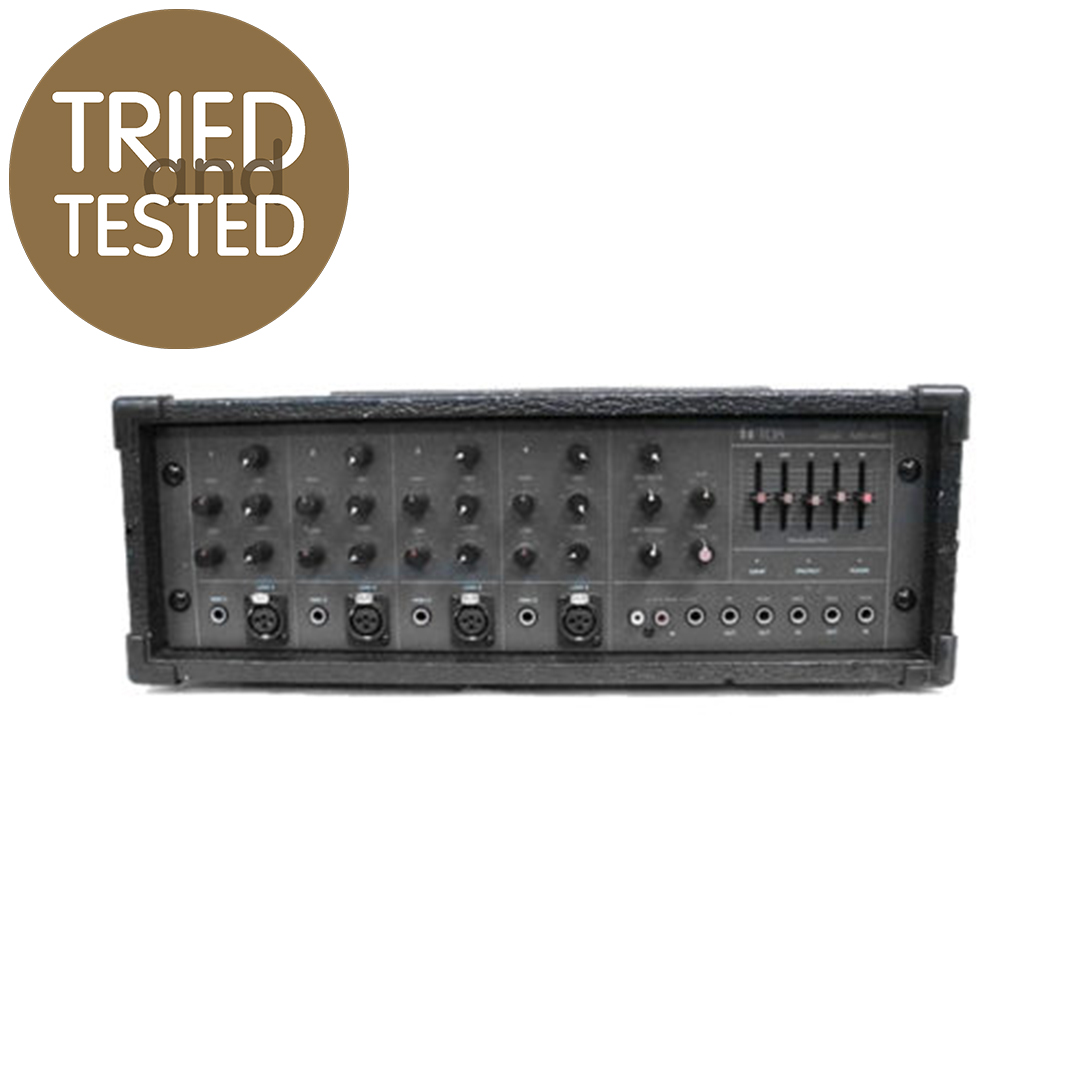

TOA MX401 100w 4 input powered mixer – used

The TOA MX-401 is a classic, compact, four channel self-powered mixeramplifier designed to deliver maximum features and performance in a cost-effective portable PA package – used

The MX-401 features four input channels, one program output, and one Foldback output. The internal amplifier is rated at 100 watts into an 8 ohm load, and 150 watts into 4 ohms. Each input channel has an electronically balanced XLR connector, and a highimpedance unbalanced 1/4″ phone jack. In addition, each channel features two-band EQ, a pre-EQ Foldback send, and post-EQ reverb send. The master control section features a patchable 5-band graphic equalizer, a quality 3- spring reverb, a full patch bay with 1/4″ phone auxiliary and RCA tape inputs, and master volume controls for Program, Foldback, and Reverb return to both. The power amp protection circuitry and autocomp compressor, both with LED’s, are also located in this section.

Classic 1990’s mixer amplifier – very clean condition

• Four input channels
• 100 watts into 8 ohms, 150 watts into 4 ohms
• Patchable 5-band graphic EQ
• Auto Comp compression unit w/LED
• Power amp protection circuitry w/LED
• Full patch bay
• Aux input w/level control, RCA jacks and parallel phone 1/4″ jacks
• Reverb level to PGM and FB
• Independent Foldback mixEach Channel
• Input level control
• Two band EQ
• Pre-EQ Foldback send
• Post-EQ Foldback send
• Low-Z electronically balanced XLR input
• Hi-Z unbalanced 1/4″ input
• Frequency Response: +0, -3dB 60Hz~20kHz (input LEVEL at “5” position)
• Total Harmonic Distortion: 0.05% +4dB* at 1kHz.
• Hum and Noise (Open)
  Equivalent Input Noise: -130dB* (20Hz ~ 20kHz)
  Equivalent Input Noise: -133dB* (IHF A)
  All level Controls Minimum: -110dB* (IHF A)
  PGM Master at MAX and all input level controls minimum: -90dB* (IHF A)
  PGM Master at MAX and one input level control at MAX: -70dB* (IHF A)
• Maximum Voltage Gain
  INPUT to PGM out: 64dB
  INPUT to FB out: 64dB
  INPUT to GEQ out: 64dB
  AUX to PGM out: 24dB
• Input EQ
  50Hz ±15dB Shelving
  20kHz ±15dB Shelving
• Equalization
  63Hz: ±12dB Peaking
  250kHz: ±12dB Peaking
  8kHz: ±12dB Peaking
  2kHz: ±12dB Peaking
  1kHz: ±12dB Peaking

These amplifiers do not have the Spring-line Reverb fitted.

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return-to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
