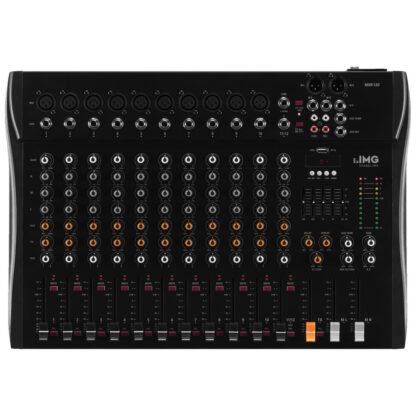

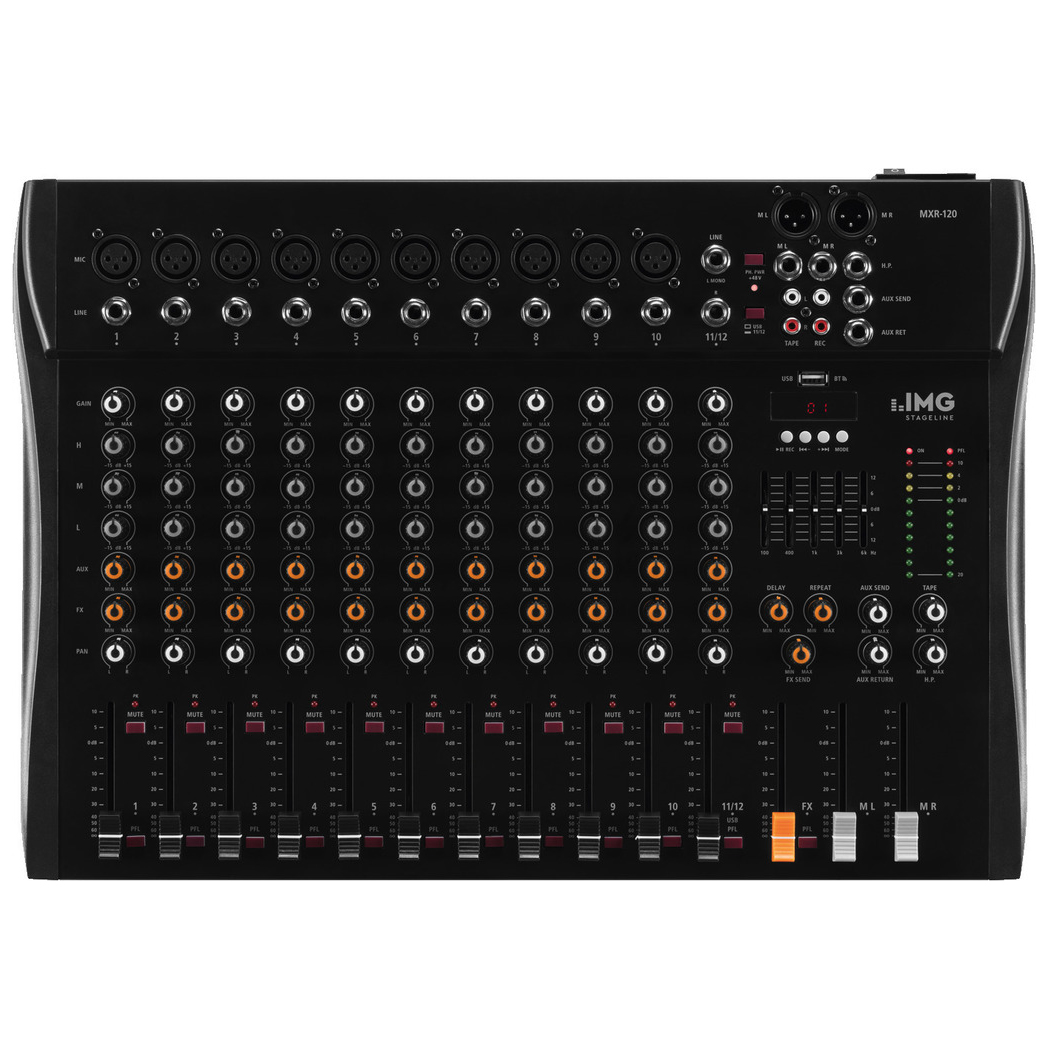

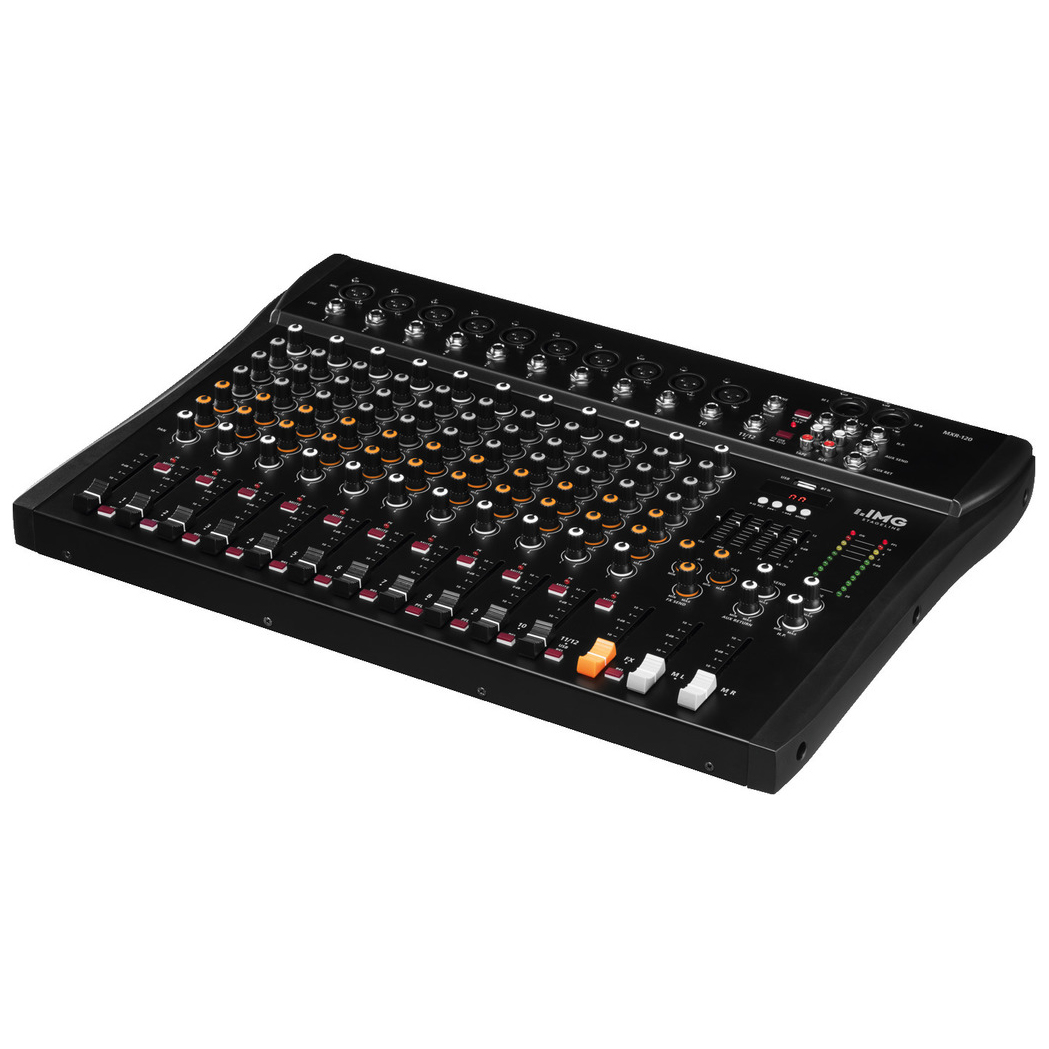

IMG Stageline MXR-120 Stereo Mixer

SKU: MXR-120

£210.00 + VAT    £252.00 incl. VAT

12-channel audio mixer with integrated USB audio interface

Out of stock

bluetooth
USB Type A
DSP
stereo
Equaliser

PDF

Description

IMG Stageline MXR-120 12-channel stereo audio mixer with integrated MP3 player and Bluetooth receiver

The MXR series mixers can all be connected to a PC via Integrated USB audio interface and will be identified and addressed as an external sound card.

  • Integrated USB audio interface (will be identified and addressed as an external sound card)
  • Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
  • 10 mono input channels with gain control, 3-way equalizer and pan pot
  • 1 stereo input channel with 3-way equalizer and balance control
  • MP3 player
  • USB interface
  • Bluetooth receiver
  • DSP delay, adjustable
  • Adjustable aux return input and FX send output
  • Tape record/play connections
  • 5-band stereo graphic equalizer
  • +48 V phantom power, can be activated as required
  • Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
  • Stereo LED level display
  • Input channels: 12
  • Number of mix/mono: 10
  • No. of stereo: 1
  • Mic input: 2.2 mV, balanced 10 x XLR
  • Line input: 50 mV (stereo), 1 x 6.3 mm jack L/R, 30 mV (mono), 10 x 6.3 mm jack
  • Tape (play): 290 mV, 1 x RCA L/R
  • Aux input: 420 mV, 1 x 6.3 mm jack L/R
  • Master output: 880 mV, balanced 1 x XLR L/R, 880 mV, 1 x 6.3 mm jack L/R
  • Effect send: 9 V, 1 x 6.3 mm jack
  • Tape (rec): 400 mV, 1 x RCA L/R
  • Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
  • USB: yes
  • Bluetooth: yes
  • Frequency range: 20-20,000 Hz
  • THD: < 0.03%
  • S/N ratio: > 82 dBA
  • Equalizer
    Bass: ±15 dB/80 Hz
    Midrange: ±15 dB/2.5 kHz
    Treble: ±15 dB/12 kHz
  • Equalizer: 5-band equalizer
  • Phantom power: +48 V
  • Power supply: ˜ 230 V/50 Hz/30 VA
  • Mains voltage: ~ 230 V
  • Mains frequency: 50 Hz
  • Power consumption, operation: 30 VA
  • Admissible ambient temperature: 0-40 °C
  • Width: 498 mm
  • Height: 53 mm
  • Depth: 340 mm
  • Weight: 4.4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight4.4 kg
Dimensions34 × 49.8 × 5.3 cm
Channels

12

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, RCA Phono, USB (Type A)

Media Playback

Bluetooth, USB (Type A) Slot

Colour

Black

Condition

New

Brand

IMG Stageline

With over 25 years experience in the sound and lighting industry, IMG Stageline is a beacon for reliable and affordable professional sound and lighting equipment. Their expertise and reach in the industry allows for consistent development, allowing innovative audio and lighting solutions to be produced. Quality of performance is no longer just down to the performer, technology plays a huge role in engaging the audience, using lighting and sound to cultivate an atmosphere. IMG Stageline offers the very best in professional equipment, from fixed installations to mobile technology, helping you to make the most of music and live performance. The flexible design means that equipment can be utilised in a way that aligns perfectly to your unique sound needs. Products in the range include IMG Stageline speakers, PA systems, mixing desks and more; everything you could need as a DJ, sound engineer or event organiser. With unrivalled quality, IMG Stageline set new standards in the stage and event industry time and time again, offering sound and lighting solutions on a budget, without compromising on quality. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
