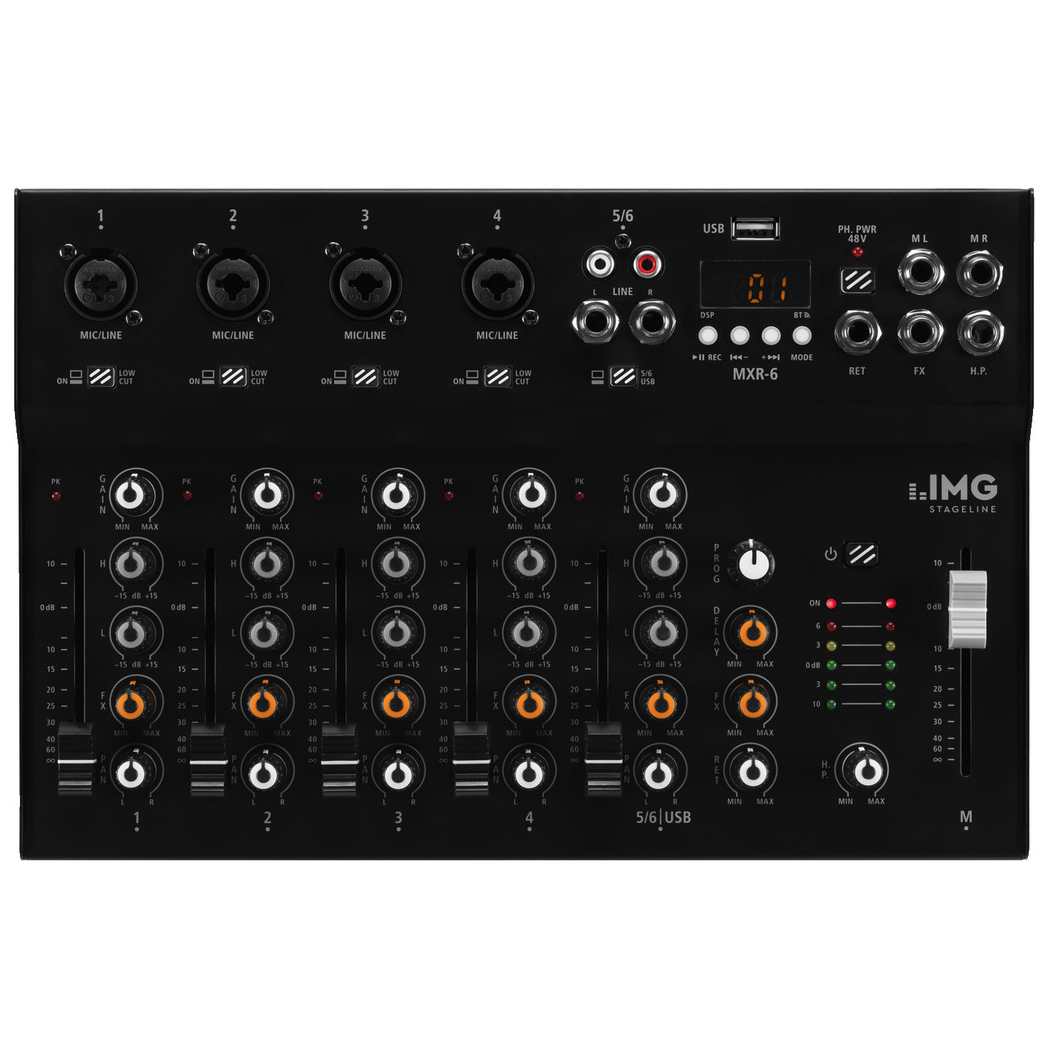

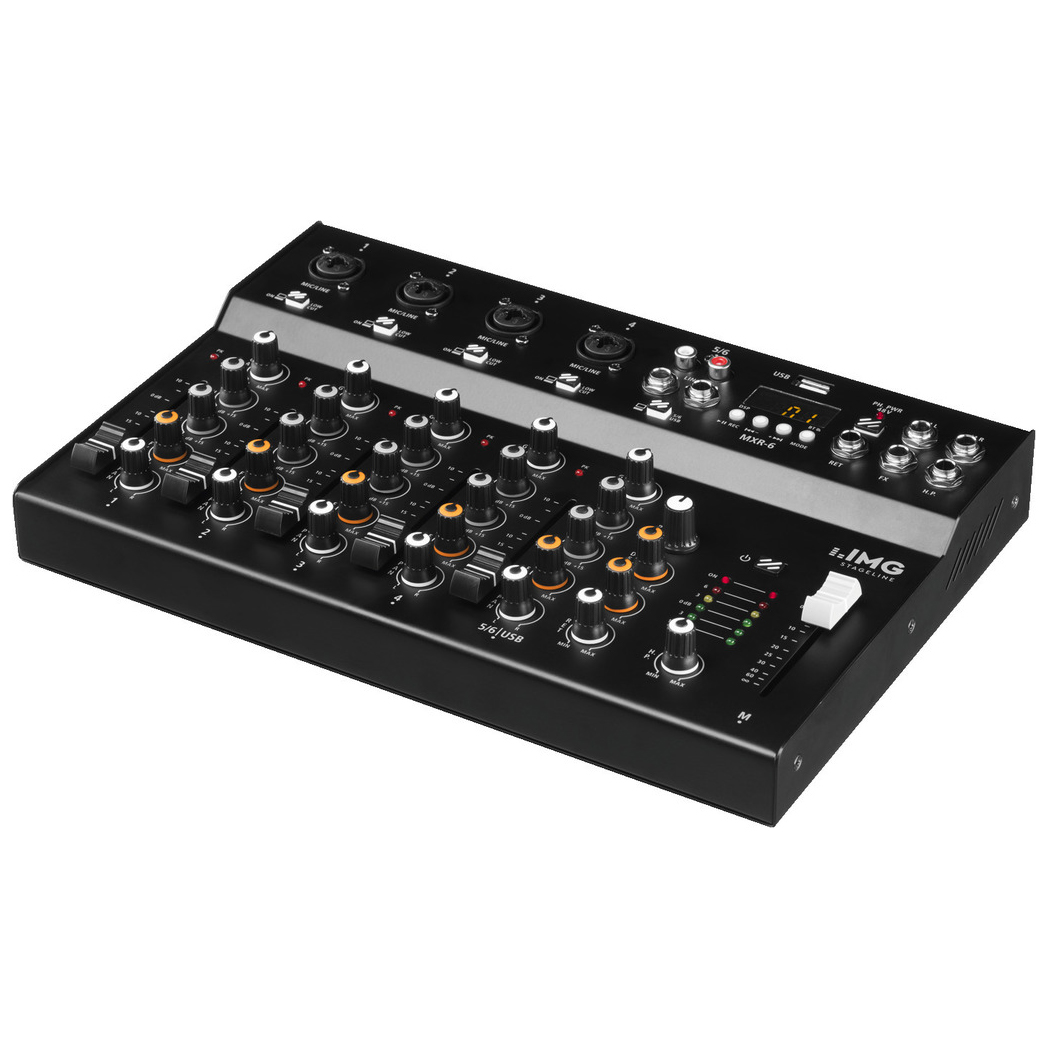

IMG Stageline MXR-6 Stereo Mixer

Description

IMG Stageline MXR-6 6-channel stereo audio mixer with DSP effect unit, integrated MP3 player and Bluetooth receiver

The MXR series mixers can all be connected to a PC via Integrated USB audio interface and will be identified and addressed as an external sound card

• Integrated USB audio interface (will be identified and addressed as an external sound card)
• Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
• 4 mono input channels with gain control, 2-way equalizer and pan pot
• 1 stereo input channel with 2-way equalizer and balance control
• MP3 player
• USB interface
• Bluetooth receiver
• 16 different DSP effects
• Adjustable aux return input and FX send output
• +48 V phantom power, can be activated as required
• Adjustable headphone output
• Stereo LED level display
• Power is provided via USB or supplied power supply
• Input channels: 4
• Number of mix/mono: 2
• No. of stereo: 1
• Mic input: 2 mV, balanced 2 x XLR
• Line input: 100 mV (stereo), 2 x 6.3 mm jack L/R, 60 mV (mono), 2 x 6.3 mm jack
• Aux input: 400 mV, 1 x 6.3 mm jack L/R
• Master output: 500 mV, 1 x 6.3 mm jack L/R
• Effect send: 4.4 V, 1 x 6.3 mm jack
• Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
• USB: yes
• Bluetooth: yes
• Frequency range: 20-20,000 Hz
• THD: < 0.03%
• S/N ratio: > 83 dBA
• Equalizer
  Bass: ±15 dB/80 Hz
  Treble ±15 dB/12 kHz
• Phantom power: +48 V
• Power supply: USB or enclosed power supply
• Admissible ambient temperature: 0-40 °C
• Width: 228 mm
• Height: 53 mm
• Depth: 205 mm
• Weight: 1.4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
