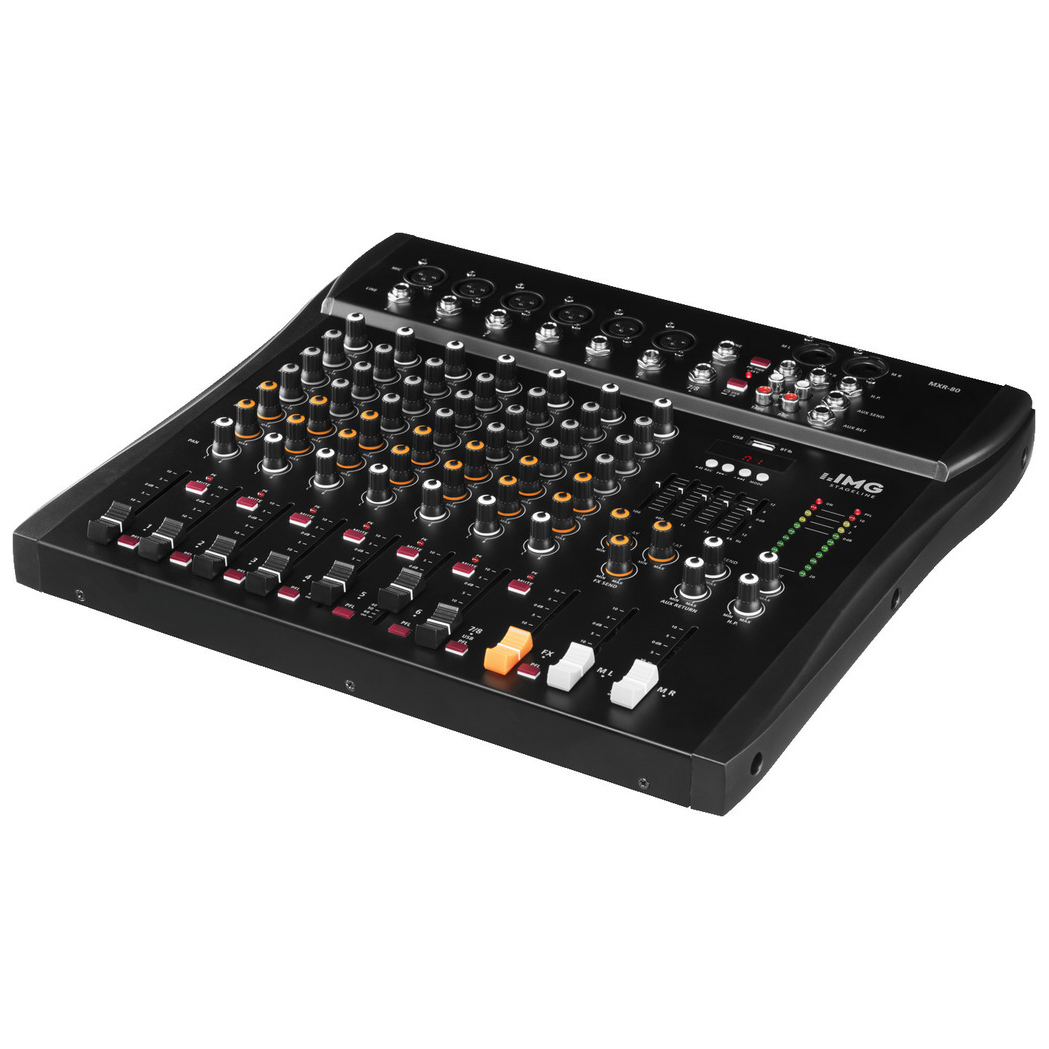

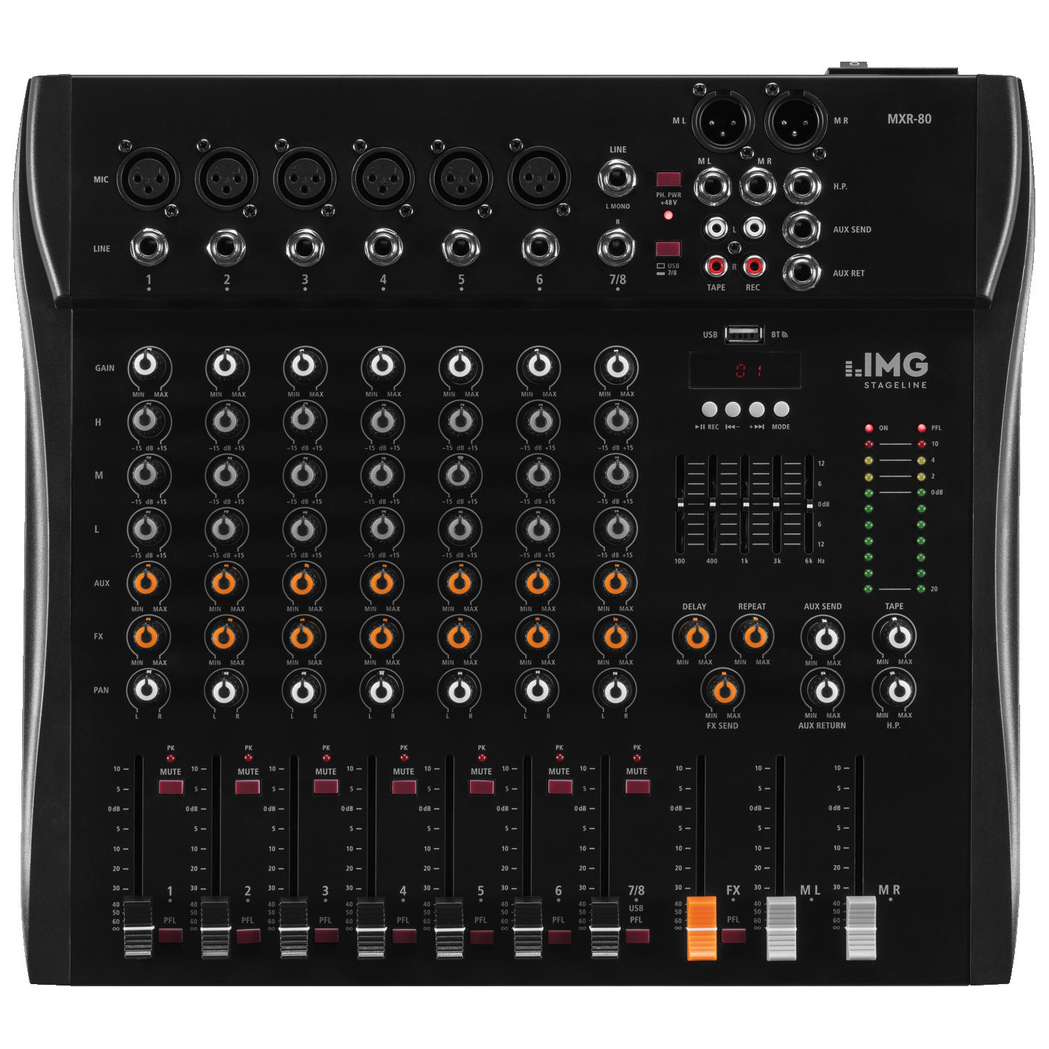

IMG Stageline MXR-80 Stereo Mixer

Description

IMG Stageline MXR-80 8-channel stereo audio mixer with integrated MP3 player and Bluetooth receiver

The MXR series mixers can all be connected to a PC via Integrated USB audio interface and will be identified and addressed as an external sound card

• Integrated USB audio interface (will be identified and addressed as an external sound card)
• Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
• 6 mono input channels with gain control, 3-way equalizer and pan pot
• 1 stereo input channel with 3-way equalizer and balance control
• MP3 player
• USB interface
• Bluetooth receiver
• DSP delay, adjustable
• Adjustable aux return input and FX send output
• Tape record/play connections
• 5-band stereo graphic equalizer
• +48 V phantom power, can be activated as required
• Pre-fader listening (PFL) to the stereo input channels via adjustable headphone output
• Stereo LED level display
• Input channels 8
• Number of mix/mono: 6
• No. of stereo: 1
• Mic input: 2.2 mV, balanced 8 x XLR
• Line input: 50 mV (stereo), 1 x 6.3 mm jack L/R, 30 mV (mono), 8 x 6.3 mm jack
• Tape (play): 290 mV, 1 x RCA L/R
• Aux input: 420 mV, 1 x 6.3 mm jack L/R
• Master output: 880 mV, balanced 1 x XLR L/R, 880 mV, 1 x 6.3 mm jack L/R
• Effect send: 9 V, 1 x 6.3 mm jack
• Tape (rec): 400 mV, 1 x RCA L/R
• Headphones: ≥ 8 Ω, 1 x 6.3 mm jack
• USB: yes
• Bluetooth: yes
• Frequency range: 20-20,000 Hz
• THD: < 0.03%
• S/N ratio: > 82 dBA
• Equalizer
  Bass: ±15 dB/80 Hz
  Midrange: ±15 dB/2.5 kHz
  Treble: ±15 dB/12 kHz
• Equalizer: 5-band equalizer
• Phantom power: +48 V
• Power supply: ˜ 230 V/50 Hz/25 VA
• Mains voltage: ~ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 25 VA
• Admissible ambient temperature: 0-40 °C
• Width: 382 mm
• Height: 53 mm
• Depth: 340 mm
• Weight: 3.4 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
