Neutrik NC3FXX-BAG 3-Pin XLR Female Connector

Description

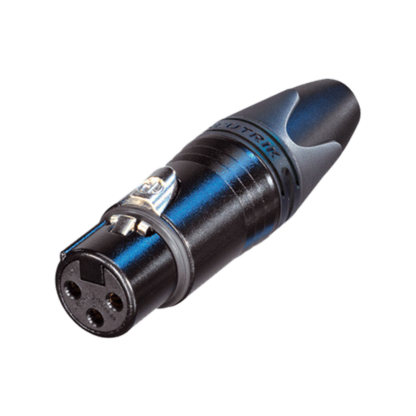

Neutrik NC3FXX-BAG 3-pin XLR female connector

3 pole female cable connector with black metal housing and silver contacts.

The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Colored rings and boots available for coding or identification
• Sleek and ergonomic design – valuable and handy
• Rugged zinc diecast shell, longlasting and dependable
• Internal thread on shell is well protected against any damage

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Cable: O.D. 3.5 – 8.0 mm
• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize max.: 2.5 mm²
• Wiresize max.: 14 AWG
• Wiring Solder: contacts
• Locking device: Latch lock

Material

• Boot: Polyurethan
• Contact plating: 2 µm Ag
• Contacts: Bronze (CuSn8)
• Insert: Polyamide (PA66)
• Locking element: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell coating: Black KTL
• Strain relief: Polyacetal (POM)

Environmental

• Flammability: UL 94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
