Description

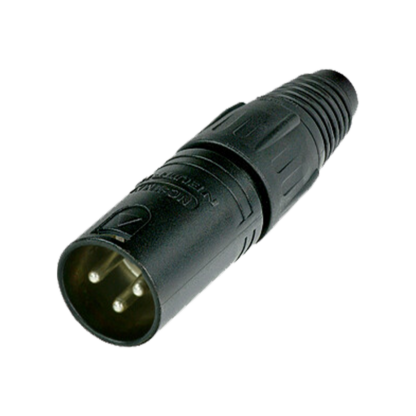

Neutrik NC3MX-BAG 3-pin XLR male connector
3 pole male cable connector with black metal housing and silver contacts.
The “industry standard” XLR cable connector, easy to assemble with only 4 parts and no screws. Compact design with sturdy diecast shell, fibreglass reinforced hard plastic insert and chuck type strain relief for secure clamping of all cables.
- Rugged zinc diecast shell, long lasting and durable
- Chuck type strain relief system for secure clamping of cables
- Boot with rubber gland gives high protection against bending stresses
- Coloured rings and boots available for coding and marking
- Title: NC3MX-BAG
- Connection Type: XLR
- Gender: male
Electrical
- Capacitance between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1,5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
Mechanical
- Cable: O.D. 3.5 – 8.0 mm
- Insertion force: ≤ 20 N
- Withdrawal force: ≤ 20 N
- Lifetime: > 1000 mating cycles
- Wiresize max.: 2.5 mm²
- Wiresize max.: 14 AWG
- Wiring: Solder contacts
- Locking device: Latch lock
Material
- Boot: Polyurethan
- Contact plating: 2 µm Ag
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA66)
- Locking element: Zinc diecast (ZnAl4Cu1)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell coating: Black KTL
- Strain relief: Polyacetal (POM)
Environmental
- Approvals: UL
- Flammability: UL 94 V-0
- Standard compliance: IEC 61076-2-103
- Protection class: IP 40
- Solderability: Complies with IEC 68-2-20
- Temperature range: -30 °C to +80 °C
