120w Outdoor PA Sound System for Sports Events and Fetes

Description

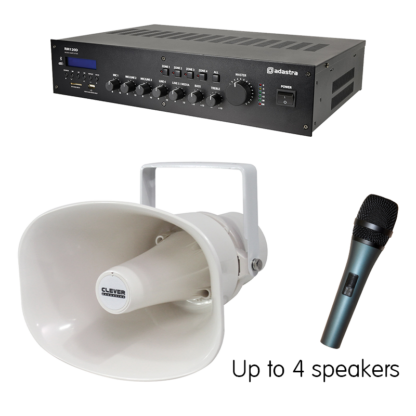

OUT-120 120w outdoor public address sound systems work from 240v AC mains or external 24v car or leisure type lead acid batteries (not supplied) and include mixer amplifier with integral MP3 and Bluetooth media player, up to 4 horn speakers, handheld cabled microphone, 100m reel 100v line speaker cable and an ‘aux’ input cables for connection to MP3 and CD players

These systems are ideal for local sports clubs, school events and fetes etc.

Please select how much cable and how many in-line speaker connector etc. that you need and then add any optional items such as wireless microphones, rack cases, CD & media player and speaker tripods

This package must be wired as a 100v line sound system – please see user manuals tab

Mixer Amplifier:

• 120w RMS
• Power supply: 170-264Vac, 50Hz (IEC)
• DC power: 24Vdc (screw terminals)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic 1 (balanced): -53dBV
• Input impedance : mic 1: 5k Ohms
• Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
• Input impedance : inputs 2-5: 1k Ohms
• Line output: RCA
• Speaker outputs: 4 switched + 1 non-switched 100V / 4-16 Ohms / COM
• Controls: Mic1, mic/line2+3, line4+5, bass, treble, master volume
• Equaliser : bass: 100Hz ±10dB
• Equaliser : treble: 10kHz ±10dB
• Rear panel switches: Phantom, Vox, Mic/Line (2 + 3)
• Phantom power: +20V (mic 1 XLR, switchable)
• Audio source: DAB+/FM tuner, USB/SD player, Bluetooth receiver
• Emergency control: 24V contacts – mute all except Mic.1 when triggered
• Bluetooth version: 5.0
• THD: <1.0%
• Output power : rms: 120W
• Fuse: T3.15A
• Dimensions: 433 x 320 x 88mm
• Weight: 6.36kg
• Use terminal block to extend speaker cable
• Do not short speaker cables together

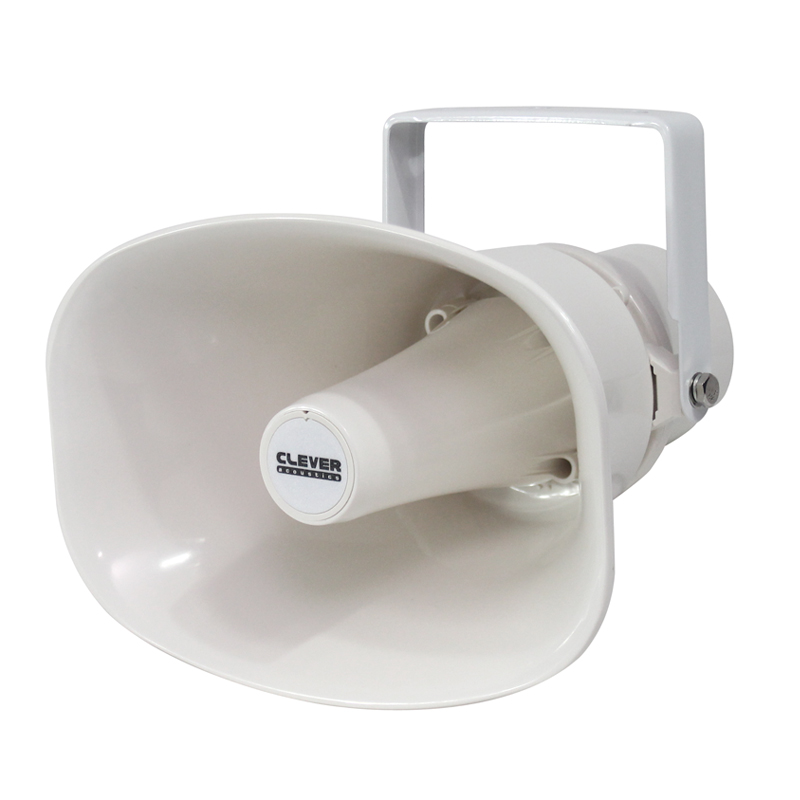

Horn Speakers:

• 100V line operation
• IP66 weatherproof
• Suitable for general outdoor applications
• Mounting bracket
• Power selector switch

Microphone:

• Dynamic hand-held mic with on/off switch

System Includes:

• 1 x 120w mixer amplifier with Bluetooth and media player
• Up to 4 x horn speakers – see options
• 1 x Cabled microphone and lead
• 2 x Input connector leads for MP3 players etc.
• 100m speaker cable – see options

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
