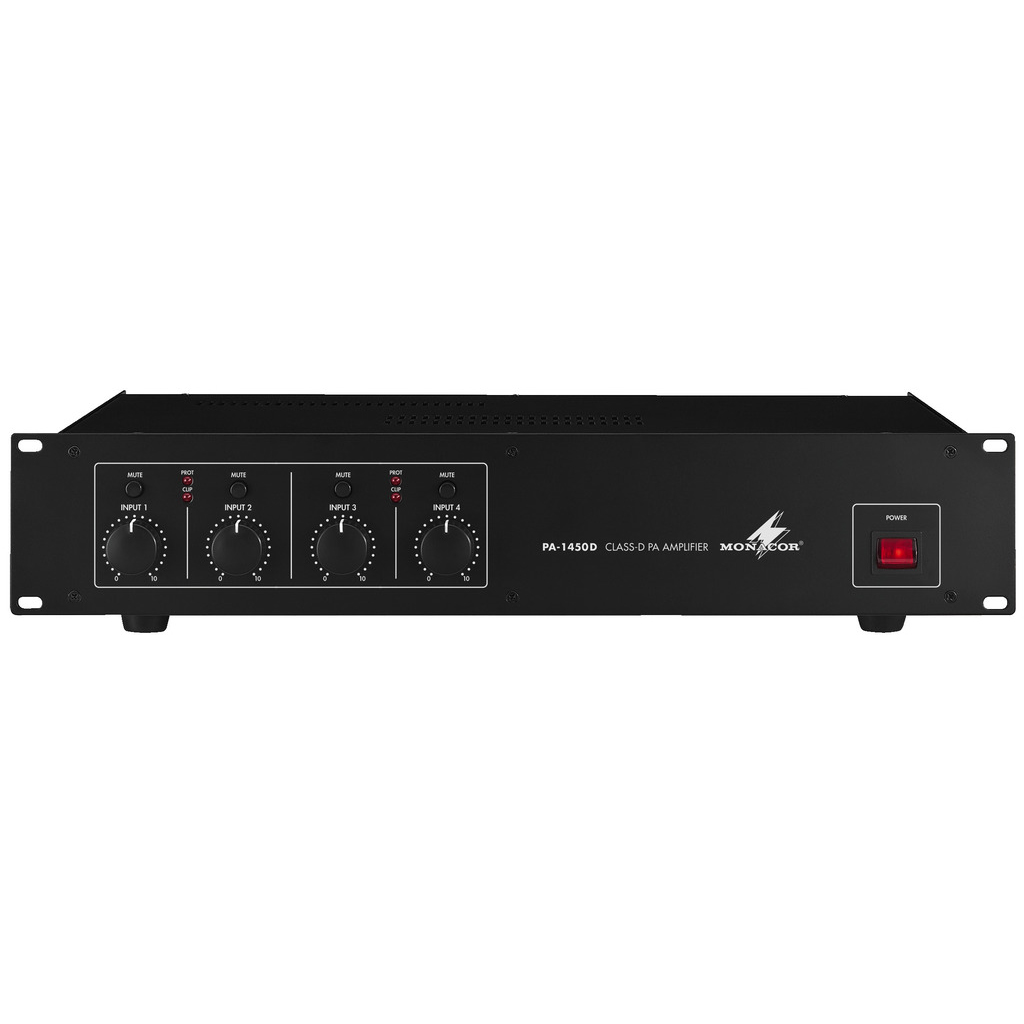

Monacor PA-1450D Digital Quad Power Amplifier

Description

Monacor PA-1450D 4 channel 100v line digital PA power amplifier

• 4 x 50 W
• Class D concept with a high efficiency to reduce energy costs
• Requires lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
• Clearly reduced cooling requirements due to low heat loss
• Silent operation due to fanless cooling concept
• Mute function for each channel
• Level control for each channel
• LED indication for clip and protect for each channel pair
• Protected against short circuit
• Mains operation or 24 V emergency power operation
• Output power: 4 x 50 WRMS/100 V, 4 x 50 WRMS/4 Ω
• Input sensitivity: 1 V/20 kΩ unbalanced, 550 mV/20 kΩ balanced
• Speaker output: 4 Ω, 70/100 V
• Frequency range: 10-20,000 Hz
• S/N ratio: 63 dB
• THD: < 0.5 %
• Admissible ambient temperature: 0-40 °C
• Power supply: 230 V˜/50 Hz/300 VA, 24 V DC current /9 A
• Dimensions: 483 x 90 x 330 mm, 2 RS
• Weight: 9.5 kg

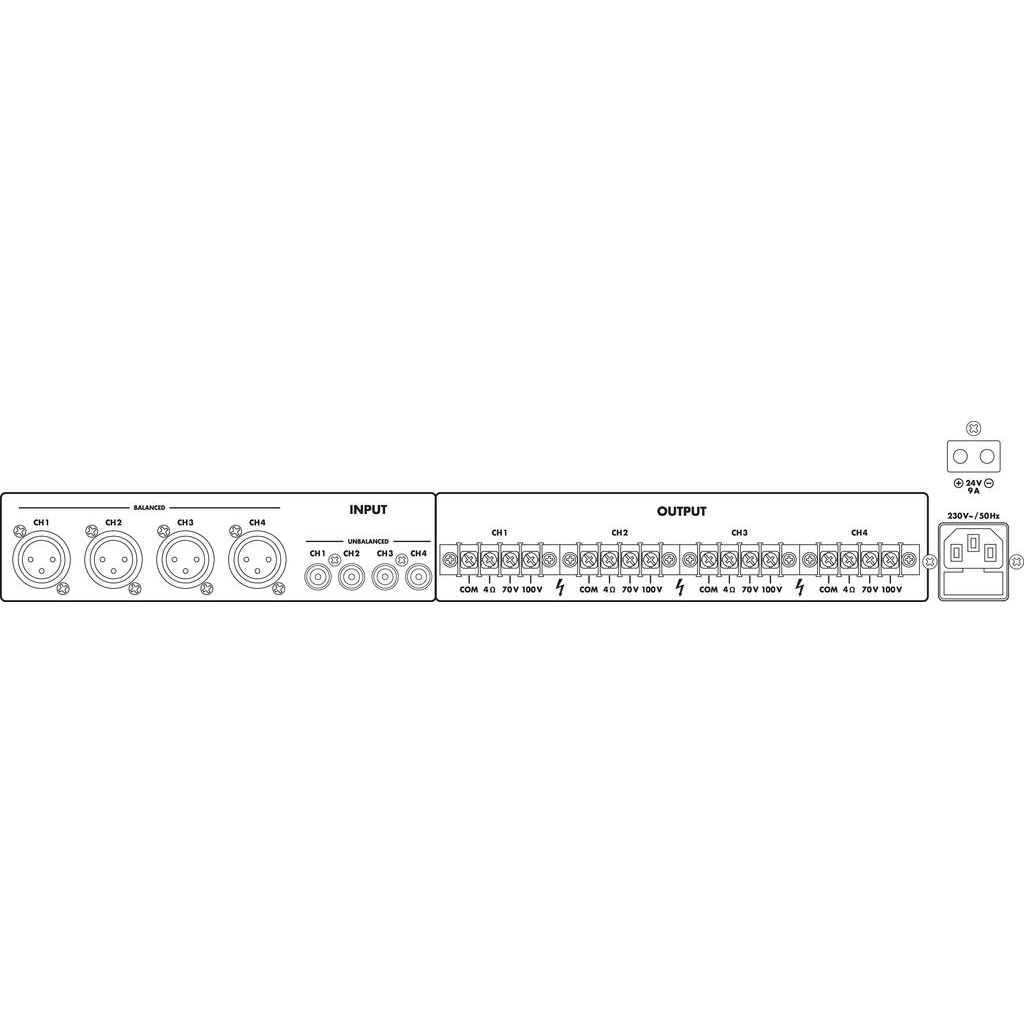

• Signal input: 4 x XLR, balanced, 4 x RCA
• Speaker output: screw terminals

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
