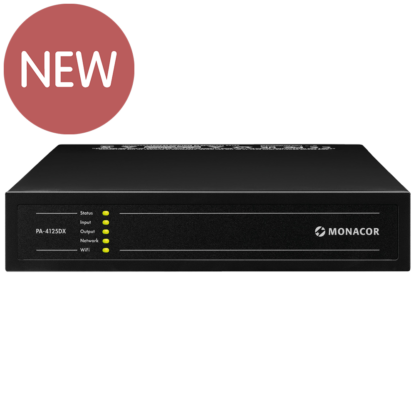

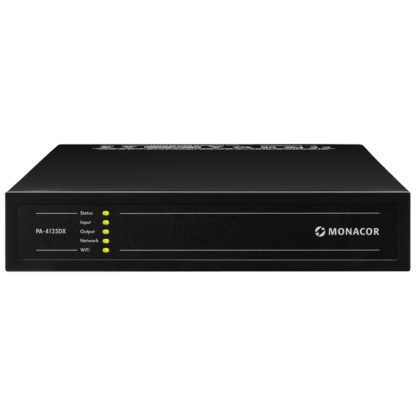

Monacor PA-4125DX 500W Mixer Amplifier

Description

Monacor PA-4125DX 500W (2 x 250W @ 100V line or 4 x 125W @ 8Ω) mixer amplifier with DSP

4-zone multifunctional mixing amplifier, class D technology with DSP and professional features for general multi-room PA applications. Clearly arranged graphical user interface HTML5 with extensive functions. Convenient operation via web browser regardless of the operating system used by the end-user device (PC, Mac, iOS, Android, etc.).

• 4 x 125 W per zone (4/8 Ω) or 2 x 250 W (100 V)
• 100 V or 4/8 Ω operation

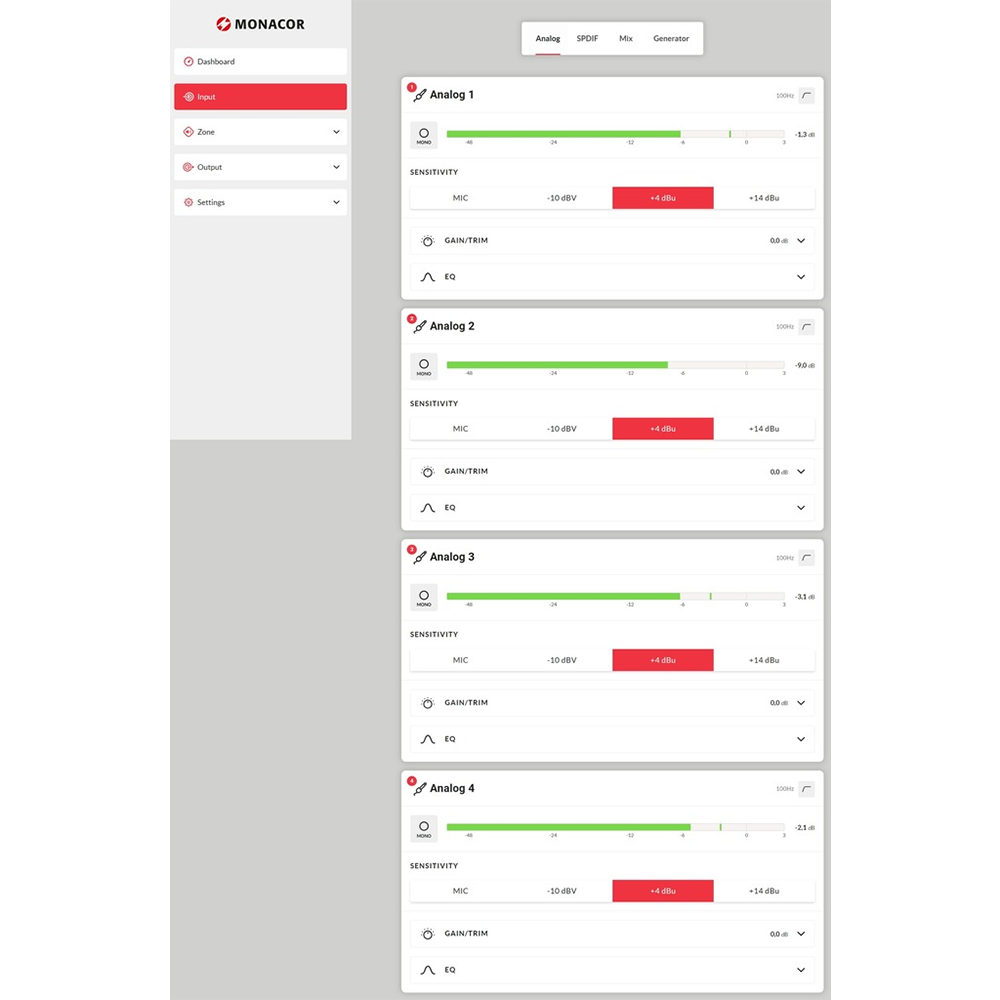

• 4 analogue inputs mic/line via plug-in screw terminal (bal.) or RCA jacks
• 1 digital input/output via S/PDIF RCA jacks
• 4 outputs (4/8 Ω) or 2 zone outputs (100 V) via plug-in screw terminal
• GPIO interface for remote volumen and standby
• Network connection via LAN or WLAN

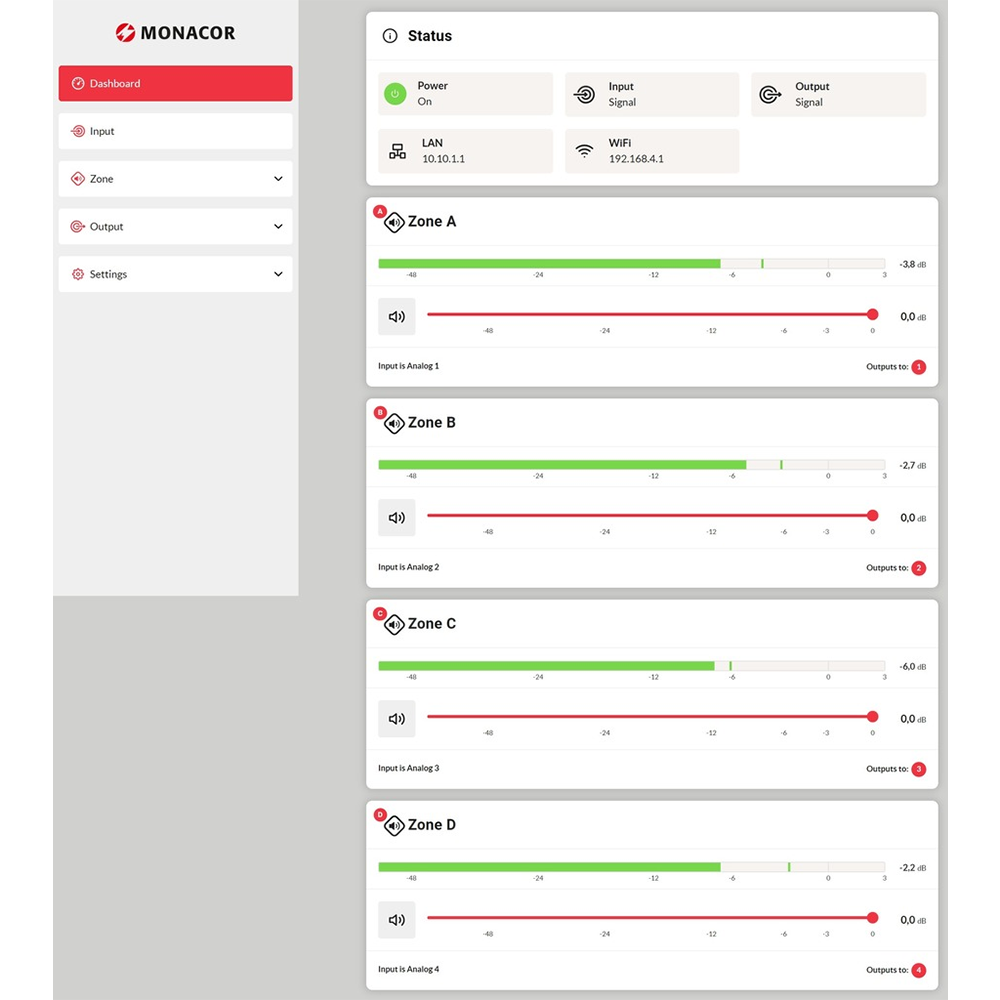

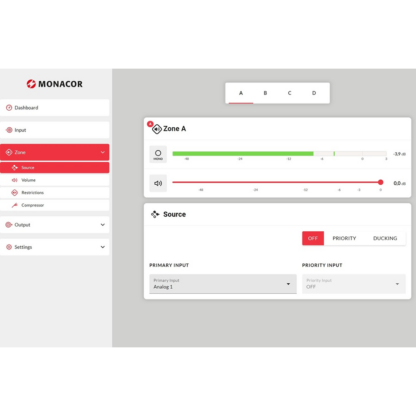

• Convenient operation and configuration via user interface HTML5

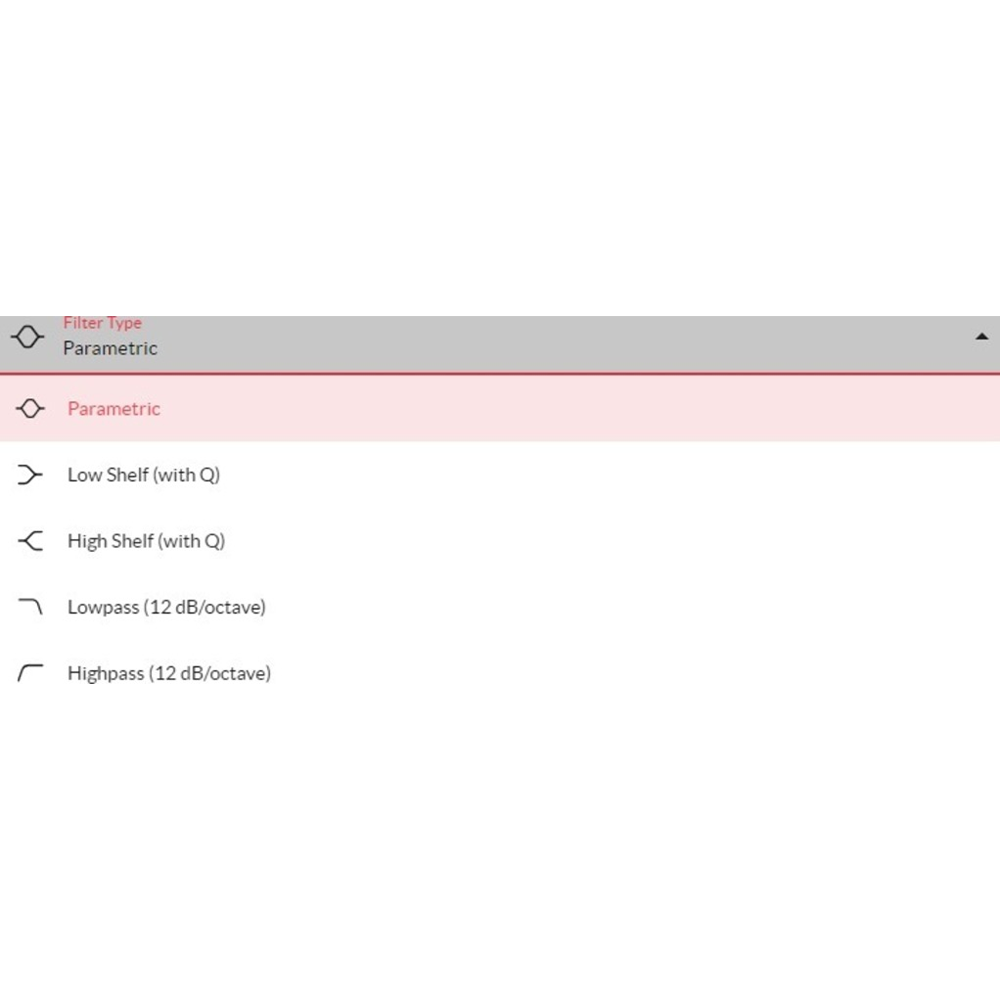

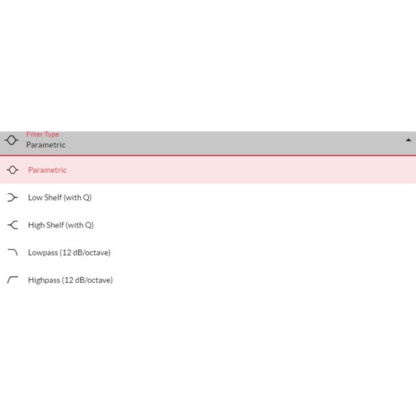

• High-pass/low-pass filter with various filters

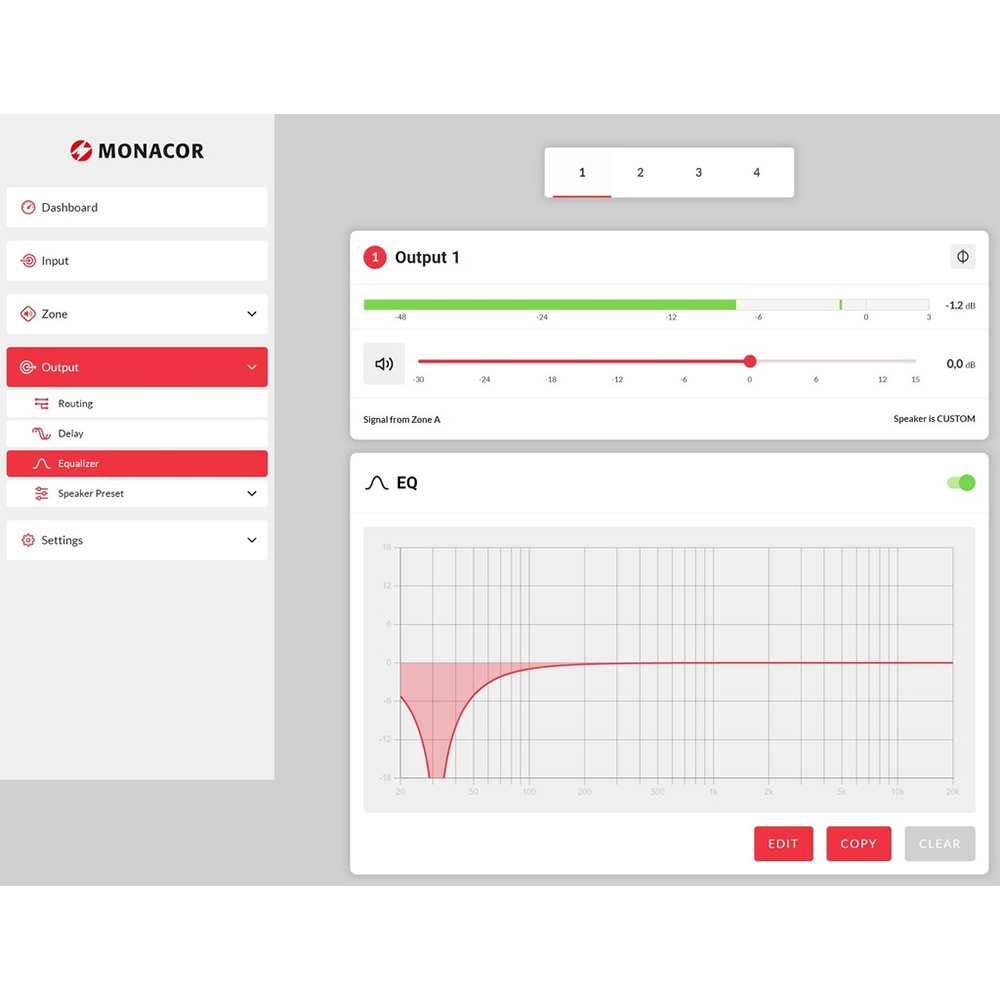

• Parametric equalizer
• Output with separate FIR filters
• Speaker matching: 10 ms
• Switchable output phase
• Adjustable compressor/limiter
• Adjustable delay
• Mix inputs

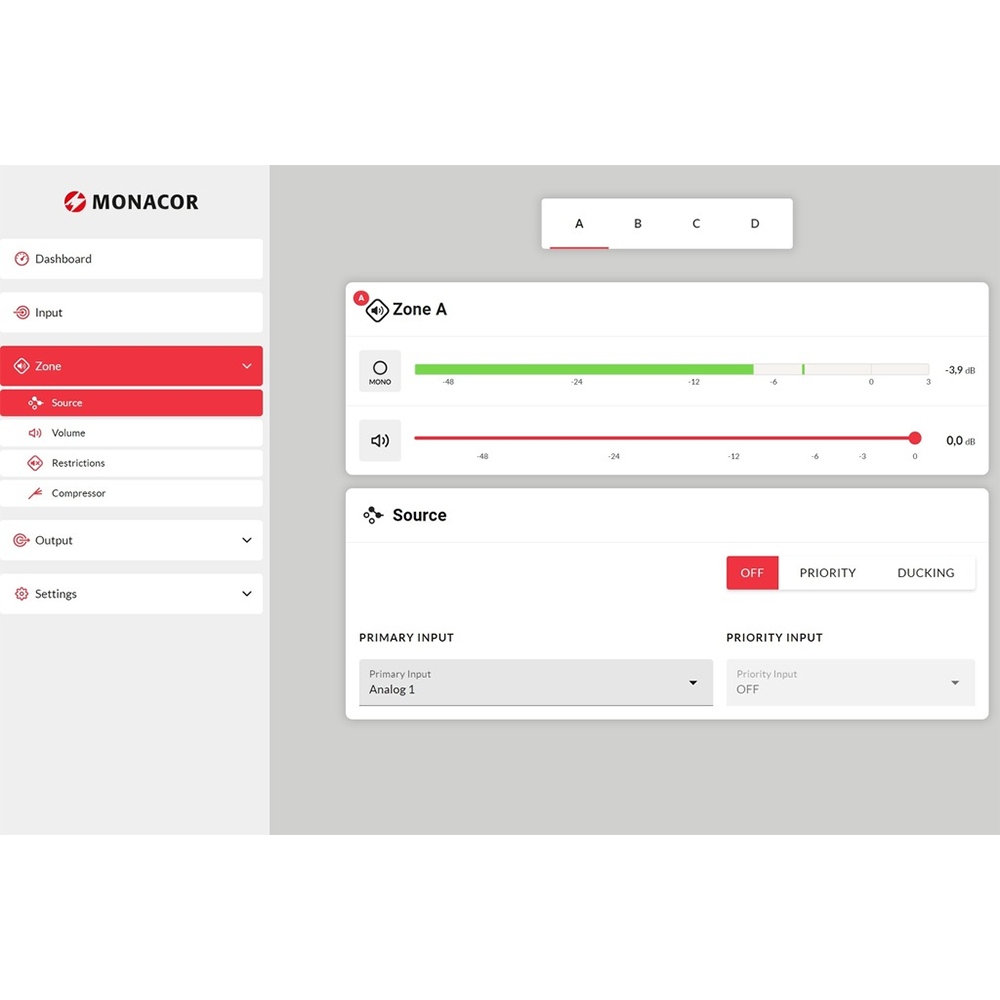

• Talkover with priority routing
• Built-in sine wave noise generator

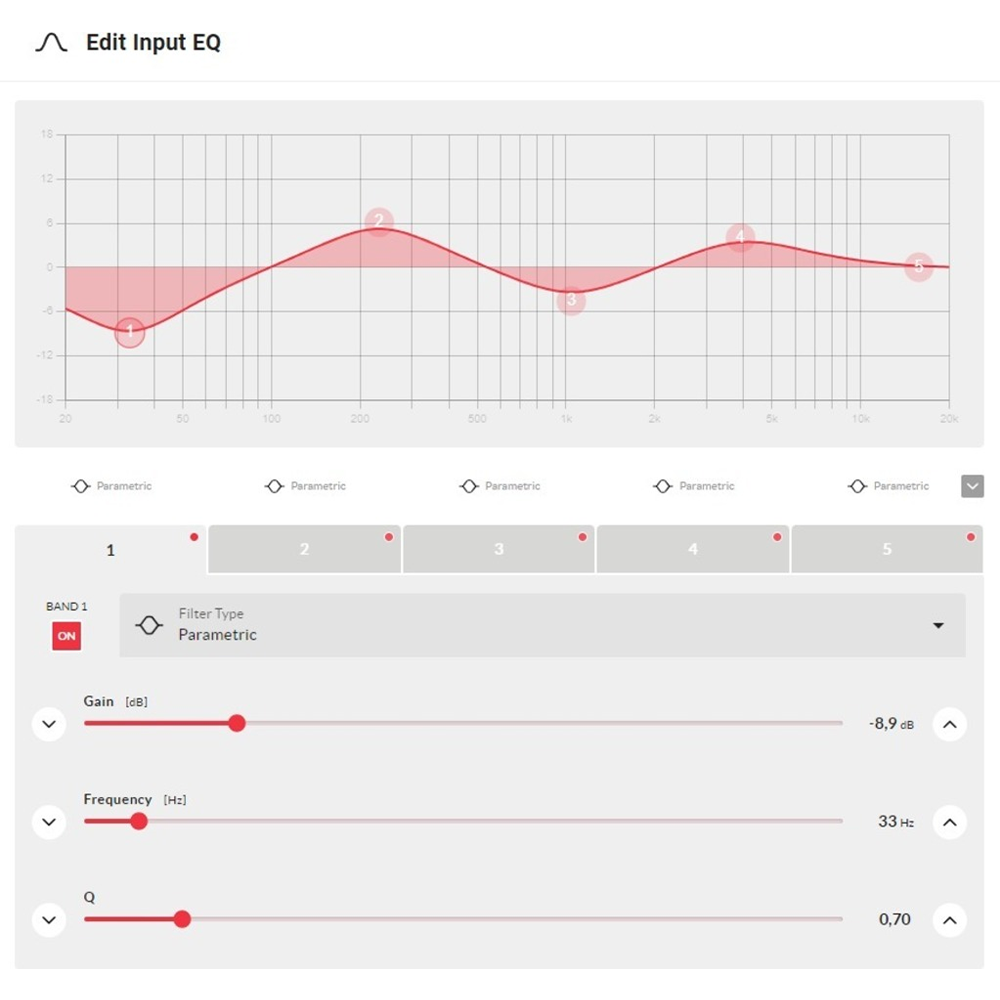

• Parametric 5-band equalizer for input
• Protected against short circuit, DC voltage overload, undervoltage, excess temperature and overload

Specifications:

• Peak output power: 500 W
• Power rating: 500 W
• Power rating at 4 Ω: 4 x 125 W
• Power rating at 8 Ω: 4 x 125 W
• Power rating at 100 V: 2 x 250 W
• Channels: 5
• Zones: 4
• Inputs: 1.2 V, bal. (line), 1.9 mV, bal. (mic)
• Integrated limiter: yes
• Equalizer (bass, midrange and treble): all via DSP
• S/N ratio: > 106 dB
• THD: < 0.05%
• Power supply: ˜ 100-240 V/50-60 Hz/150 W
• Mains voltage: ~ 100-240 V
• Mains frequency: 50-60 Hz
• Power consumption
  • Operation: 150 W, 1/8 output power
  • Standby: < 0.5 W
• Admissible ambient temperature: 0-40 °C
• Width: 220 mm
• Height: 44 mm
• Depth: 320 mm
• Rack units, RU: 1
• Weight: 1.95 kg

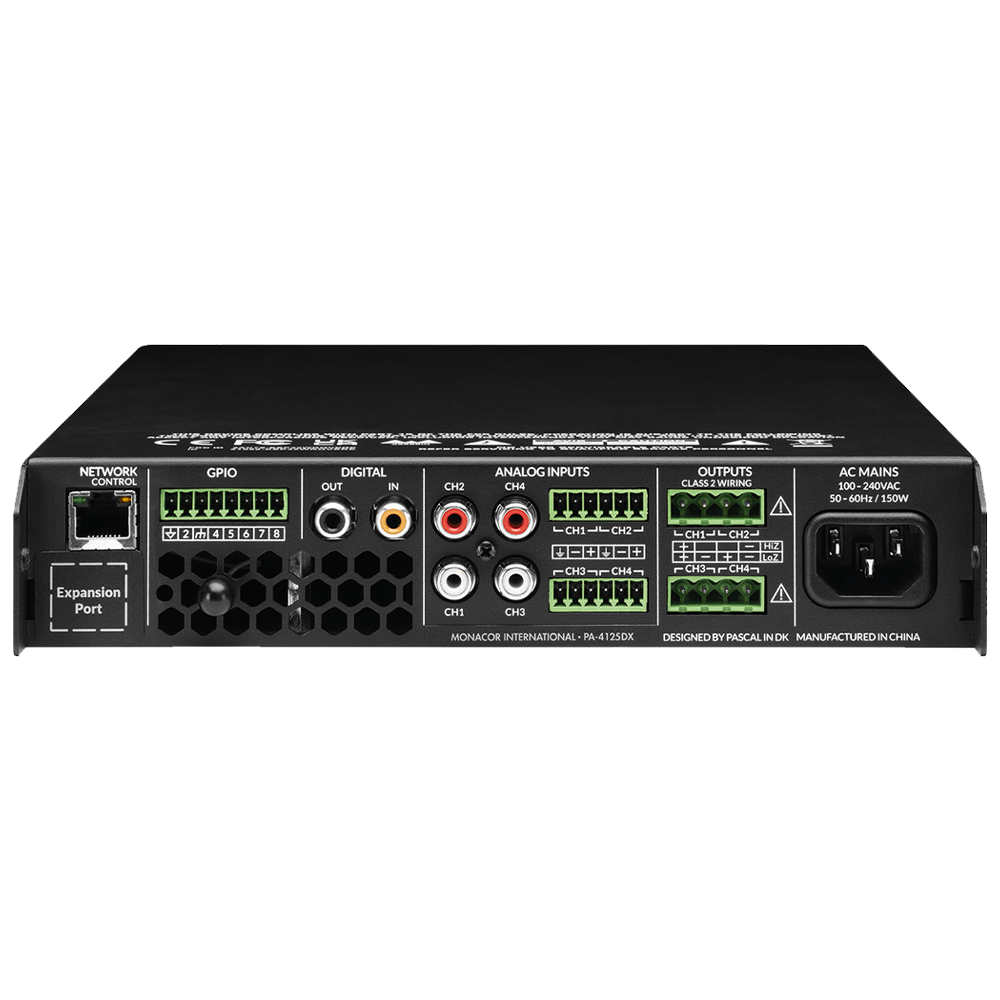

• Connections:
  • 4 x RCA line
  • plug-in screw terminal (mic/line)
  • 2 x RCA (digital in/out)
  • plug-in screw terminal GPIO
  • plug-in screw terminal speakers
  • 1 x RJ45 network connection

Note: after first switching on the device, the firmware must be updated to minimum version 1.6.4.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
