Monacor PA-900 Mixer Amplifier

Description

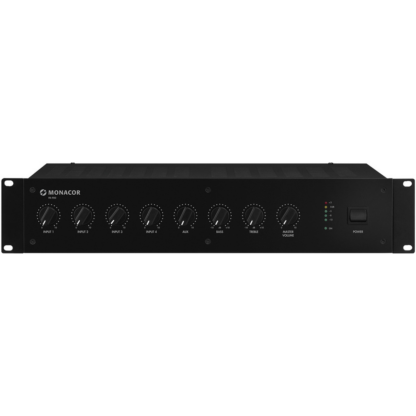

Monacor PA-900 120w 100v line mixer amplifier

The Monacor 900 series of public address mixer amplifiers run from DC batteries or AC mains power supplies. They can be used with either 100v line or 8 ohm low impedance loudspeakers in commercial applications such as factories, offices, schools, Churches etc. Supplied with 19″ rack brackets

• 120w RMS version
• 4 balanced mic/line inputs
• Mic 1 with priority circuit and automatic talkover
• Additional connection for desktop microphone via screw terminal
• 1 aux input
• Speaker outputs via screw terminals
• Line output
• Insert facility for pre-amplifier
• Input and output level controls
• 2-way tone control for the output
• 21V phantom power, selectable
• Mains operation or 24V emergency power operation
• Removable rack mounting brackets
• Channels: 5
• Power rating: 120 W
• Peak music power output (PMAX): 160 W
• Inputs: 3 mV (mic), 200 mV (line), 140 mV (aux)
• Frequency range: 50-15,000 Hz, ±3 dB
• Equalizer bass: ± 10 dB/100 Hz
• Equalizer treble: ± 10 dB/10 kHz
• S/N ratio: > 80 dB
• THD: < 0.5%
• Power supply: ˜ 230 V/50 Hz/300 VA,
• DC current: 24 V/9 A
• Mains voltage: ˜ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 300 VA
• Operating voltage (possible alternative): DC current 24 V
• Power supply (possible alternative): DC current 9 A
• Admissible ambient temperature: 0-40 °C
• Dimensions: 482 x 88 x 275 mm, 2 RS
• Width: 482 mm
• Height: 88 mm
• Depth: 275 mm
• Rack spaces, RS: 2
• Weight: 9.9 kg
• Connections: 4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
