Monacor PA-900 Mixer Amplifier – Used

Description

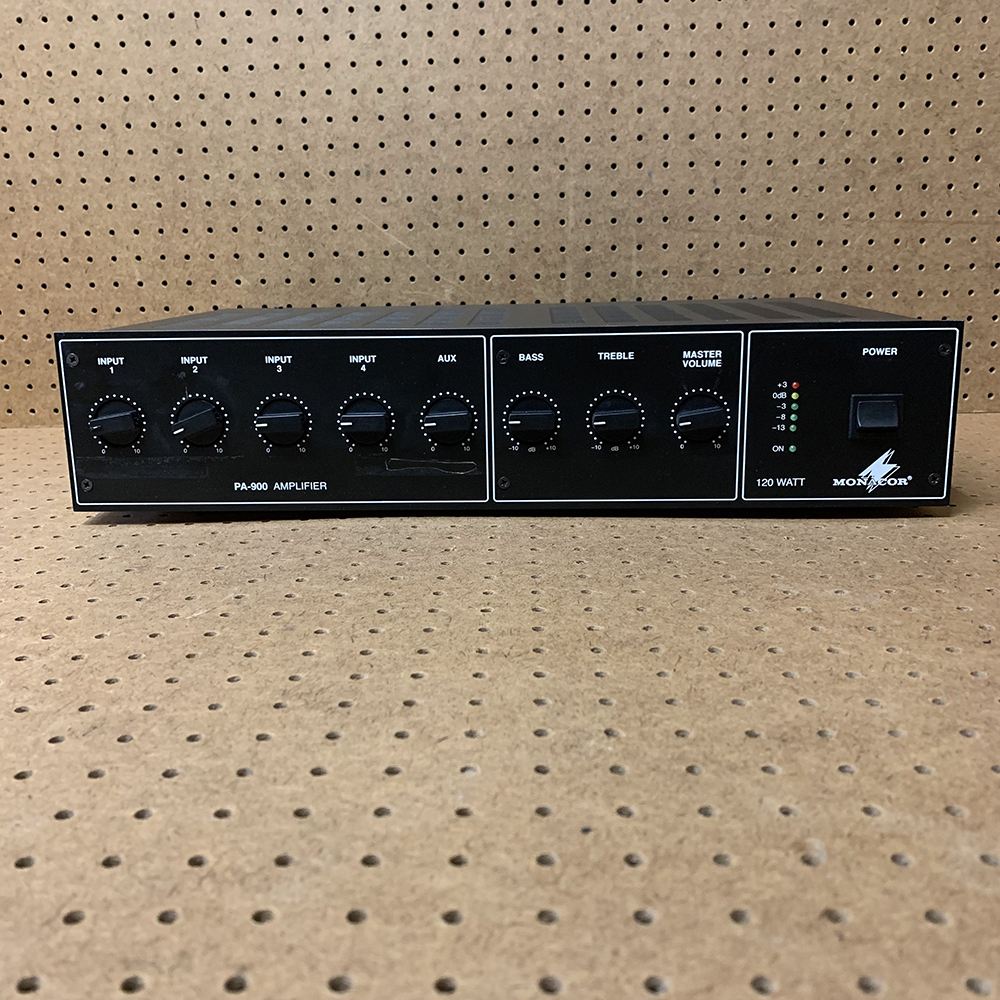

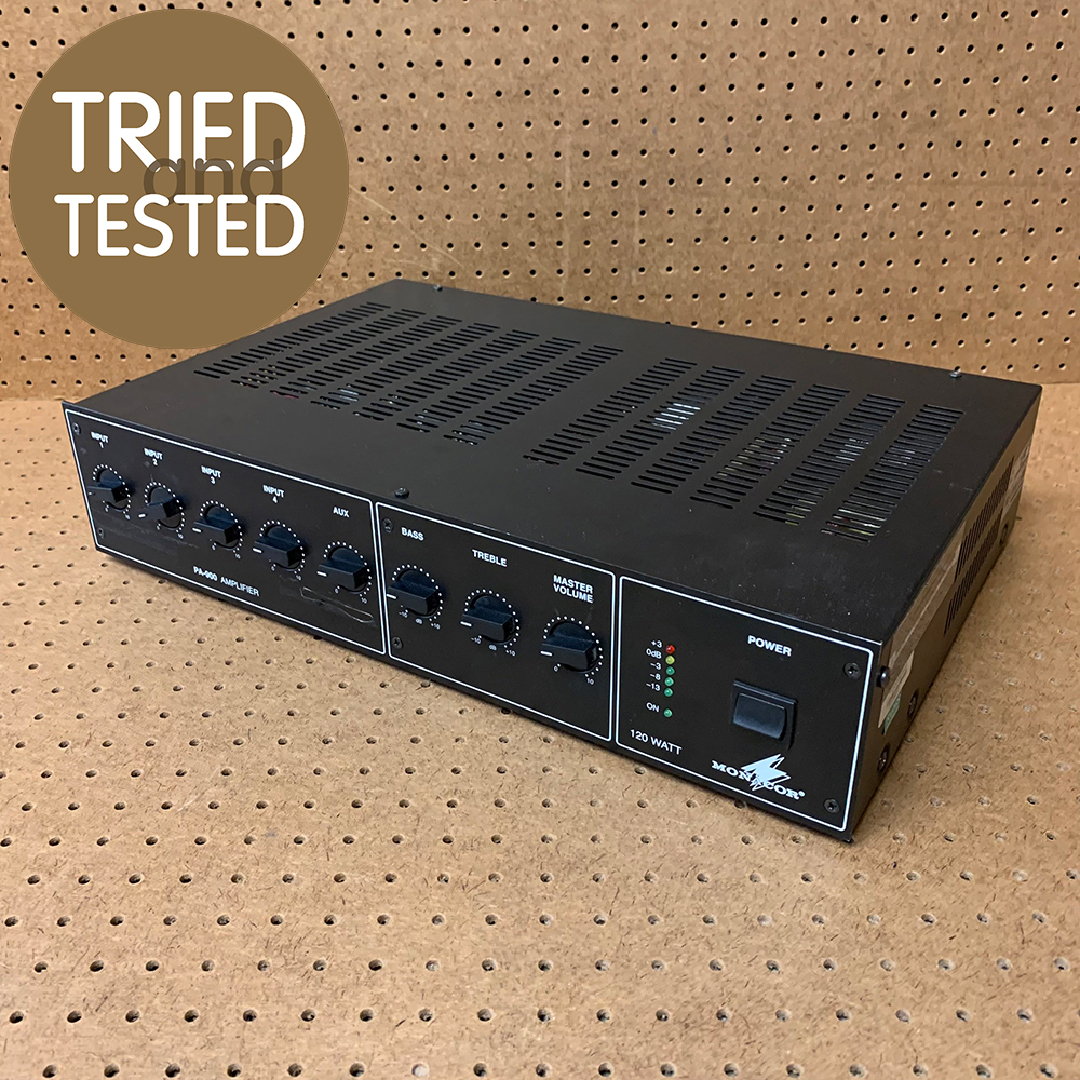

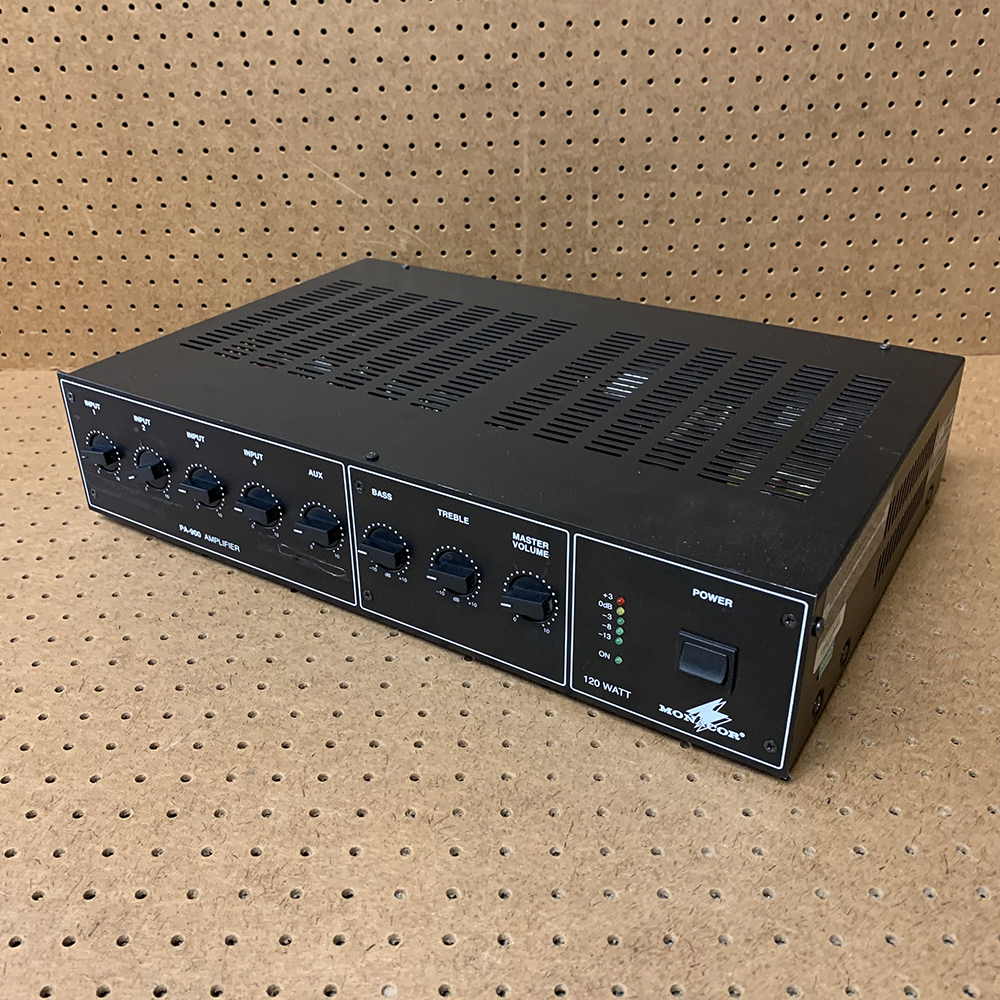

Monacor PA-900 120w 100v line mixer amplifier – used VGC

The Monacor 900 series of public address mixer amplifiers run from DC batteries or AC mains power supplies. They can be used with either 100v line or 8 ohm low impedance loudspeakers in commercial applications such as factories, offices, schools, Churches etc.

• Pre-owned
• 120w
• 4 balanced mic/line inputs
• Mic 1 with priority circuit and automatic talkover
• Additional connection for desktop microphone via screw terminal
• 1 aux input
• Speaker outputs via screw terminals
• Line output
• Insert facility for pre-amplifier
• Input and output level controls
• 2-way tone control for the output
• 21V phantom power, selectable
• Mains operation or 24V emergency power operation
• Removable rack mounting brackets are missing
• Channels: 5
• Power rating: 120 W
• Peak music power output (PMAX): 160 W
• Inputs: 3 mV (mic), 200 mV (line), 140 mV (aux)
• Frequency range: 50-15,000 Hz, ±3 dB
• Equalizer bass: ± 10 dB/100 Hz
• Equalizer treble: ± 10 dB/10 kHz
• S/N ratio: > 80 dB
• THD: < 0.5%
• Power supply: ˜ 230 V/50 Hz/300 VA,
• DC current: 24 V/9 A
• Mains voltage: ˜ 230 V
• Mains frequency: 50 Hz
• Power consumption, operation: 300 VA
• Operating voltage (possible alternative): DC current 24 V
• Power supply (possible alternative): DC current 9 A
• Admissible ambient temperature: 0-40 °C
• Dimensions: 482 x 88 x 275 mm, 2 RS
• Width: 482 mm
• Height: 88 mm
• Depth: 275 mm
• Rack spaces, RS: 2
• Weight: 9.9 kg

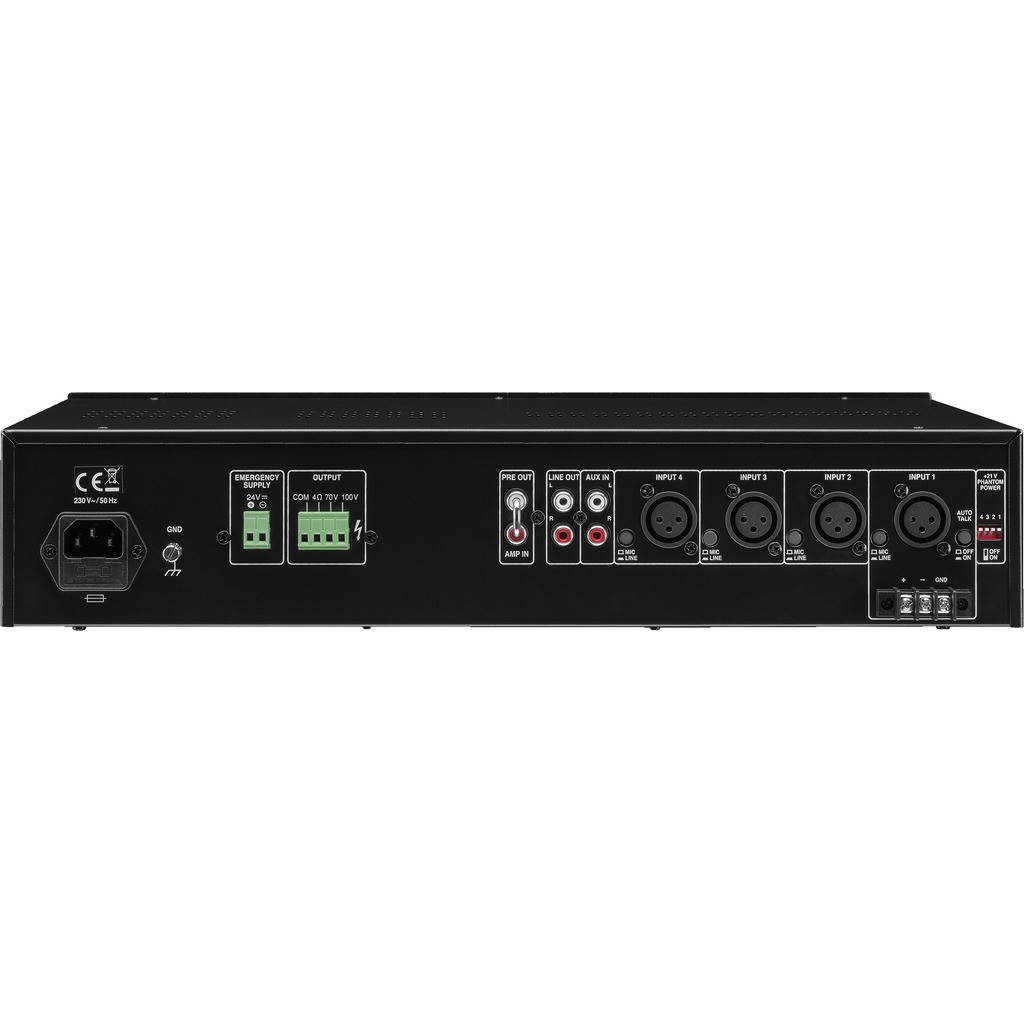

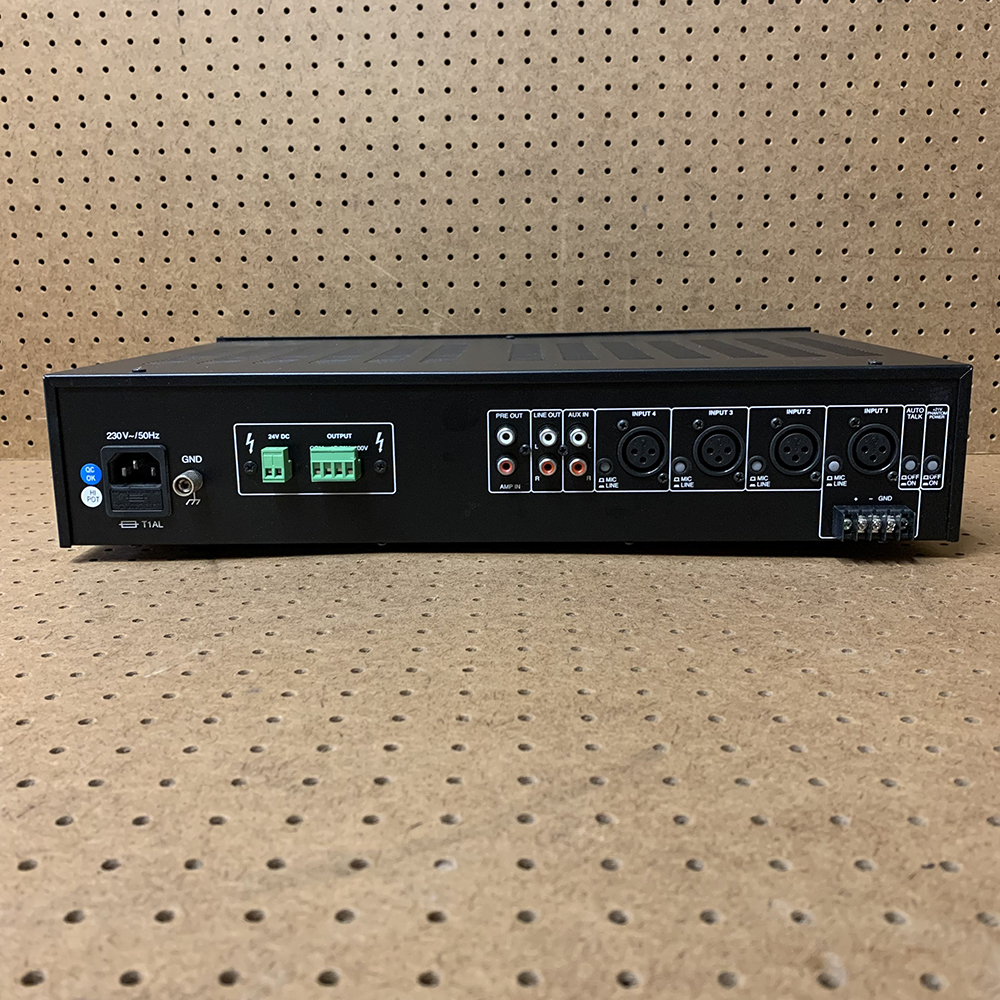

• Connections: 4 x XLR (mic/line), 1 x RCA L/R (aux), screw terminals (speakers)

All used and ex-display items are tried and tested before leaving our warehouse, but will have usage marks and some signs of wear – used, ex-display and clearance items include a 90 day return- to-base warranty.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
