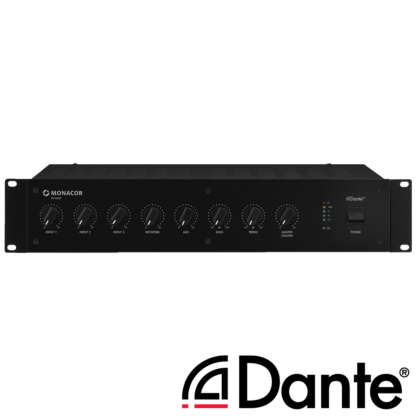

Monacor PA-900DT 120w mixer amplifier with integrated Dante® module
Let’s stream…
The well-known and reliable amplifier systems PA-900 and AKB-160 now feature a 2-channel Dante® module which turns them into Dante® instreamers for versatile applications. They are able to receive one digital stereo signal or two mono signals via the RJ45 connections. These signals are converted into an analogue audio signal, amplified and then streamed. Thus, it is possible to integrate an analogue speaker system into a digital Dante® network.
- 1 x 120 W
- Silent operation due to fanless cooling concept
- 3 balanced mic/line inputs
- Dante® input
- Mic 1 with priority circuit and automatic talkover
- Additional connection for desktop microphone via screw terminal
- 1 aux input
- Speaker outputs via screw terminal contacts
- Line output
- Insert facility, e.g. for effect units, equalizers, feedback controllers
- Input and output level controls
- 2-way tone control for the output
- 20 V phantom power for each microphone input, can be activated individually
- Mains operation or 24 V emergency power operation
- Removable mounting brackets
- Peak output power: 160 W
- Power rating: 120 W
- Power rating at 4 Ω: 120 W
- Power rating at 100 V: 120 W
- Channels: 5
- Inputs: 3 mV (mic), 200 mV (line), 140 mV (aux)
- Frequency range: 50-15,000 Hz
- Equalizer bass: ± 10 dB/100 Hz
- Equalizer treble: ± 10 dB/10 kHz
- S/N ratio: > 80 dB
- THD: < 0.5%
- Phantom power: 20 V
- Mains voltage: ~ 230 V
- Mains frequency: 50 Hz
- Power consumption, operation: 300 VA
- Operating voltage (possible alternative): DC 24 V
- Power supply (possible alternative): DC 9 A
- Admissible ambient temperature: 0-40 °C
- Width: 482 mm
- Height: 88 mm
- Depth: 275 mm
- Rack units, RU: 2
- Weight: 9.9 kg

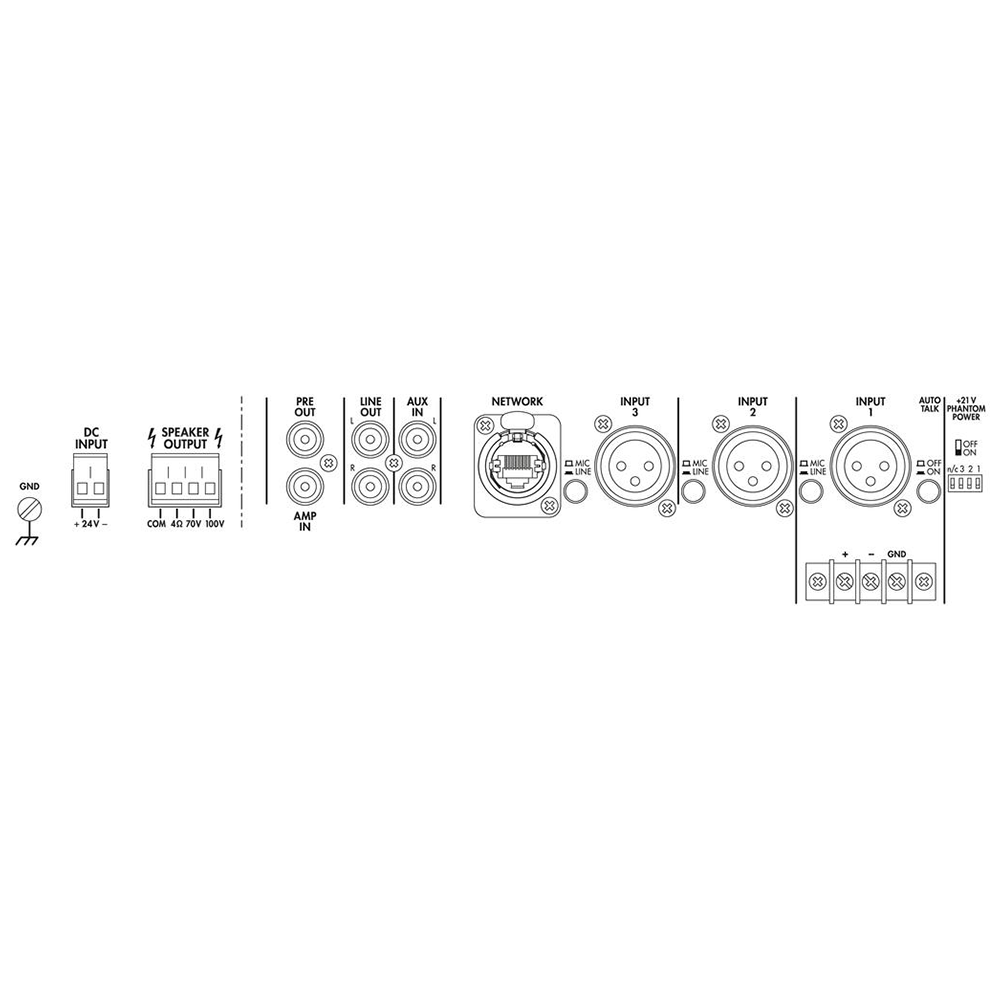

- Connections: 3 x XLR (mic/line), 1 x RCA L/R (aux), 1 x RJ45 (Dante®), screw contacts (speakers)
System requirements Dante®: Windows 7/8/10 or MacOS
The brand Dante® as well as any Dante® software which may have been integrated into these products are licensed by Audinate Pty Ltd.
RJ45 connection is only possible with short body plug. Standard RJ45 plugs are not suitable.
System requirements Dante®: Windows* 7/8.1/10 or MacOS 10.9.5/10.10.5/10.11
Click here for Audinate Dante® online training and certification
Please note:
32-bit applications, including the current version of the DSP controller, are no longer supported under the MacOS version 10.15 (Catalina). The controller software is currently being updated for 64-bit MacOS Catalina. Users of older MacOS versions as well as Windows users are not affected by this change.
Apple’s announcement will give you further information on the change to 64-bit technology
Apple’s announcement will give you further information on the change to 64-bit technology
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
App for Windows OS
