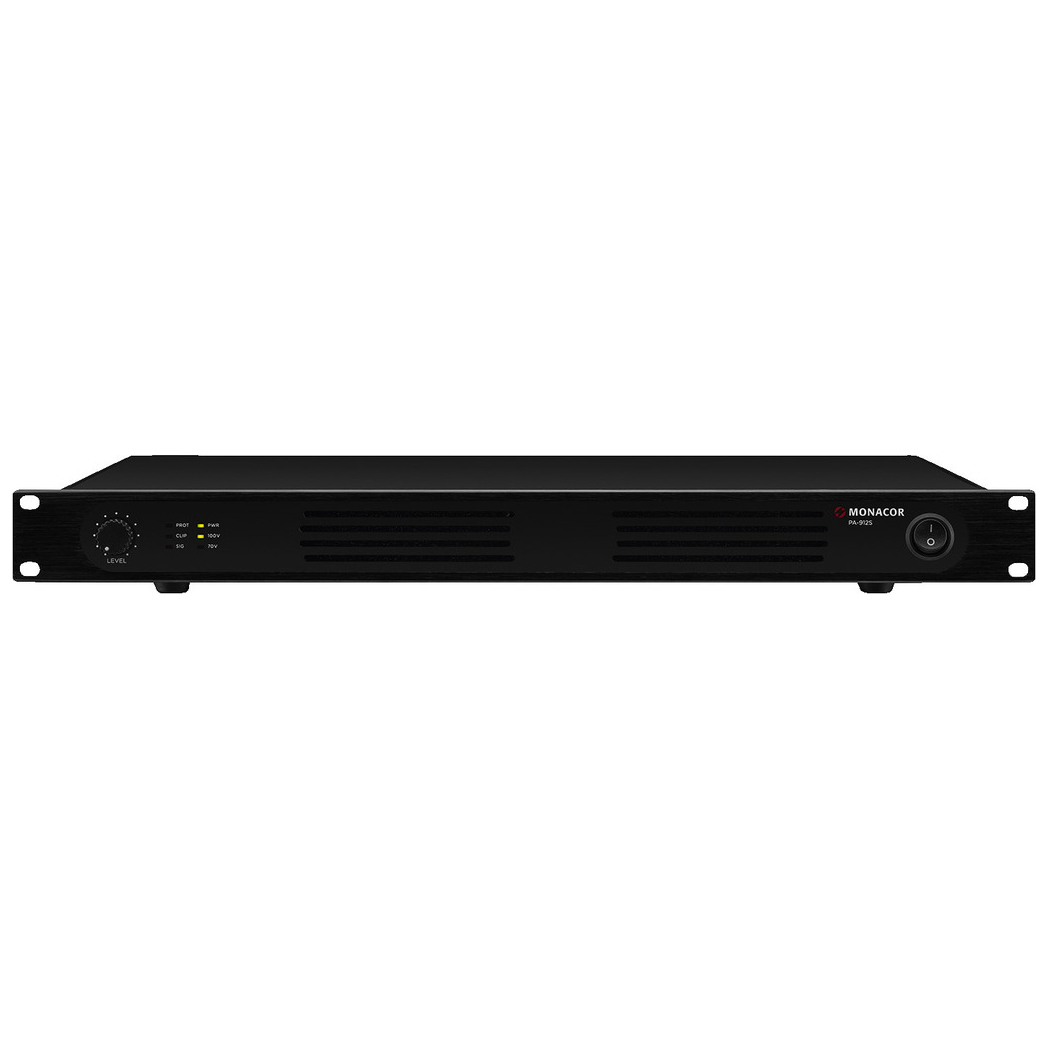

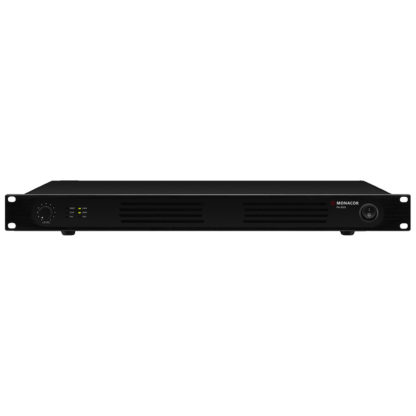

Monacor PA-912S Digital Power Amplifier

Name: Monacor PA-912S Digital Power Amplifier
SKU: PA-912S
Price: 261.00 GBP
Availability: InStock

SKU: PA-912S

£261.00 + VAT £313.20 incl. VAT

120w into 100v line digital slave power amplifier

In stock

PDF

Description

Monacor PA-912S 120w 100v line mono digital power amplifier

Power rating: 120w at 100v
Temperature-controlled fan, continuously adjustable
Protected against overheating, overload and short circuit
LED indication for clip, protect, overtemperature, output level and 100 V/70 V
Feed-through output (link)
Speaker outputs via screw terminals
Channels: 1
Frequency range: 80-16,000 Hz
S/N ratio: > 98 dBA
THD: < 1%
Mains voltage: ~ 230 V
Mains frequency: 50 Hz
Admissible ambient temperature: 0-40 °C
Width: 483 mm
Height: 44 mm
Depth: 255 mm
Rack spaces, RS: 1

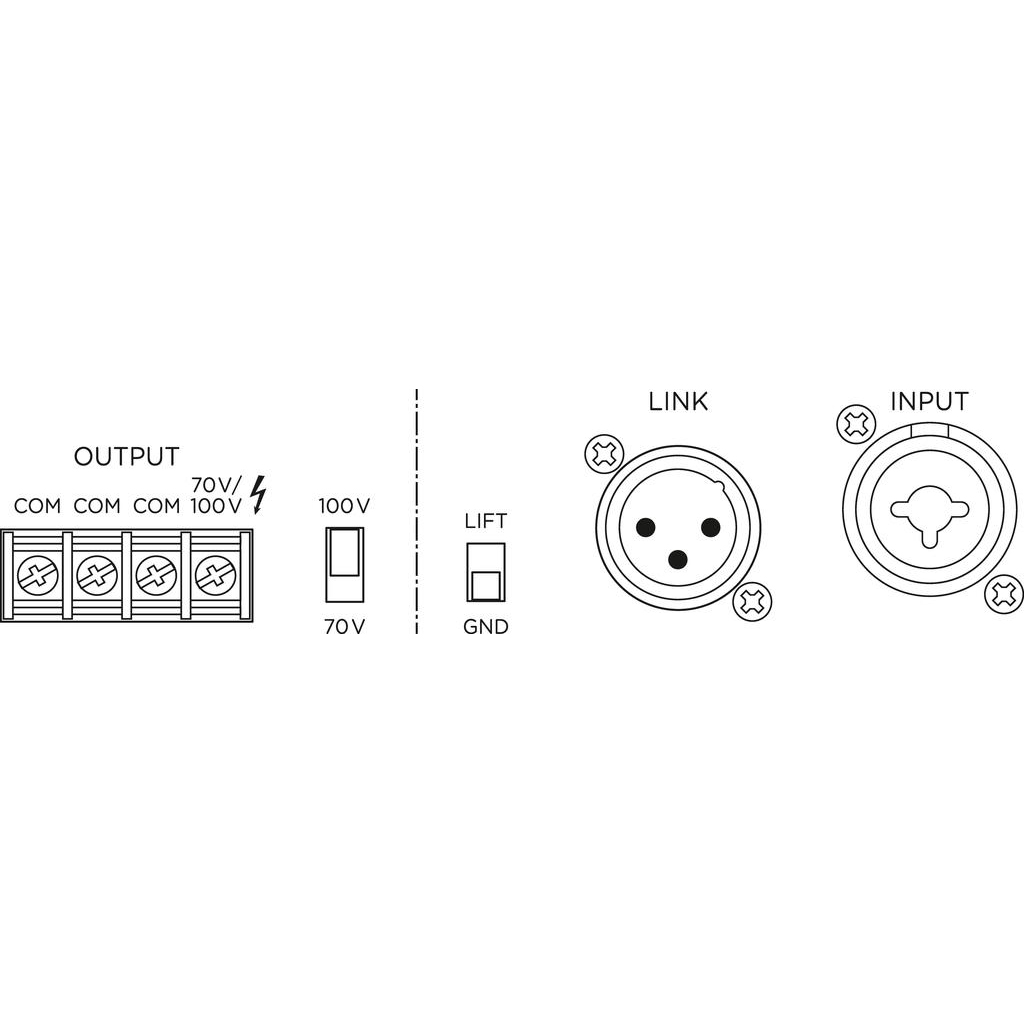

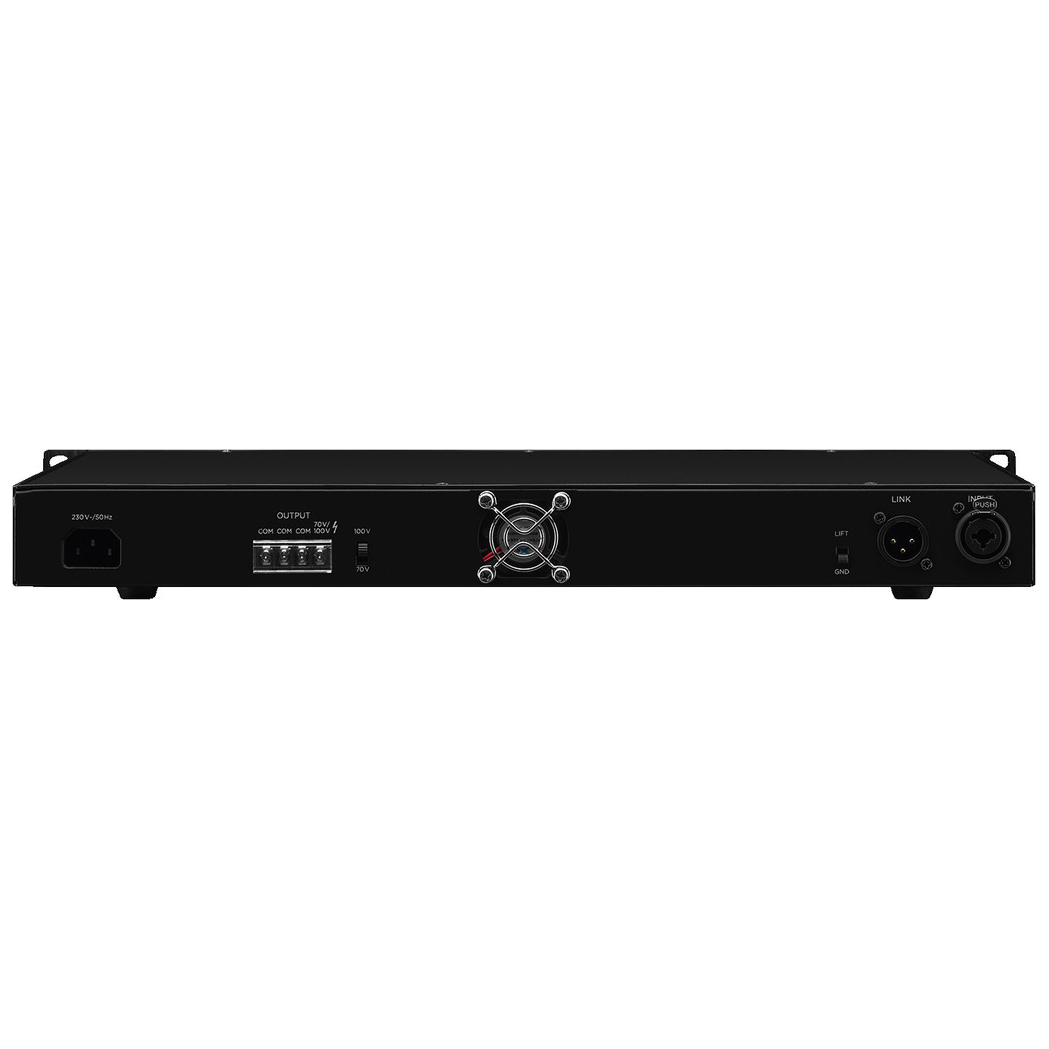

Connections: 1 x 6.3 mm/XLR combo (input), 1 x XLR (link), screw terminals (speakers)
Output impedance: 70 V/40 Ω, 100 V/80 Ω
Inputs: 670 mV/10 kΩ, balanced
Power consumption, operation: 225 VA
Weight: 3.5 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight	3.5 kg
Dimensions	25.5 × 48.3 × 4.4 cm
Output (RMS)	120W
Zones	1
Connection	3 Pin XLR (Female), 3 Pin XLR (Male), 6.3mm Jack, Screw Terminals
Colour	Black
Condition	New
