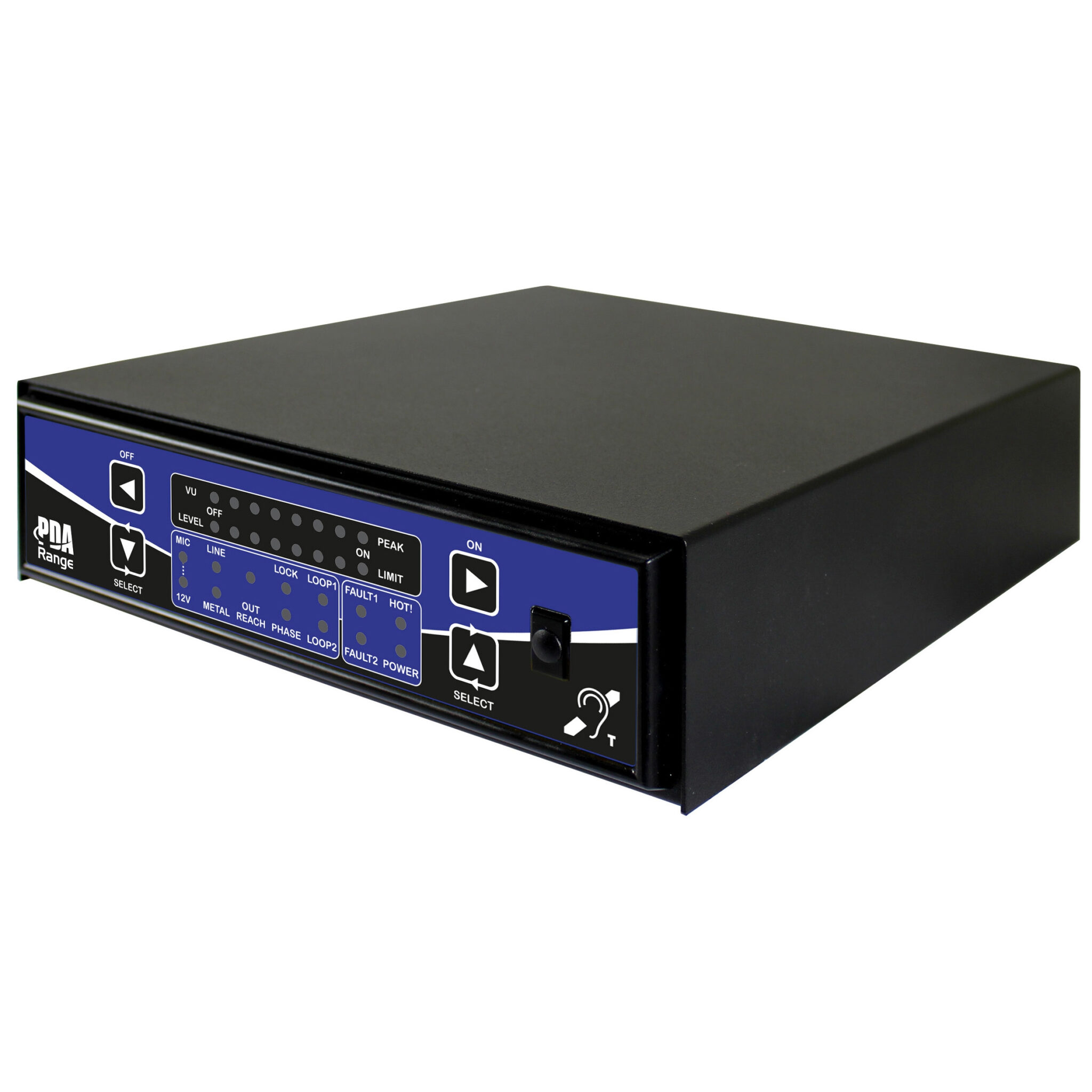

SigNET PDA5/SD Induction Loop Amplifier

Description

SigNET PDA5/SD induction loop amplifier for up to 200m²

For induction loop systems for the hard of hearing in Churches, public buildings, meeting halls, sports venues and schools etc.

• A new free-standing 4.75A hearing loop amplifier ideal for use in areas up to 200m2
• Intuitive LED interface allows simple set-up of input levels, output current, phantom power & metal compensation
• 2 x XLR mic/line inputs (selectable) & 1 outreach connector
• Class D output stage for maximum efficiency
• Superior audio processing and powerful CPU provide life-like speech and first class music reproduction
• Fault relay & LED indicators provide clear indication of operation and fault status
• Industry leading dual action automatic gain control compensates for poor microphone technique
• Line level output for recording or daisy-chaining multiple units to cover larger areas
• Complies with EN62368-1 (Safety requirements for audio/video, information and communication technology equipment)
• Type: Free-standing. Plugtop IEC mains lead supplied
• Coverage: 200m2 approximately
• Mains supply: Plugtop IEC mains lead supplied
• Output: 4.75A loop drive current @ 1 Ohm; Loop output volage 14V
• Max battery size and type: n/a
• Auxiliary inputs: 2 x XLR mic/line inputs with switchable 12V phantom power (on or off) & Outreach
• Indicators: LED display with level, peak and limit indicators, Mic, 12V, Line, Metal, Outreach, Lock, Loop, Fault, Hot and Power Indicators
• Controls: Line Input, Microphone, 12V Phantom, Outreach, Metal Comp, Loop Drive
• Connections: Mic (3-pin XLR); Line In (3-pin XLR); Loop (2 way binding post); Outreach (4-way pluggable connector); Line Out (3-way pluggable connector); Fault Relay (3-way pluggable connector)
• Product dimensions (mm): 67 (H) x 218 (W) x 280 (D) mm
• Construction & finish: Mild steel zintec, 1mm thick, black powder coated
• IP Rating: IP40
• Weight: 2.38kg
• Operating conditions/temperature: -5ºC to +40ºC. Max relative humidity: 95%

These loop amplifiers are complex and require accuracy when setting-up prior to operation – please read the user manual

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
