Low Impedance

Citronic PLX3600 Stereo Power Amplifier

SKU: 172.218

£510.72 + VAT    £612.86 incl. VAT

2 x 800w into 8Ω low impedance, 2Ω stable stereo slave power amplifier

Out of stock

Low Impedance 2 Ohms
Low Impedance 4 Ohms
Low Impedance 8 Ohms
stereo

PDF

Description

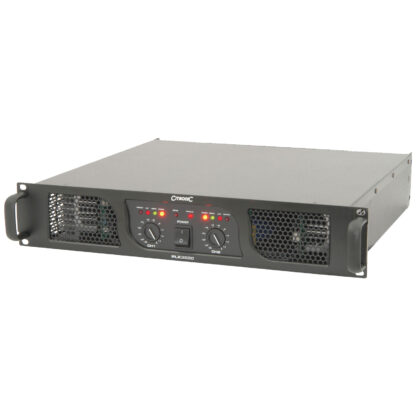

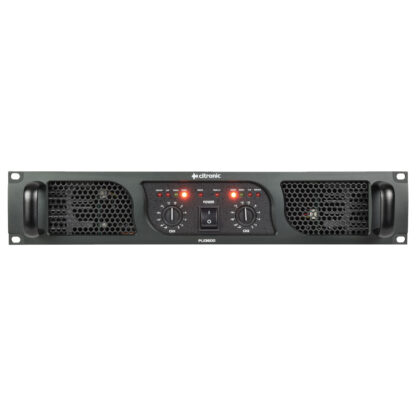

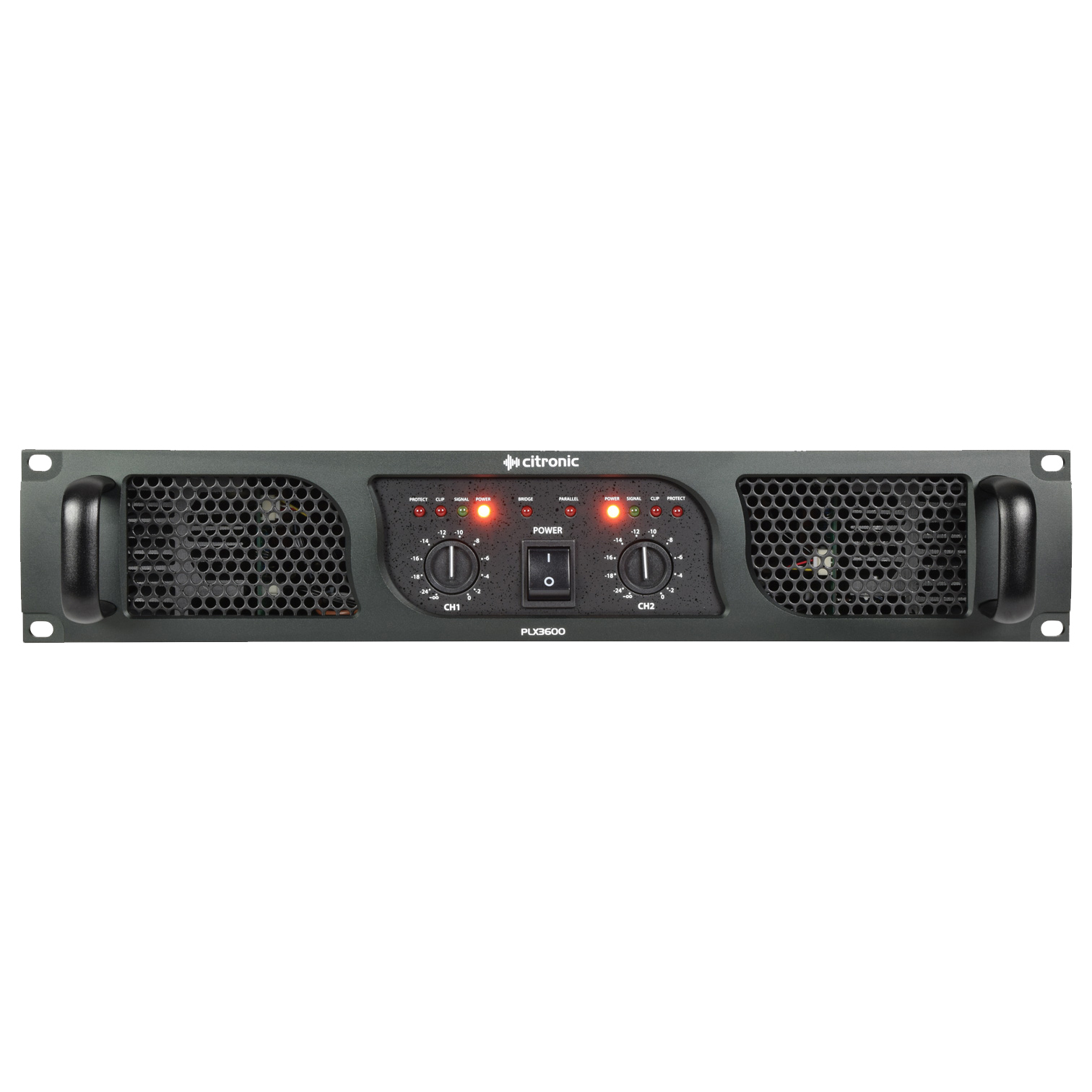

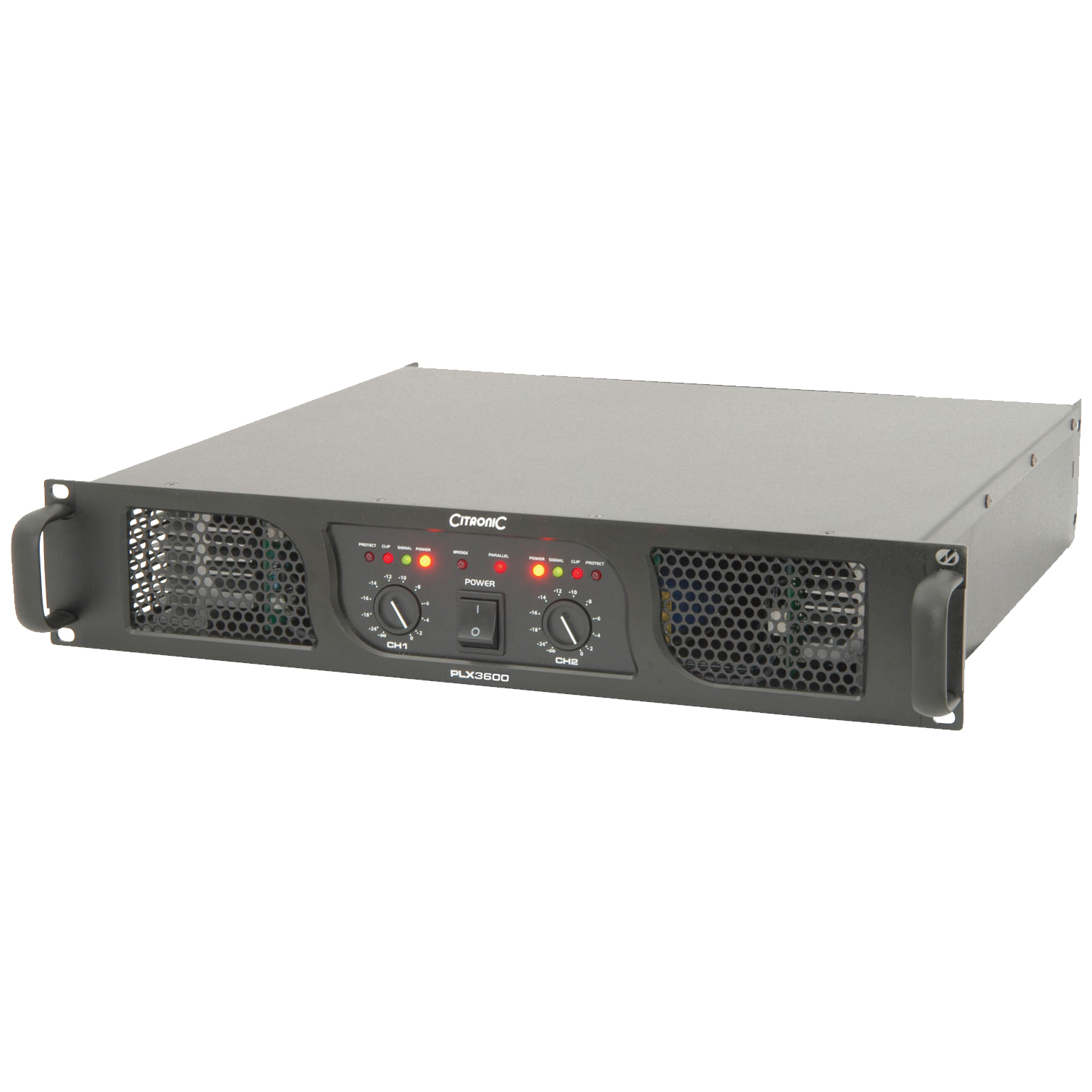

Citronic PLX3600 800 + 800w stereo power amplifier

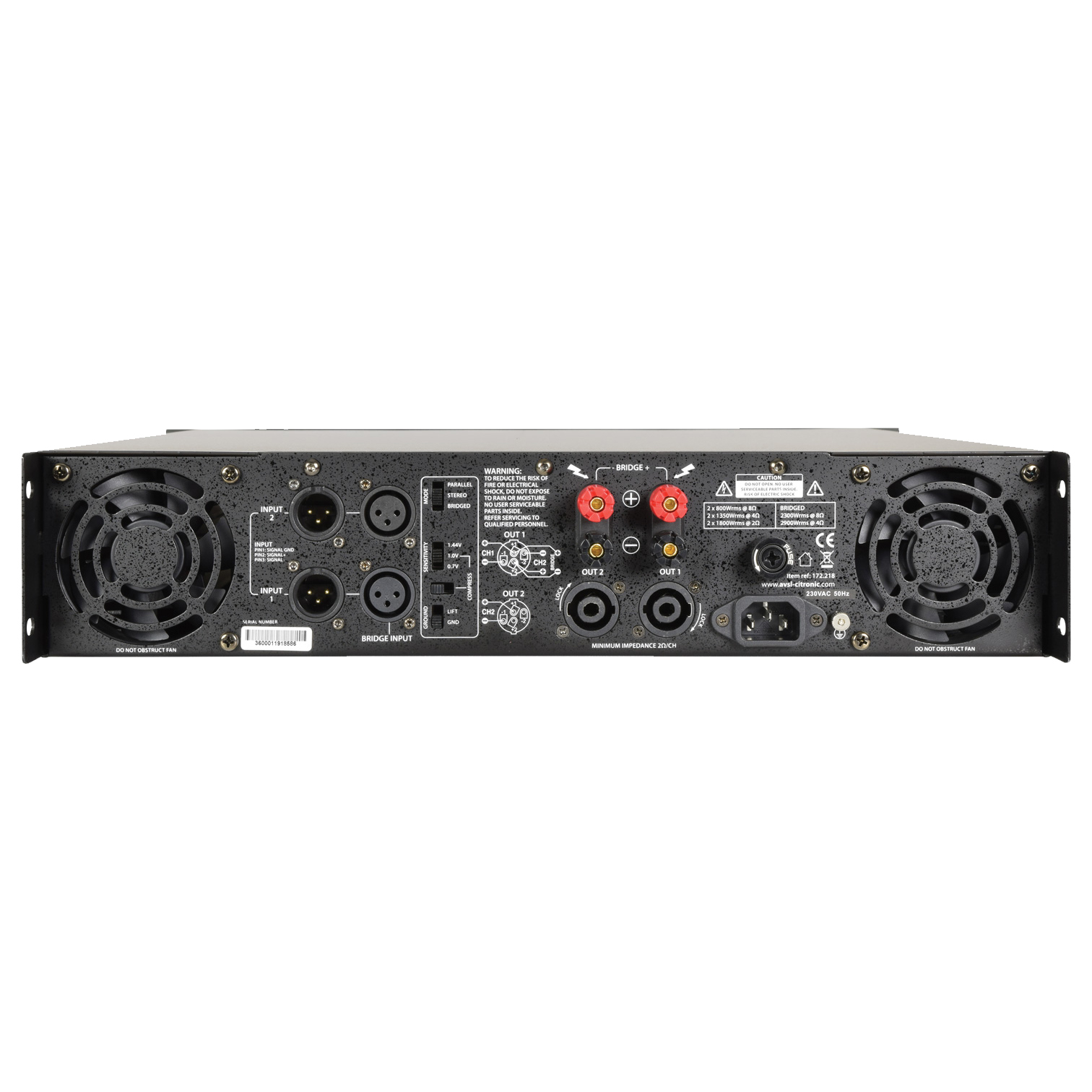

19″ rackmount 2U power amplifiers with dual fan cooling and class H architecture for safe, reliable power delivery. Balanced inputs via XLR sockets, speaker outputs on 2 SPK connectors or 4mm binding posts. High power output stable down to 2 Ohms load per side can also be bridged mono to 4 Ohms. Switchable ground lift, bridge mode and clip limiter.

  • Bridge mode for high power mono operation
  • Output stable down to 2 Ohms
  • Removable handles for low profile install
  • Switchable clip limiter
  • Power supply: 230Vac, 50Hz (IEC)
  • Controls: Level channel 1, level channel 2, ground, mode, clip limiter
  • Input impedance: 20k ohms
  • Frequency response: 5Hz – 50kHz
  • Total harmonic distortion: 0.05%
  • Slew rate: 40V/us
  • Damping factor: >400
  • Protection: Short-circuit, overload, D.C. and thermal protect
  • Fuse: F15A (6 x 32mm)
  • Amplifier : construction: Class-H
  • Power rms @ 2 Ohms: 2 x 1800W
  • Power rms @ 4 Ohms: 2 x 1350W
  • Power rms @ 8 Ohms: 2 x 800W
  • Power rms bridge @ 4 Ohms: 2900W
  • Power rms bridge @ 8 Ohms: 2300W
  • Weight: 26kg
  • Dimensions: 482 x 453 x 88mm (2U)

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight26 kg
Dimensions45.3 × 48.2 × 8.8 cm
Output (RMS)

1600W

Connection

3 Pin XLR (Female), 3 Pin XLR (Male), Screw Terminals, SpeakON (SPK)

Colour

Black

Condition

New

Brand

Citronic

A brand with history, Citronic is still going strong after 40 years. It has evolved to become a leader in the professional audio market and is now the ideal choice for installers, hire companies and mobile DJs. The comprehensive Citronic range offers reliable and durable products from loudspeakers through to DJ headphones. As a DJ and PA industry pioneer, Citronic developed many of the features that have since become industry standards. The Citronic philosophy has always been to push the barriers of quality and innovation, yet maintain a reputation for “out of the box” reliability with fully featured and affordable products. Over the last 10 years Citronic has taken strides to grow from a humble 30 products to over 200. This versatile range now covers simple home DJ plug & play set-ups and fully featured outboard equipment, right through to high-powered installations. This allows Citronic to service many sectors of the entertainment industry including pubs, nightclubs, hotels and studios, as well as supplying distinctive products DJs. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

What's in the Box?

  • PLX series power amplifier
  • IEC power lead(s)
