600w Pool Hall Stereo Sound System for Health Clubs and Leisure Centres

Description

The POOL-8 600w into 4Ω pool hall high power stereo sound system for aqua-aerobics and swimming galas etc. is for installation only pool-side at health & fitness clubs, gyms and leisure centres

The system includes Bluetooth mixer, stereo amplifier and four high power IP-66 rated 8″ speakers and cable & connectors

Amplifier and mixer should not be sited poolside but in a secure, well ventilated side room

There are inputs for optional wireless microphone systems with headmics and CD and media players etc.

This package must be installed and wired as a stereo low impedance 4-8Ω sound system with no more than two speakers on each of the amplifier output – please see user manuals tab

Mixer:

• Stereo
• Built-in Bluetooth receiver
• Media player with USB playback and FM tuner
• Stereo line inputs for music
• Balanced microphone inputs for wireless microphones
• Overall bass and treble controls

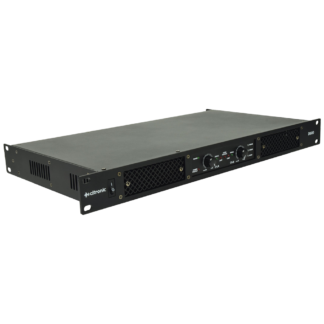

Amplifier:

• Cool and efficient operation even at high output
• Compact and lightweight 1U rack format
• Switchable parallel and bridge modes
• Power supply: 220-240Vac, 50/60Hz (IEC)
• Modes: Stereo, Parallel (mono), Bridge (mono)
• Input sensitivity: 0.775V – 1.0V – 1.44V switchable
• Low-cut filter: 75Hz switchable
• Input connections: L+R XLR female (L+R XLR male through)
• Output connections: L+R SPK connectors (+1 for bridge mode)
• Dimensions: 482 x 245 x 44mm
• Fuse: T8A (20 x 5mm)
• Power rms @ 4 Ohms: 2 x 300W
• Power rms @ 8 Ohms: 2 x 150W
• Bridge power @ 8 Ohms: 1 x 600W
• Weight: 3.77kg
• Use terminal block to extend speaker cable
• Do not short speaker cables together

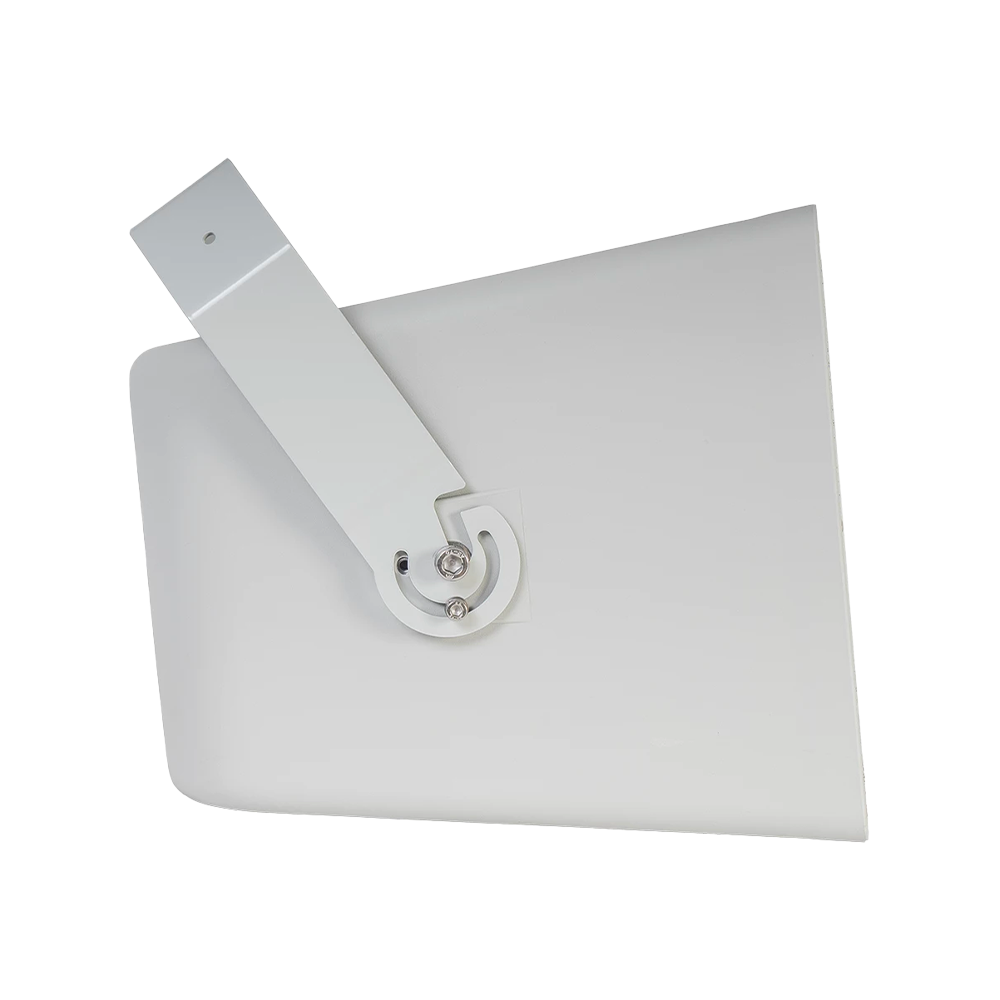

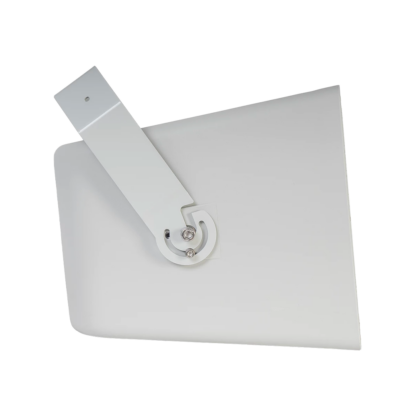

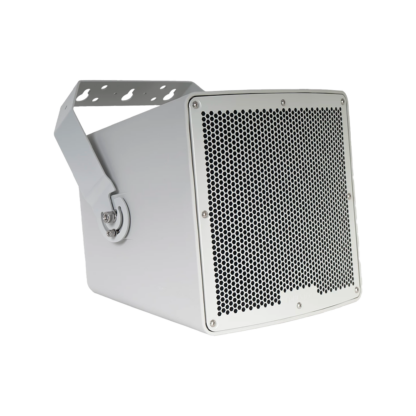

Speakers:

• Rich, crisp, distortion-free sound. Improved bass response
• Great range and coverage
• Excellent finish and elegant design
• Prepared for outdoor installation. IP 66
• Power (max): 250 W
• Power (RMS): 200 W
• Loudspeakers: 1 x 8″ woofer, 1 x 1″ compression motor
• Frequency Response: 70-20.000 Hz (-10 dB)
• Impedance: 200 W RMS@8 Ω, 200 W RMS@100 V/70 V (50 Ω/25 Ω), 100 W RMS@70 V (50 Ω), 150 W RMS@100 V (66 Ω), 75 W RMS@100 V/70 V (133 Ω/66 Ω), 37.5 W RMS@70 V (133 Ω)
• Sensitivity: 96 dB at 1 W/1 m
• Sound Pressure: 119 dB max power at 1 m
• Coverage Angle: 80º H x 50º V at 1 kHz/-6 dB
• Crossover: 2 ways
• Crossover frequency at 3.000 Hz

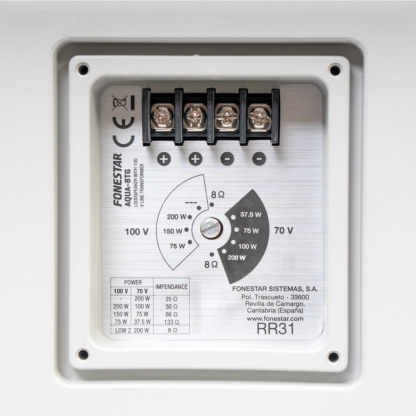

• Switch: W selector at high Z and low Z
• Ingress Protection: IP-66
• Material: Weatherproofed steel grille and mount
• Stainless steel screws
• Connections: Screw terminals
• Colour: Grey (RAL 7035)
• Dimensions: 319 x 308 x 350 mm depth
• Weight: 11.1 kg

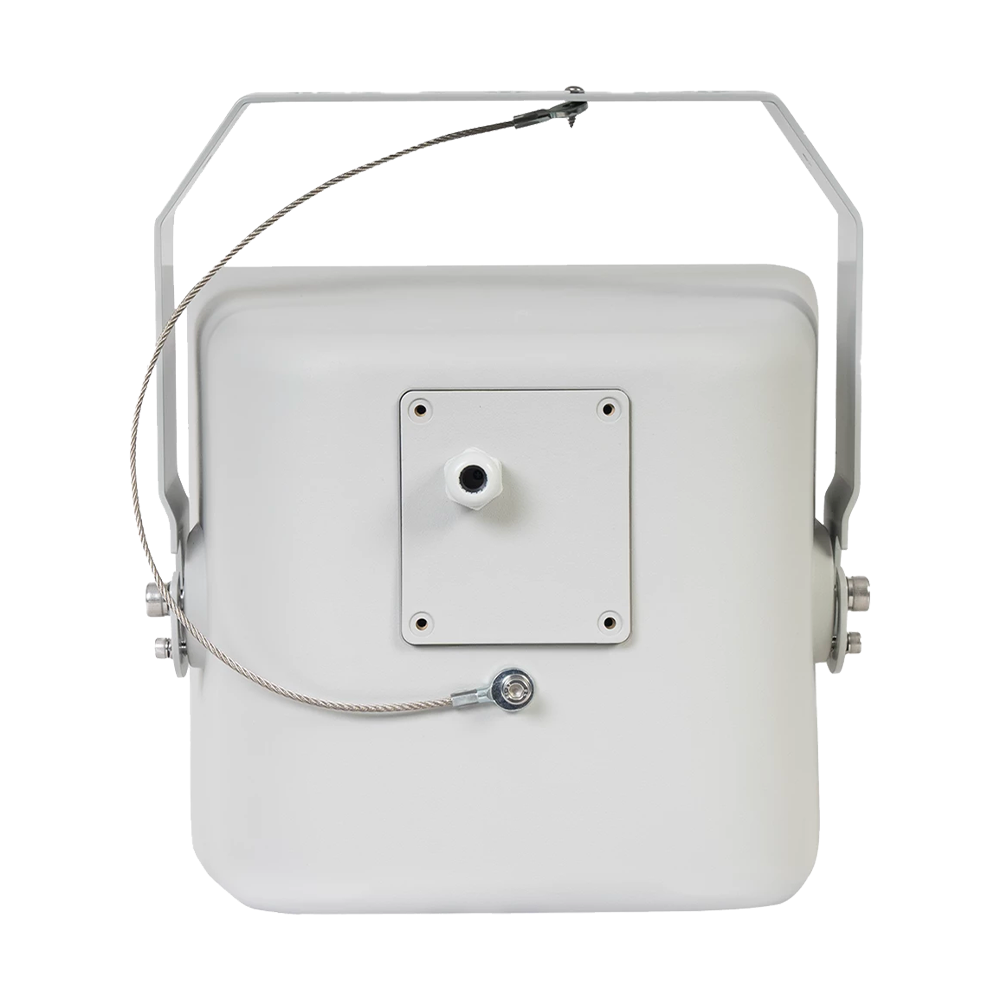

• Accessories: Adjustable fixing mount, steel safety cable

System Includes:

• 1 x Stereo mixer with Bluetooth and media player
• 2 x mixer to amplifier interconnect cables
• 1 x 600w into 4Ω stereo slave amplifier
• 2 x Input connector leads for MP3 players etc.
• 4 x 8″ high power IP-66 rated speakers

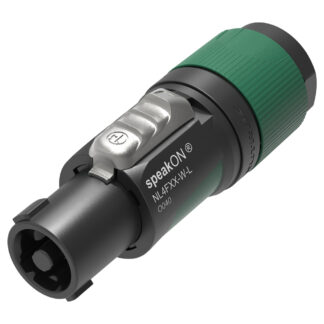

• 2 x SpeakOn connectors (for amplifier output)
• Low Smoke & Fume Installation speaker cable (see options for roll quantities – 2 runs needed from amplifier to speakers)

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Not quite right for you?
Ask us to quote a custom PA sound system
