W Audio PSR 8 Music Speakers with BRAC05 Brackets

Description

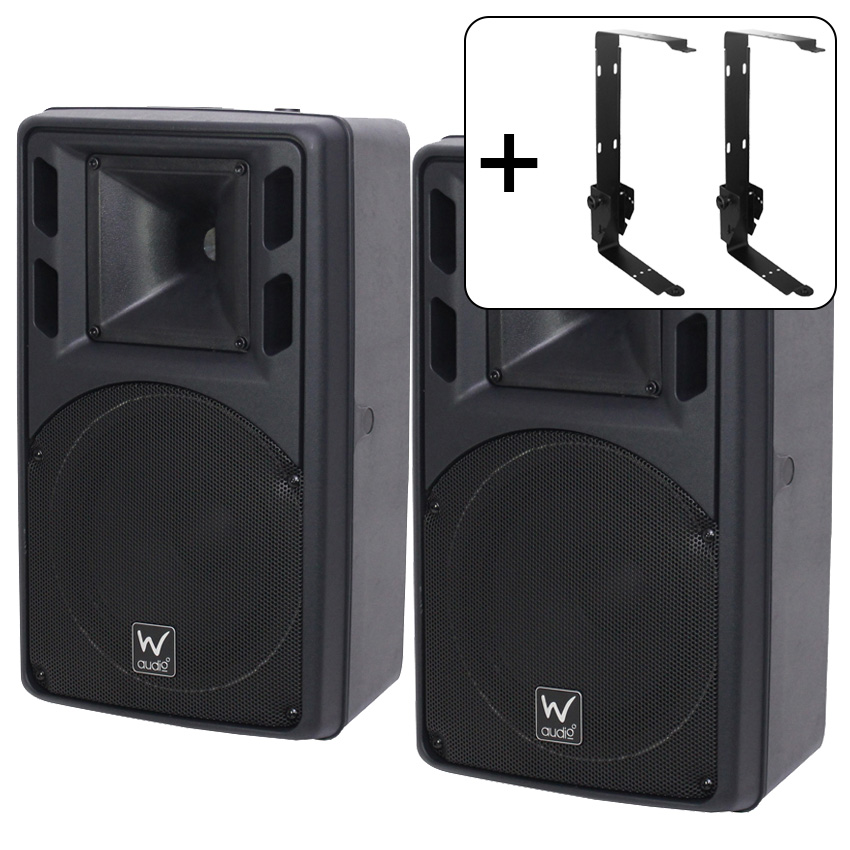

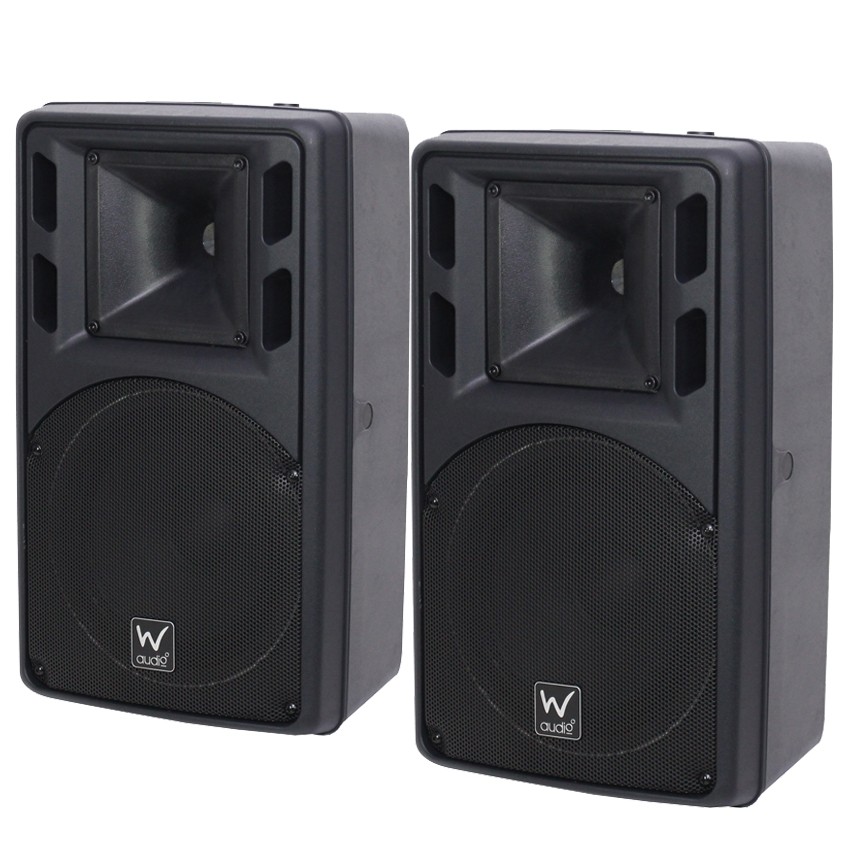

W Audio PSR 8 black 120w 8 ohm speakers (pair) supplied with wall brackets

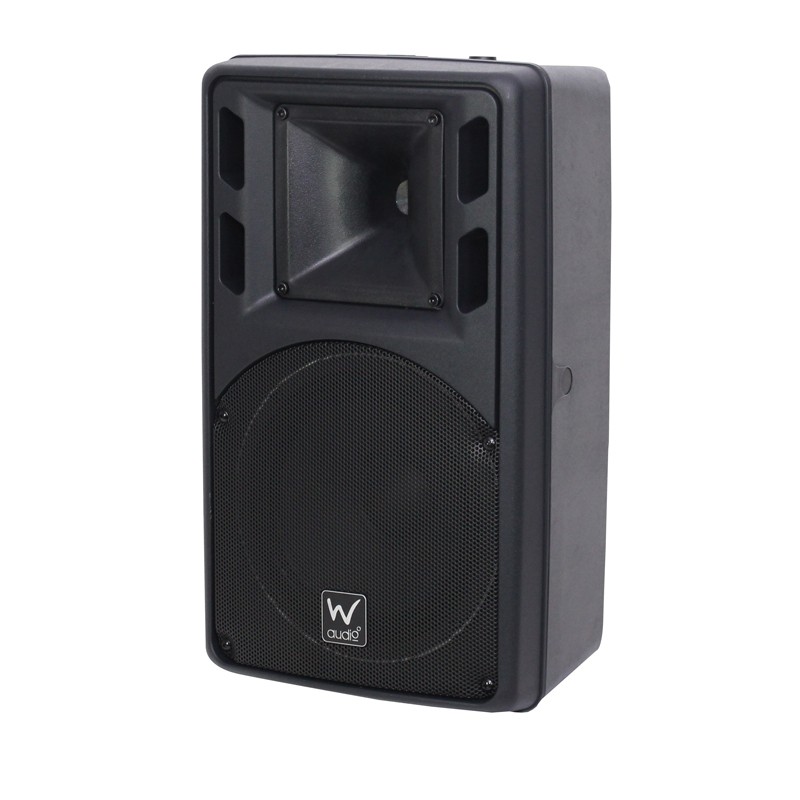

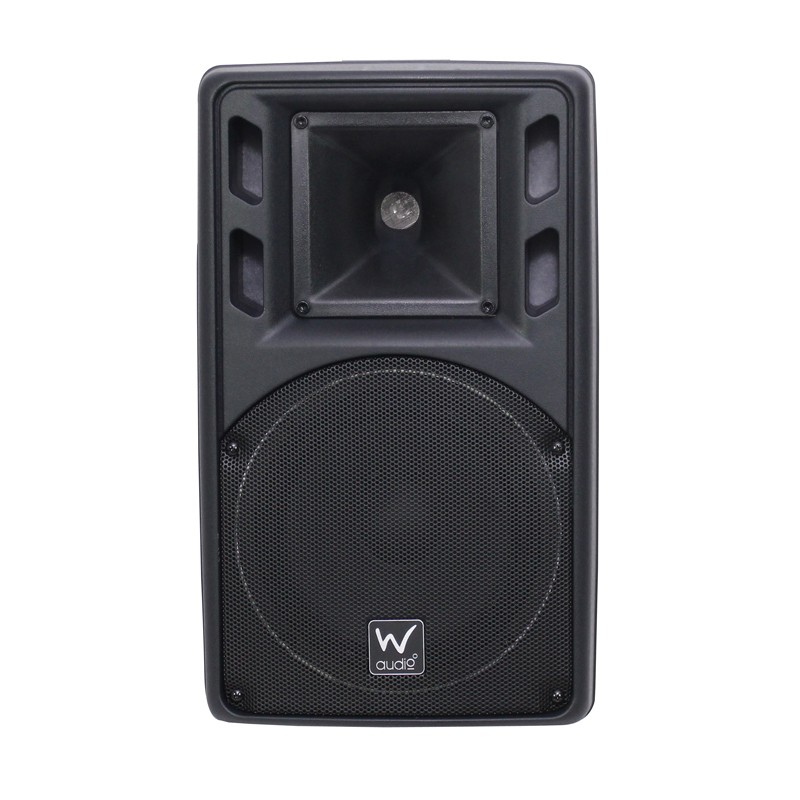

PSR 8

The PSR series offers superior sound and has features for both rental and installation alike. Safe and easy installation is possible using multiple rigging points and functional casing design gives true multi-function capability without compromise. The PSR Range feature VariFlare; a rotatable horn flare. This feature allows an installer to tailor the HF dispersion to the application making the PSR range ideal as a foldback monitor or horizontal installation cabinet. Built to last, the W-Audio passive electronics contain custom filter circuitry designed to optimise the cabinet’s sonic performance and help protect the driver components.

• Continuous power (RMS): 120W
• Peak power: 480W
• Maximum calculated SPL: 120dB
• Sensitivity (1W/1m): 94dB
• Frequency range (-10dB): 60Hz – 20kHz
• Frequency range (-3dB): 70Hz – 20kHz
• Crossover frequency: 2kHz
• Horizontal coverage: 90°
• VerticalVertical coverage: 60°
• LF transducer: 8″
• HF transducer: 1″
• Nominal impedance: 8Ω

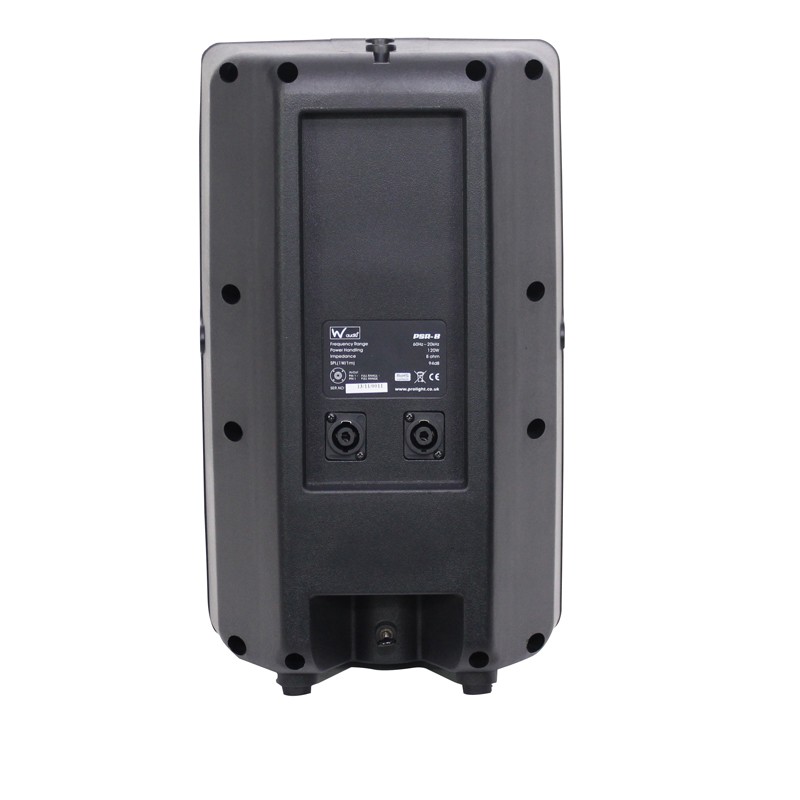

• Connections: 2 x speakON connectors
• Mounting options: Integral 35mm pole mount adapter and multiple M6 rigging points
• Dimensions: 435 x 255 x 245mm
• Weight: 8kg

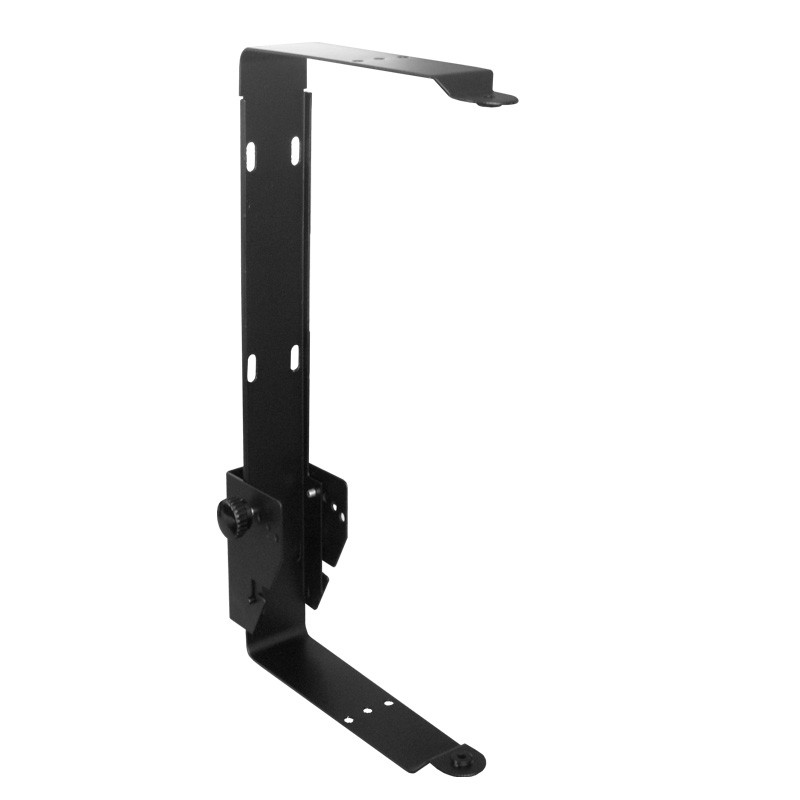

BRAC05

Steel powder coated speaker bracket for the PSR 8 speaker series

• Installs either vertically or horizontally
• Adjustable tilt
• Multiple fixing holes
• Supplied singly
• Weight: 1.8 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
