W Audio Quartet Wireless Microphone System

Description

W Audio MIC80 RM Quartet 4-way handheld wireless microphone system on Ch 70 is available as a compete quad radiomic with replacement / spare handheld transmitters and beltpack transmitters available making a cost effective and versatile wireless system

The RM Quartet wireless microphones are designed for many applications, including vocal and public address where up to four handheld transmitters are required. The robust design allows the system to withstand the rigours of the road making it perfect for karaoke, entertainers and performers. The rack mountable receiver features four balanced XLR outputs, one for each channel plus one mixed output via an unbalanced 6.35mm (1/4”) jack.

The receiver features a USB 5V power outlet for charging the handheld transmitters with the supplied dual USB cable which is supplied with the receiver only

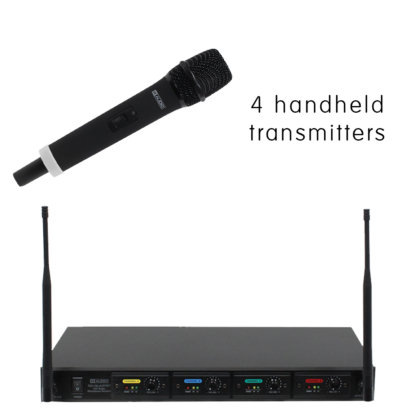

• 4 x handheld transmitters, each with colour code ring (available separately as spares)
• Optional bodyworn beltpack transmitter with clothing clip and headworn microphones are available to increase the versatility of the Quartet wireless system

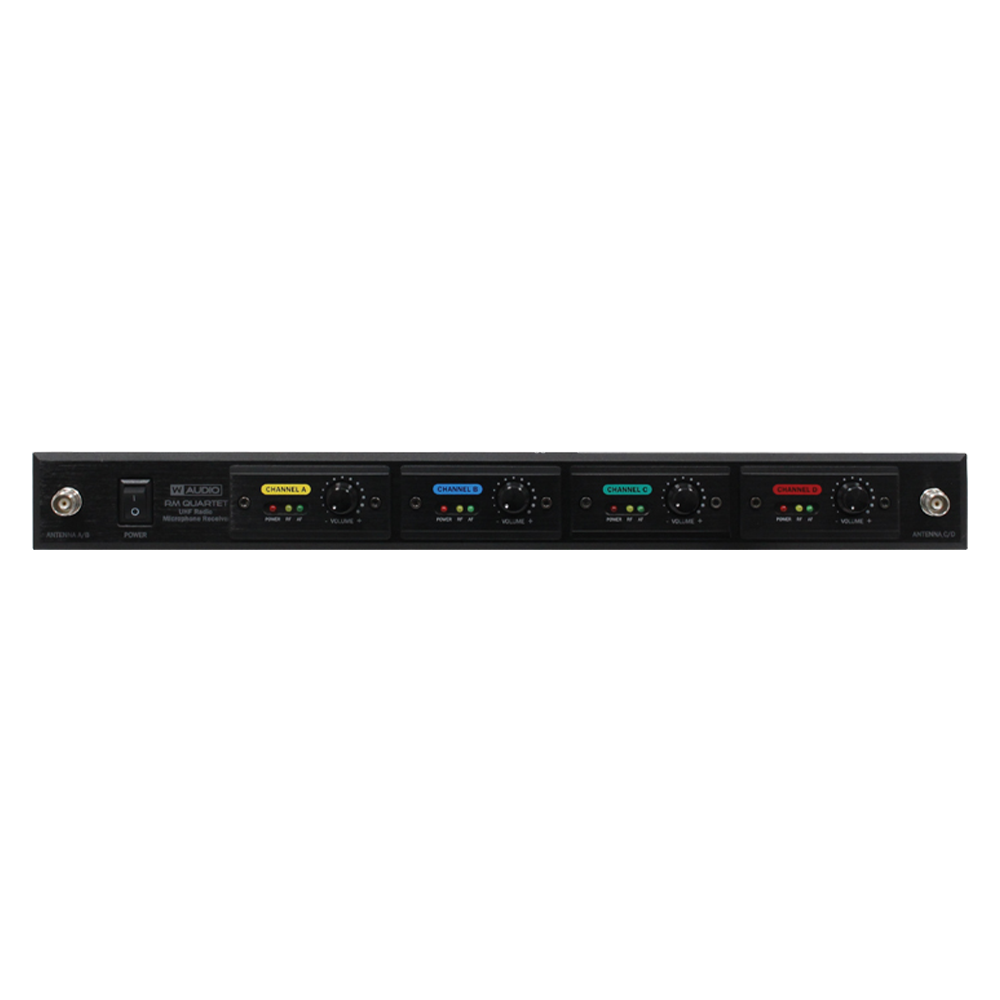

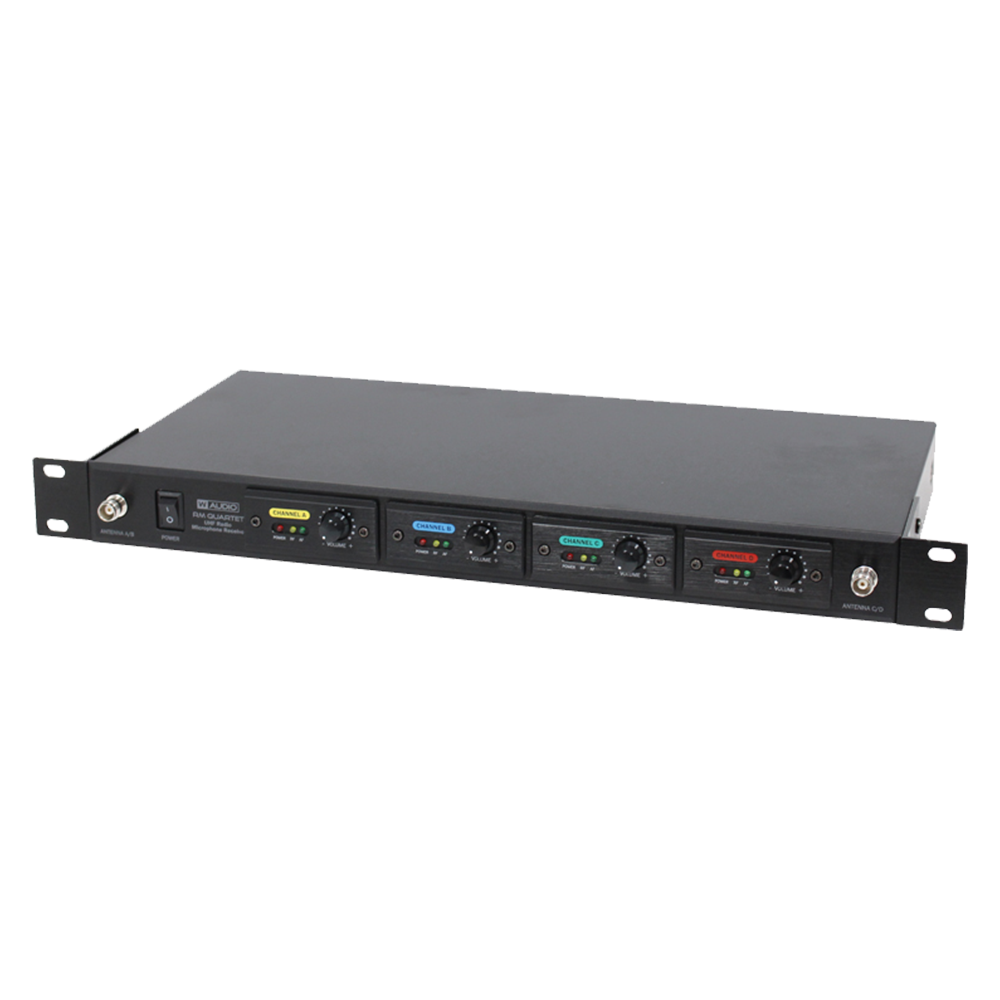

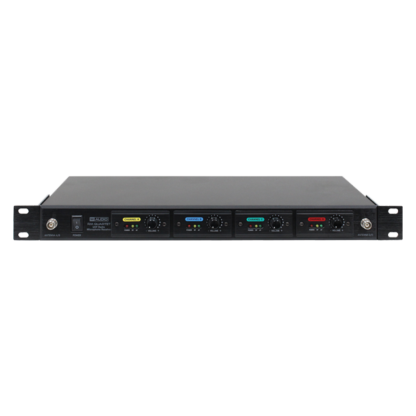

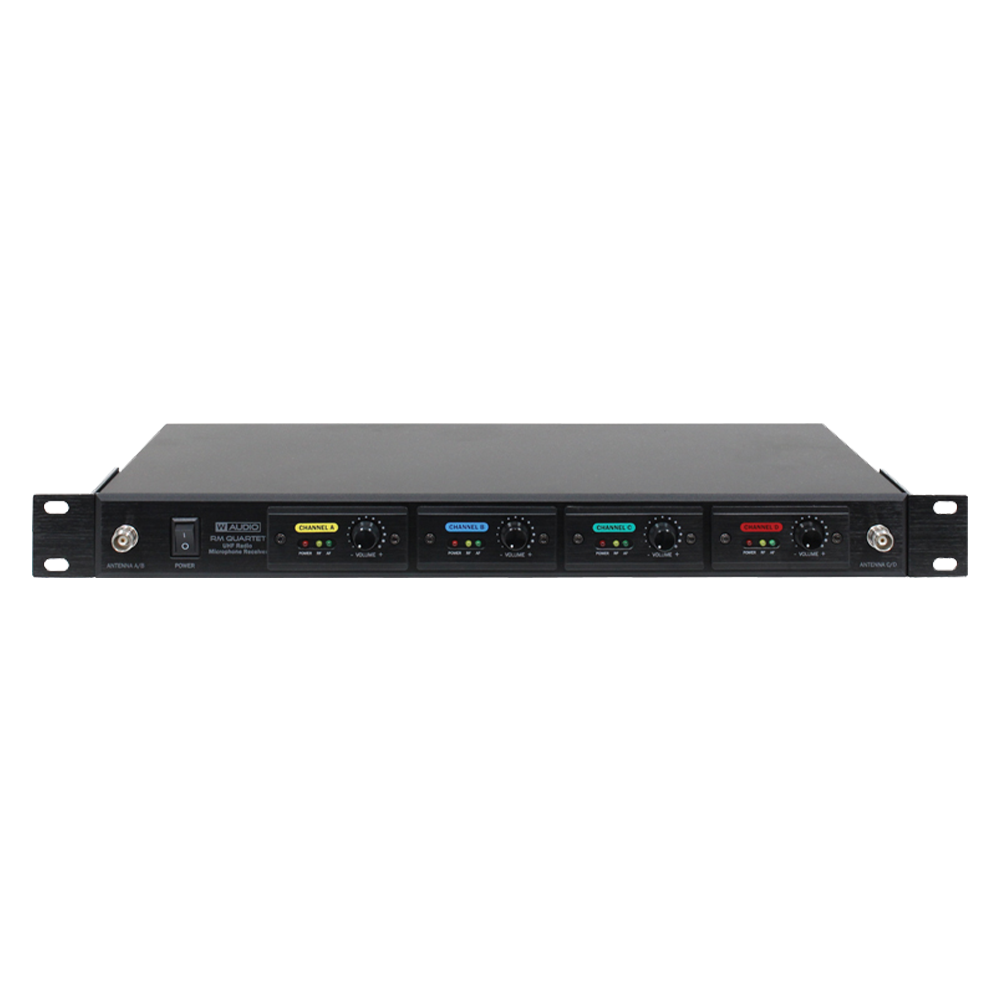

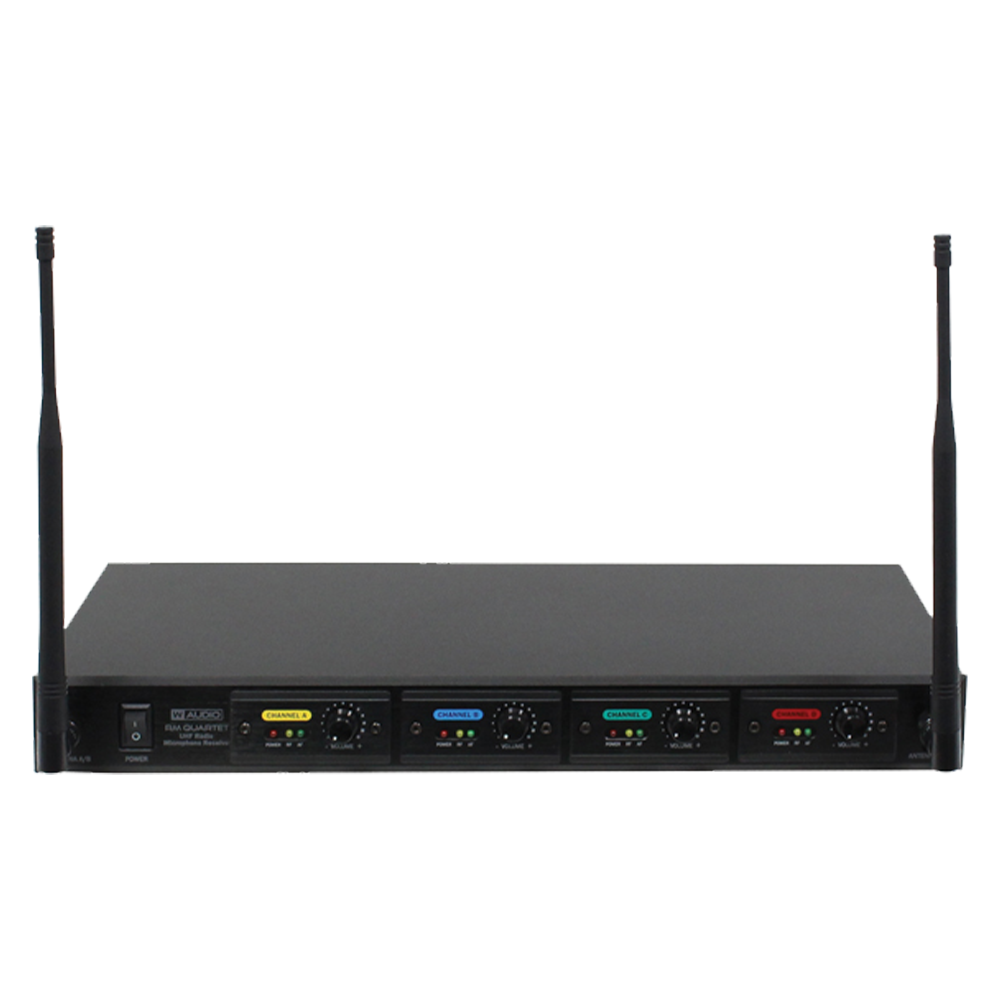

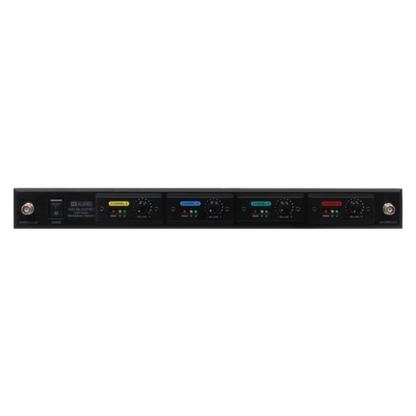

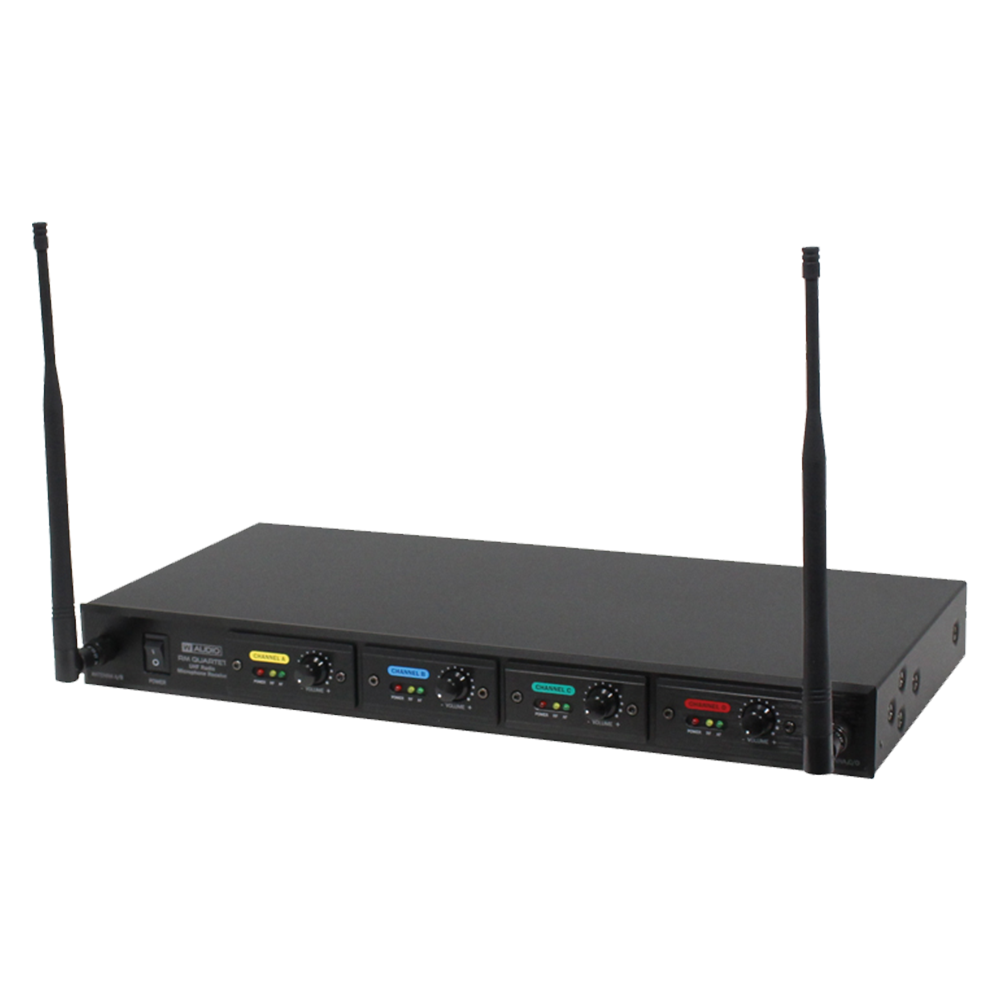

• Four channel, metal cased UHF receiver
• LED status indicators
• Removable 19” rackmount brackets
• 4 x balanced XLR outputs
• 1 x unbalanced 6.35mm jack mixed output
• 6.35mm (1/4”) jack to jack patch cable
• Each transmitter requires 2 x AA dry batteries (rechargeable batteries may used)
• When using rechargeable batteries the handheld transmitters can be optionally charged by using dual USB cable supplied with the reciever only
• Dual squelch circuit
• CH70 license-free operation
• Operating frequency: 863.01 MHz, 863.42 MHz, 864.3 MHz,  MH 864.99Mhz
• AF output impedance: 2.2K Ohms
• Maximum output level (balanced): 0-400mV
• Maximum output level (unbalanced): 0-200mV
• Total harmonic distortion: less than 0.5% @1KHz
• Frequency response: 40Hz-18KHz
• Power supply: DC 12-18V, 500mA (14V, 1.2A adapter supplied)
• Receiver dimensions (H x W x D): 45 x 420 x 220mm
• Weight: 3.8kg

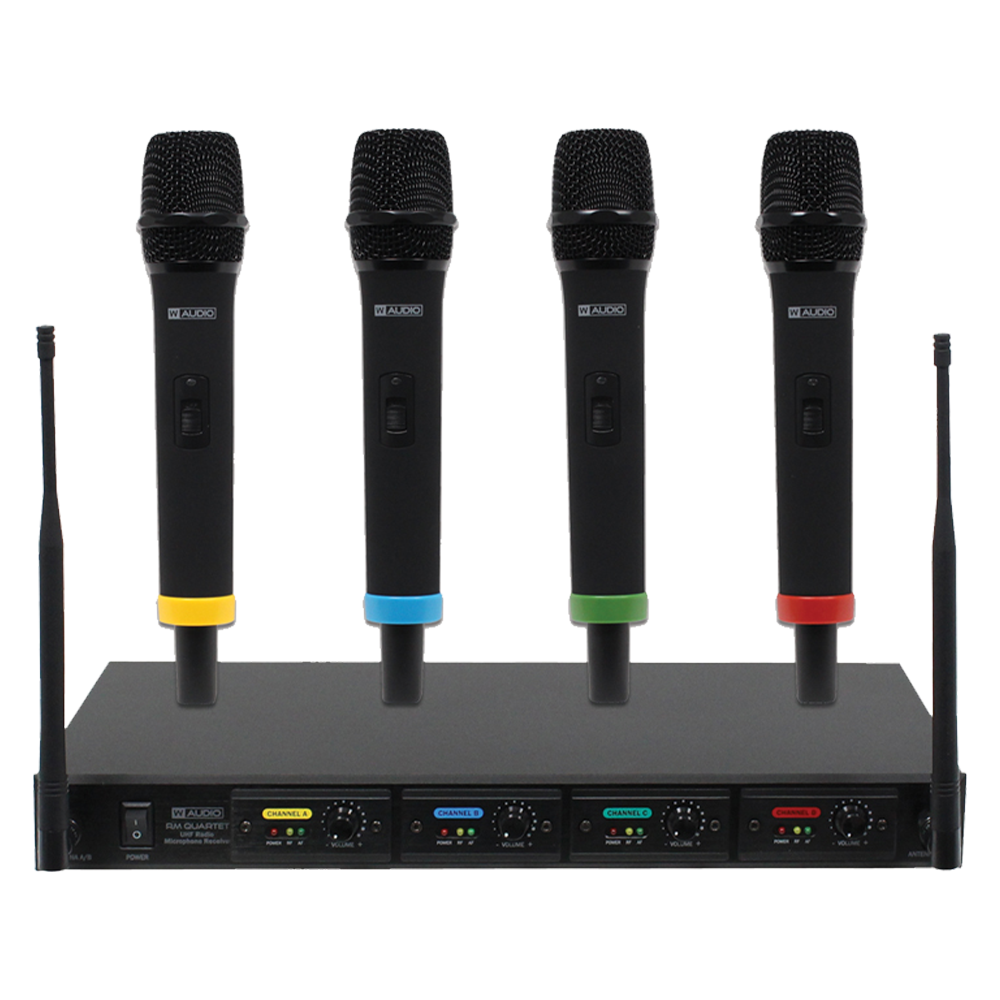

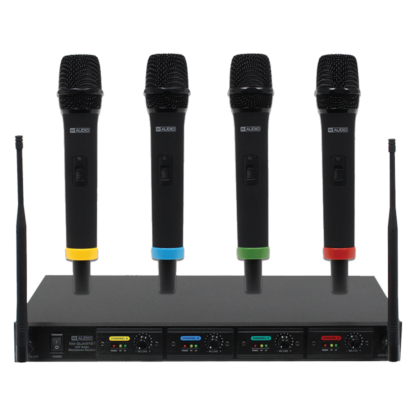

Microphone frequencies:

• Yellow: 863.01 MHz
• Blue: 863.42 MHz
• Green: 864.30 MHz
• Red: 864.99 MHz

Also compatible with:

• W Audio RM Quartet yellow is compatible with Chord QU4 red: 863.01 MHz
• W Audio RM Quartet blue is compatible with Chord QU4 yellow: 863.42 MHz
• W Audio RM Quartet green is compatible with Chord QU4 green: 864.30 MHz
• W Audio RM Quartet red is compatible with Chord QU4 blue: 864.99 MHz

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this equipment – only one Quartet set may be used at a time at any single location

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
