Penn Elcom R2293-10-6UK 6U Rack Drawer

Description

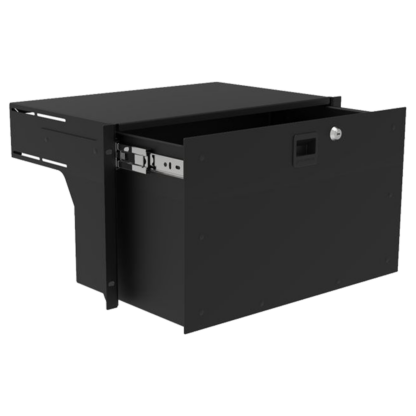

Penn Elcom R2293-10-6UK 6U locking 19″ rack drawer

285mm / 10” Deep, 6U Tour Grade Heavy Duty Rack Drawer with Slam Lock and Key Lock

• Tour Grade / Heavy Duty Rack Drawer With Space-Saving Flat Front Panel
• Reinforced Rack Mounting Ears
• M25 / M40 Cable Gland Knock-Outs for Cable Access at the Rear.
• Support Brackets Included R2292-RSB-KIT
• With Slam latch and Keylock (comes with 2 keys)
• External Dimensions:
  • External Depth: 286.5mm
  • External Width: 482.6mm
  • External Height: 266.1mm
• Internal Dimensions:
  • Internal Depth: 275mm
  • Internal Width: 409mm
  • Internal Height: 252mm
• Load Capacity: 38kg
• Material: Steel
• Size (U): 6U
• Weight: 6.2kg
• Depth: 28.5cm
• Finish: Black
