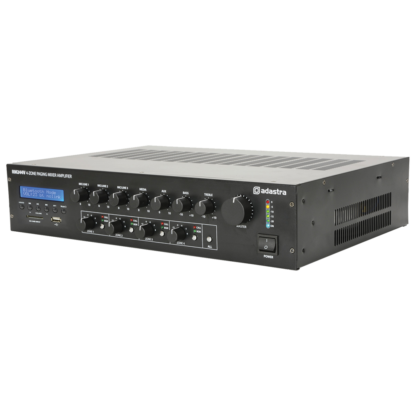

Adastra RM244V Mixer Amplifier with Bluetooth

Description

Adastra RM244V mixer amplifier with 4 zone paging with Bluetooth, MP3 and FM media player

240w 100v line mixer amplifier with 3 mic/line inputs, 1 aux input and a built-in media player. Connections for mic/line inputs are jack or XLR and channel 1 input has a variable mute for priority override. 24V contacts can be connected to a fire alarm panel for emergency evacuation if required. The media section can provide playback from Bluetooth®, USB/SD media or an FM tuner. Output terminals are provided for 4 zones which share the output of the 240W amplifier, governed by 4 individual rotary volume switches on the front panel. RJ45 inputs on the rear panel allow connection for up to two CS4 call stations to enable paging to individual or all zones. The RM244V offers versatile 4-zone control without the expense of a quad amplifier and can even be operated as the front end to an expanded public address system.

• Built-in USB/SD player with Bluetooth and FM tuner – PLEASE NOTE that for good FM reception an external FM aerial will be required
• Compatible with CS4 call stations (953.146UK)
• 4 individual output volume attenuators
• Switchable +20V phantom power
• Send/return loop for connection to audio processors or amplifiers
• Supplied with 19″ rack-mount ears (2U)
• Power supply: 110/230Vac, 50/60Hz (IEC)
• Output power rms: 240W (shared across 4 zones @ 100V)
• Inputs: 3 x mic/line (jack/XLR), 1 x aux (RCA)
• Input sensitivity: mic -47dBV
• Input impedance: mic 5k Ohms
• Input sensitivity: line -10dBV
• Input impedance: line 1k Ohms

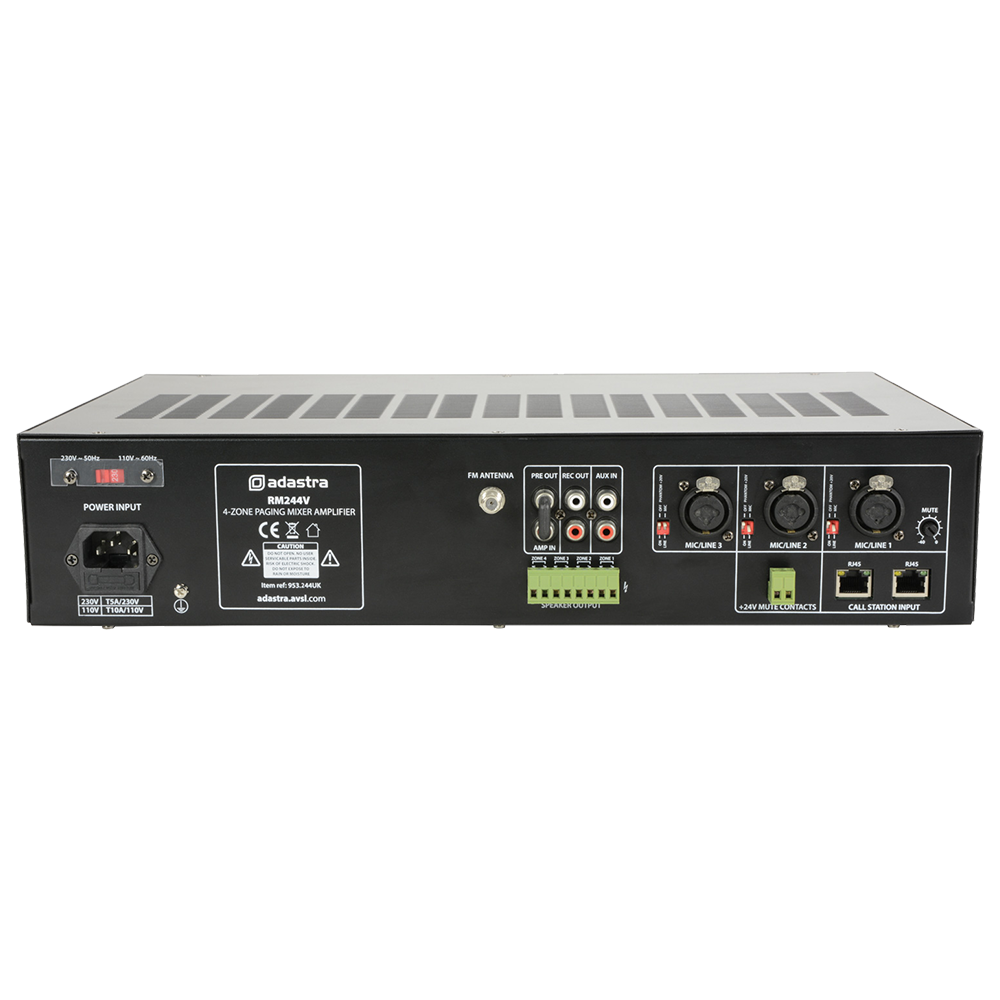

• Paging station inputs: 2 x RJ45 (for optional RM-4B paging stations)
• Line output: RCA
• Sends: returns Pre out, amp in (RCA)
• Channel controls: Ch1, Ch2, Ch3, Media and Aux volume

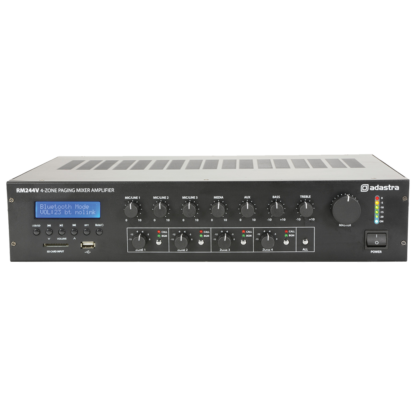

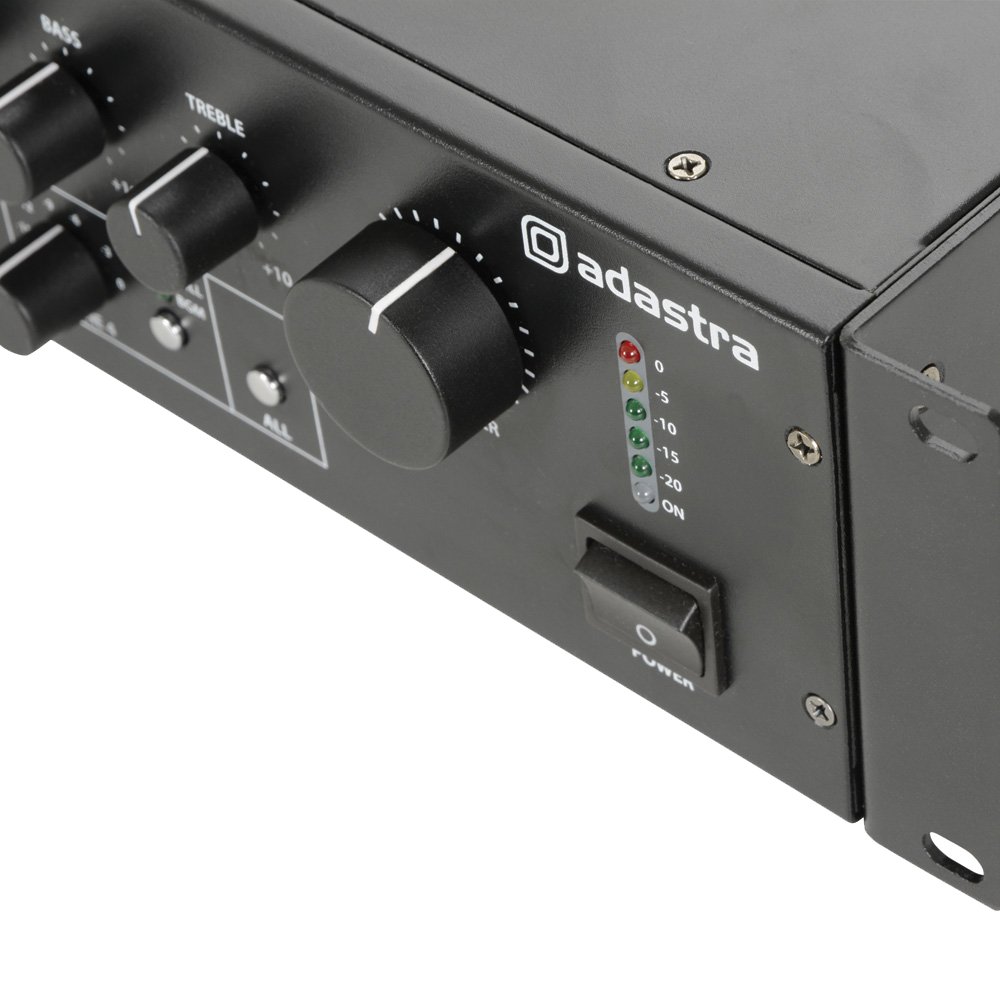

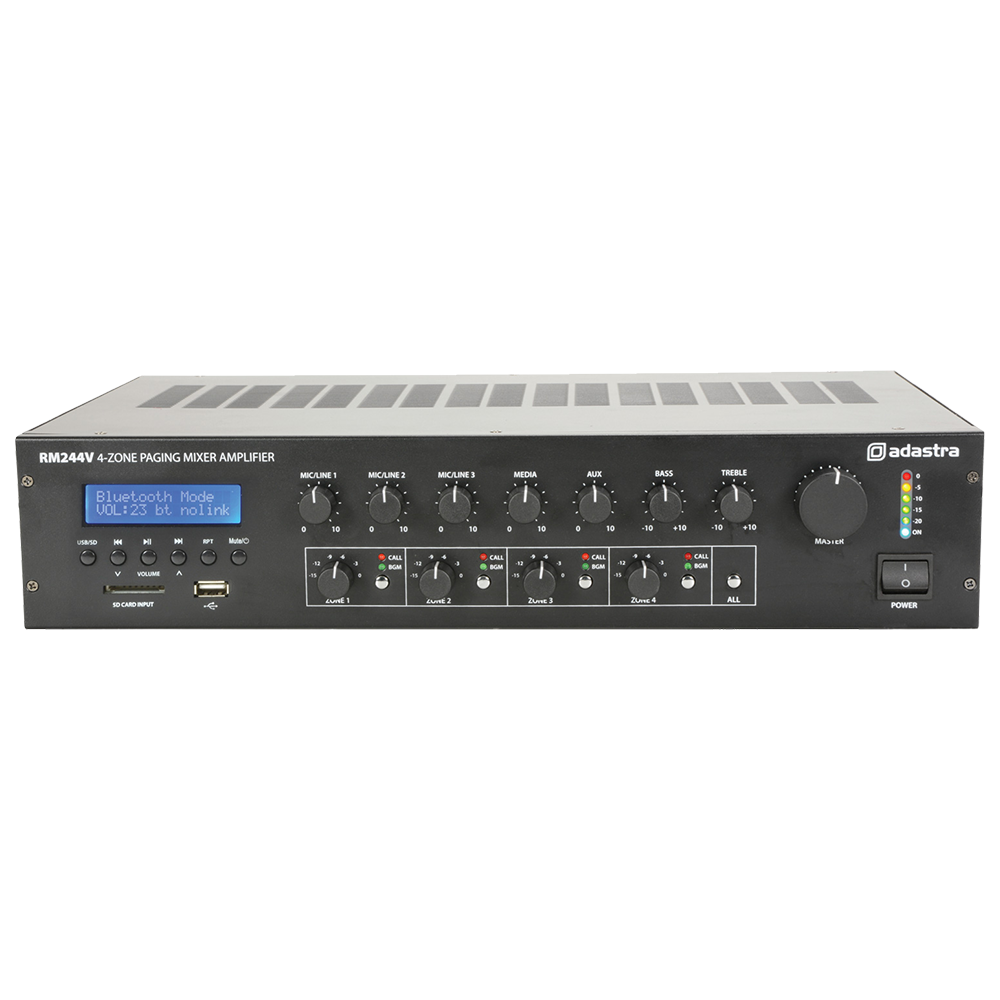

• Output controls: Master volume, 4 x zone volumes & mutes
• Equaliser bass: 100Hz ±10dB
• Equaliser treble: 10kHz ±10dB
• Phantom power: +20V (switchable inputs 1-3)
• Audio source: USB/SD player, FM tuner and Bluetooth receiver
• Bluetooth version: 2.0
• Fire alarm contacts: 24V screw terminals
• THD: +N <2% @ 1kHz (rated power)
• Protection: Short circuit, overload, overheat
• Speaker outputs: 4 x 100V (modular terminal block)
• Dimensions: 430 x 315 x 89mm
• Weight: 10.4kg

CS4 desk paging mic also available

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
