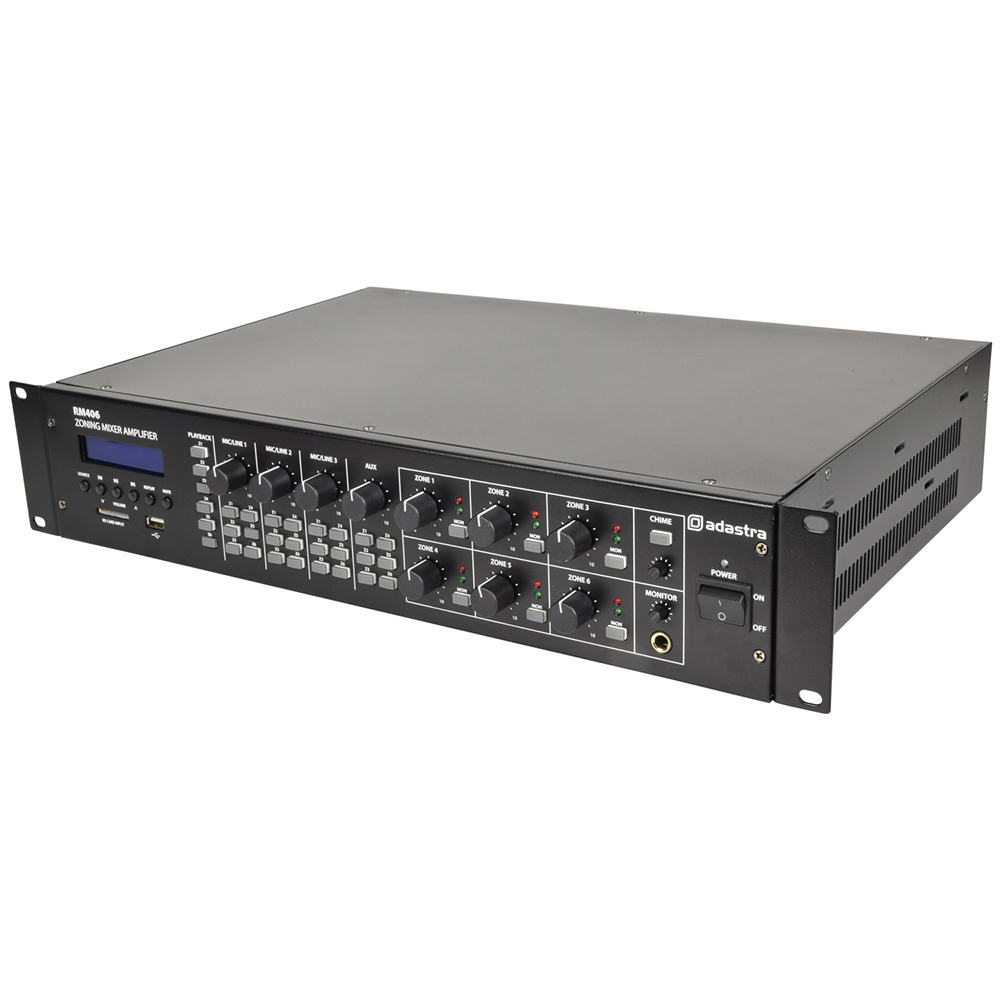

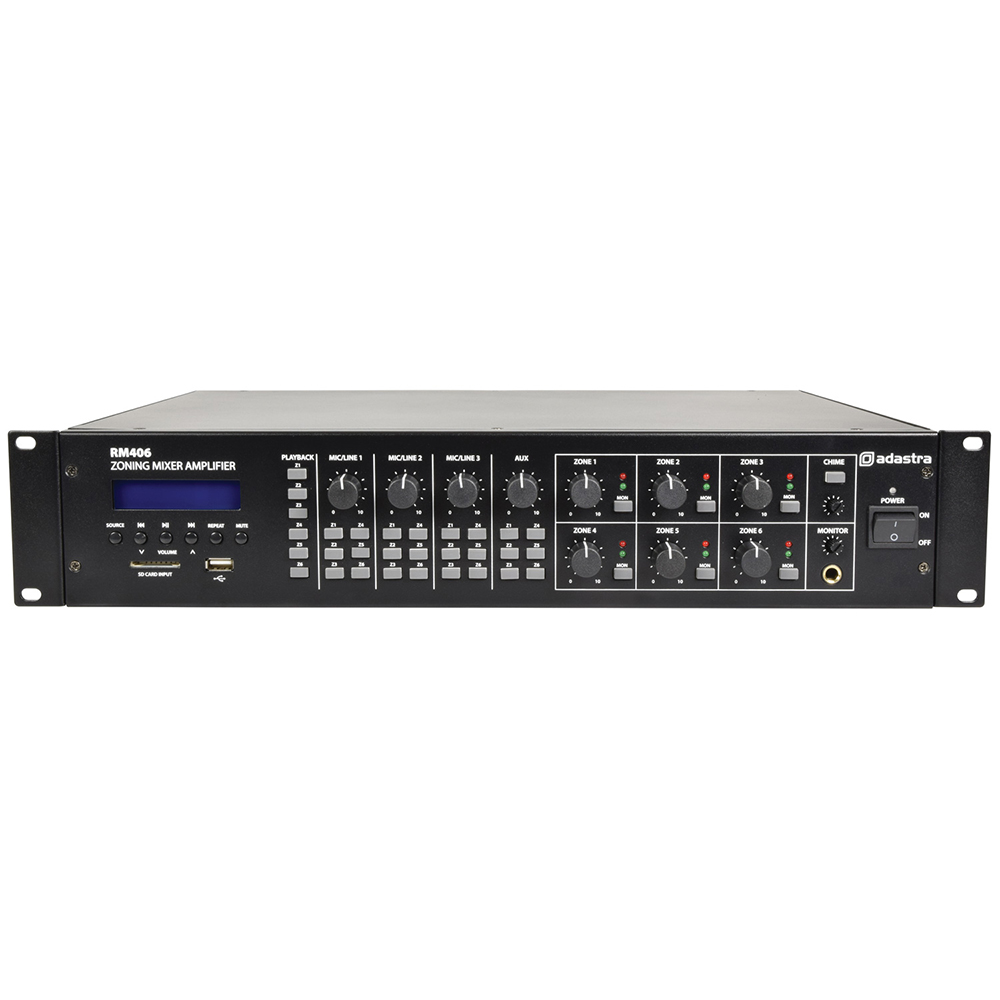

Adastra RM406 Mixer Amplifier with Bluetooth

Description

Adastra RM406 6 x 40w 6-zone 100v line mixer amplifier with USB, SD, FM and Bluetooth media player

Zone amplifier with 6 x 40W outputs to 100V or 4/8 Ohms speakers, which can be monitored via a headphone output. 3 mic/line inputs, 1 aux input and an integral USB/SD/FM player and Bluetooth receiver can be matrix switched to any of the 6 zones independently. Mic 1 channel has a variable override and each microphone input has switchable phantom power. A master chime with volume can be used for paging calls and alerts. Designed for multi-room systems requiring different audio sources.

• Do not connect more that two 8Ω loudspeakers to the 8Ω output on any output channel of this amplifier
• Integral USB/SD/FM audio player – PLEASE NOTE that for good FM reception an external FM aerial will be required
• Internal Bluetooth receiver
• 100V or 4/8 Ohms operation
• 6 independent output zones
• 3 mic/line and 1 auxiliary input
• Mic priority and chime functions
• Monitor headphones output
• Power supply 110-230Vac, 50/60Hz (IEC)
• Output power 6 x 40W rms
• Audio source USB/SD/FM/BT audio player

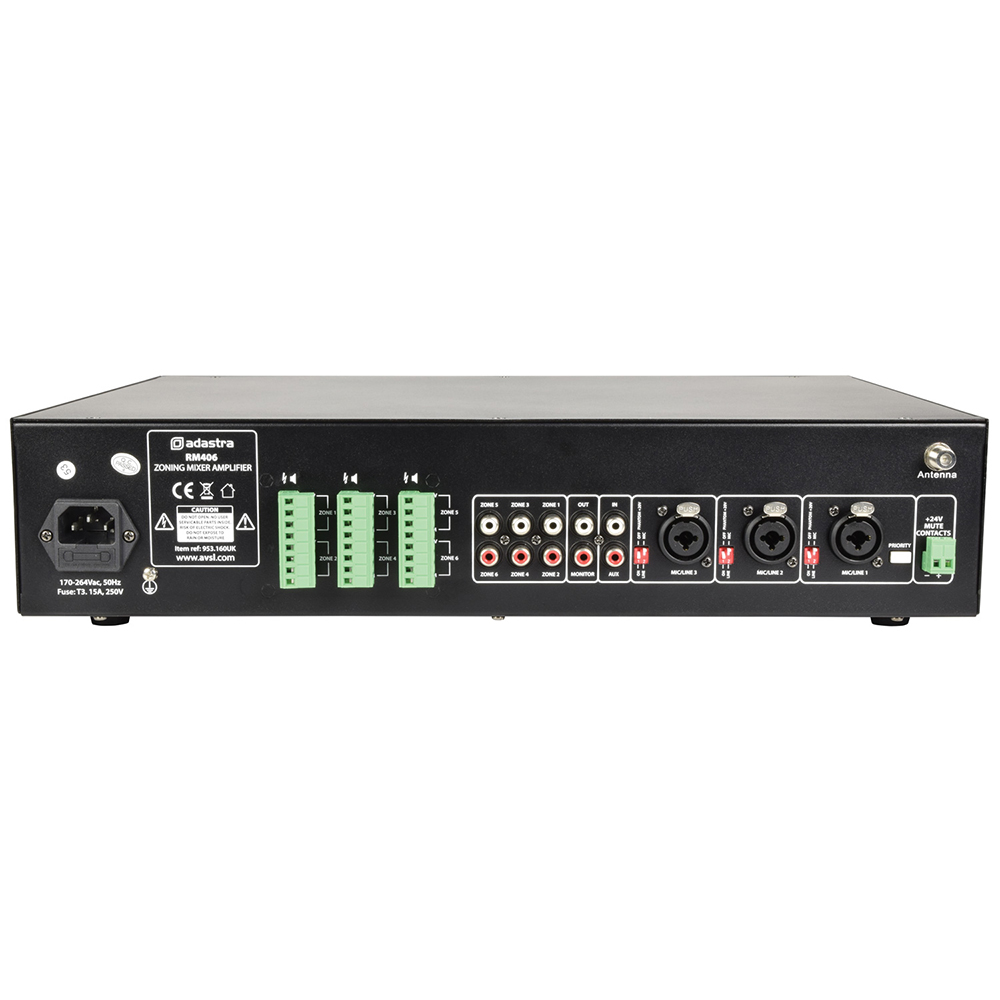

• Inputs 3 x mic/line (XLR/jack), auxiliary 2 x RCA
• Zone outputs: line 6 x RCA
• Zone outputs: speaker 6 x terminal outputs 100V/8 Ohms/4 Ohms/com
• Phantom power: +20V switchable to each XLR
• Monitor outputs: 6.3mm stereo phones, 2 x RCA line
• Mute: +24V relay contacts
• THD: <0.76% @ 1kHz
• Input impedance: 1k Ohms (mic/line)
• Input sensitivity: -11dB (line), -46dB (mic)
• SNR: 84dB (line), 82dB (mic)
• Bluetooth version: 2.0
• Frequency response: 100Hz – 24kHz
• Dimensions: 433 x 89 x 403mm
• Weight: 13.5kg
