Adastra RMC120D Mixer Amplifier with CD, DAB+ and Bluetooth

Description

Adastra RMC120D 120W 100V line mixer amplifier with CD, DAB+, Bluetooth and USB/SD

100V line mixer-amplifier with built-in multi-format media player. 5 input channels include a balanced XLR microphone input with switchable phantom power and Vox override, 2 mic/line jack inputs and 2 RCA line inputs. A powerful class AB amplifier section is paired with a digital switch-mode power supply and 100V transformer for reliable power delivery from an energy efficient power section. A built-in CD player provides audio playback alongside a USB/SD media player with an integral DAB+ and FM radio tuner. Additional Bluetooth® receiver enables pairing to a smartphone for wireless playback of stored tracks. Bass & Treble EQ and Master volume control the overall output, which can power either low impedance or 100V line speakers. A comprehensive solution for commercial sound installations.

• 5 input channels
• DAB+ and FM radio tuner
• Slot feed CD player
• Bluetooth connectivity
• USB/SD mp3 player
• 100V or 4-16 Ohms output
• Supplied with 19″ rack-mount ears
• Power supply: 170-264Vac, 50Hz (IEC)
• Fuse: T3.15A
• DC power: 24Vdc (screw terminals)
• Power : rms: 120Wrms (100V or 4 Ohms)
• Inputs: Mic XLR, 2 x mic/line jack, 2 x RCA line
• Input sensitivity : mic: 1 (balanced) -53dBV
• Input impedance : mic: 1 5k Ohms
• Input sensitivity : line (unbalanced): -15dBV (-18.5dBV line 5)
• Input impedance : inputs: 2-5 1k Ohms
• Line output: RCA

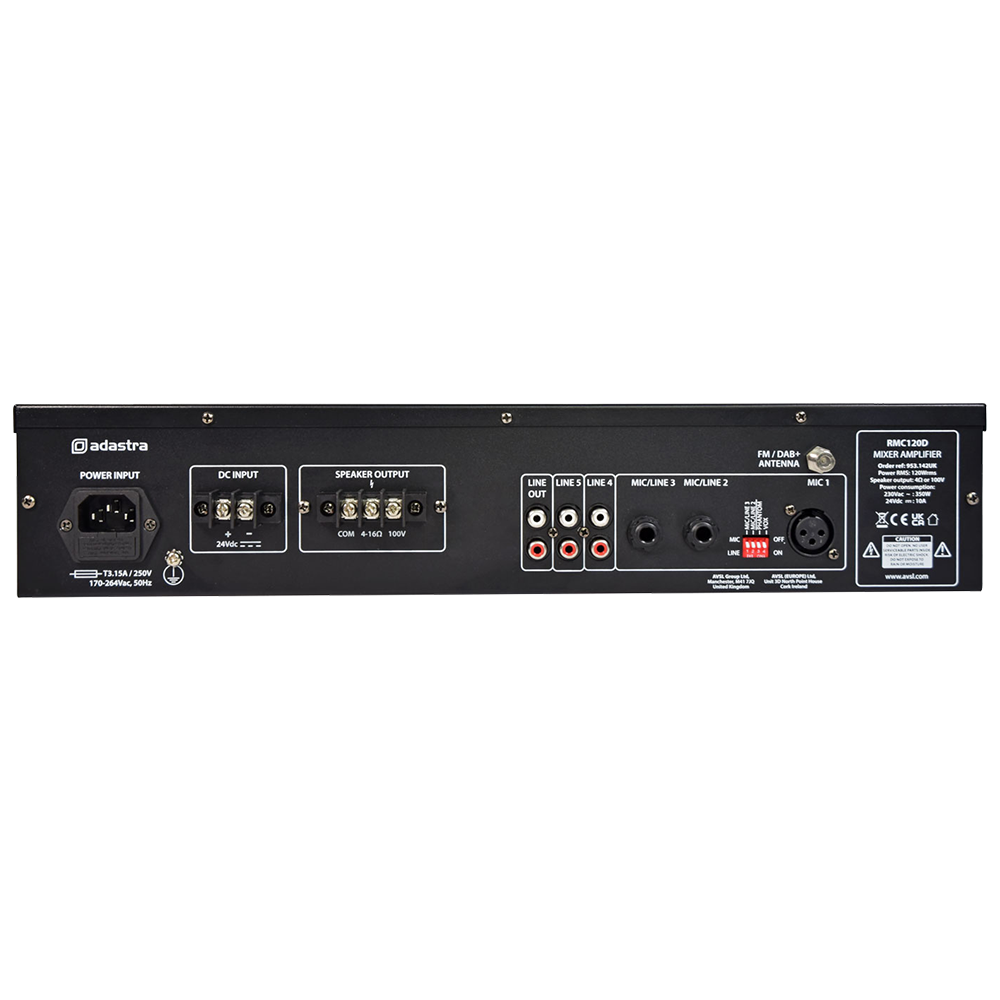

• Speaker outputs: 100V / 4-16 Ohms / COM terminals
• Bluetooth version: 5.0

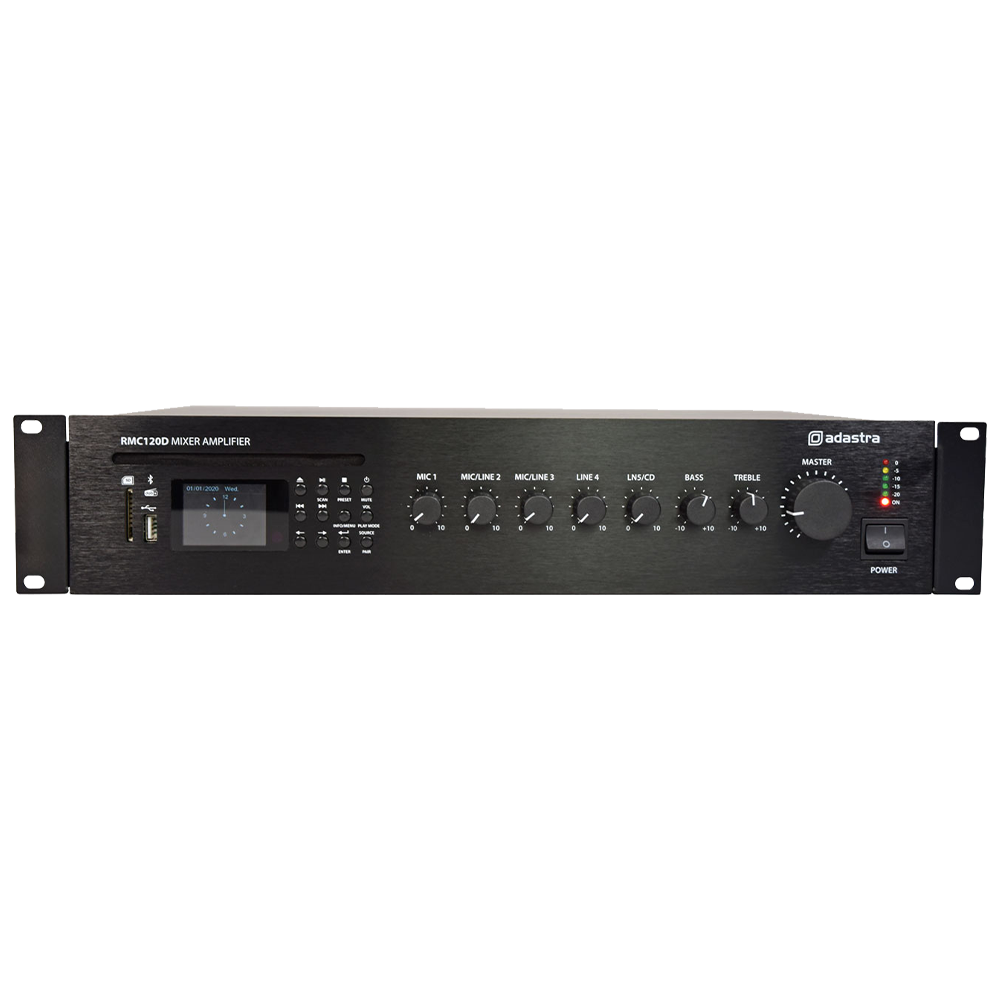

• Controls: Mic1, mic/line2+3, line4+5 (USB), bass, treble, master volume
• Equaliser:
  • Bass: 100Hz ±10dB
  • Treble: 10kHz ±10dB
• Rear panel switches: Mic/Line (2 + 3), Phantom, Vox
• Phantom power: +20V (MIC 1 input)
• THD: <1.0%
• Dimensions: 433 x 320 x 89mm
• Weight: 7kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
