Citronic RU210-N Wireless Microphone System

Description

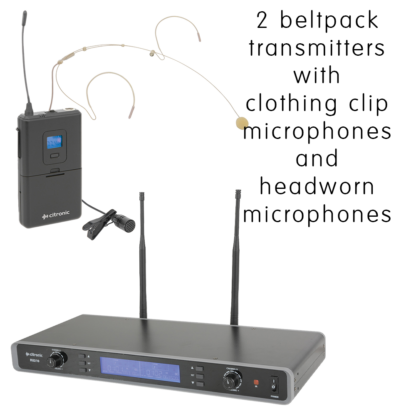

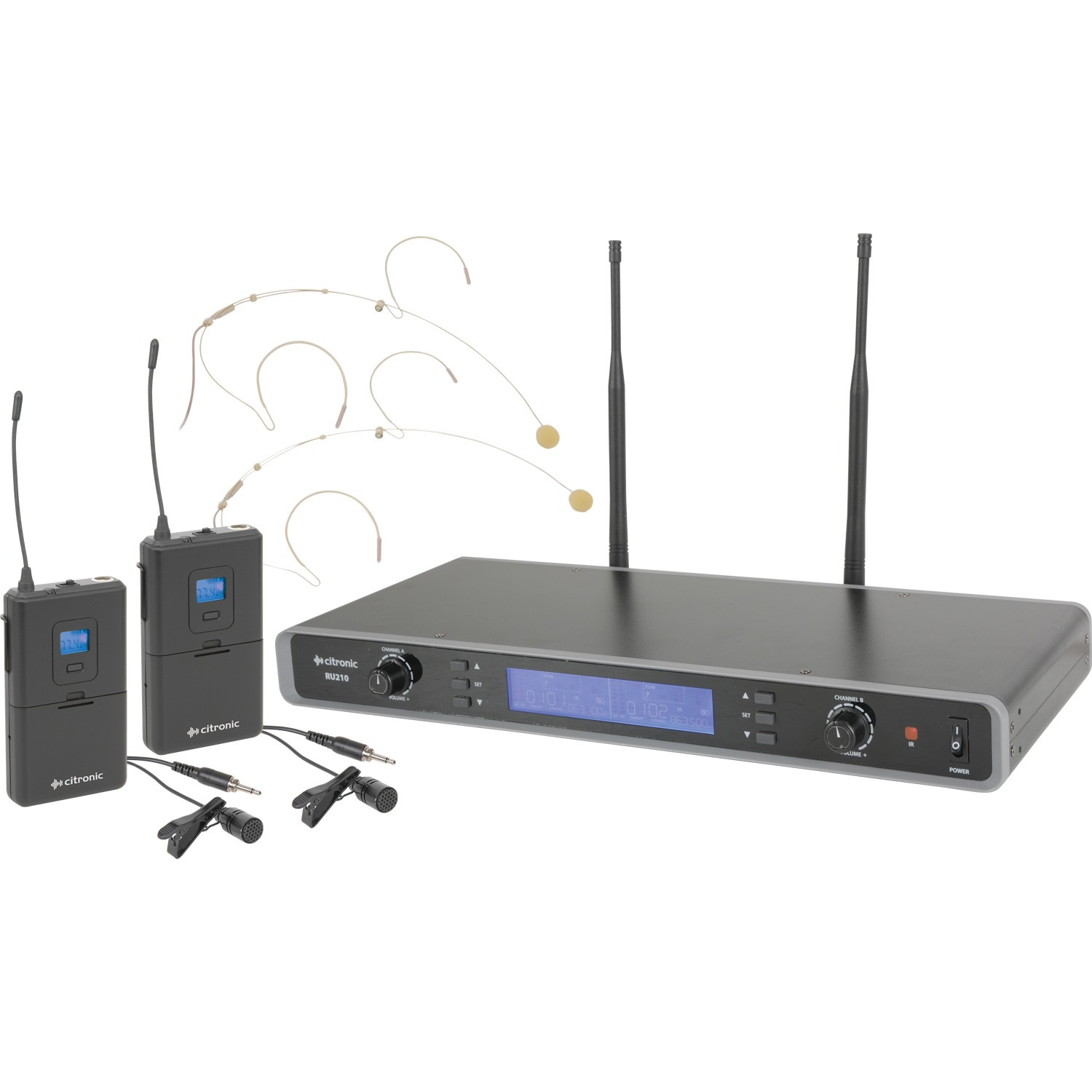

Citronic RU210-N license free UHF Ch 70 digital twin wireless microphone system with boyworn transmitter, 2 x headworn microphones and 2 x clothing clip microphones

Dual channel PLL tuneable UHF wireless system with 2 handheld transmitters. The receiver unit is compatible with standard 19″ racks using the included rack ears and front mounting antenna accessories. The RF carrier frequency is selected on the receiver and synchronized to the transmitter via infra-red at the touch of a button. Up to 2 RU210 systems can be operated together on the EU license-free band.

• Digital system
• PLL tuneable with 81 UHF frequencies
• License free operation in EU
• Pilot tone & mute circuit for stable signal
• Rack-mounting accessories included
• Supplied with mains adapter and 4 x AA batteries
• Power supply: 12-18Vdc, 500mA (mains adapter included)
• Batteries: 4 x AA (2 per transmitter – included)
• Average operating range: 30m
• Carrier frequencies: 863 – 865MHz (81 selectable frequencies)
• Signal to noise ratio: >105dB
• THD: <0.5% @ 1KHz
• Frequency response: 50Hz-18KHz ±1 dB
• Image rejection: >85dB
• Output impedance: 2.2k Ohms
• Output level: 400mV (balanced), 200mV (unbalanced)
• Dimensions : receiver: 44 x 409 x 190mm
• Weight : receiver: 1.37kg
• Dimensions : transmitter: 110 x 67 x 24mm (ex antenna)
• Weight : transmitter: 75g (no battery)

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this and additional equipment.

Wireless microphone systems need to be connected to a public address PA sound system to work.
