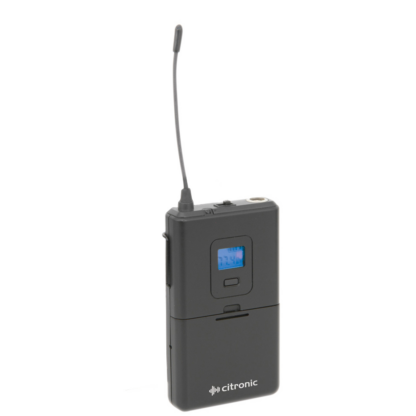

Citronic RUBP-PLL Wireless Beltpack

Description

Citronic RUBP-PLL UHF beltpack transmitter compatible with Citronic Ch 70 UHF digital wireless systems. The carrier frequency can be programmed via IR sync signal from the Citronic wireless receiver unit RU105 or RU210

For RU210 & RU105 only

• Digital system
• Ch 70 license free
• Pilot tone for RU105 and RU210 compatibility
• Up to 60m range
• Backlit LCD display
• Compatible with RU105 and RU210 systems
• Compatible with Chord headband and lavalier microphones
• Power supply: 3Vdc (2 x AA batteries)
• Carrier frequencies: 863.1 to 864.9MHz
• Connector Threaded: 3.5mm mono jack (for lavalier or headset)
• Maximum range: 60m
• Dimensions: 205 x 68 x 25mm
• Weight: 76g (no batteries)
• For clothing clip mics see: LM-35 and DLM-35
• For headworn mics see: HSE-86, LAN-35, ANM-35, DCN-35 and HAN-35

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.

Wireless microphone systems need to be connected to a public address PA sound system to work.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
