Trantec S4.04-BTX UHF wireless beltpack transmitter compatible with S4.04 and S4.4 wireless microphone systems

Trantec S4.04-BTX Wireless Beltpack

SKU: S4.04-BTX

£157.20 + VAT    £188.64 incl. VAT

UHF Ch 70 radio microphone beltpack transmitter for S4.04 receivers

1 in stock

Frequently Bought Together

Beltpack / Bodyworn Wireless Microphone Accessory Pack

Beltpack Wireless Microphone Accessory Pack

Essential accessories for your radio microphones

Batteries AA
Wireless

PDF

Description

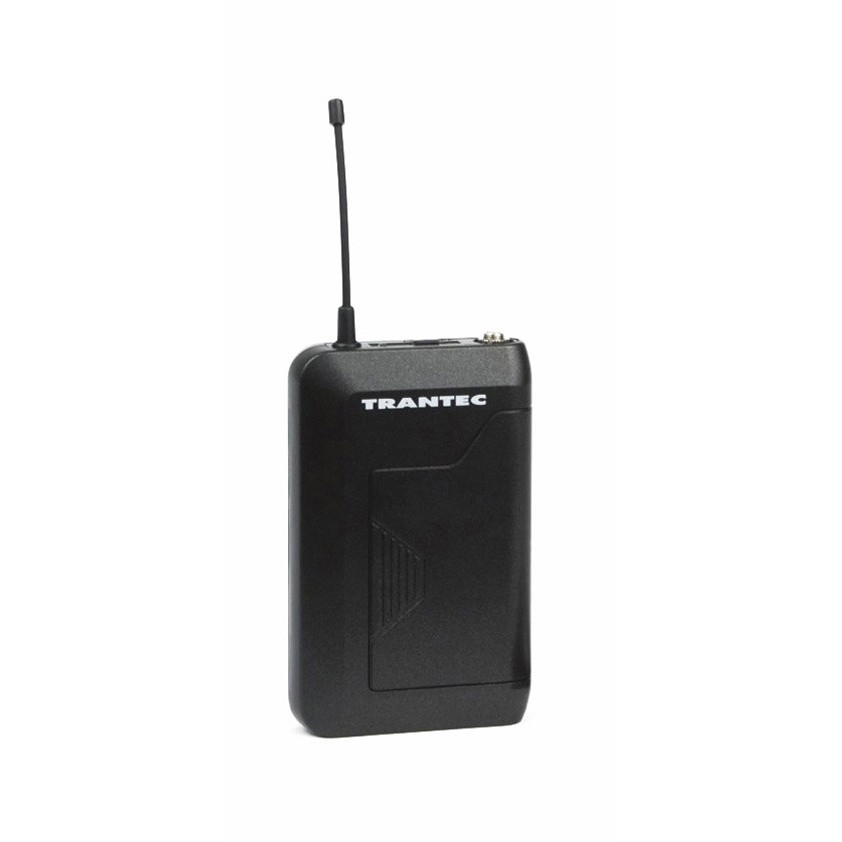

Trantec S4.04-BTX UHF wireless beltpack transmitter

For use with Trantec S4.04 and S4.4 wireless microphone receivers only – please note that each receiver can only pair and be used with a single transmitter at one time

Pocket transmitter, which may be clipped to clothing with its belt-clip, operates on four pre-programmed UHF license free frequencies. The plastic body has a sliding panel which reveals a battery compartment, controls to set frequency, gain and select either microphone or guitar input. On the top there is an on/off switch and power/battery LED. A screw-in antenna and a 3.5mm input jack with screw-locking facility are also situated on the top of the beltpack transmitter

CH 0 – 863.150MHz
CH 1 – 863.725MHz
CH 2 – 864.150MHz
CH 3 – 864.850MHz

All of these frequencies are on Ch 70 and are license-free in the UK

Legacy Trantec compatibility information: S4.04 transmitters can be used with S4.4 receivers (S4.4 transmitters cannot however be used with S4.04 receivers)

  • New S4.04 transmitter on channel 0 will work with old S4.4 receiver on channel 1
  • New S4.04 transmitter on channel 1 will work with old S4.4 receiver on channel 2
  • New S4.04 transmitter on channel 2 will work with old S4.4 receiver on channel 3
  • New S4.04 transmitter on channel 3 will work with old S4.4 receiver on channel 4
  • Supplied without microphone – suitable microphones include LP2 clothing clip mic and HSE-80SX headworn mic
  • Audio frequency response: 50Hz-15kHz
  • Power output: 10mW maximum
  • Operating time: 10 hours approximately using an alkaline battery
  • Power source: AA 1.5V battery
  • Dimensions: 62 x 100 x 25 (w x h x d)mm, including belt clip
  • Weight: 85g with battery
  • Included accessories: Instructions, antenna

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa

Wireless microphone systems need to be connected to a public address PA sound system to work

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version

Additional information

Wireless Microphone Channel

Channel 70 (863-865 MHz)

Connection

Locking 3.5mm Jack (Internal Thread)

Condition

New

Colour

Black

Brand

Trantec

For nearly thirty years Trantec have specialised in producing high quality wireless microphones, beltpacks and in ear monitors. The wide product range, as well as versatile accessories, ensures that Trantec can cater for the most challenging audio demands, at almost any budget within the broadcast, film, music, school, house of worship and theatre industries. Now owned by TOA, Trantec continues to advance by investing in their own research and development to ensure that the product range maintains its innovative, market leading position. For over a quarter of a century TOA has been committed to developing vocal and speech radio products to the highest specification at the cutting edge of technology and are proud to have become synonymous with high quality and reliability. The introduction of the latest Trantec wireless microphones has completed the TOA line up that allows integration into a wide and varied market sector that makes challenging demands within professional audio, broadcast, film, music and theatre. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!
