Trantec S4.04/SX Wireless Microphone System

Description

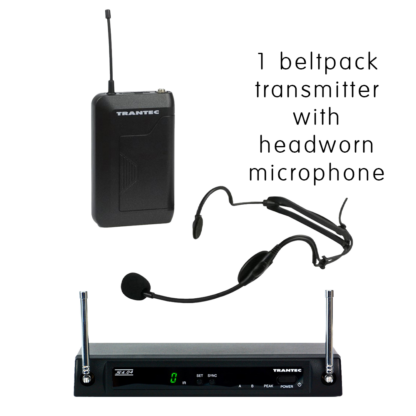

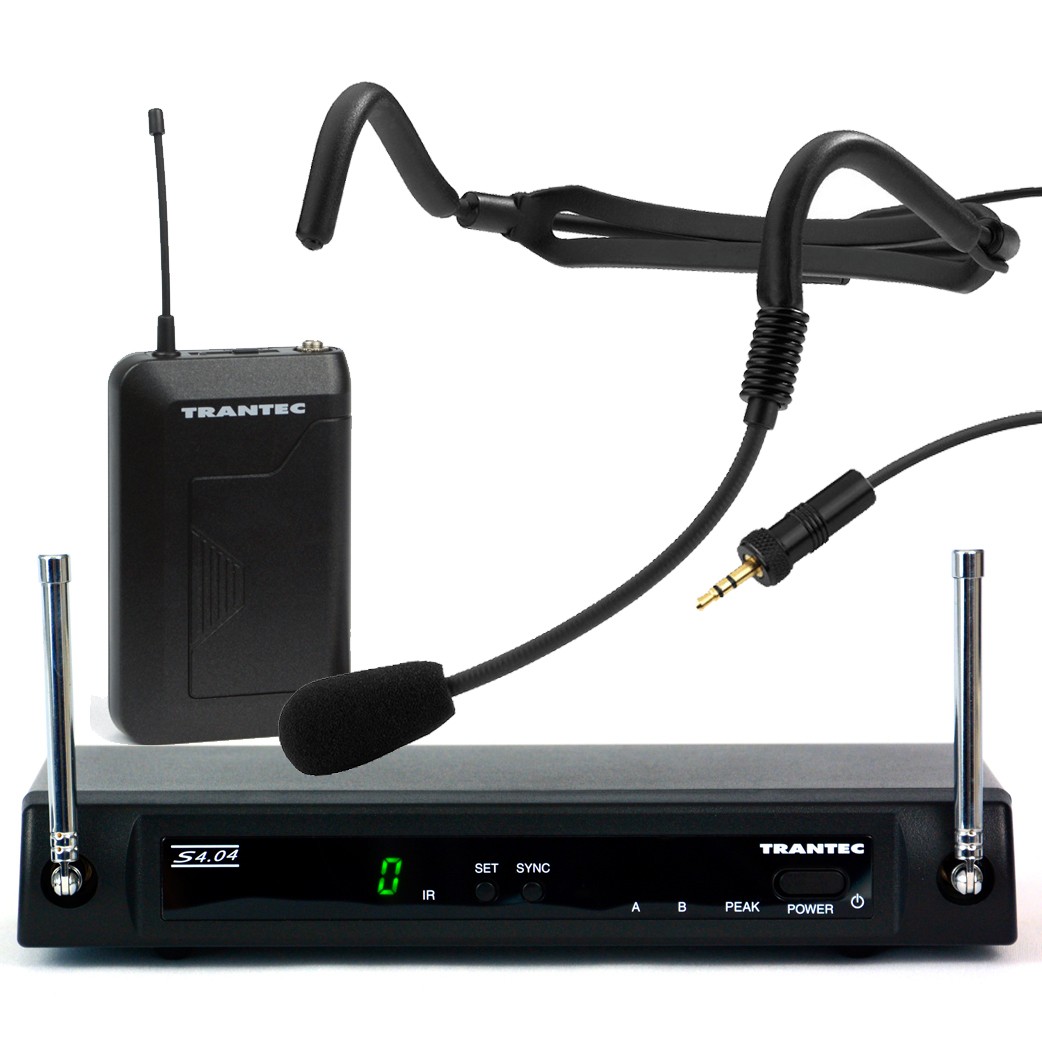

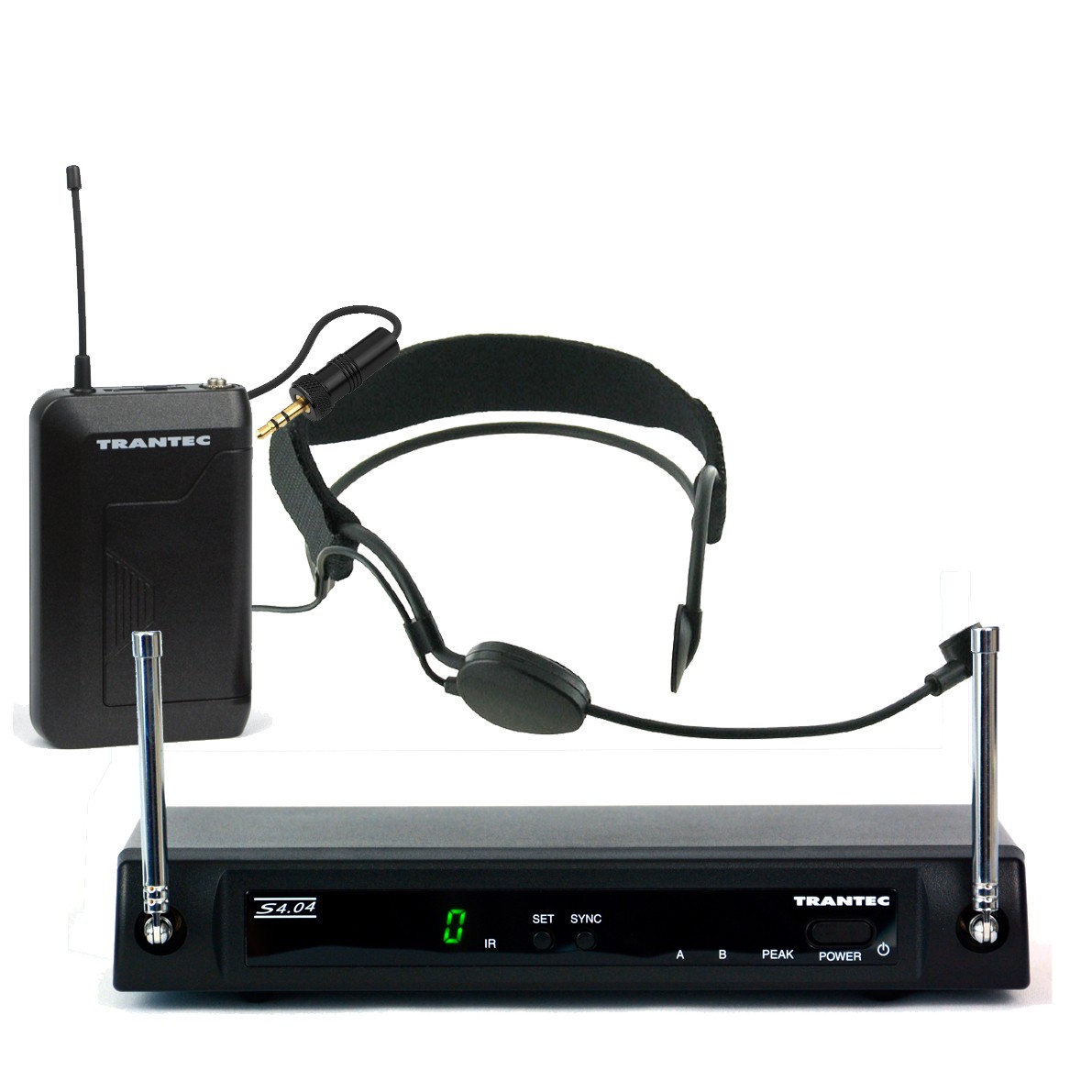

Trantec S4.04-SX wireless microphone system with bodyworn transmitter and headworn microphone

Available on license free Ch 70 with 4 switchable license free frequencies and fully synthesized PLL quartz tuning technology. The S4.04-SX wireless microphone system comes with a wireless beltpack, headworn microphone and a UHF wireless receiver.

• CH 0 – 863.150MHz
• CH 1 – 863.725MHz
• CH 2 – 864.150MHz
• CH 3 – 864.850MHz

All of these frequencies are on Channel 70 and are license free in the UK.

• Supplied with 1.5m XLR audio lead
• Clear and true transmission
• Receiver outputs: Balanced XLR socket -20 dBu for XLR mic inputs and Un-balanced 1/4″ jack socket +10 dBu for line / aux level inputs
• Average operating range: 30m
• Diversity receiver
• Adjustable squelch
• Receiver has robust metal housing
• Dynamic processor for crystal-clear sound

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.

Up to 4 wireless microphone channels may be used simultaneously in Channel 70 using this and additional equipment.

Wireless microphone systems need to be connected to a public address PA sound system to work.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
