Adastra SA240 240w 100v secure wall amplifier 100V with UHF mic + media player

Adastra SA240 Secure Wall Amplifiers with Bluetooth

Name: Adastra SA240 Secure Wall Amplifiers with Bluetooth
SKU: 953.150
Price: 337.82 GBP
Availability: InStock

SKU: 953.150

£337.82 + VAT £405.38 incl. VAT

240w into 100v line or 8Ω low impedance wall mounted amplifiers with UHF Ch 70 radio microphone handheld transmitter, Bluetooth and media player

In stock

PDF

Description

Adastra SA240 240w 100v line secure wall amplifiers with UHF mic + media player

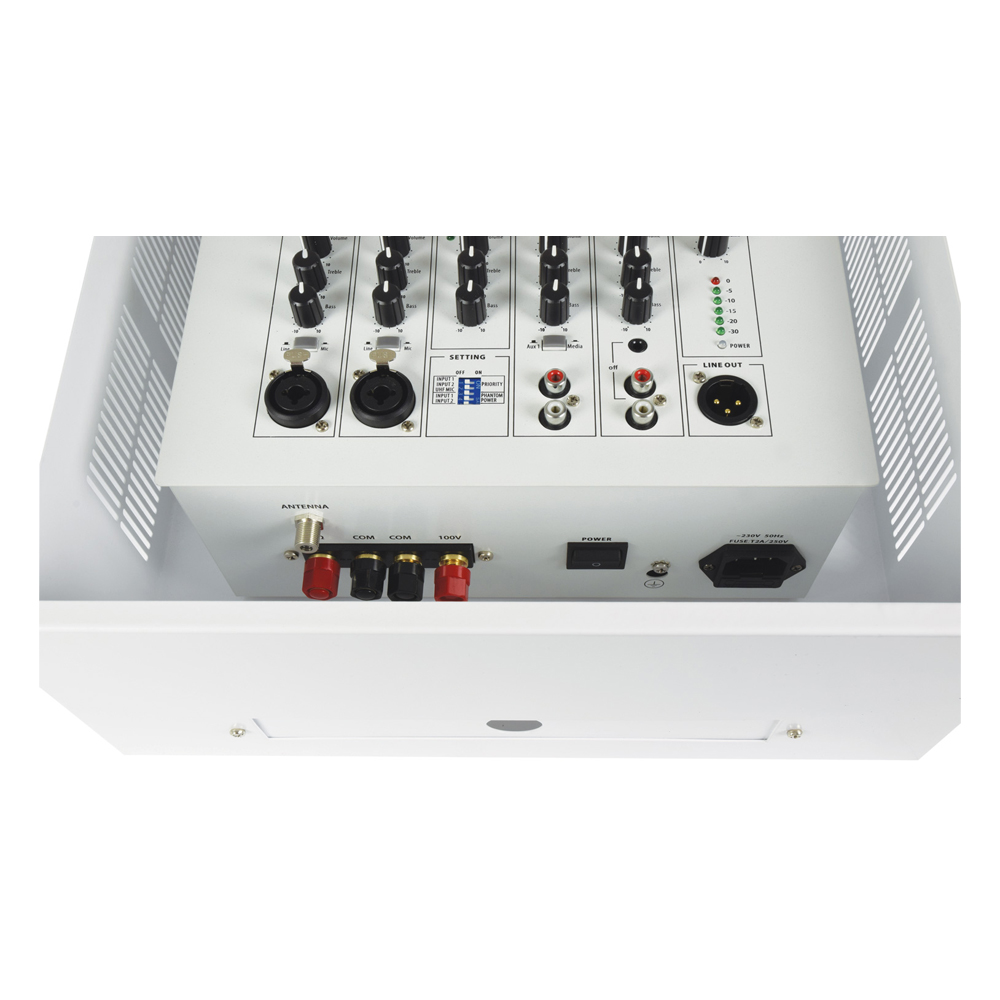

Public address mixer-amplifier built into a surface-mount secure box. A powerful output can drive either 100V line or low impedance speakers from binding post terminals inside the cabinet. The system includes a handheld UHF microphone with an inbuilt receiver and 2 switchable wired mic/line inputs are provided on combo XLR/jack sockets. Each mic input has switchable +48V phantom power and priority override, whch mutes the Aux inputs during voice operation. An internal media player enables playback of audio tracks from USB/SD player, FM tuner or Bluetooth pairing. Alternatively, line inputs can be connected to the Aux 1 RCA sockets or separate Aux 2 RCA/3.5mm jack sockets. The combination of flexible input section and a high efficiency amplifier in a strong, lockable cabinet provides a complete solution for buildings where security and ease of use is essential.

Do not connect more that one 8Ω loudspeaker to the 8Ω output of this amplifier
Output power (RMS): 240w
Fuse: F2AL (20x5mm)
Power supply: 170-264Vac, 50Hz (IEC)
Amplifier : construction: Class-D + output transformer
Phantom power: +20V switchable to each XLR input
Input impedance: Mic: 600 Ohms / Line: 10k Ohms
Input sensitivity: Mic: -42dB / Line: -10dB
Frequency response : mic: 85Hz-22kHz
Frequency response : line: Line 1+2: 80Hz-24kHz, Line 3+4: 85Hz-24kHz
SNR: Mic: 66dB / Line: 76dB
THD: <0.4% @ 1kHz

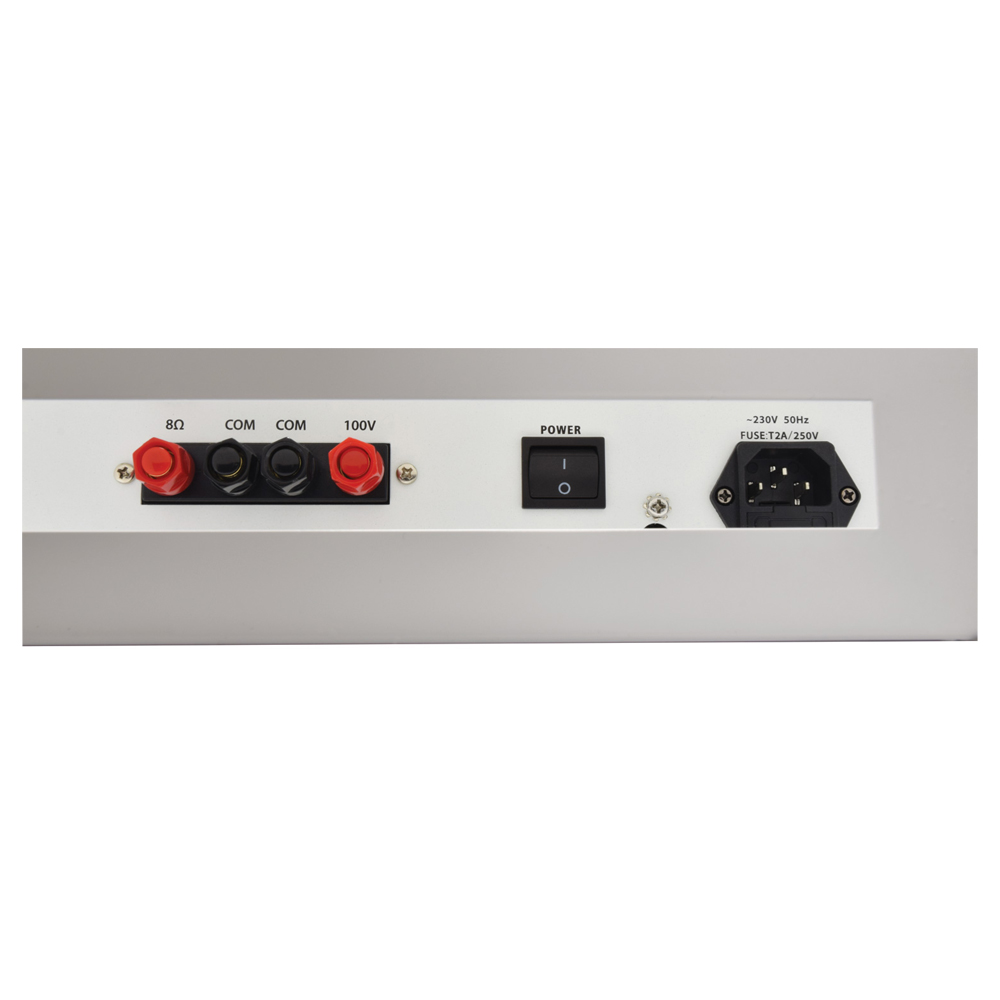

Speaker outputs: 8 Ohm / Com / Com / 100V
Music source: USB/SD player, FM tuner, Bluetooth
Mic/line inputs: 2 x combo XLR/jack
Line inputs: RCA (Aux 1), RCA or 3.5mm jack (Aux 2)
Line output: XLR male connector
Equalization: Bass + Treble each channel
Bluetooth version: 2.0
Carrier frequency: 864.5MHz
Batteries : handheld transmitter: 2 x AA (alkaline)
Wireless range: 50m (max)
Dimensions: 375 x 345 x 160mm
Weight: 9.25kg

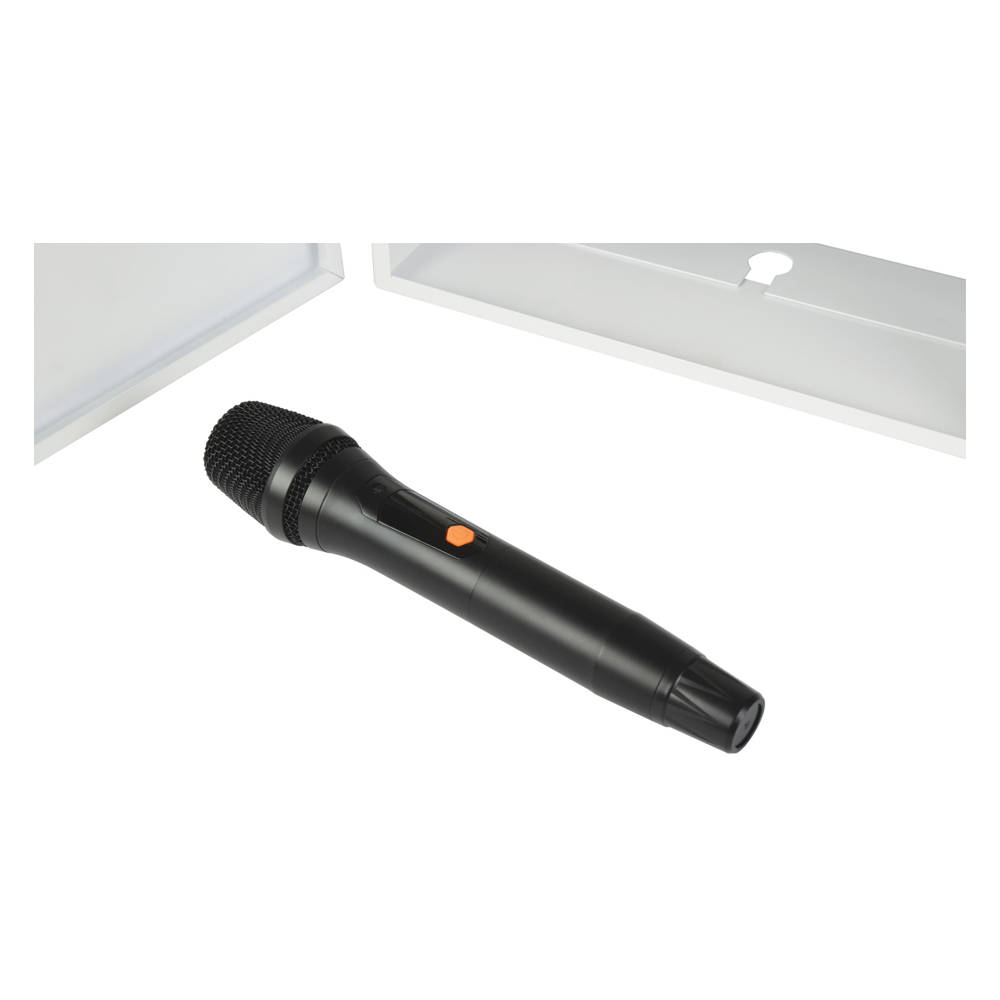

UHF wireless handheld mic included
USB/SD media player
Bluetooth receiver
2 switchable mic/line inputs
Switchable phantom power for condenser mics
100V or low impedance operation
Secure lockable cabinet

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
