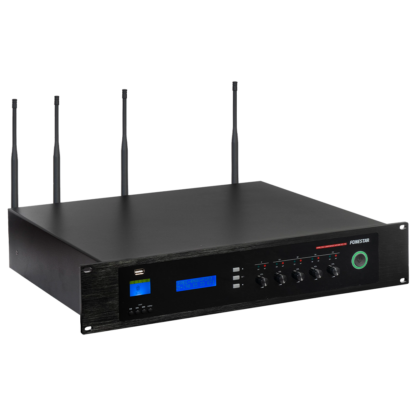

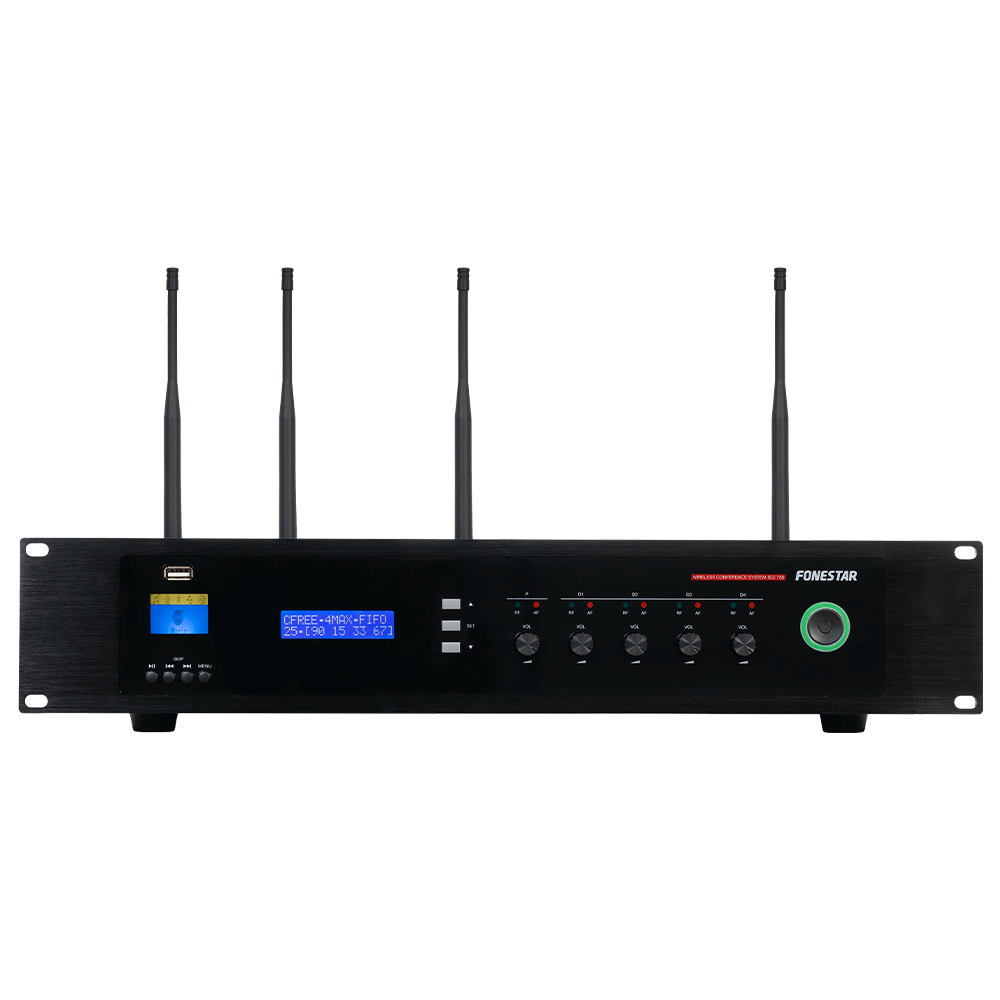

Fonestar SCI-750 Wireless Conference Receiver

Description

Fonestar SCI-750 256-channel wireless conference receiver on 610-665 MHz for use with Fonestar SCI-770D wireless conference delegates’ microphones and SCI-760P wireless conference chairperson’s microphone

The SCI-750 combines the features of a conference system (priority and selection of maximum number of open microphones) with those of a wireless microphone system (mobility and ease of installation). Up to 256 wireless conference microphones in total may be added with up to 5 microphones active at any one time.

• Features:
  • Control unit
  • UHF 610-665 MHz
  • LCD information display
  • Wireless receiver
  • USB recorder/player
  • Priority control with delegate cut-off while the president has priority
  • Maximum number of microphones in use selector
  • Up to 256 microphones in total, 5 active at a time
  • Audio and control signal transition between the switchboard and the microphones
• Frequency Response: 50-15,000 Hz

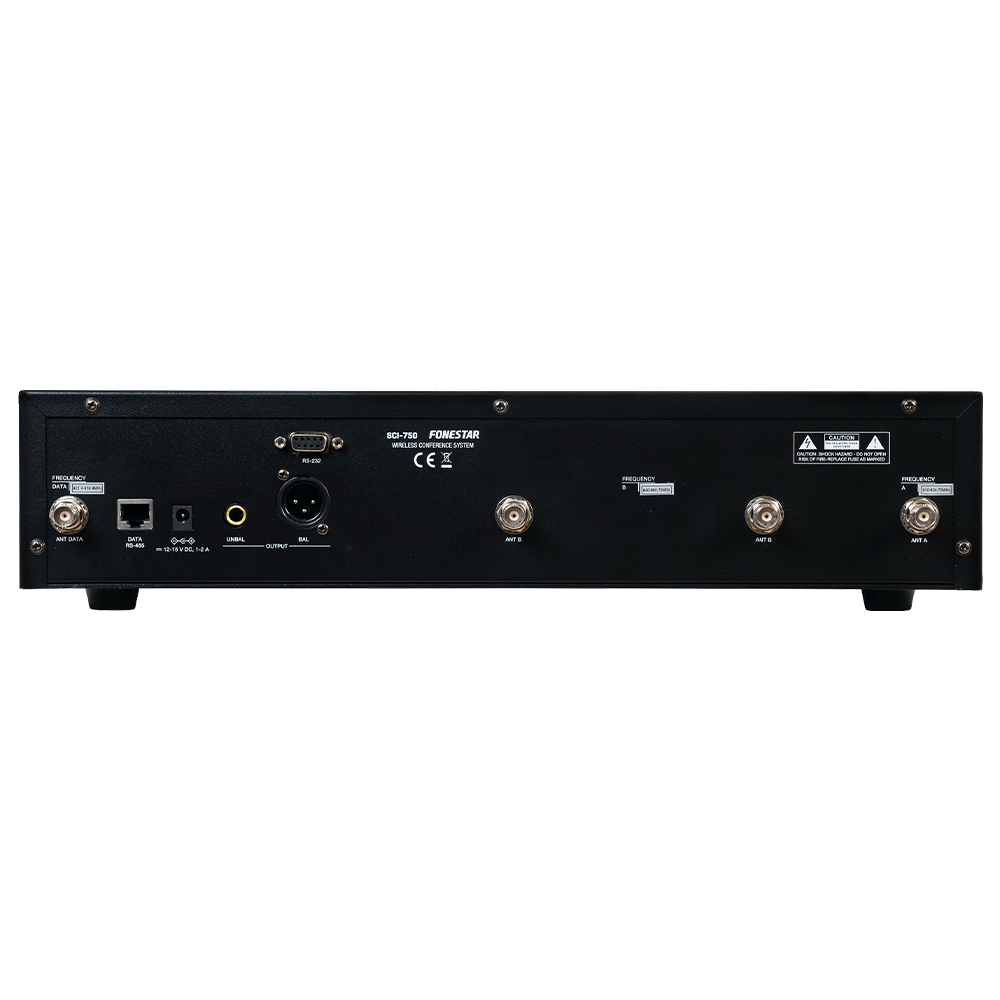

• Outputs:
  • 1 balanced line, XLR 12,000 Ω 200 mV
  • 1 unbalanced line, 6.3 mm jack 12,000 Ω 200 mV
  • Port RS-232
• Power Supply: 12-15 V DC, 7 W
• Dimensions: 483 x 89 x 380 mm depth. 2 U 19″ rack
• Weight: 7 kg
• Accessories:
  • 4 antennas
  • 6.3 mm mono jack cable
• Linked Products:
  • SCI-760P: wireless chairman desktop microphone
  • SCI-770D: wireless delegate desktop microphone
  • SCI-780C: battery charger
  • SCI-790C: battery charger

Wireless microphone systems require knowledge of OFCOM licensing and the working practices and requirements when using multiple wireless microphones simultaneously and systems should be installed and set-up by experienced users

Wireless microphone transmitters will only work with their matching wireless microphone receivers from that manufacturers matching range of equipment. Digital wireless microphone transmitters and receivers are not compatible with or suitable for use as spare components in older analogue wireless microphone systems and vice-versa.

Wireless microphone systems need to be connected to a public address PA sound system to work.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
