Clever Acoustics SHD 35HF Horn Driver with HF 20 Horn Flare

Description

Clever Acoustics SHD 35HF 35w horn driver with HF 20 horn flare

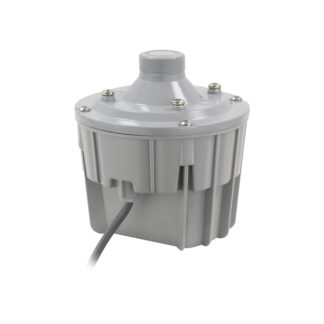

SHD 35 screw on horn driver

High efficiency, screw-on, 100V horn driver suitable for use with most public address horn flares fitted with a 1 3/8” – 18TPI thread. Manufactured using a die-cast aluminium chassis with a durable plastic rear cover, the drivers feature a flying lead and selectable output wattage taps.

• Power (RMS): 35W
• Power taps: 10W, 20W, 35W
• Impedance: 1KΩ, 500Ω, 290Ω
• Sensitivity: 114dB (when coupled to a CRSP55 horn)
• Frequency response: 150Hz – 6kHz
• Dimensions: 138 x 130mmØ
• Weight: 1.9kg

HF 20 round 20″ horn flare

Constructed from rugged powder coated, spun aluminium these public address horn flares are suitable for outdoor paging across show grounds and large spaces. Designed to accept most screw-on drivers, the flares have 1 3/8” 18TPI female threads and are supplied with an adjustable mounting bracket.

• Dimensions: 400 x 518mmØ
• Weight: 1.9kg

Please note that these are supplied as separate items and will require some assembly.

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
