Monacor SLA-35 stereo matching pre-amplifier
Monacor SLA-35 stereo matching pre-amplifier

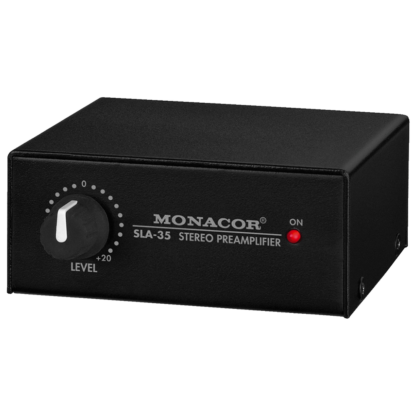

Monacor SLA-35 Stereo Pre-Amplifier

SKU: 214010

£51.50 + VAT    £61.80 incl. VAT

Stereo matching pre-amplifier

2 in stock (can be backordered)

stereo

PDF

Description

Monacor SLA-35 stereo matching pre-amplifier

Volume distortions or volume losses may occur when connecting smartphones, mobile phones, tablet PCs and MP3 players to an amplifier or a mixer. Due to the correct setting of impedance and gain, the SLA-35 is able to provide a better sound.

  • Adjustable attenuation down to 1/10 (-20 dB) or gain up to 10-fold (+20 dB)

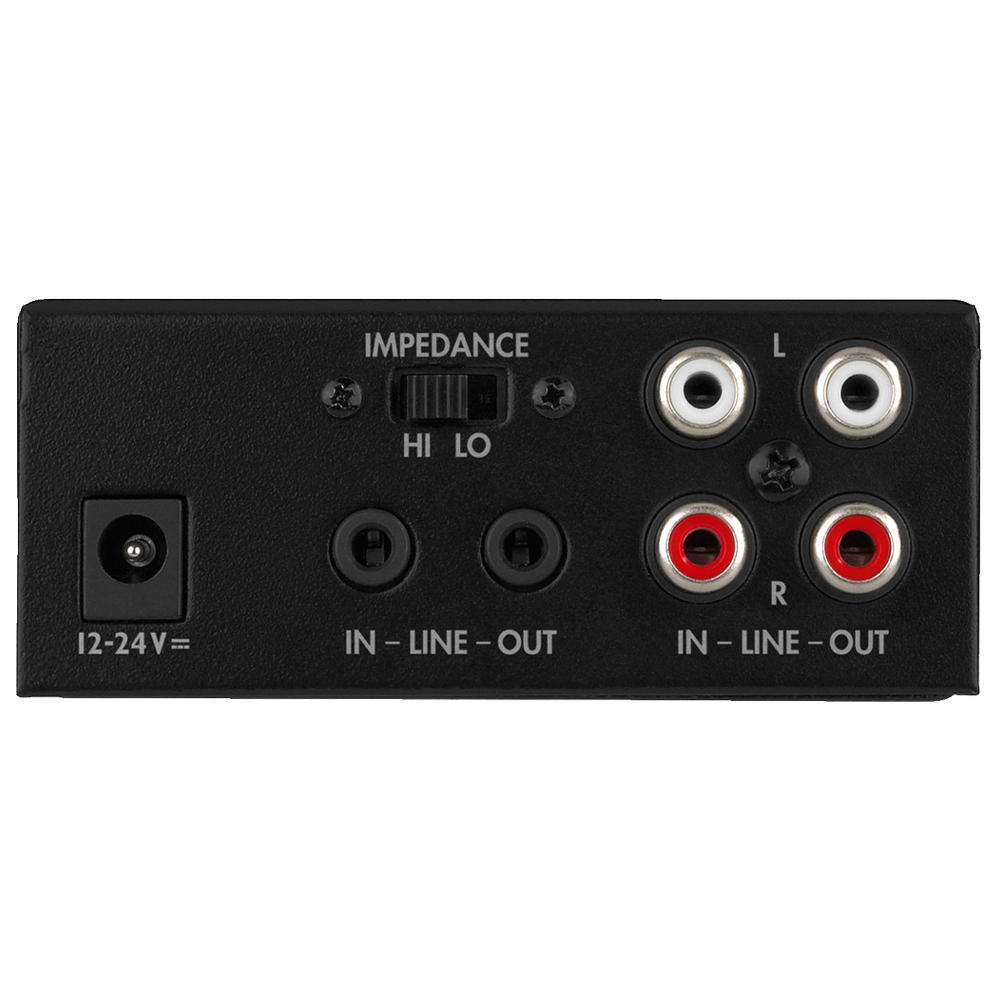

  • Impedance switching Hi/Lo
  • RCA and 3.5 mm stereo inputs and outputs
  • Metal housing
  • Supplied with plug-in PSU
  • Type: impedance converter
  • Frequency range: 3-50,000 Hz
  • Input signal: 7 V max.
  • Input impedance: 35 kΩ/8.1 kΩ (switch -5.6 dB)
  • Output signal: max. 4.5 V/1.6 kΩ
  • Gain: 0.1-10 (±20 dB) continuously adjustable, additionally -5.6 dB, switchable
  • S/N ratio: > 83 dB
  • Channel separation: > 68 dB
  • THD: < 0.03%
  • Admissible ambient temperature: 0-40 °C
  • Power supply: via enclosed power supply
  • Dimensions: 88 x 37 x 103 mm
  • Weight: 450 g
  • Inputs: 1 x RCA L/R, 1 x 3.5 mm jack
  • Outputs: 1 x RCA L/R, 1 x 3.5 mm jack

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight0.45 kg
Dimensions8.8 × 10.3 × 3.7 cm
Colour

Black

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

User Manuals

SLA-35

User Guide

Magazine Reviews

tools4music

This unit is an excellent addition to your tool case. With the required connections and a volume control with well-dimensioned amplification, the SLA-35 from Monacor is an ideal aid for level adjustments. It is of solid workmanship and service-friendly. The SLA-35 was intended as a basic level control and impedance converter. However, due to its excellent S/N ratio and the wide frequency range, it is also suitable for traditional high-end premium hi-fi applications.

tastenwelt

With the SLA-35, it is also possible to use smartphones as an audio source at the mixer. The level/impedance converter allows for perfect signals. This results in absolutely clean signals which prevent both clipping and noise. Top workmanship!

EVENT Rookie

An excellent aid for the generation smartphone – the functionality is as simple as it is brilliant – With the rotary control at the front panel, the input signal can either be attenuated or amplified by 20 dB max. This prevents an overload and thus clipping of the following mixer or an underload accompanied by audible noise.
