5 x 60w Background Music Sound System with Digital Speaker Management for Offices and Restaurants

Description

Complete SMS-1 5 x 60w indoor background music sound system with digital speaker management for offices, restaurants and waiting areas

System includes:

• 1 x Adastra RMS605 5 x 60w power amplifier
• 1 x Citronic DSM26 digital speaker management system
• 5 x interconnect leads to link speaker management system to amplifier
• 5 x Adastra BC6V series wall cabinet speakers available in either black or white – see options
• Up to 5 x 100m reels of 8A low smoke and fume speaker cable
• 1 x Cat6 ethernet patch lead

Simply put, the Citronic DSM and Zenith LSP speaker management system controllers allow adjustments of the volume, bass, treble and other parameters of each audio amplifier channel of your sound system using an intuitive visual interface on a Windows (XP or later) PC or laptop when connected to the same network (LAN) using the supplied software enabling you to tailor the sound in a room, in an area or from just one loudspeaker to the surroundings and environment

This package can be wired as a low impedance 4-8Ω or a 100v line sound system – please see user manuals tab

RMS605

Multi-channel 100V slave amplifier with 5 x 60W outputs for 100V or 4-16 Ohm speakers. Each amplifier channel has its own independent line input, which can be switched to a global auxiliary, providing the option of the same input to several of the amplifier channels if required. A paging microphone input is always live to all channels for voice alerts and a 24V mute terminal can be connected to an alarm panel for emergency evacuation override. Class D circuit design and efficient toroidal transformers have enabled a design which fits into a 1U rack-mount housing. The RMS605 can be applied as a high power slave amplifier or equally as a fully independent zoning system for a multi-room installation.

• 5 x class D high efficiency amplifiers
• Outputs for 100V or 4-16 Ohm speakers
• Independent inputs and optional global aux input
• Paging microphone input with vox override
• Switchable +20V phantom power for paging microphone
• 24V contacts for emergency muting
• Power supply 100-240Vac, 50/60Hz (IEC)
• Fuse T2AL
• Power rms : 100V line: 5 x 60W
• Power rms : 4 Ohms: 5 x 60W
• Microphone input: Balanced XLR (rear panel)
• Mic controls: Gain, Bass, Treble & Vox (rear panel)
• Channel inputs: 5 x L+R RCA or balanced terminal
• Auxiliary input: L+R RCA
• Output controls: Level, Bass, Treble & Ch/Aux switch
• Output connection: 5 x 100V or 4 Ohm (Euroblock terminal)
• Phantom power :+20V switchable (paging mic)
• Emergency control: 24V mute contacts (Euroblock terminal)
• Dimensions: 482 x 330 x 42mm
• Weight: 8.17kg
• Use terminal block to extend speaker cable
• Do not short speaker cables together

DSM26

Digital speaker management systems which incorporate crossovers, EQ and limiters for multi-amplifier and speaker setups. These units enable the sound system designer to accurately control the inputs for each power amplifier, providing an ideal matched output suited to each speaker enclosure and its surroundings. A 96kHz 32-bit floating point DSP processor has been utilised to ensure professional quality resolution, controlled either directly via the front panel or USB using the included software. Control can also be distributed through LAN by connecting a local network to the rear panel RJ45 connector, enabling remote speaker setups throughout a building. A high quality speaker management system, which is straightforward enough to use for basic PA systems, yet with enough features to satisfy the most demanding sound reinforcement applications.

• Inputs: 8-band shelving or parametric EQ
• Inputs: Phase and Gain correction
• Outputs: Crossover types: L-R / Bessel / Butterworth
• Outputs: 8-band parametric EQ
• Outputs: Adjustable Limiter
• All inputs/outputs independently controlled
• USB interface with PC software included
• Network connectivity for remote control
• Software included for Win XP (PIII 500, 128MB RAM) or higher

Specifications:

• Inputs: 2 balanced XLR or AES digital
• Outputs: 6 balanced XLR
• Power supply: 115/230Vac, 50/60Hz (IEC)
• Power consumption: <25W
• Fuse: T315mA
• Crossover: HPF + LPF fully programmable per output
• Filter type: Linkwitz-Riley; Bessel; Butterworth.
• PC Com port: USB and LAN (RJ45)
• CMRR: 65dB (50Hz-10kHz)
• Input/output polarity: In phase (+) or reverse (-)
• Input EQ: 8-band parametric EQ
• Input Noise Gate: -120dBu to +10dBu
• Processor: 96kHz, 32-bit floating point DSP
• Mute: Any input or output channel
• Limiter: 1 per output (adjustable)
• Output EQ: 8-band: Hi/Lo-shelf or Para
• Delay: 0-650ms per output
• Frequency response: 20Hz-20kHz
• Input impedance : balanced: >10k Ohms
• Output impedance : balanced: <60 Ohms
• Dimensions: 482 x 44 x 220mm
• Weight: 3.19kg

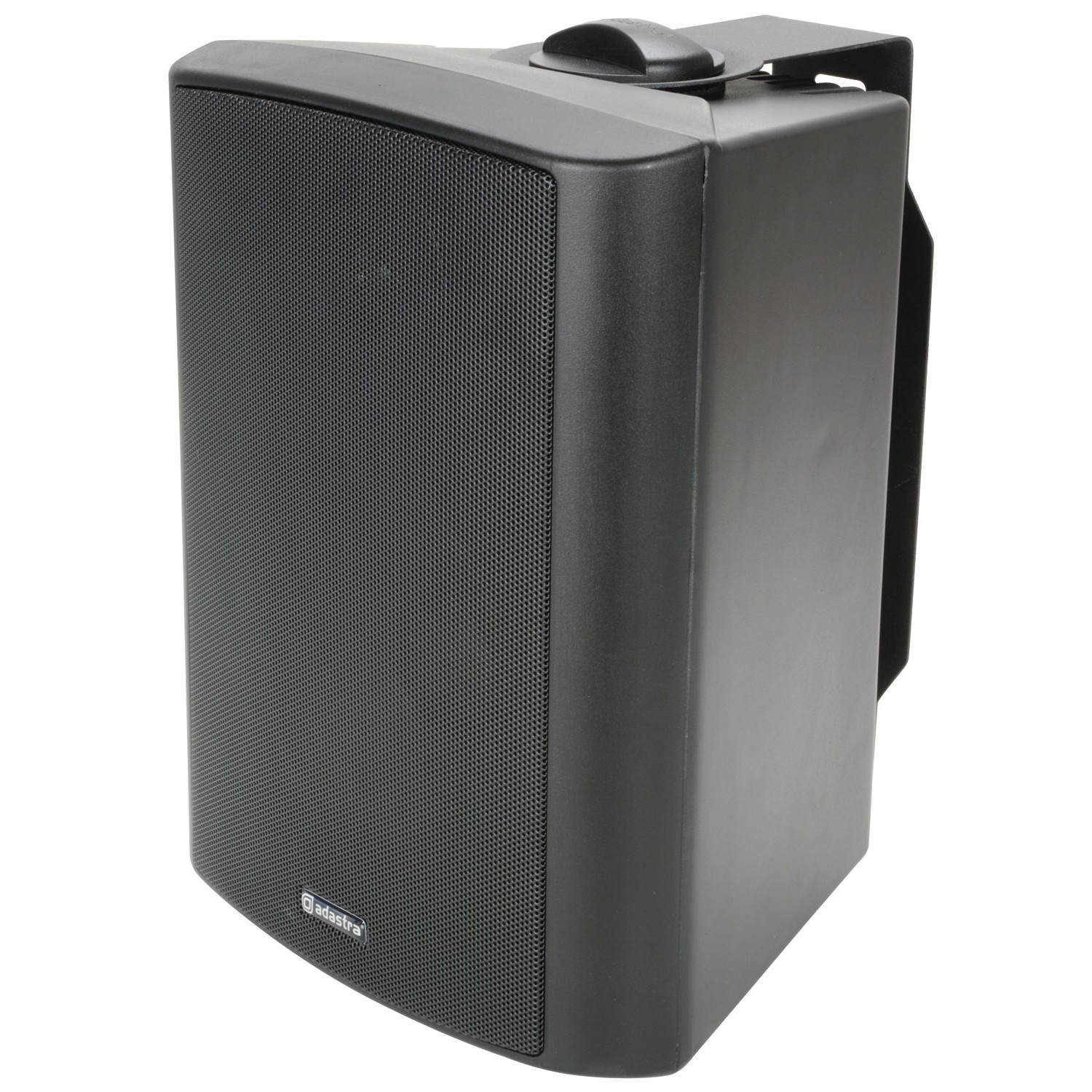

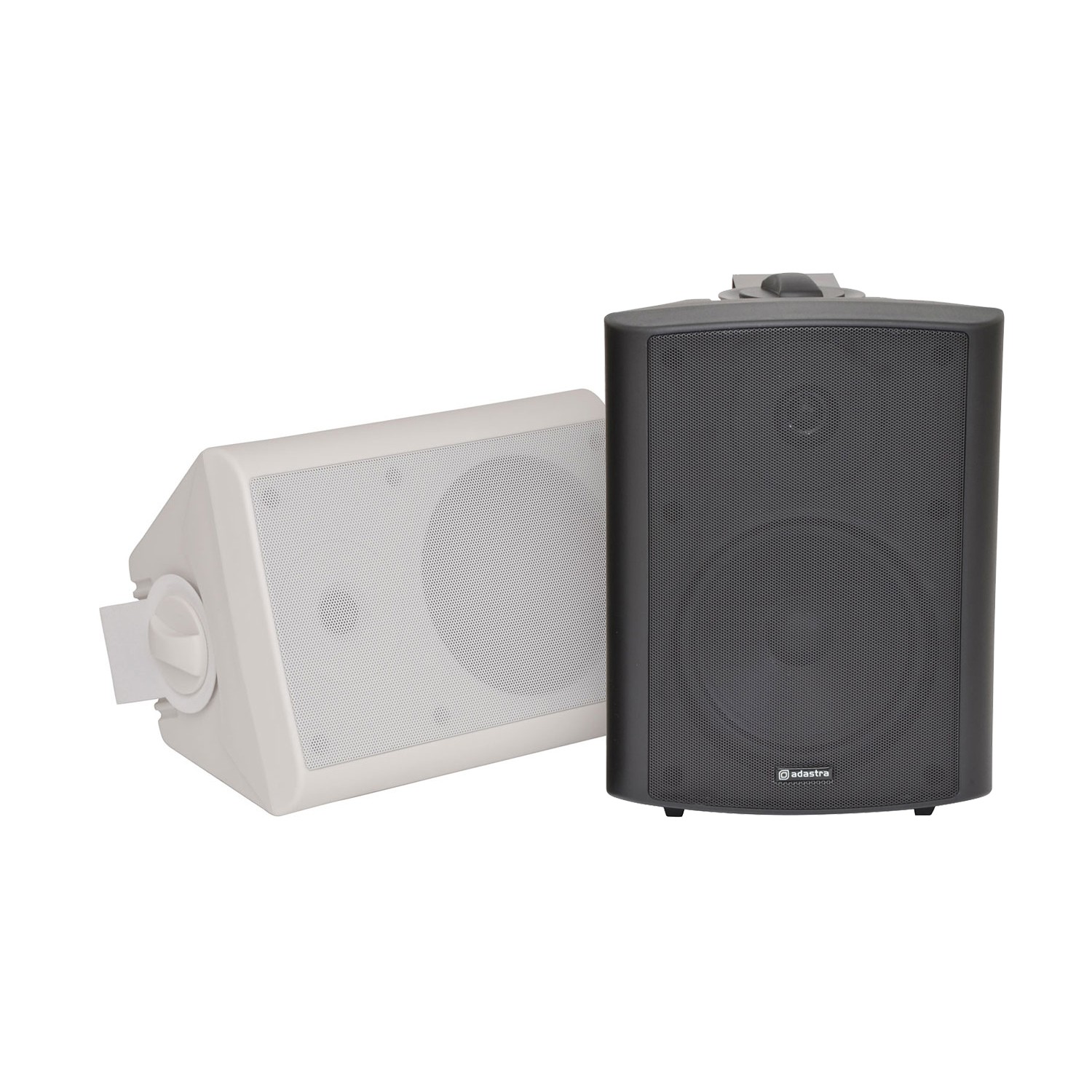

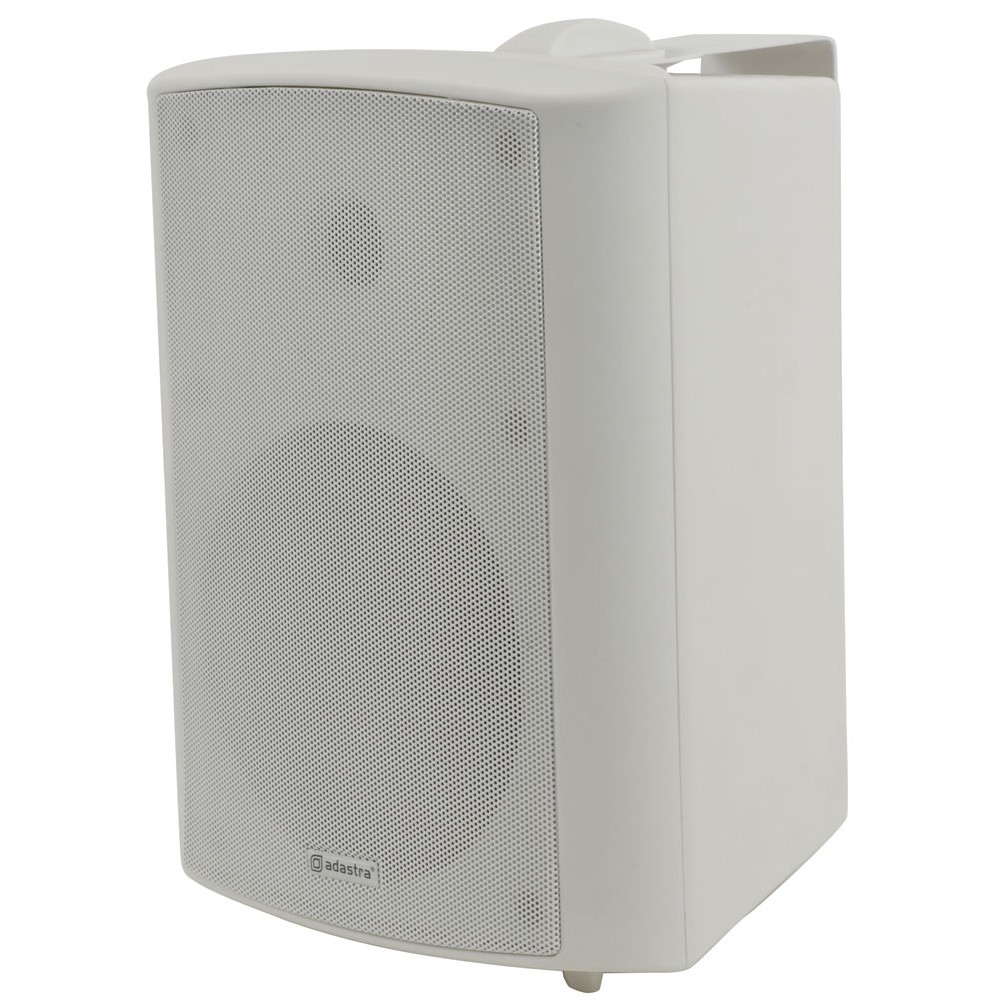

BC6V-B or BC6V-W

A range of indoor speakers, with ABS enclosures and a sturdy metal grille. Suitable for free standing or wall mounting via adjustable fixing bracket. The trapezoidal design allows for the enclosures to be mounted neatly into corners, making them ideal for most applications

• 2 way speaker system with crossover network

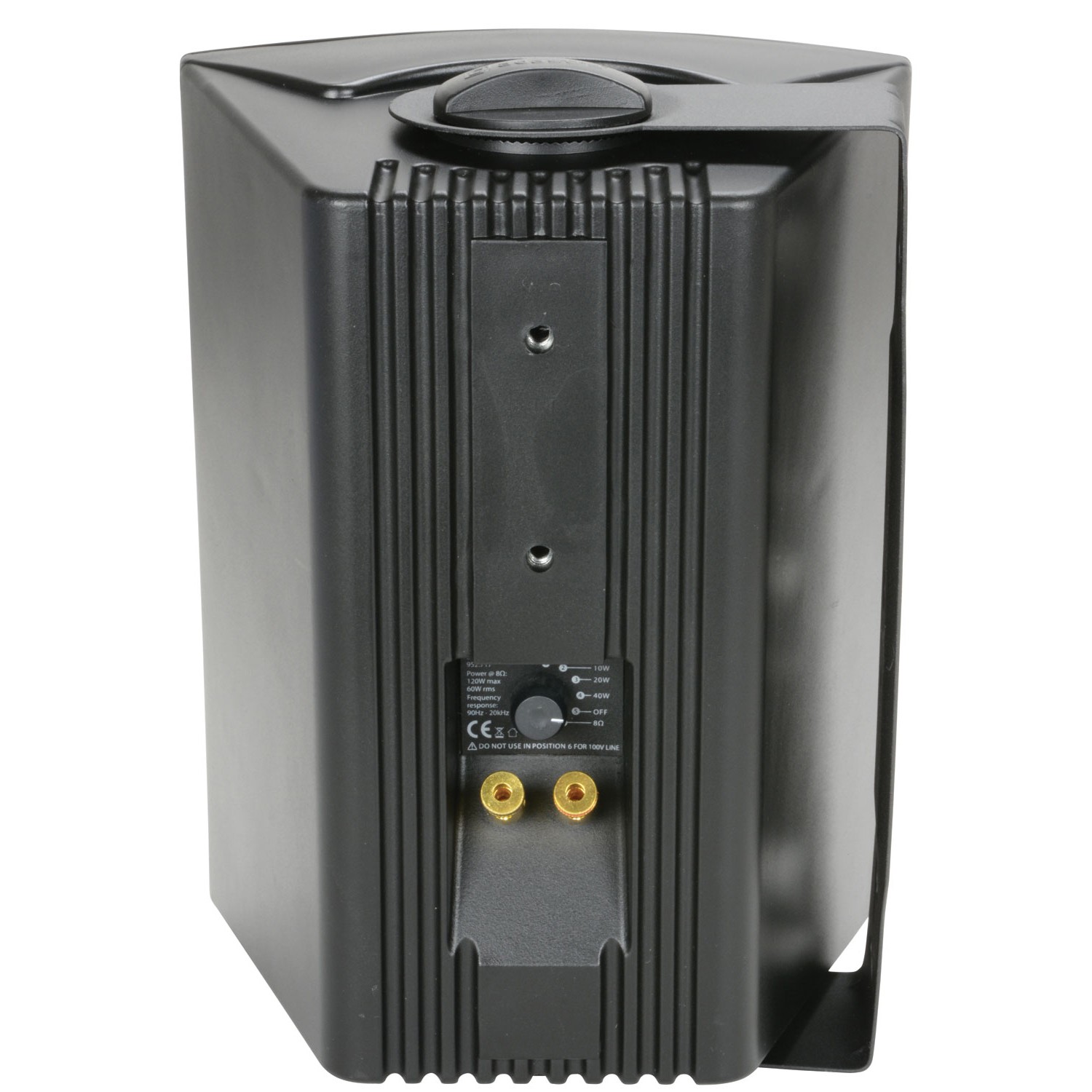

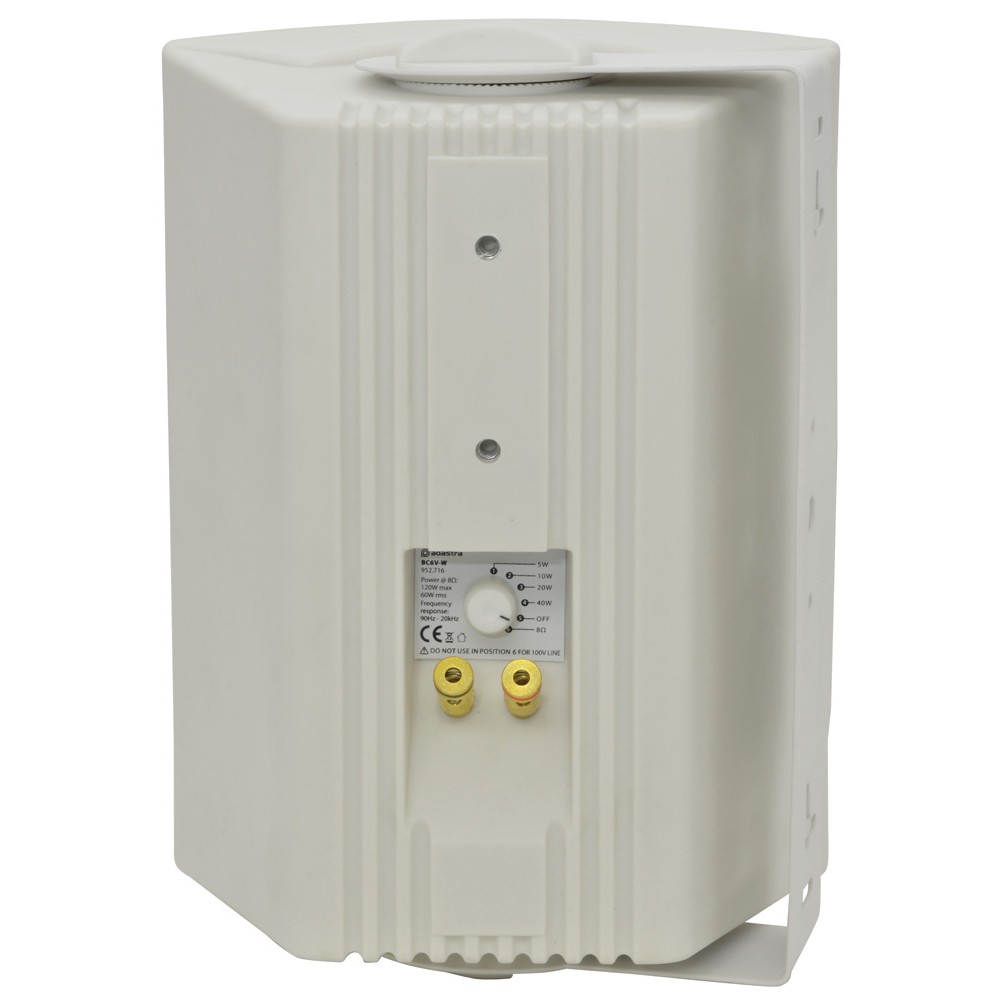

• Rotary selector switch for 100V line tappings or 8 Ohms operation
• Wall mounting bracket supplied
• Alternative M6 threaded mounting points
• Spring terminal connection
• Supplied singly
• Available in black and white – see option
• Woofer: 165mmØ (6.5”) reinforced paper cone
• Tweeter: 25mm (1”) balanced dome
• Frequency response: 90Hz – 20kHz
• Power max. : 8 Ohms: 120W
• Power rms : 8 Ohms: 60W
• SPL @ 1W/1m: 89dB
• Tappings: 40W, 20W, 10W, 5W + 8 Ohms
• Impedance : 100V: 250, 500, 1k, 2k Ohms
• Dimensions: 220 x 280 x 210mm
• Weight: 3.08kg

Sound Services deliver this complete sound system without extra charge to most mainland UK addresses

Speaker cable assembly and installation of these systems require some DIY assembly skills – you should only require basic DIY tools together with speaker, amplifier and cable fixings etc.

Constant development means that illustrations are only representative and items supplied may be newer or improved models that are available at the time of your order

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version
