Fonestar SONORA-8T Series Wall Cabinet Speakers

Description

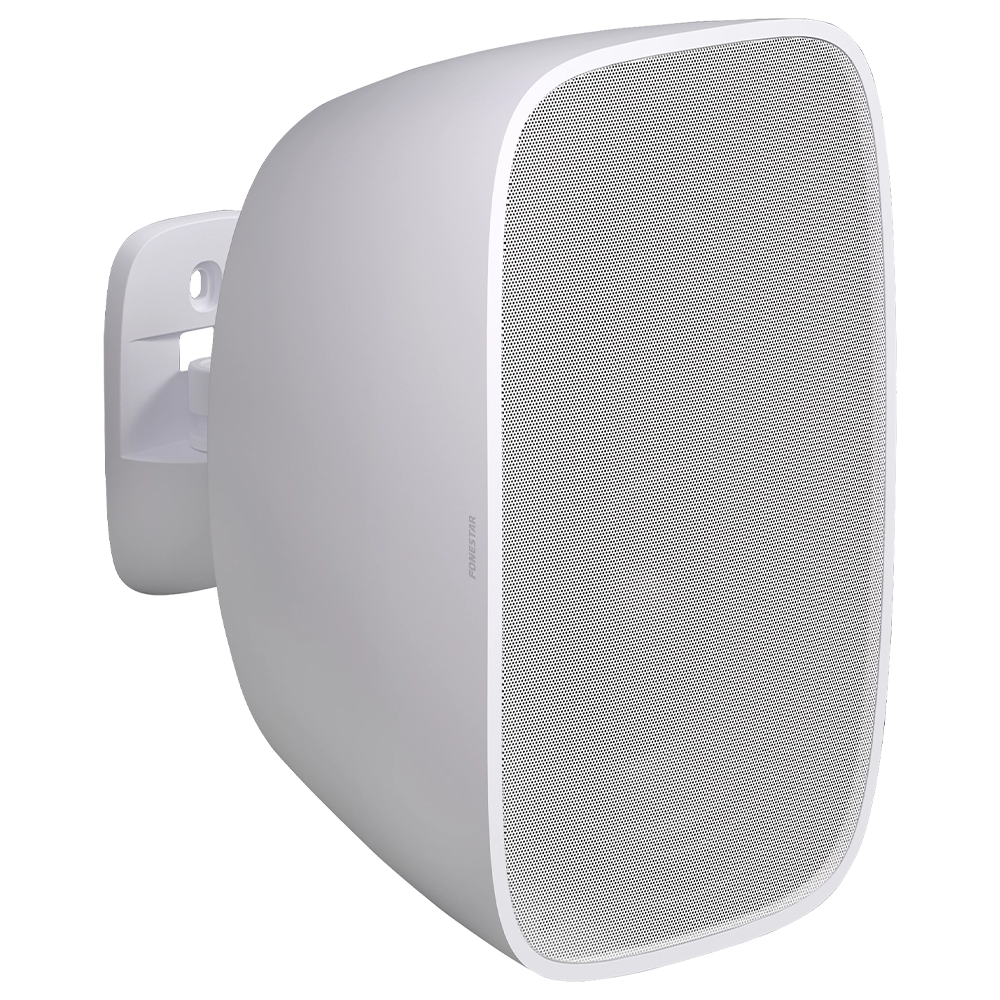

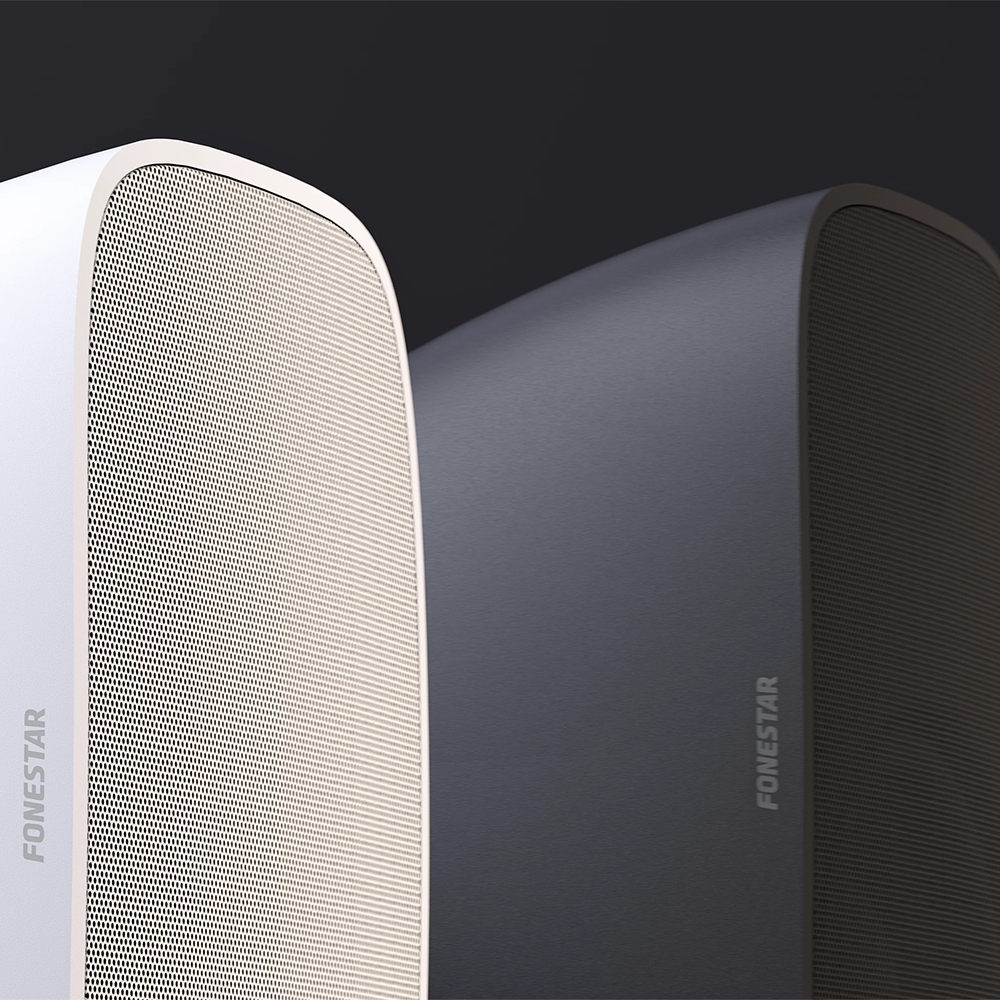

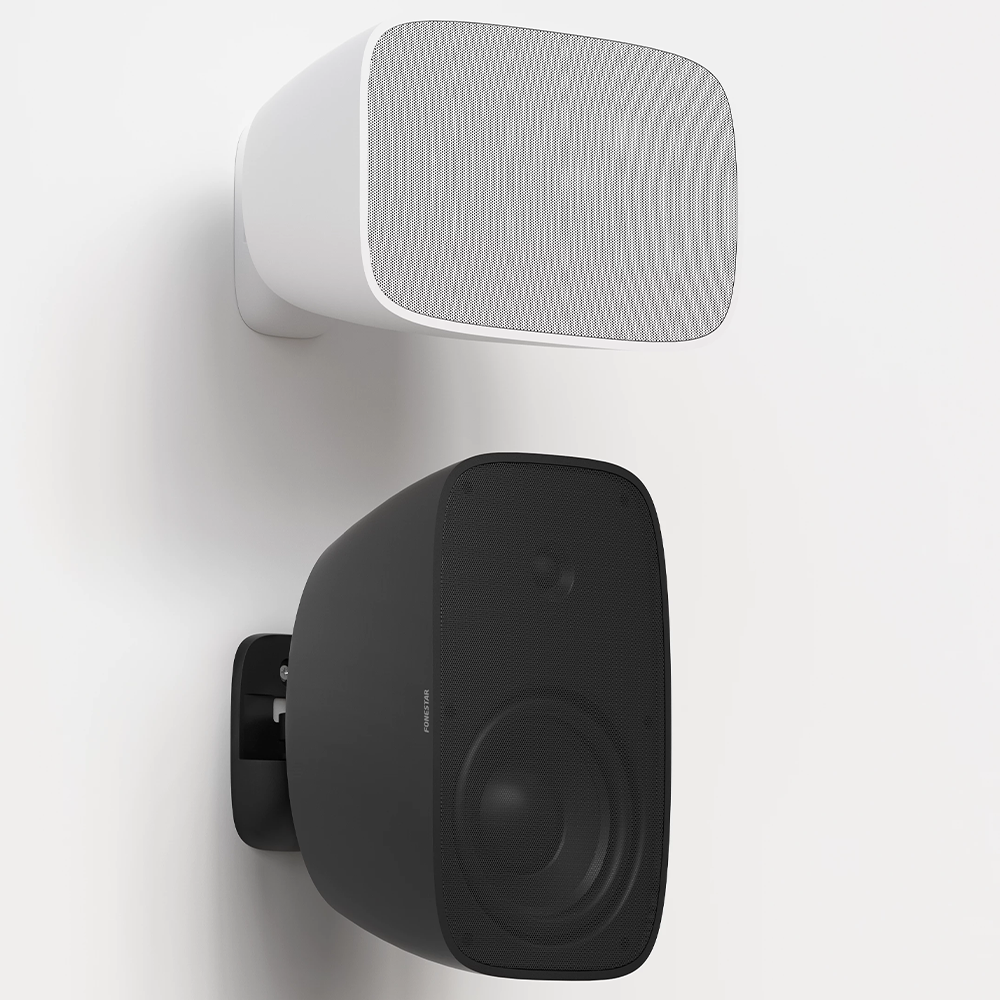

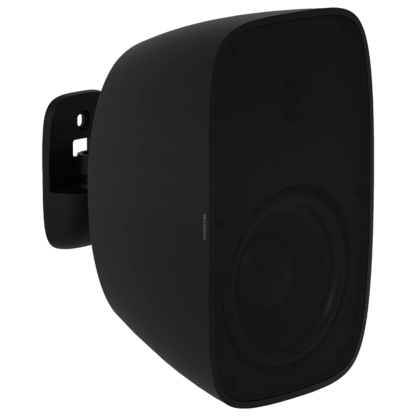

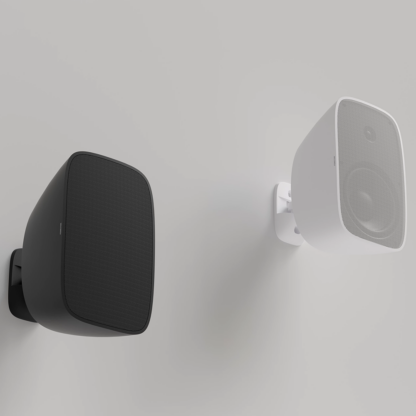

Fonestar SONORA-8T series black or white high power weatherproof 8″ 80W 100v line or 8Ω cabinet speaker

Sound reinforcement loudspeaker with 100 V line transformer and low impedance. Based on our extensive experience in the sound sector, FONESTAR has created SONORA. SONORA is a series of speakers specially designed for PA, musical and background sound applications. Its excellent finish and elegant design allow perfect integration in any space. They are fully prepared for outdoor and marine environments use as they have a powder-coated aluminium grille and are waterproof (IP-66). Besides, SONORA delivers high sound quality with clear, distortion-free sound, with a wide frequency response. They include all the necessary accessories for easy and quick installation: weatherproofed adjustable fixing mount, stainless steel screws and steel safety cable. For public address and ambient sound applications in public places such as restaurants, cafés, supermarkets, shopping centres, etc.

• Features:
  • Low impedance loudspeaker with 100 V line transformer
  • Suitable for outdoor use, waterproof and rustproof materials
• Power (8Ω): 150 W max., 100 W RMS

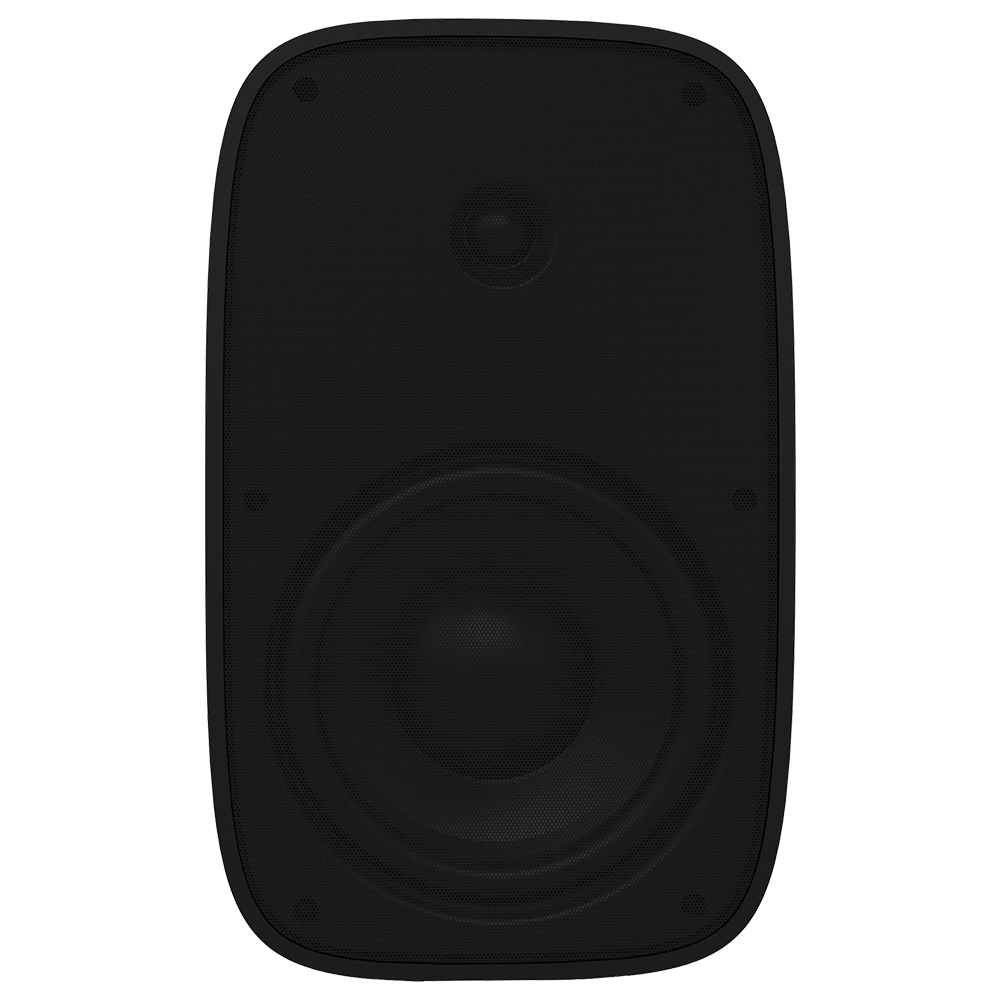

• Speakers:

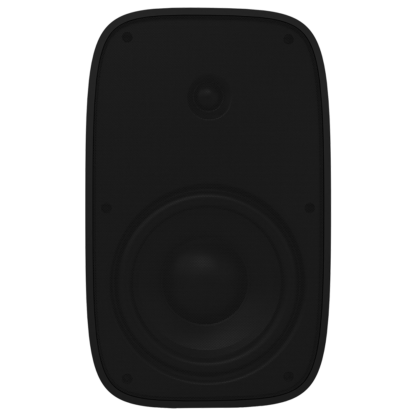

  • 8″ polypropylene woofer
  • 1 x 1″ tweeter
• Frequency Response: 60-20,000 Hz
• Impedance:
  • 80 W RMS@100 V (125 Ω)
  • 40 W RMS@100 V (250 Ω)
  • 20 W RMS@100 V (500 Ω)
  • 10 W RMS@100 V (1,000 Ω)
  • Low Z: 8 Ω
• Sensitivity: 87 dB @ 1 W/1 m
• Maximum Sound Pressure: 108 dB @ max. W/1 m
• Coverage Angle: H/V: 210º/210º @500Hz, 120º/120º@1kHz, 110º/110º@2kHz, 110º/110º@4kHz (-6 dB)
• Protections:
  • IP-66 in compliance with EN 60529
  • IEC 60068-2-11 Environmental Test (Salt mist)
• Material:
  • ABS

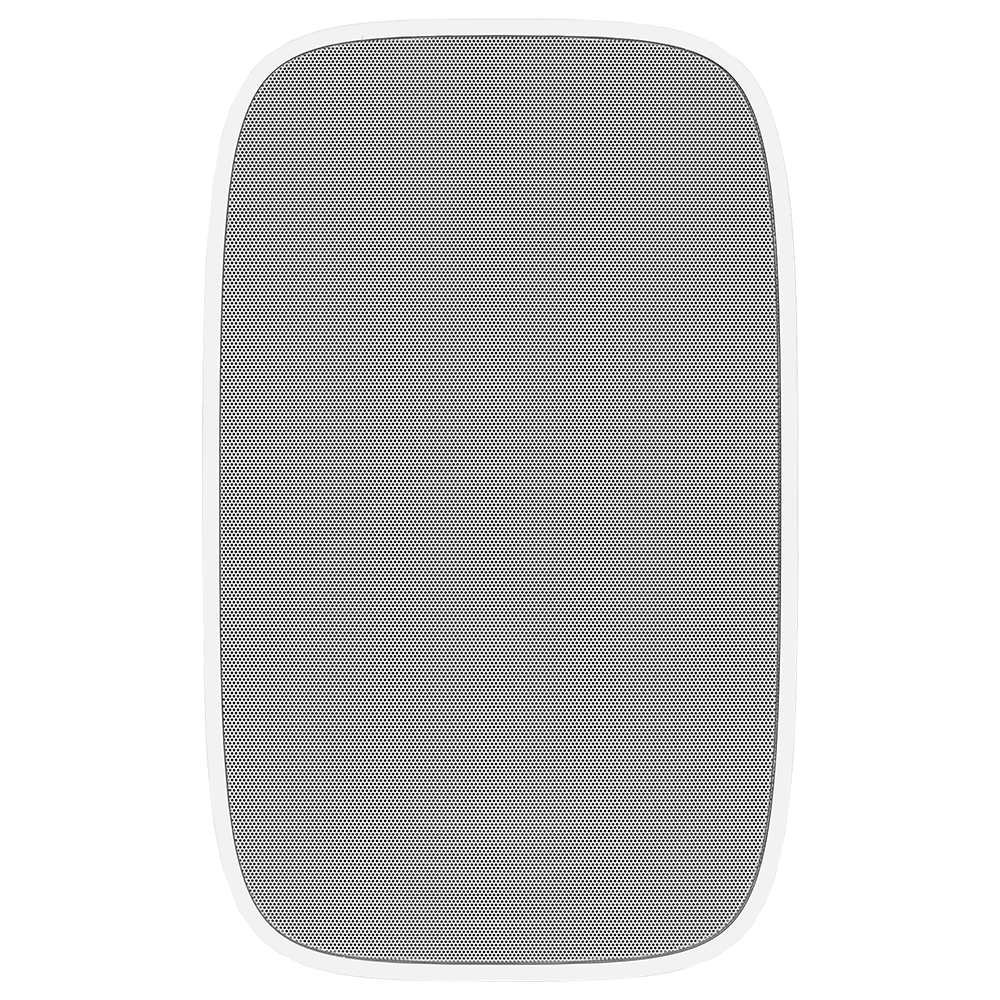

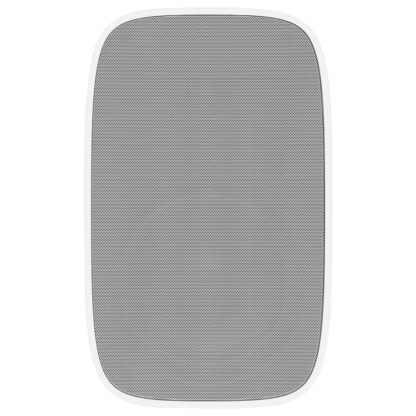

  • Aluminium mesh grille, with powder-coated finish
  • Weather-resistant mount
  • Stainless steel screws

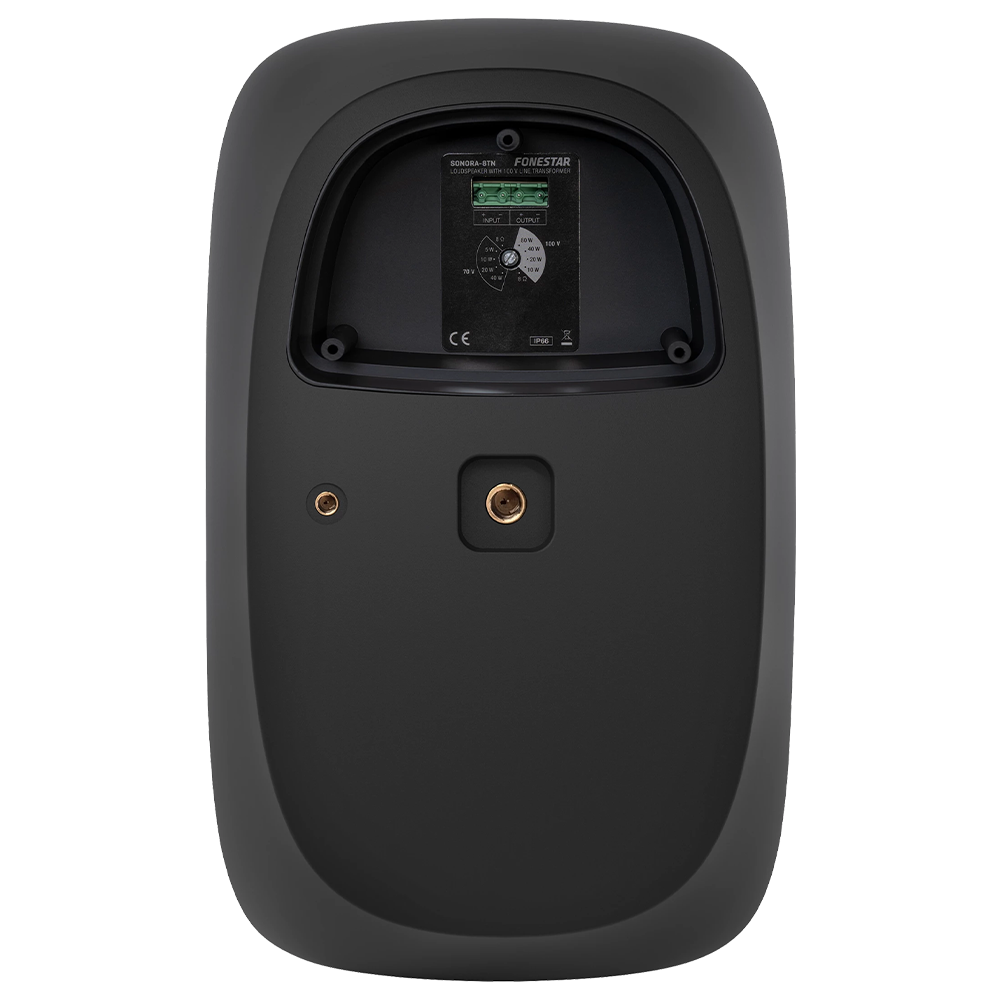

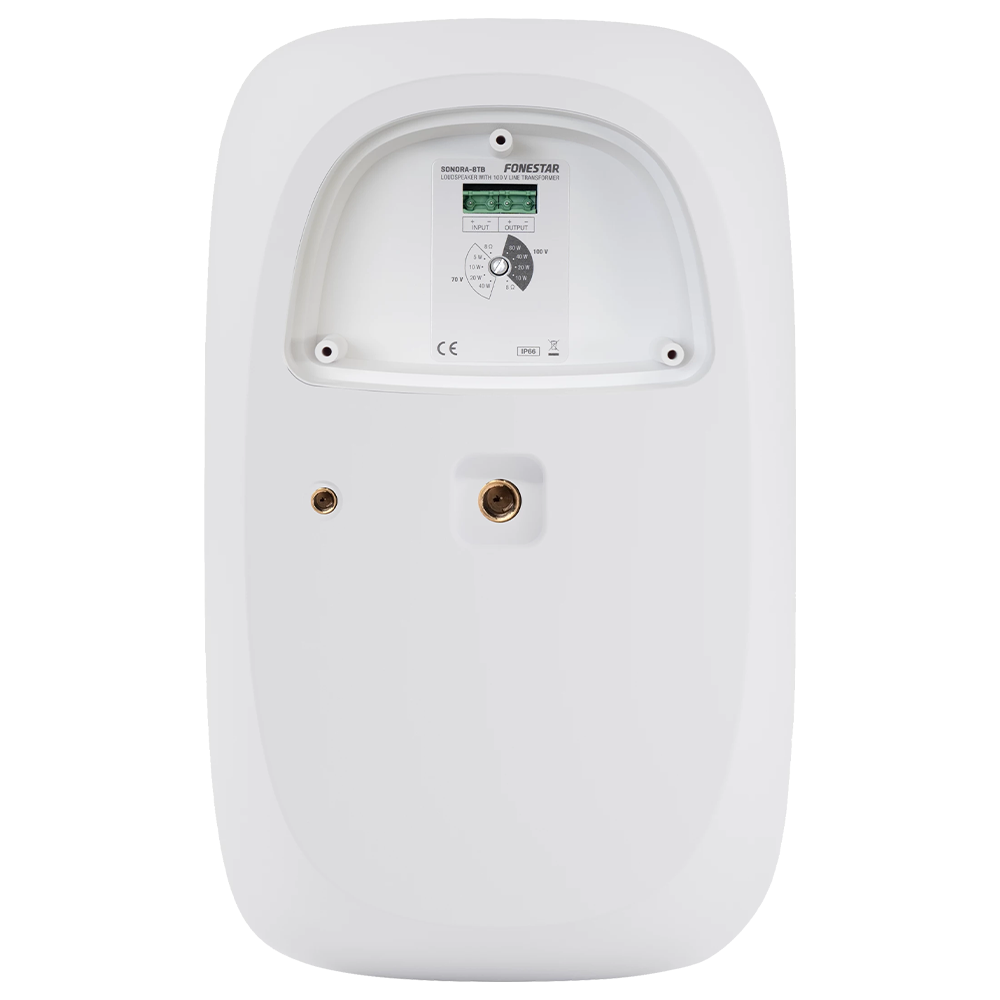

• Switch: W selector in high Z and low Z
• Connectors: Euroblock in and out for cable 0.25 – 2.5 mm² cross section
• Temperature Range: -10ºC ~ 60ºC
• Colour: White (RAL 9003)
• Dimensions:
  • Loudspeaker: 235 x 380 x 200 mm depth
  • Mount wall plate: 102 x 165 mm
  • Loudspeaker with mount: 305 mm depth
• Weight: 5.3 kg
• Accessories:

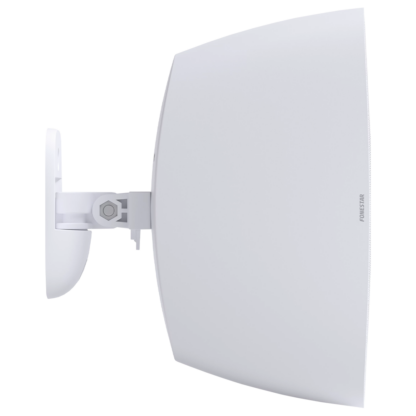

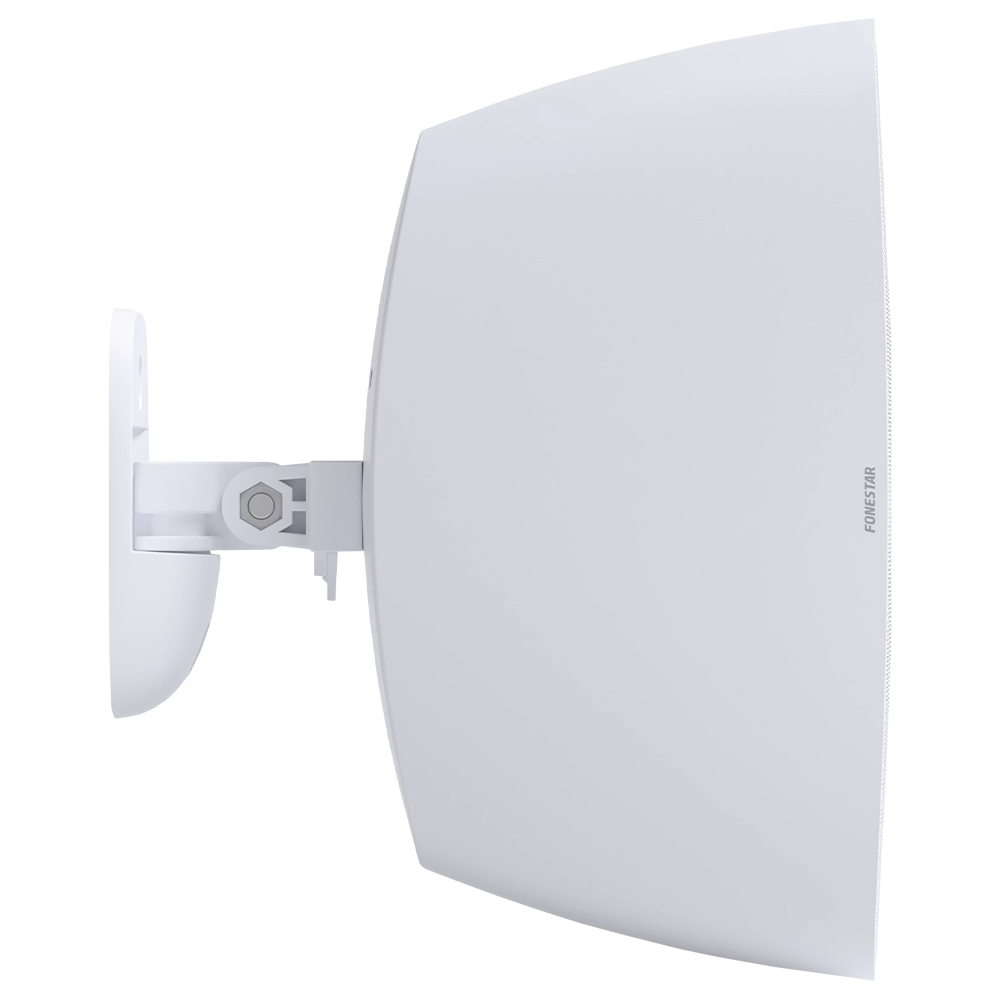

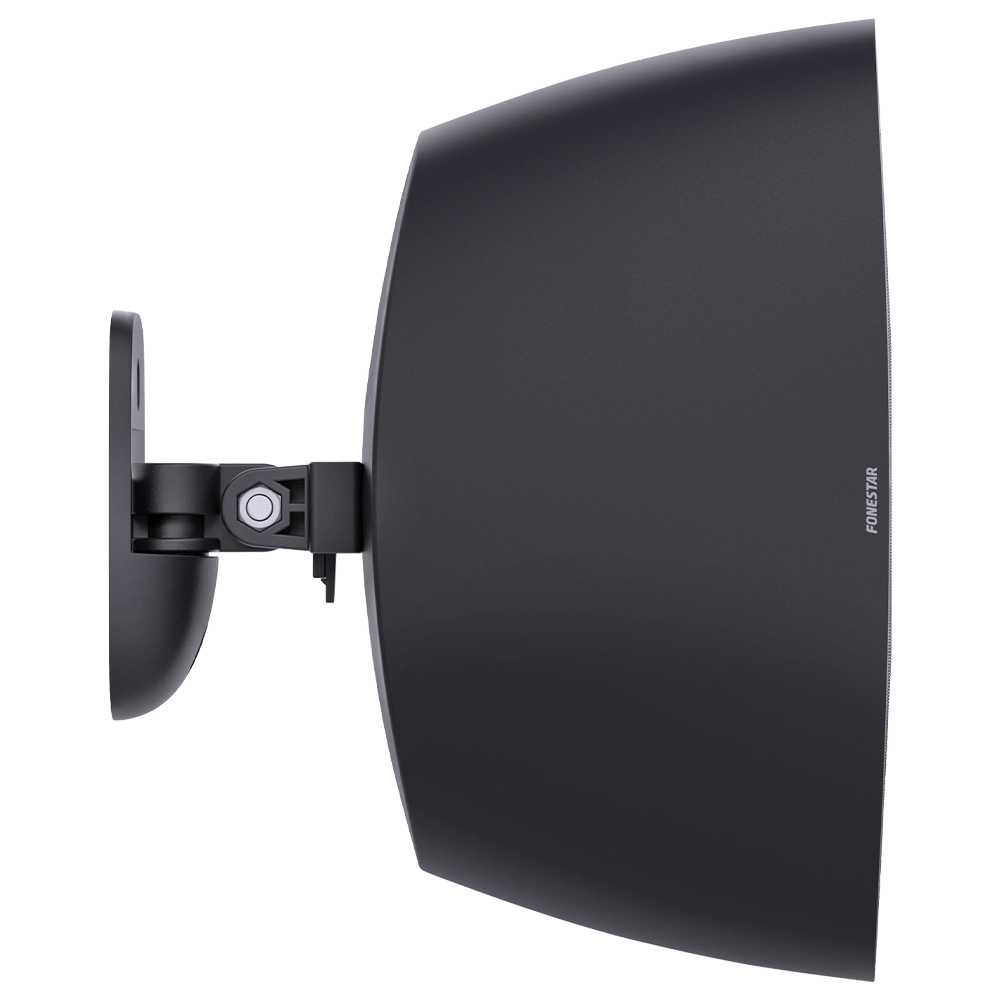

  • Adjustable mounting bracket ± 60º in all directions.
  • Steel safety cable

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
