Monacor SP-10/250PRO Chassis Speaker

Description

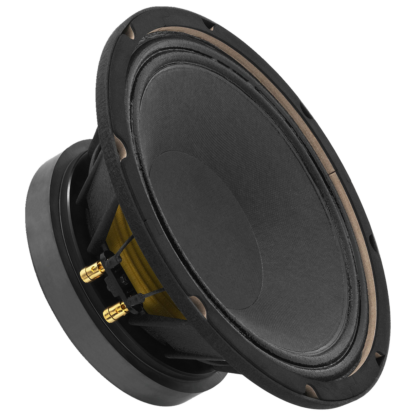

Monacor SP-10/250PRO 10” 250w RMS bass chassis speaker

• 25 cm (10″) bass speaker and subwoofer of high power capability
• Heat-resistant voice coil and ventilated drive system
• Extra long excursion for a deep bass reproduction of high volumes
• Progressive cone suspension for a high operating reliability
• Robust diecast aluminium basket
• Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
• Impedance (Z): 8 Ω
• Frequency range: f3-2,000 Hz
• Resonant frequency (fs): 47 Hz
• Power rating (RMS): 250 W
• Peak music power output (MAX): 500 W
• SPL: 94 dB/W/m
• Suspension compliance (Cms): 0.20 mm/N
• Moving mass (Mms): 51 g
• Mechanical Q factor (Qms): 6.16
• Electrical Q factor (Qes): 0.35
• Total Q factor (Qts): 0.33
• Equivalent volume (Vas): 40.7 l
• DC resistance (Re): 7.1 Ω
• Force factor (BxL): 18.30 Tm
• Voice coil induction (Le): 0.83 mH
• Voice coil diameter: Ø 75 mm
• Voice coil former: Kapton
• Linear excursion (XMAX): ± 7 mm
• Effective cone area (Sd): 380 cm2
• Magnet weight: 2 kg

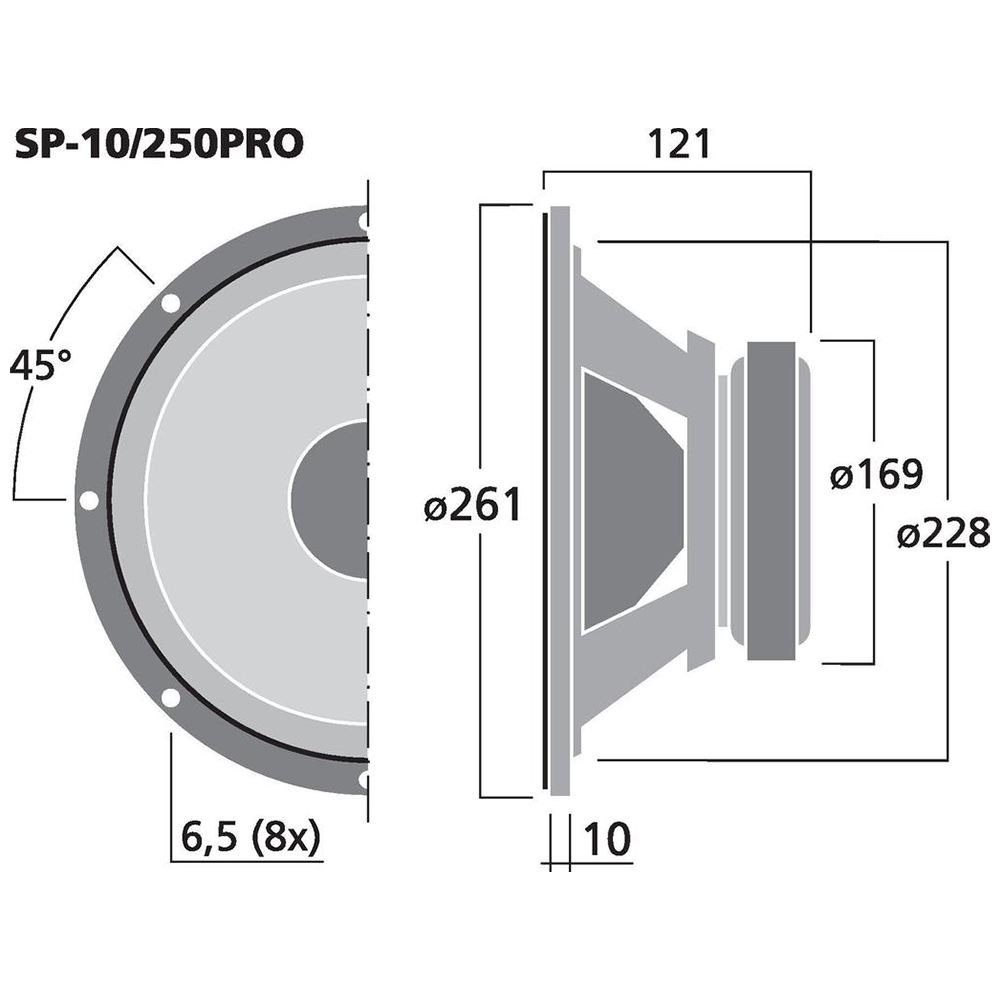

• Magnet diameter: Ø 169 mm
• Mounting cutout: Ø 228 mm
• Mounting depth: 111 mm
• Dimensions: Ø 261 mm x 121 mm
• Outside diameter: Ø 261 mm
• Width: Ø 261 mm
• Depth: 121 mm
• Colour: black
• Admissible ambient temperature: 0-40 °C
• Weight: 5 kg
