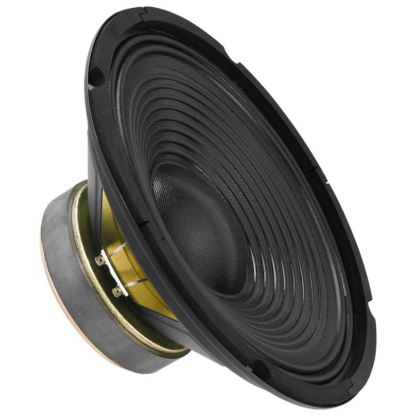

Monacor SP-252PA Chassis Speaker

Description

Monacor SP-252PA 10″ 75w RMS universal bass-midrange speaker

Universal bass speakers for general purpose applications are available as:
SP-252PA: 10″ 75w RMS @ 8Ω (10.3300)

• Impedance (Z) – 8Ω
• Frequency range: f3-4,500 Hz
• Resonant frequency (fs): 55 Hz
• Power rating: 75 W
• Peak music power output: 150 W
• Sensitivity: 90 dB/W/m
• Suspension compl. (Cms): 0.18 mm/N
• Moving mass (Mms): 30 g
• Mechanical Q factor (Qms): 2.13
• Electrical Q factor (Qes): 1.0
• Total Q factor (Qts): 0.7
• Equivalent volume (Vas): 30 l
• DC resistance (Re): 7.7 Ω
• Force factor (BxL): 9.7 Tm
• Voice coil induction (Le): 0.6 mH
• Voice coil diameter: Ø 39 mm
• Voice coil former: aluminium
• Linear excursion (XMAX): ±2.5 mm
• Effective cone area (Sd): 350 cm2
• Magnet weight: 850 g

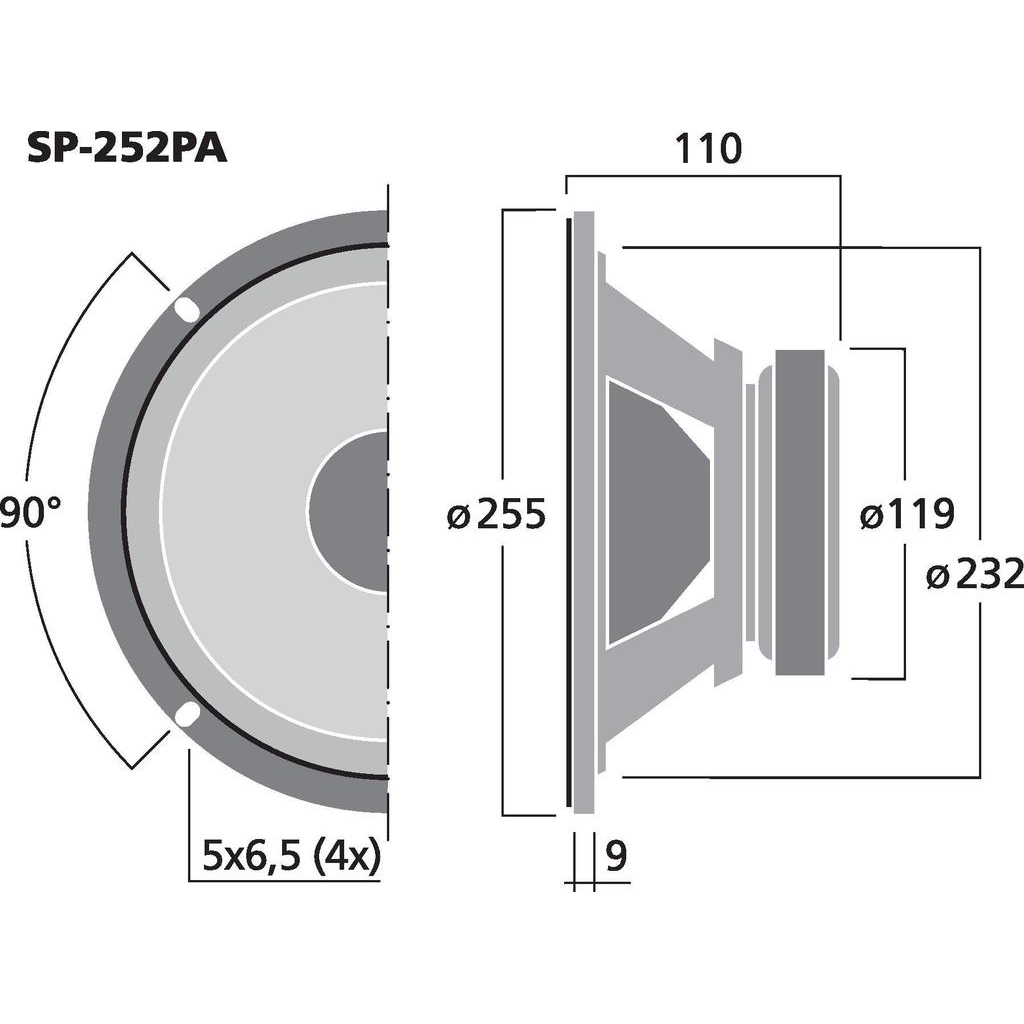

• Magnet diameter: Ø 119 mm
• Mounting cutout: Ø 232 mm
• Mounting depth: 110 mm
• Dimensions: Ø 255 mm x 110 mm
• Outside diameter: Ø 255
• Width: Ø 255 mm
• Depth: 110 mm
• Admissible ambient temperature: 0-40 °C
• Weight: 2.21 kg
