Monacor SPEECH-204 75w Amplified Lectern System

Description

Monacor SPEECH-204 75w amplified lectern system

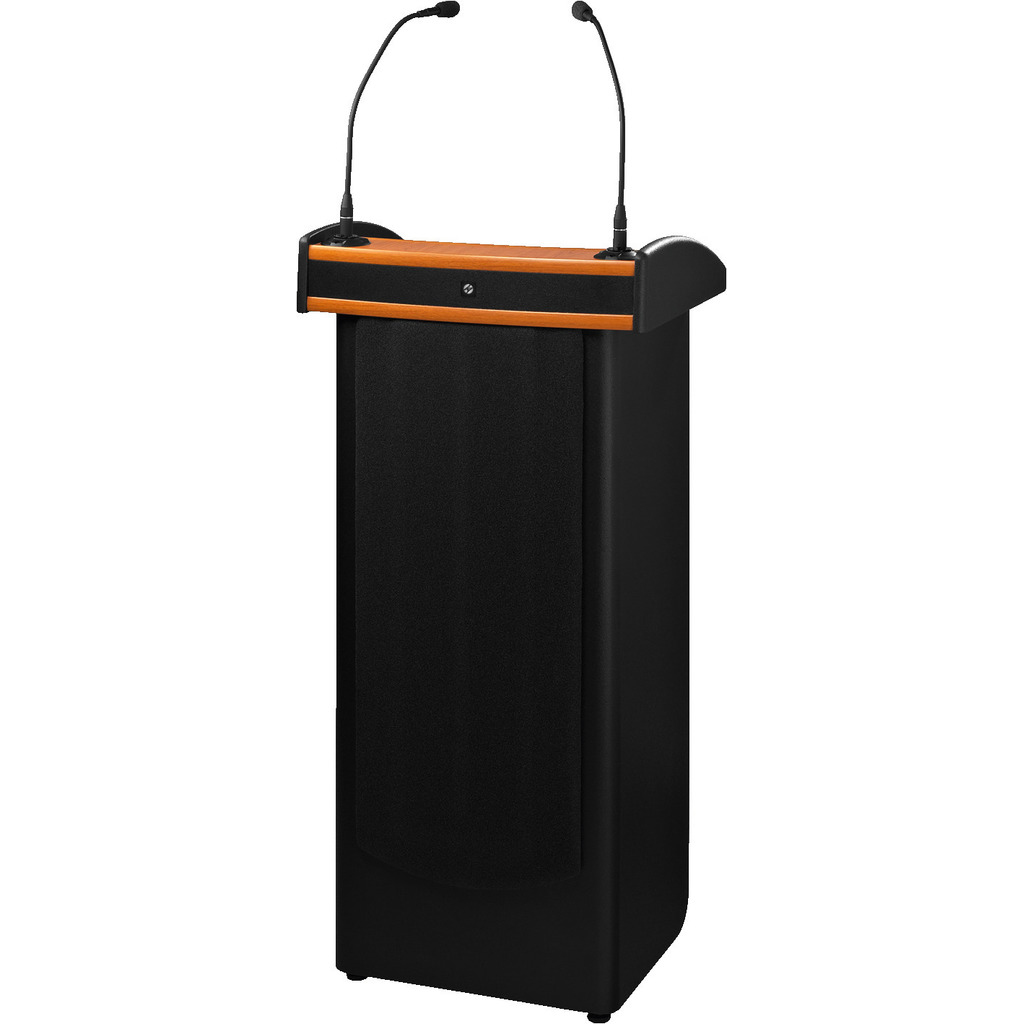

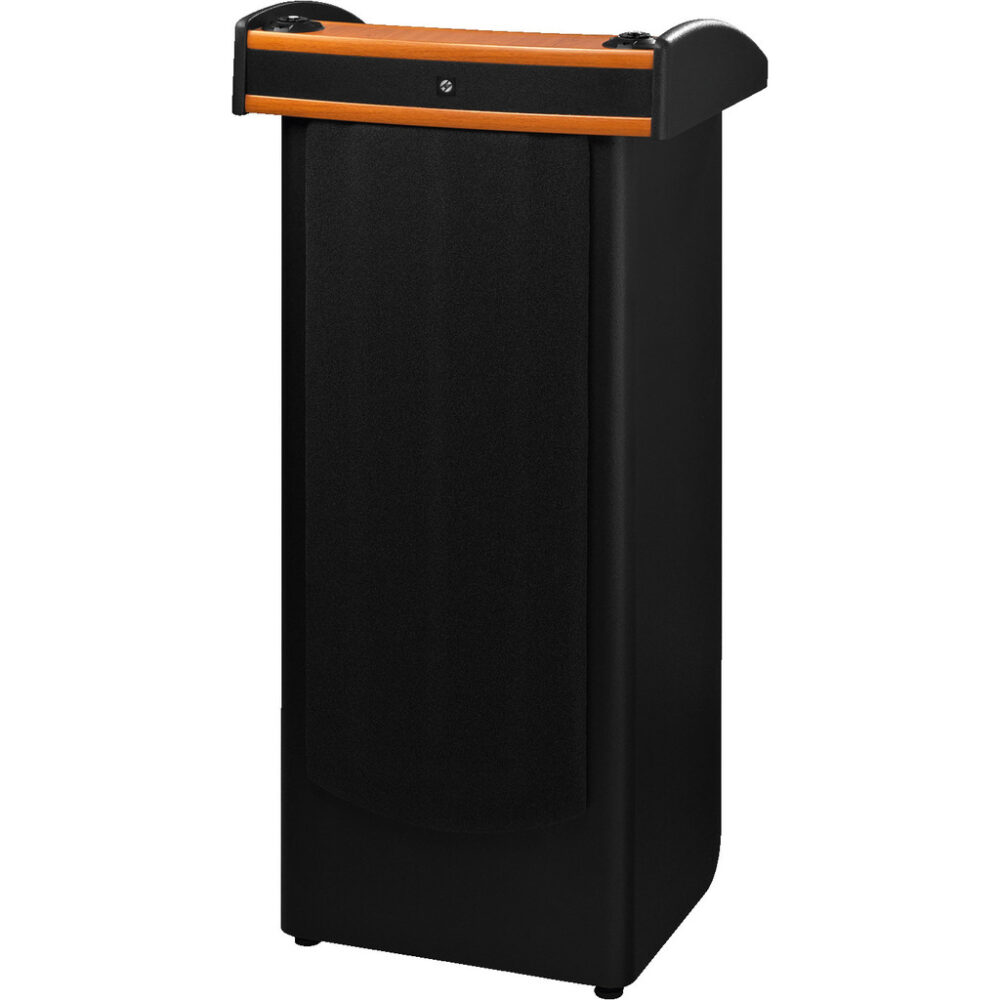

Professional lectern with integrated 2-channel multifrequency receiver unit with UHF PLL technology

• Built-in high-performance mixing amplifier and speaker system, 75 W
• 2 x 16 selectable UHF frequencies (863.1-864.9 MHz)
• Integrated limiter

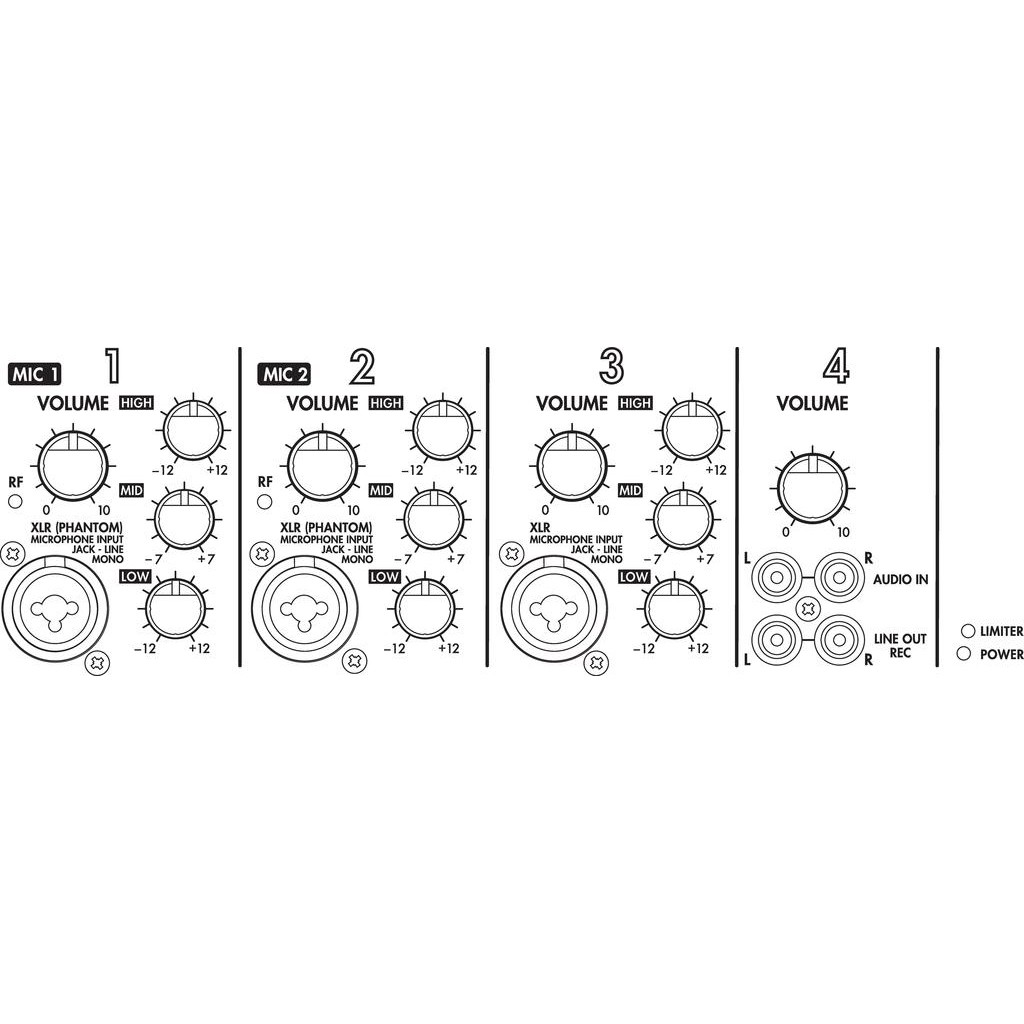

• 3 inputs via combination jack mic (XLR)/line (6.3 mm jack) with 3-way equalizer and gain control
• 1 stereo line input via RCA jacks with gain control

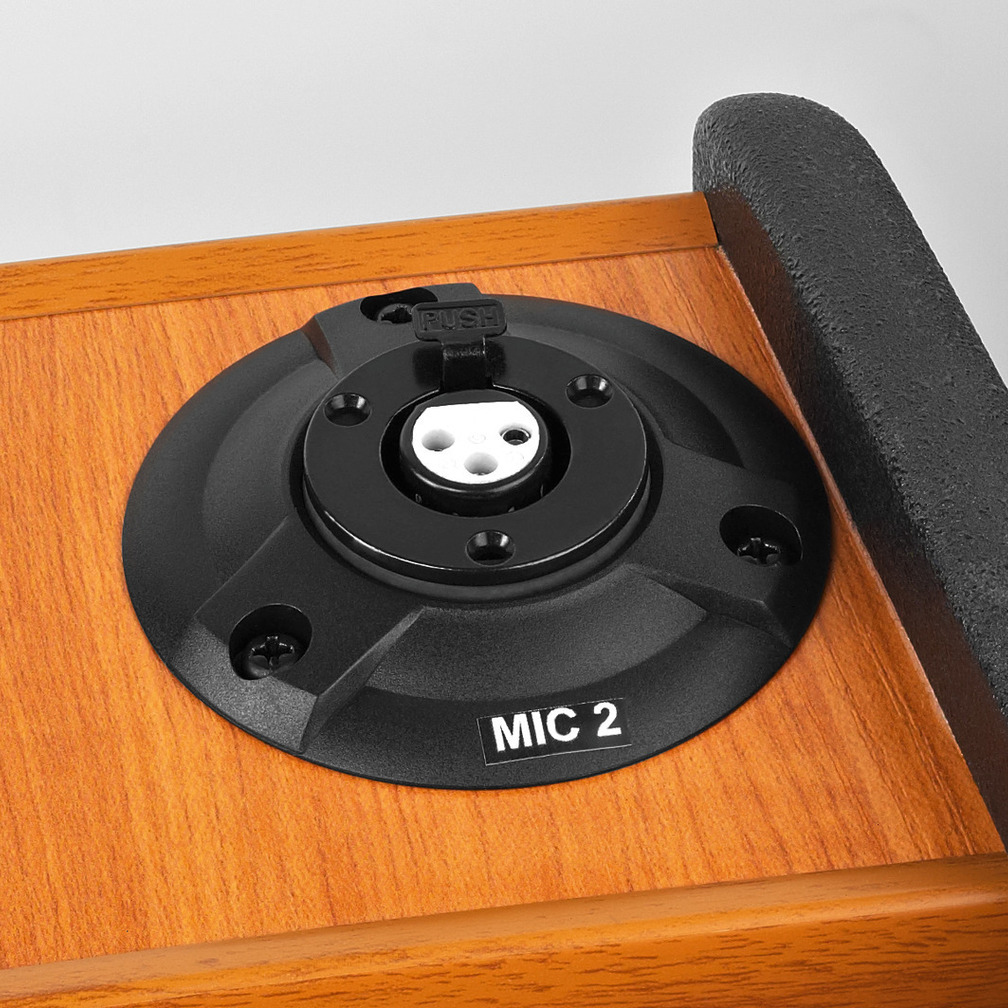

• 2 shock-absorbing XLR jacks on the top part of the lectern for 2 optional gooseneck microphones (use one microphone input each), with phantom power
• 1 stereo line output via RCA jacks
• 2-way speaker system

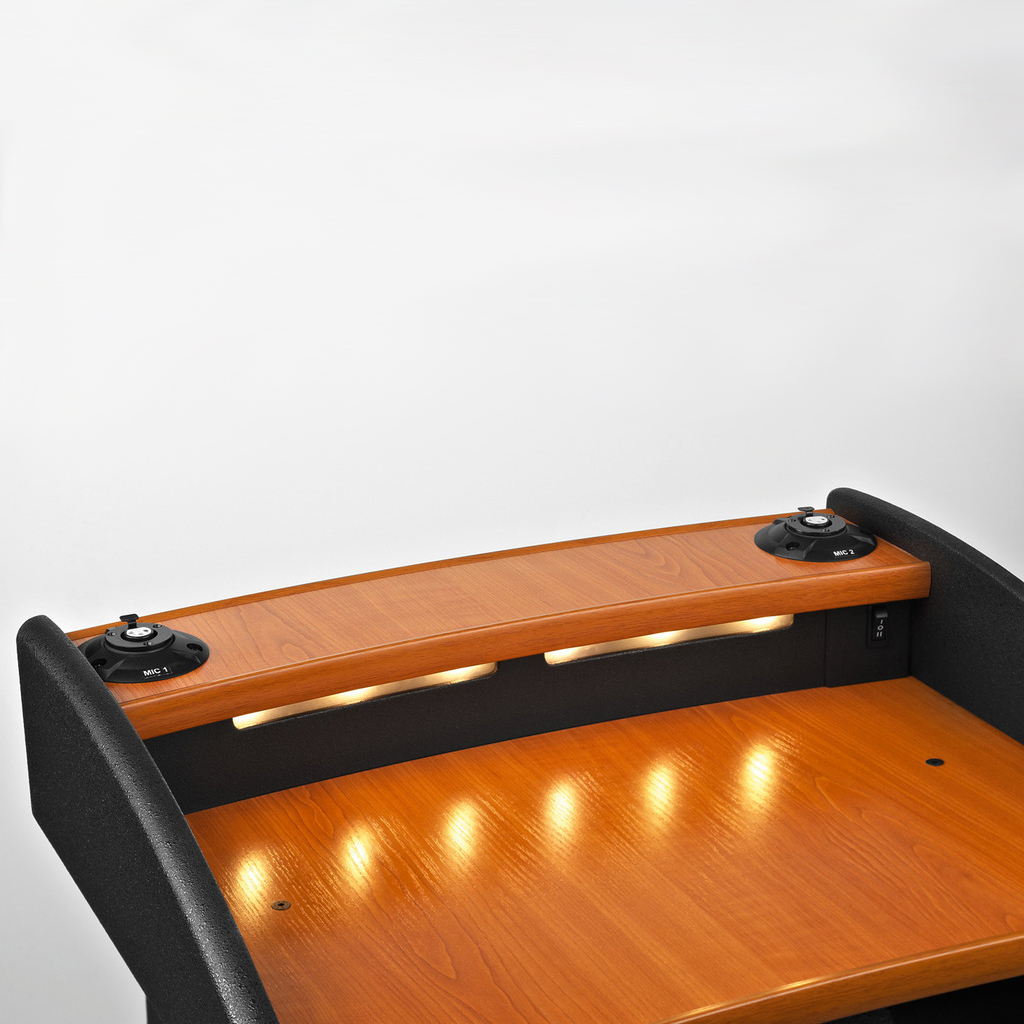

• Integrated light in the top part of the lectern
• Column with 2 document compartments and 2 storage compartments
• 2 castors
• Rated power (PRMS): 75 W
• Peak output power: 100 W
• Frequency range: 60-20,000 Hz
• Carrier frequency: 863.1-864.9 MHz
• Operating range: ≈ 25 m
• Inputs: 15 mV (mic 1), 5 mV (mic 2-3), 220 mV (line 1-3), 250 mV (line)
• Equalizer, bass: ±12 dB/60 Hz
• Equalizer, midrange: ±7 dB/1 kHz
• Equalizer, treble: ±12 dB/15 kHz
• Power supply: ˜ 230 V/50 Hz/180 VA
• Admissible ambient temperature: 0-40 °C
• Dimensions: 540 x 1140 x 430 mm
• Weight: 33 kg
• Connections: 3 x XLR (mic), 3 x 6.3 mm jack (line), 1 x RCA L/R (line in), 1 x RCA L/R (line out)

Supplied without gooseneck microphone and without gooseneck lamp. Matching microphone EMG-650P is available at option.

Licence-free in the EU

Matching TXA-800HT wireless microphone transmitters or TXA-800HSE pocket transmitters are optionally available

Not quite right for you?
Ask us to quote a custom PA sound system

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
