Chassis Speaker
Monacor SPH-165CP 6 ½" 80w RMS high-performance hi-fi bass-midrange speaker
SPH-165CP 6 ½" 80w RMS high-performance hi-fi bass-midrange speaker

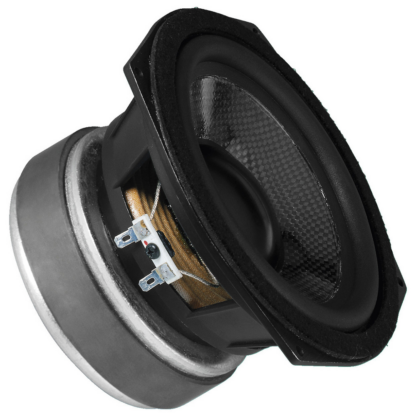

Monacor SPH-165CP Chassis Speaker

SKU: SPH-165CP

£102.00 + VAT    £122.40 incl. VAT

6.5″ 80w 8Ω bass-midrange speaker

In stock

Low Impedance 8 Ohms

PDF

Description

Monacor SPH-165CP 6 ½” 80w RMS high-performance hi-fi bass-midrange speaker

  • Impedance (Z): 8Ω
  • Resonant frequency (fs): 30Hz
  • Max. frequency range: f3-6,000Hz
  • Music power: 120w PPMO
  • Power rating (P): 80w RMS
  • SPL (1W/m): 89dB
  • Suspension compl. (Cms): 1.71mm/N
  • Moving mass (Mms): 17g
  • Mech. Q factor (Qms): 4.85
  • Electr. Q factor (Qes): 0.33
  • Total Q factor (Qts): 0.31
  • Equivalent volume (Vas): 38 litres
  • DC resistance (Re): 6Ω
  • Force factor (BxL): 7.6Tm
  • Voice coil induct. (Le): 0.7mH
  • Voice coil diameter: 50mm
  • Voice coil former: glass fibre
  • Linear excursion (XMAX): ±4.75mm
  • Eff. cone area (Sd): 127cm²
  • Magnet weight: 29.5+1.76oz.

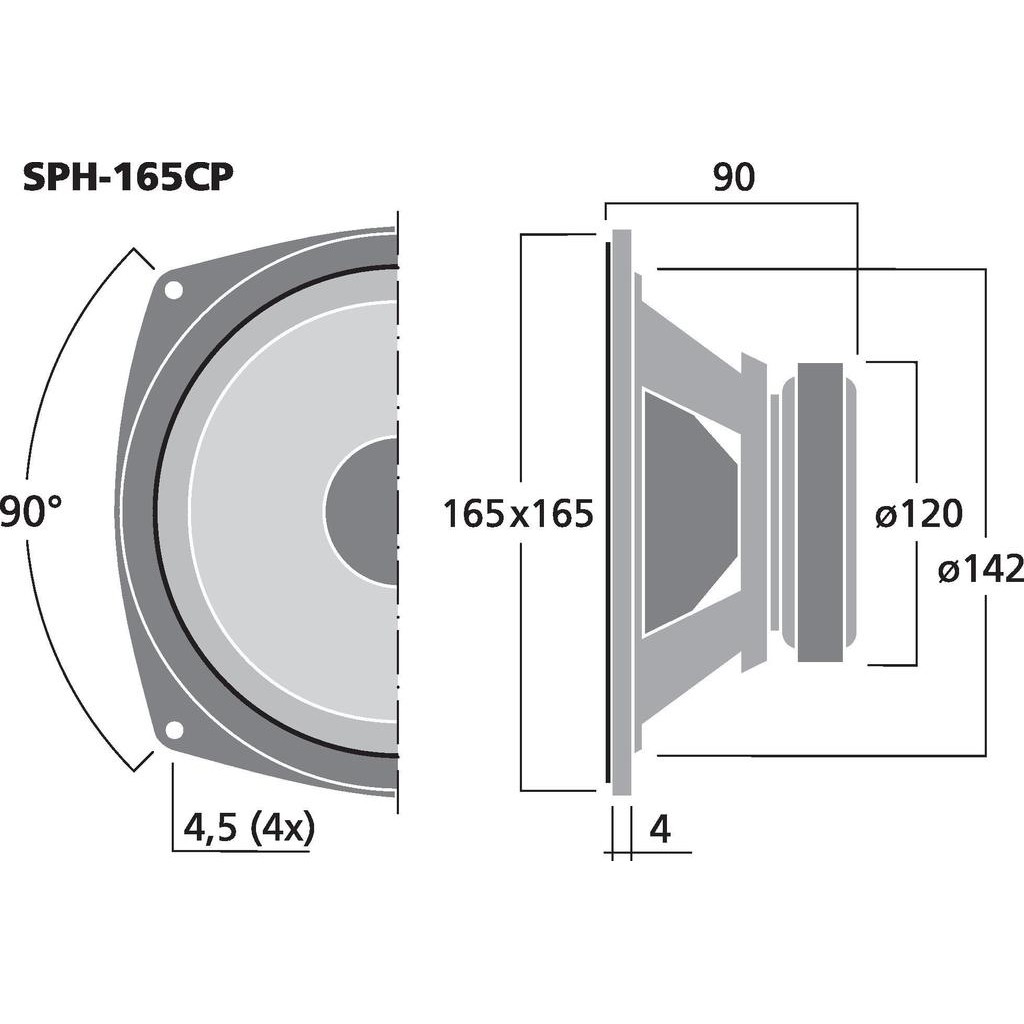

  • Dimensions: 165 x 165 x 90 mm
  • Width: 165 mm
  • Depth: 90 mm
  • Admissible ambient temperature: 0-40 °C
  • Weight: 2.57 kg

See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.

Additional information

Weight2.57 kg
Dimensions9 × 16.5 × 16.5 cm
Speaker Size

6 ½″

Condition

New

Colour

Black

Brand

Monacor

Monacor is one of Europe’s largest distributors of PA sound and lighting equipment. Monacor understand public address and sound reinforcement comprehensively and offer a diverse range of products for all commercial sound and lighting needs. In addition to classic sound systems for sound reinforcement such as music systems, amplifiers, loudspeakers, and mixing desks, the full portfolio also includes complex conference systems, accessories for voice alarm or mobile amplifier systems, as well as induction loop sound systems, 100v line PA and megaphones. Whether you want to bring sound to one person or thousands: Monacor has the right solution for you. Our professional and commercial sound products, wireless microphones and induction loops are carefully chosen for sale on our website by Sound Services – not everything from every manufacturer is there. Based on feedback, customer reviews and our own observations we list items that are popular, reliable and good value for money. If there are products not shown on our website that you feel we may be able to quote for, please just ask!

Magazine Reviews

HOBBY HiFi 04/2017
Requires 13 to 18 litres only. However, still provides an incredibly deep bass reproduction down to almost 30 Hz.
