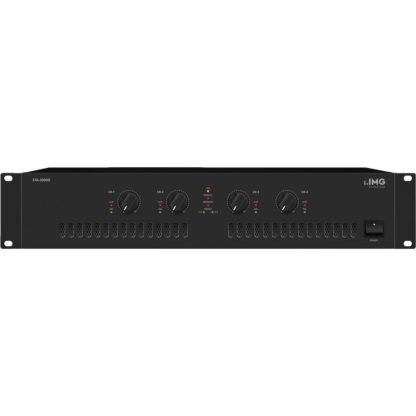

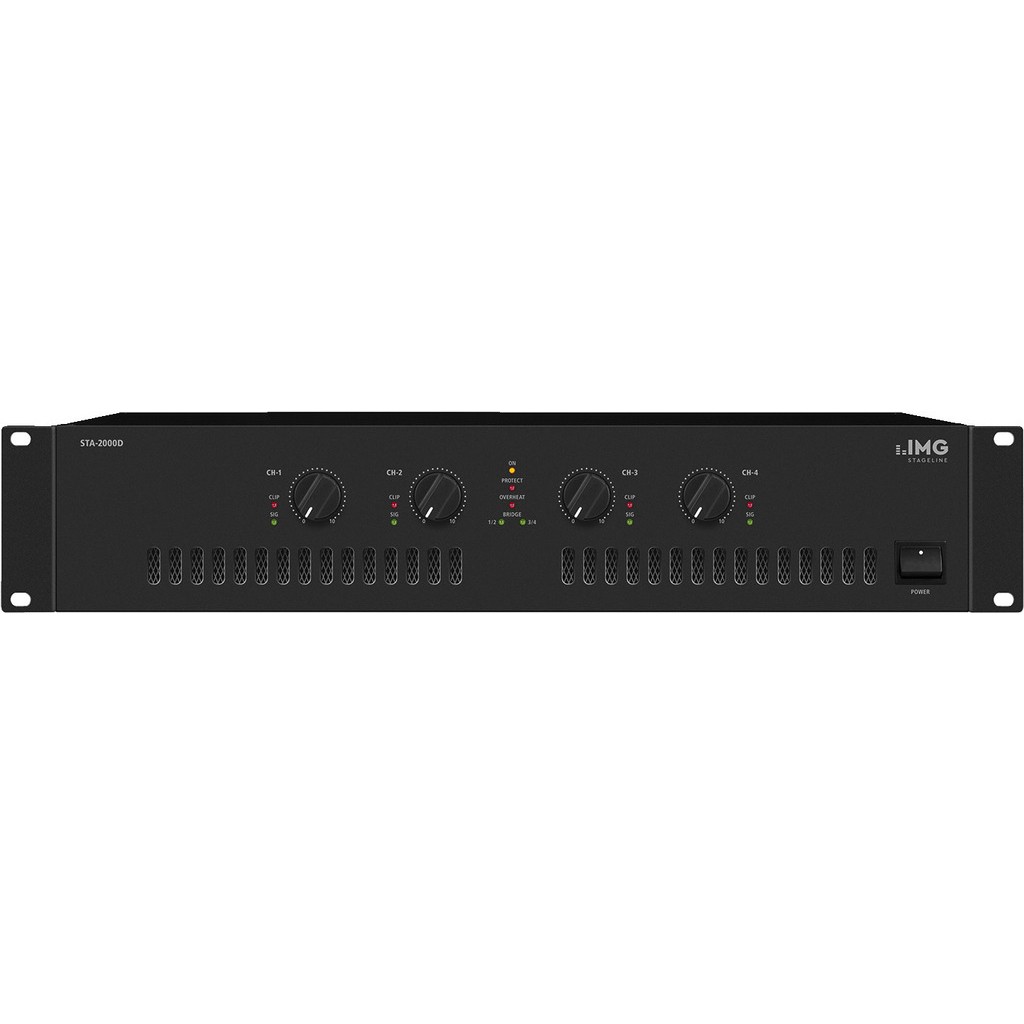

IMG Stageline STA-2000D Digital Quad Power Amplifier

The new generation of digital PA amplifiers from IMG Stageline impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.

• Class D concept with power amplifier modules from PASCAL
• Excellent acoustic performance
• Extra wide dynamic range with very low THD
• Excellent pulse response also in the bass range
• 482 mm (19″) rack installation, 2 RS
• 2 or 4 channels in bridged mode
• Silent operation due to temperature-controlled fans which are only activated if the temperature rises above 85 °C
• Lightweight design due to compact switch-mode PSU
• Energy-saving concept due to high efficiency
• 4 level controls
• Protected against short circuit, overtemperature, DC voltage at the output and overload
• LEDs for indicating power, signal, bridge, overload (clip), overheating and protect
• Bridged operation
• Wide mains voltage range: 85-265 V˜
• Neutrik Powercon and Speakon connections
• Power
  4 Ω: 4 x 500 WRMS, 4 x 580 WMAX
  8 Ω: 4 x 280 WRMS, 4 x 310 WMAX
  8 Ω bridged operation: 2 x 1,000 WRMS, 2 x 1,060 WMAX
  4 Ω bridged operation: 2 x 1,000 WRMS, 2 x 1,060 WMAX
• Max. power: 2,400 WMAX
• Inputs: 1 V/10 kΩ (XLR, balanced),
• 1 V/5 kΩ (RCA)
• Frequency range: 20-20,000 Hz
• S/N ratio: > 119 dB, A-weighted
• THD: < 0.05 %
• Power supply: 230 V˜/50 Hz/2,320 VA
• Admissible ambient temperature: 0-40 °C
• Dimensions: 482 x 335 x 89 mm, 2 RS
• Weight: 6.6 kg

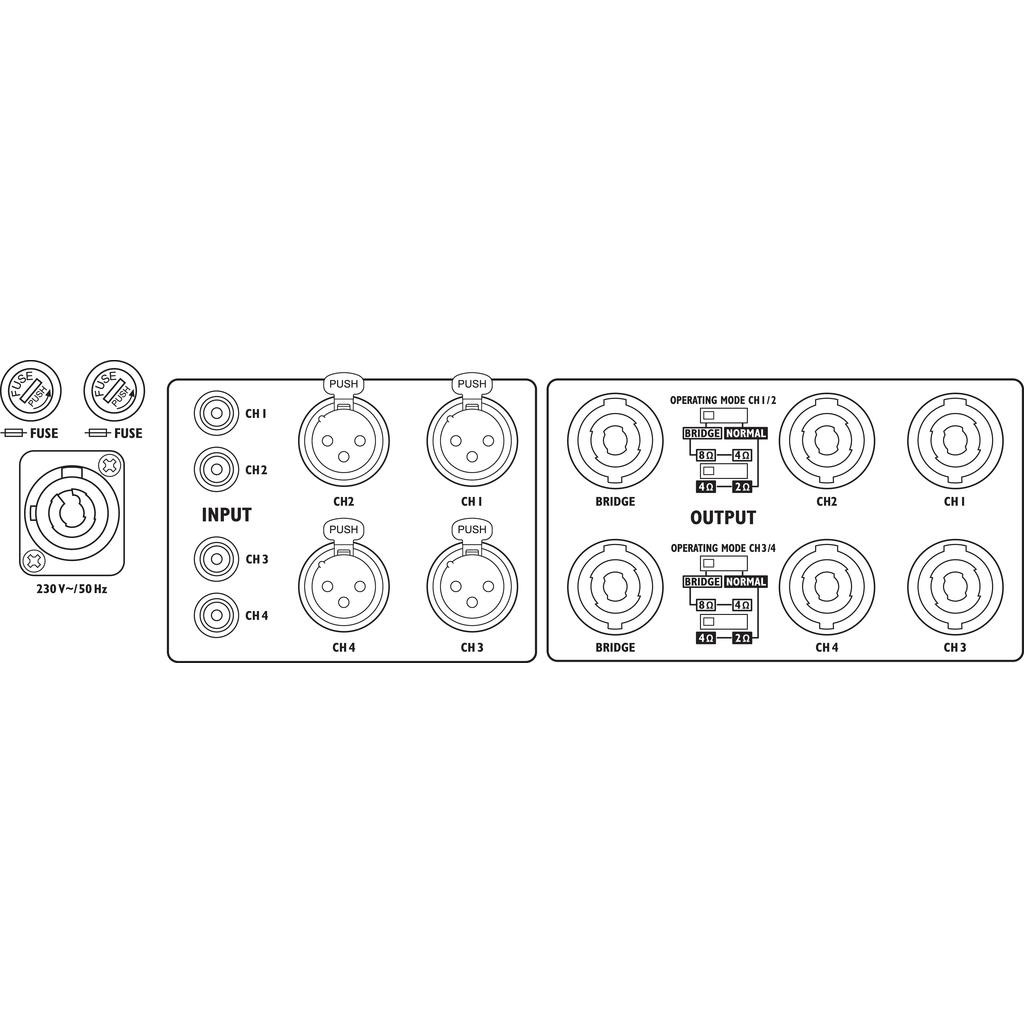

• Connections: 1 x Neutrik Powercon, 4 x 3-pole XLR, 4 x RCA, 4 x Neutrik Speakon, 2 x Neutrik Speakon bridge
