Description

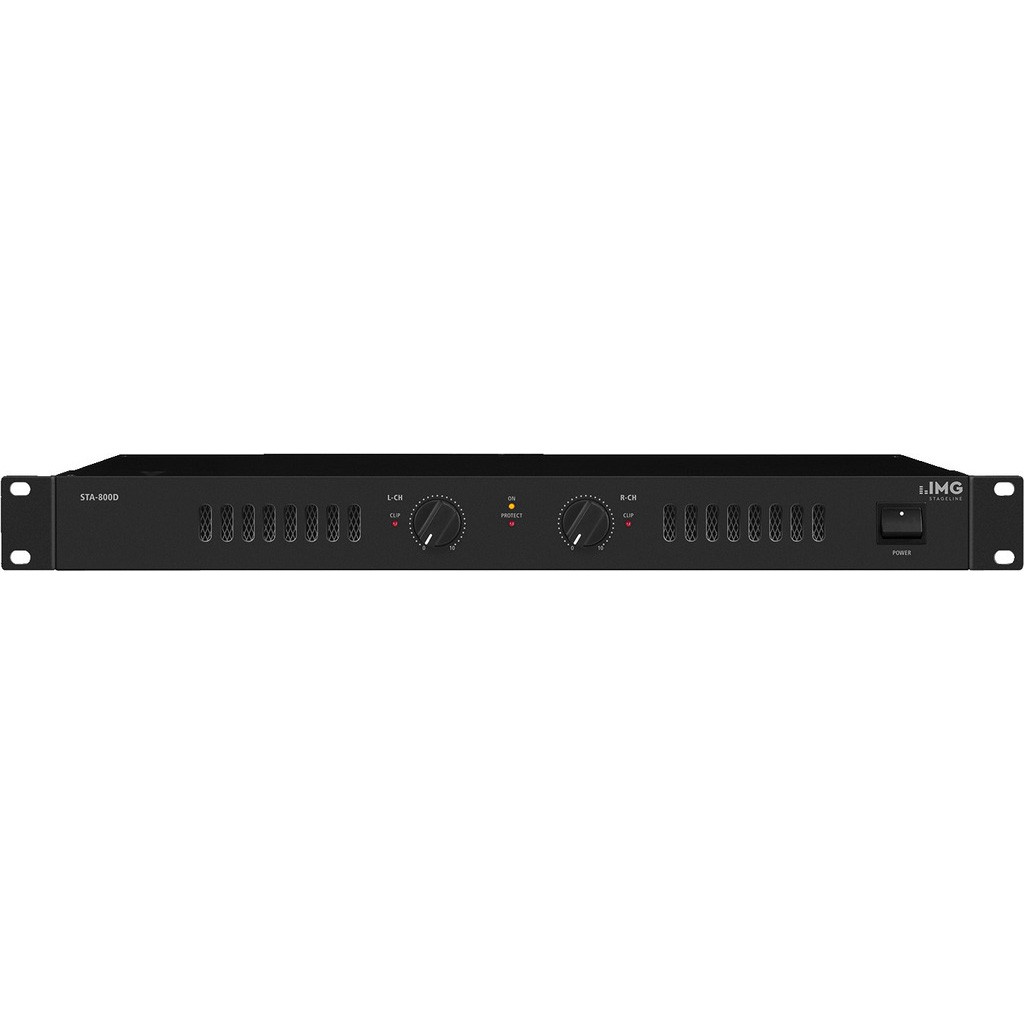

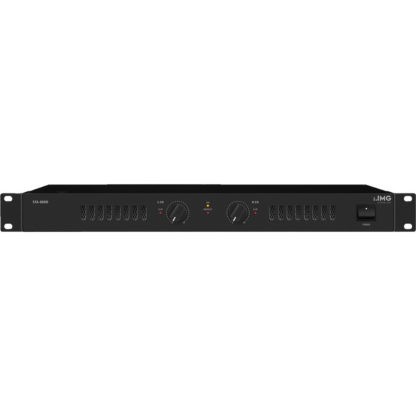

IMG Stageline STA-800D 210 + 210w digital stereo power amplifier
The new generation of digital PA amplifiers from IMG Stageline impresses with a high power capability and high energy efficiency. Other features include a silent operation and a low weight which make this series suitable for both fixed installations and mobile applications.
- Class D concept with power amplifier modules from HYPEX
- Silent operation due to temperature-controlled fans
- Lightweight design due to compact switch-mode PSU
- Energy-saving concept due to high efficiency
- High power reserves due to the application of two switch-mode PSUs
- Powerful bass reproduction due to large buffer capacitors (high power reserves)
- 2 level controls
- Protected against short circuit and overtemperature
- LEDs for indicating power, overload (clip) and protect
- Super slimline design
- Neutrik Speakon connections
- Power
4 Ω: 2 x 400 WRMS, 2 x 470 WMAX
8 Ω: 2 x 210 WRMS, 2 x 270 WMAX - Max. power: 1,000 WMAX
- Inputs: 1 V/10 kΩ (XLR, balanced), 1 V/4.7 kΩ (RCA)
- Frequency range: 20-20,000 Hz
- S/N ratio: > 110 dB, A-weighted
- THD: < 0.004 %
- Power supply: 230 V˜/50 Hz/920 VA
- Admissible ambient temperature: 0-40 °C
- Dimensions: 482 x 298 x 52 mm, 1 RS
- Weight: 3 kg

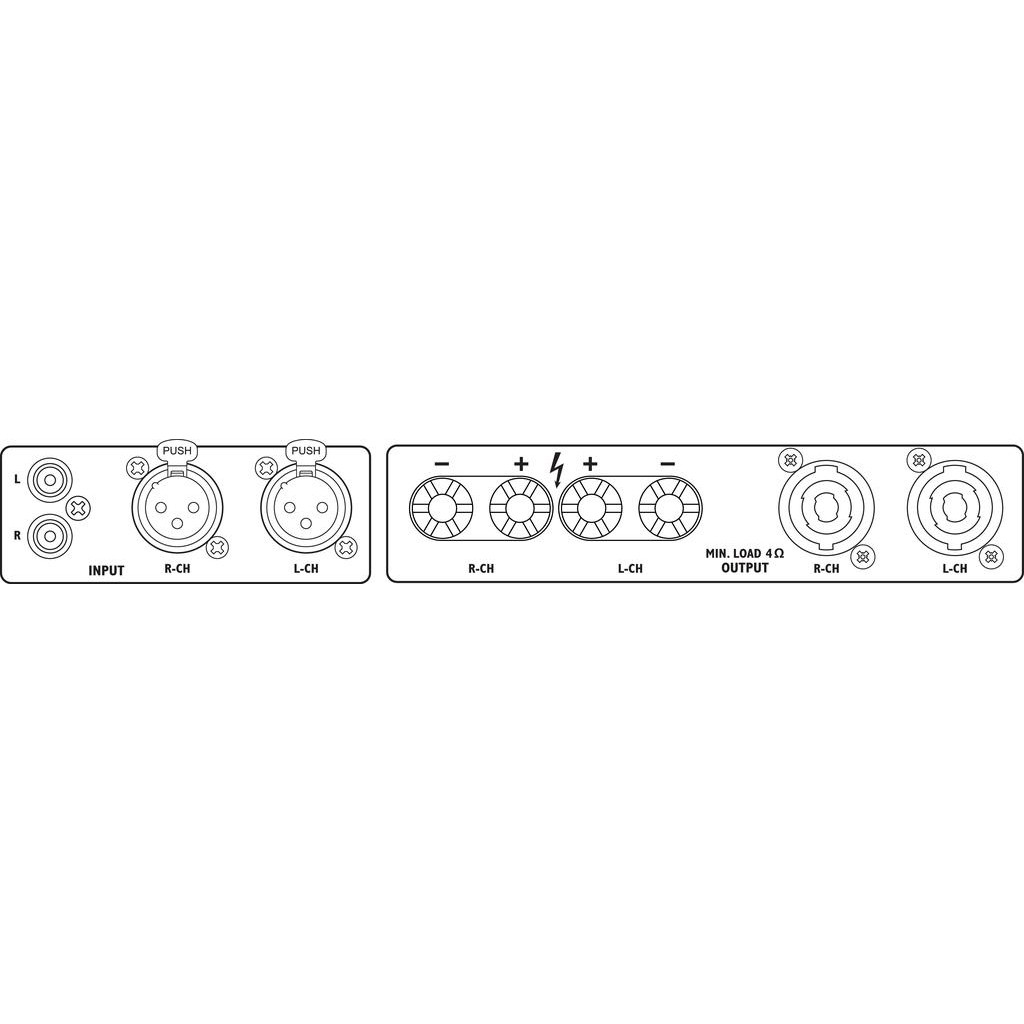

- Connections: 1 x 3-pin IEC jack, 1 x 3-pole XLR L/R, 1 x RCA L/R, 1 x Neutrik Speakon L/R, 2 x pair of screw terminals
See the ‘User Manuals’ tab on the left of this page – as manufacturers are making instruction sheets and user manuals available for download only and your purchase may not include a printed version.
